UL913 Certified Intrinsically Safe Two-Way DMR Radios

The Hytera PD702i UL913 Intrinsically Safe portable digital radio offers a vast array of functionality, with remarkable build quality, enabling reliable and secure communications in any situation. The IS housing makes it ideal for hazardous environments.

Effective Communication

Make better use of channel capacity with Hytera Dual-Slot Pseudo Trunking and compatible with XPT and DMR Tier III (licensed)

\

UL913 Intrinsically Safe

Intrinsically Safe housing for harsh environments, Dust and waterproof, rated IP67

\

GPS and Man Down

Available as Options

\

Simple, Intelligent Design

Easy to grab and communicate instantly, with a large push-to-talk (PTT) and programmable emergency button

\

Safer Workforce

Emergency button, priority interrupt and lone worker features are provided as standard

\

Functions

LONE WORKER

The lone worker feature uses a timer in the radio to measure inactivity. If the timer expires, a warning is issued, and if there is no response to that, the alarm is triggered.

GPS

Optional. Global Positioning System, enabling location based services to improve safety and control.

MAN DOWN

When a user falls down, the radio can automatically alert others.

RRS

In Smart Dispatch system or SmartOne Dispatch system, RRS is used to check if the radio is online.

Standard Accessories for PD702i UL913 DMR Radio

Antenna

AN0435H21

UHF/GPS Antenna (400-470MHz/1575MHz)

UHF Antenna, SMA connector, 400-470MHz, GPS 1575MHz, 9cm, with Hytera logo

Battery

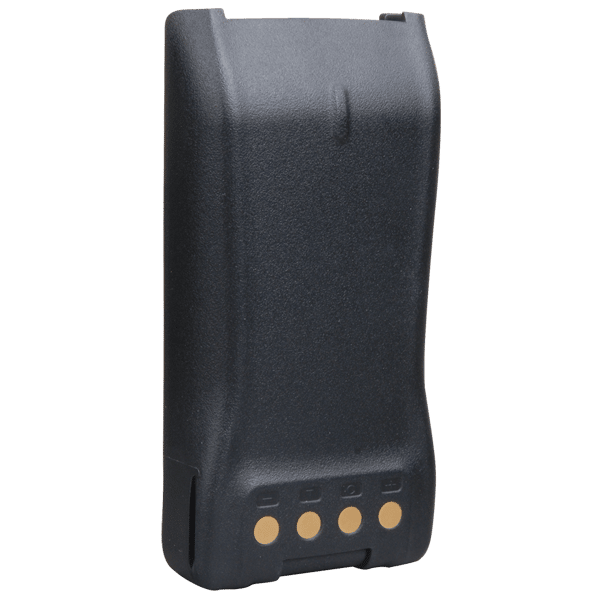

BL2411-Ex

Intrinsically Safe Battery UL913 (2400mAh)

Intrinsically Safe Battery UL913 with 15 hours operating time (2400mAh)

Carrying

RO04

Leather Wrist Strap

Leather wrist strap

BC19

Belt Clip

Plastic belt clip with a spring and metal bracket, can be secured to the radio using the screws supplied

Charger

PS1014

Standard Switching Power Adapter

Standard Switching Power Adapter 100-240VAC 12VDC/1A Hytera (RoHS) (for CH10A07 single charger)

CH10A07

MCU Rapid-Rate Charger

MCU rapid-rate charger for charging both Lithium-ion and NI-MH batteries

Optional Accessories for PD702i UL913 DMR Radio

Audio

SM18N2

Remote Speaker Microphone (IP67)

Reliable, robust and IP67 compliant remote speaker microphone with emergency call button and 3.5mm external earpiece jack.

ACN-01

PTT and MIC cable (for use with receive-only Earpiece)

IP54 compliant PTT button and microphone, supports VOX function and consists of 3.5mm jack socket enabling user to replace earbuds for comfort and hygiene purposes

ES-01

Earbud without Earpiece (Receive-Only)

Reliable and ergonomically designed earbud to be used with various base sets. 3.5mm jack plug.

EA-01

Earbud with Transparent Acoustic Tube (Receive-Only)

Reliable and ergonomically designed earpiece with transparent acoustic tube to be used with various base sets. 3.5mm jack plug.

EH-01

C-Style Earpiece (Receive-Only)

Ergonomically designed C-style earpiece (Receive only). 3.5mm jack plug.

EH-02

Swivel Style Earpiece (Receive-Only)

Ergonomically designed swivel earpiece (Receive only). 3.5mm jack plug.

EAN18

3-Wire Earpiece with Acoustic Tube, Microphone and PTT (Black)

3-wire earpiece with detachable acoustic tube, clip, separate PTT and microphone for discreet communication (Black)

ECN18

Noise Protection Headset

Heavy duty headset with microphone, offering noise protection with in-built speakers, protecting your hearing and allowing the user to operate the radio in noisy environments.

Battery

BL2411-Ex

Intrinsically Safe Battery UL913 (2400mAh)

Intrinsically Safe Battery UL913 with 15 hours operating time (2400mAh)

Carrying

BC19

Belt Clip

Plastic belt clip with a spring and metal bracket, can be secured to the radio using the screws supplied

RO03

Wrist Strap

Nylon wrist strap

LCY006

Leather Case with Swivel Belt Clip

Leather case delivering exceptional performance in wearability with D-type buckle and swivel belt clip

Charger

CH10A07

MCU Rapid-Rate Charger

MCU rapid-rate charger for charging both Lithium-ion and NI-MH batteries

CHV09

Vehicle Power Adapter

In the vehicle charging solution convenient for portable radio batteries.

POA59

Charging Unit

Charging unit provided for installation in MCA08 and MCA10 chargers

MCA08

Six-Unit Charger Including Power Adapter

Six-unit charger has the capacity to charge six batteries or portable radios simultaneously, whilst detecting the battery type and assigning the appropriate mode.

PS1014

Standard Switching Power Adapter

Standard Switching Power Adapter 100-240VAC 12VDC/1A Hytera (RoHS) (for CH10A07 single charger)

Installation

BRK20

Wall-Mount Installation Kit

Enables secure installation of the multi-charger onto the wall for convenience and easy accessibility

DMR Extended Warranty

DMR Extended Warranty

DMR Extended Warranty

Extended warranty adds 2 years to the standard 3 year Hytera DMR product warranty for a total of 5 years of warranty protection.

Systems that work with PD702i UL913 DMR Radio

Systems

XPT Extended Pseudo Trunk

Single-site and Multi-site Extended Pseudo Trunking (XPT)

DMR IP Site Connect

Connect Repeater Sites with IP Networks

DMR Tier III

Digital Radio Trunking Systems

SmartOne DMR Dispatch

Unified Communications and Dispatching

Hytera Bridge

PoC to DMR/Analog Radio Gateway

DMR Tier II Conventional

Hytera DMR Tier II Conventional Repeater Systems increase coverage, expand capacity, and improve signal quality

Technical Specifications

General

Frequency Range VHF: 136-174MHz; UHF1: 400-470MHz: UHF2: 450-520MHz; UHF3: 350-400MHz; 806-941MHz
Channel Capacity 256 (16 zones with 16 channels per zone)
Digital Protocol ETSI-TS 102 361-1,2 & 3
Battery Life (5-5-90 Duty Cycle) 2000mAh, Analog 10.5 hours, Digital 14 hours
Dimensions 4.92" x 2.16" x 1.37", 125 x 55 x 37mm
Weight 11.81 oz, 335g (2000mAh Li-Ion)
Display No
Keypad No
Programmable Buttons 3

Environmental

Dust & Water Intrusion IP67 Standard
Intrinsically Safe YES
Operating Temperature -30°C to +55°C
Humidity Per MIL-STD-810 C/D/E/F/G Standard
Vibration Per MIL-STD-810 C/D/E/F/G Standard
UL913 Rating Class I II III-Division 1, Group C-G, -30°C to 55°C T4 Class I Division 2, Group A-D

Features

RRS YES
Telemetry YES
Option Board YES
Radio Check YES (decode only)
Stun/Unstun YES (decode only)
Remote Monitor YES (decode only)
Priority Interrupt YES
Intelligent Audio YES
5 Tone Signalling YES
2 Tone Signalling YES
HDC1200 Signalling YES
Priority Scan YES
GPS SMS Optional
Digital Encryption Basic encryption as standard (10, 32 & 64 character keys). 40 bit Enhanced Encryption as Standard (latest firmware required). Advanced encryption (Hytera or DMRA 128-bit and 256-bit AES) available.
Multiple Key Encryption Decode YES
Multi-Language Menu No
Power on & off user logo programming No
Pseudo Trunking in DMO and RMO YES
Number of contacts (Conventional) Digital 1024; Analog 2-Tone 32; Analog HDC1200 N/A; Analog 5-Tone N/A
Number of Contacts (Trunking) Private Contacts 512; Group Contacts 2047
Text Messaging 256 characters (via Quick Text only)
Quick Text Messages Up to 25 pre-programmed via CPS
MPT1327 / 1343 Trunking YES
XPT Trunking YES
Tier 3 Trunking YES
Over-the-Air Programming Yes via SmartDispatch
