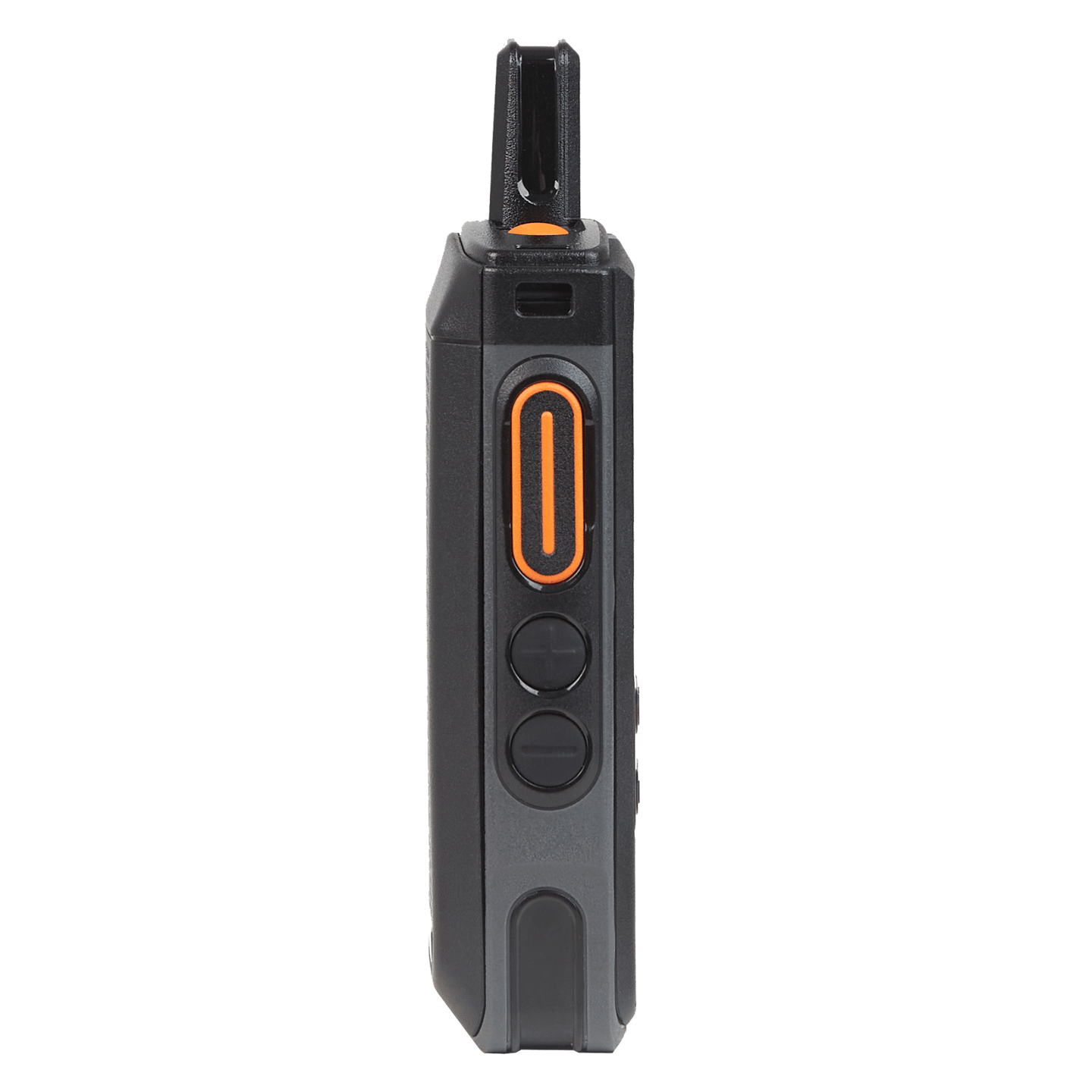

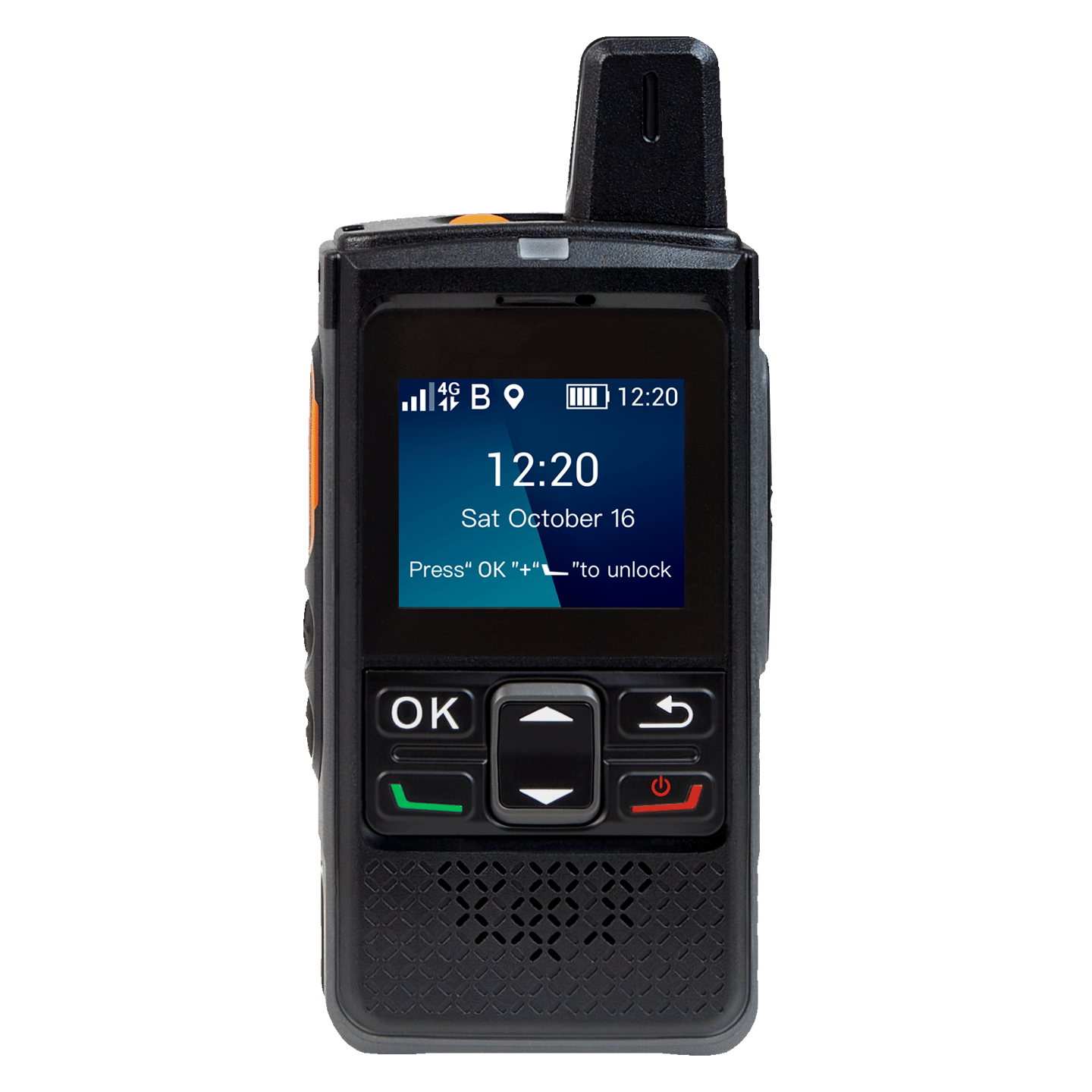

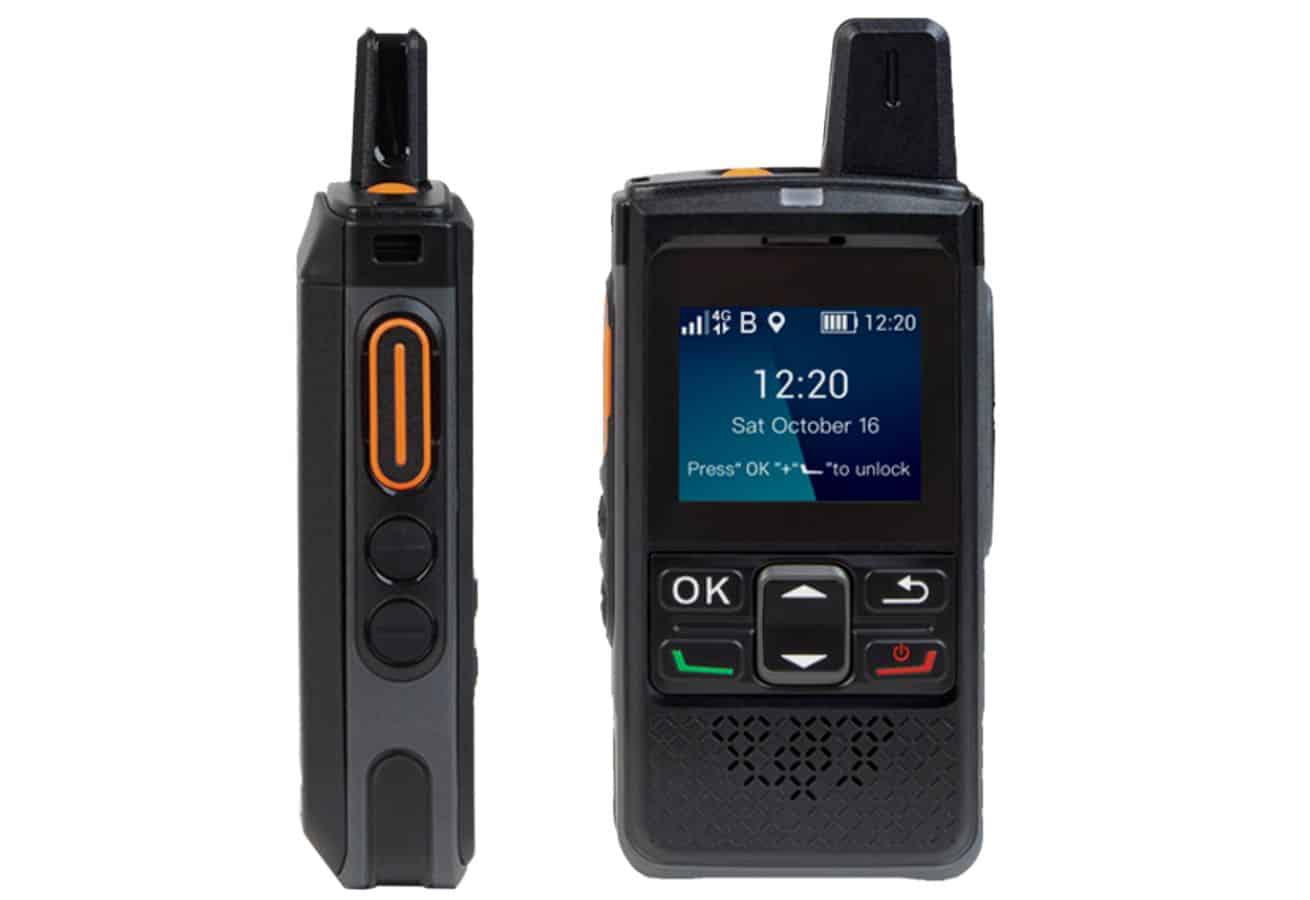

Ultra-Compact Push-to-Talk Over Cellular Radio

The PNC360S is an ultra-compact, rugged, and easy-to-operate push-to-talk radio that enables connectivity over 4G/LTE and Wi-Fi for wide-area radio communications. It is cost-effective, and surprisingly feature rich for the price. The compact size enables one-hand operation, and the PNC360 can be carried in pocket, worn on the standard belt clip, or worn on a lanyard. The PNC360S PoC radio is supported on Hytera Dispatch and can be deployed very quickly to deliver these features at a lower cost than traditional radio systems.

Nationwide Coverage with Wi-Fi and 4G/LTE Networks
Supported on the HORIZON Dispatching Application
Ultra Compact and Rugged Radios that are Easy to Use
Industry Leading Audio Quality with AI-Based Digital Noise Cancellation

The PNC360S enables Push-to-Talk over Cellular communications using existing 4G/5G/LTE Mobile Network Operator infrastructure and Wi-Fi networks. The PNC360S is supported on the HORIZON and Hytera HALO Nationwide PoC subscription platforms, and on the HORIZON Dispatch and Hytera HALO Dispatch web-based group communications and fleet tracking applications.

Data Sheet Owner's Manual Quick Start Guide

Functions

FLEXIBLE GROUP AND INDIVIDUAL CALLING

Enables instant half-duplex group calling (one caller speaks at a time) or full duplex individual calling (both callers speak at any time). Supports cross-enterprise group calls to any other company with HORIZON PoC service. Zones can be used to organize multiple call groups through the screen interface.

HIGH-QUALITY AUDIO

Provides industry-leading digital audio performance with AI-Based digital noise cancellation and high-volume speakers for excellent voice quality in loud environments. Adjustable microphone gain sensitivity feature allows users to adjust the radio settings so that they don’t have to speak directly into the microphone, for example, when the radio is being worn like a remote speaker microphone. Minimum call volume can enabled in the platform for all users to prevent muting audio and missing calls.

EMERGENCY AND SAFETY FEATURES

One-touch Emergency button enables emergency calls to dispatcher and sending alarms to other radios. Emergency alerts can be sent to a group of radios with an audible alarm and provides user ID to all receiving radios. Safety Alert function sends pre-recorded voice messages at predefined time intervals to remind remote users to check in or that a regular task is due.

NATIONWIDE COVERAGE

Nationwide workforce communication with mobile 4G/LTE connectivity supported by the Nano-SIM. Optional multi-carrier SIM supports three mobile carriers and switches over when a carrier’s signal is no longer present.

BUILT-IN WI-FI

Built-in Wi-Fi supports in-building communications with seamless switching to LTE networks when outside Wi-Fi range.

GPS POSITIONING

Enables real-time location tracking with the HORIZON Dispatch application.

BUILT-IN BLUETOOTH

Built-in Bluetooth enables connectivity to earpieces, Push-to-Talk rings, and other wireless accessories.

TFT LCD DISPLAY

The durable, scratch-resistant glass (not plastic) TFT LCD display provides high-resolution visibility even in bright daylight. Supports an easy-to-use GUI menu system with clean and simple navigation.

RELIABLE AND DURABLE

Compliant with MIL-STD-810-H for shock and vibration, and IP67 rated for water submersion and dust resistance.

LONG-LIFE BATTERY

Powerful 4000mAh Lithium Polymer battery delivers over 40 hours operation on a single charge. Supports fast charging within two hours.

TEXT MESSAGING

Receive and view text messages sent from the dispatcher and other Hytera PoC devices.

PRE-INSTALLED APPS

Android apps provide convenient PoC services.

STUN AND REVIVE

Dispatcher can remotely stun (disable) or revive (return to service) if the radio is lost or stolen

SECURE COMMUNICATIONS

Supports AES128/256, ARC4, SM4, and Quantum encryption algorithms for secure and private communications.

Standard Accessories for PNC360S PoC Radio

Battery

BP4008 Lithium-Polymer Smart Battery

High-Capacity Lithium-Polymer Battery The Hytera BP4008...

LTE	FDD-LTE：B2/B3/B4/B5/B7/B12/B13/B17/B26/B28 TDD-LTE：B38/B41 WCDMA：B2/B4/B5 GSM：850/900/1800/1900
Wi-Fi	2.4GHz 802.11b/g/n
Bluetooth	BT 4.2
Positioning System	GPS/Galileo/AGPS

Operating Temperature	-4°F to +140°F (-20°C to +60°C)
Storage Temperature	-22°F to +158°F (-30°C to +70°C)
ESD	IEC 61000-4-2 (Level 4) ±8kV Contact, ±12kV Air
Dust and Water Ingress	IP67 Standard
Humidity	MIL-STD-810 H Certified
Shock and Vibration	Per MIL-STD-810 H Certified. Drop Proof to 1.2 meters

Battery	4000mAh Lithium Polymer
Battery Life (10/10/80)	Up to 48 Hours
Weight	6.7oz (190g) Including Belt Clip
Dimensions (H x W x D)	4 3/32” x 2 3/16” x 1 1/16”(104 x 55 x 27mm)
Operating System	Android 7.0
Memory	1GB RAM + 8GB ROM
Card Slot	Nano-SIM
Display	1 3/4” TFT LCD Non-touch screen display, 160x128
Speaker Power	2W (rated), 3W (max)
External Interface Ports	USB Type C Charging Port, 3.5mm Audio Interface
Positioning	GPS/Galileo/AGPS
