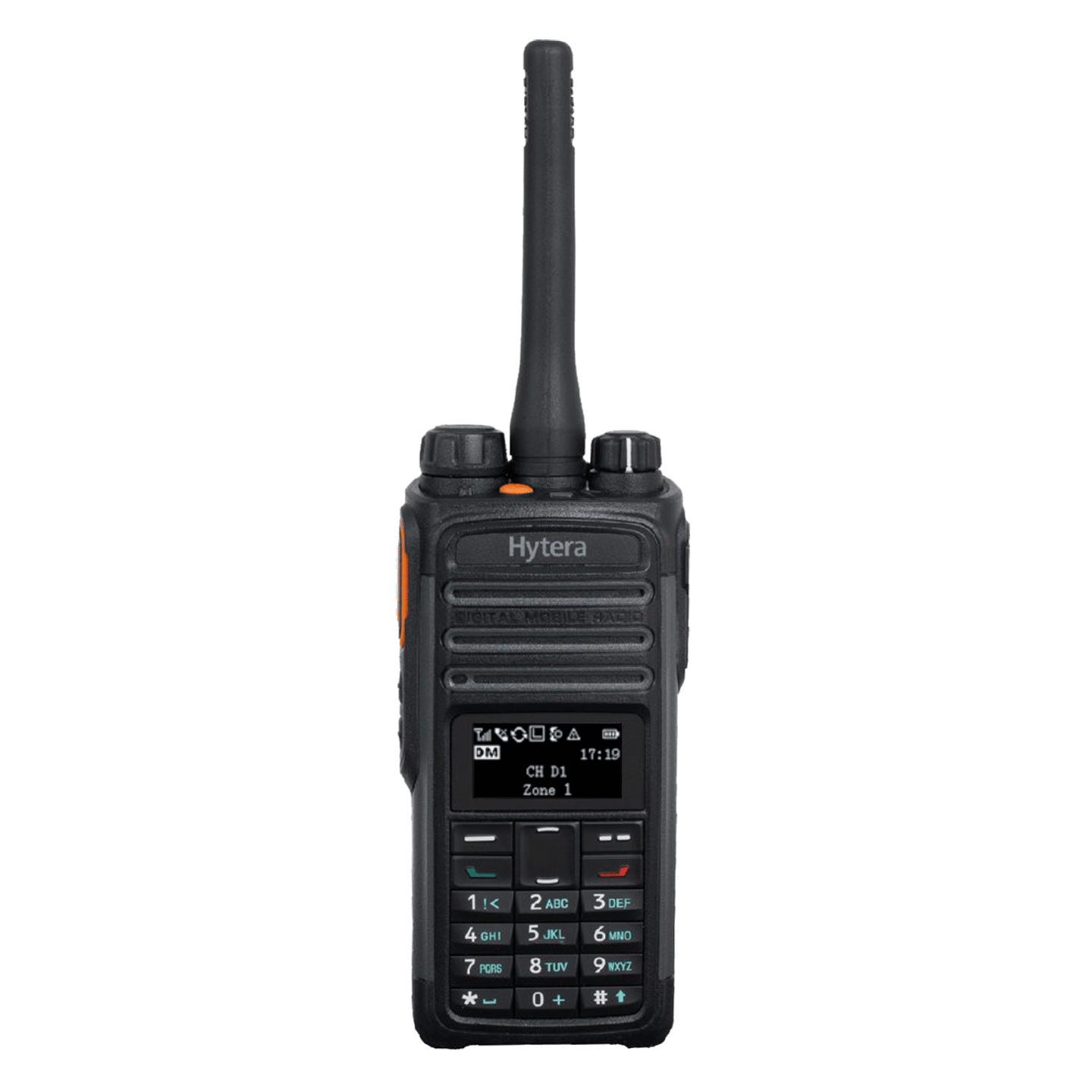

Commercial UHF and VHF Two-Way DMR Radios with LCD Display and Optional Bluetooth and GPS
The PD482i is a cost-effective two-way radio with advanced features:
- Functions in digital and analog modes in radio-to-radio calls, or with any Hytera repeater or base station
- Rugged and ergonomic design with a full keypad, high contrast OLED screen, and programmable buttons
- Built-in GPS and Bluetooth, emergency calls, and voice-activated communications (VOX)
- Supports Tier II radio networks, pseudo trunking, and Radio Registration Service for connectivity to dispatch applications

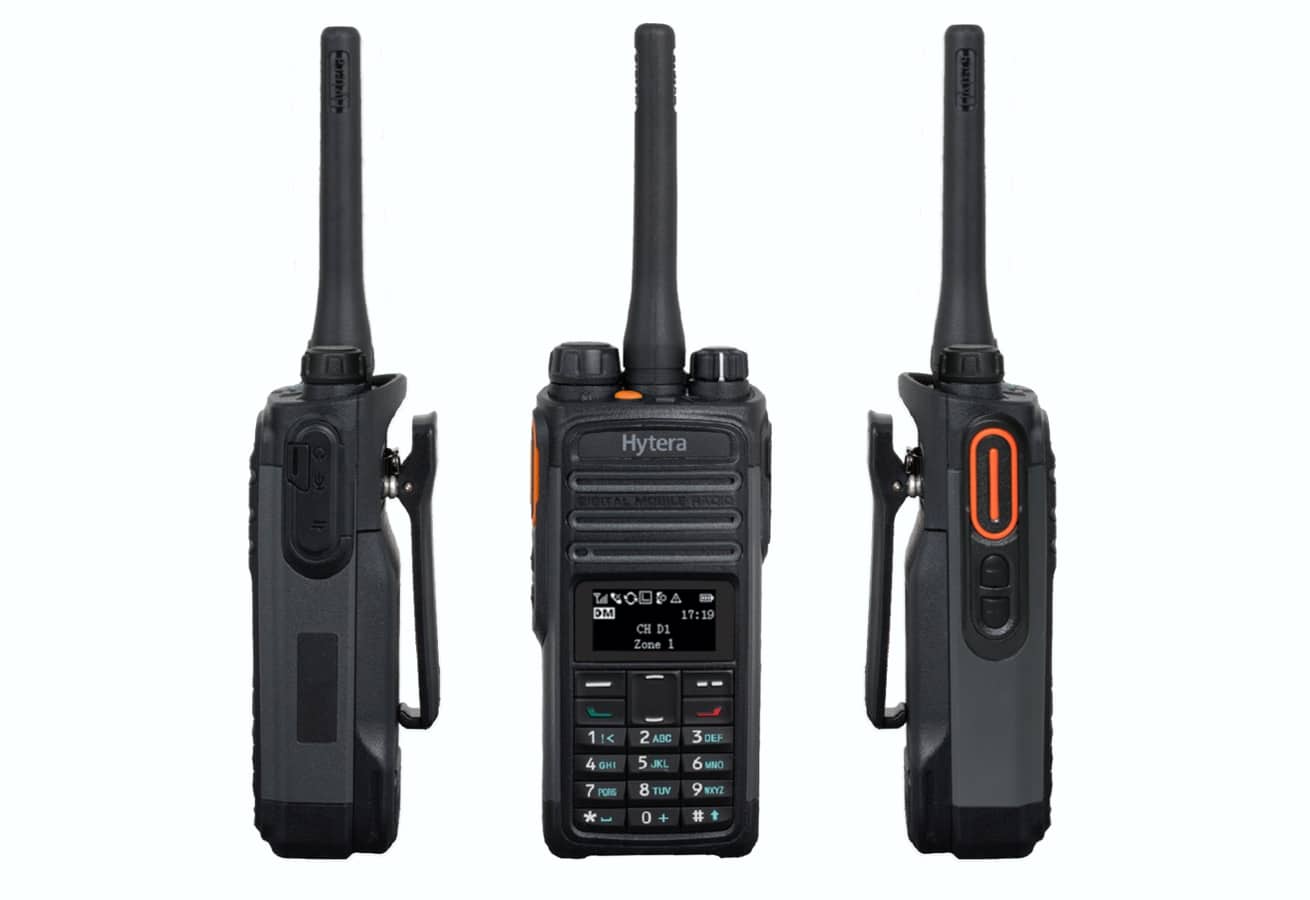

AUDIO JACK
MICRO USB PORT
LONG-LIFE BATTERY
IP54 RATED
ROTATING CHANNEL CONTROL
EMERGENCY BUTTON
CLEAR AUDIO
OLED DISPLAY
FULL KEYPAD
PUSH-TO-TALK BUTTON
PROGRAMMABLE BUTTONS
BUILT-IN GPS
BUILT-IN BLUETOOTH
Functions
EMERGENCY ALARMS AND CALLING
Emergency Alarms can be sent to other radios via the one touch programmable button
ANALOG & DIGITAL AUTO DETECT
Simultaneously monitors analog and digital modes and automatically responds in each mode
ENCRYPTION
Ensures private and secure voice and data transmission
REAL TIME CLOCK
Real-time display, call logs, GPS synchronization, and messaging
TEXT MESSAGING
Free-form text messaging with full keypad. Stores up to ten pre-dedefined text messages
GPS POSITIONING
The built-in GPS enables real-time location tracking for dispatch applications (only on PD482i-G-BT models)
BLUETOOTH
Built-in Bluetooth enables connectivity to earpieces and other wireless accessories (only on PD482i-G-BT models)
VOX
Voice activated communications (VOX) activates the microphone by speaking to enable hands-free operatio. Also supported on external earpiece and microphone accessories
ROAMING
Allows radios to seamlessly move between connected repeaters with uninterrupted voice transmission
PSEUDO TRUNK
This virtual trunking feature automatically uses whichever digital timeslot is free to improve call connectivity and frequency efficiency
RADIO REGISTRATION SERVICE
RRS allows the PD482i to communicate with dispatch and unified communications applications
ERGONOMIC AND EASY TO USE
Tactile buttons for no-look PTT and emergency calling
HIGH QUALITY AUDIO
Audio equalizer adjusts low, mid, and high frequency gain. Provides the best audio performance in noisy or quiet environments
LONG-LIFE BATTERY
Powerful Li-Ion 2000mAh battery delivers up to 22 hours of operation in digital mode and 16 hours in analog mode
RELIABLE AND DURABLE
ompliant with MIL-STD-810 G for impact strength and durability, and IP54 water and dust ingress
UPGRADE FEATURES (Optional)
PRIORITY INTERRUPT
Priority Interrupt allows dispatcher to interrupt existing calls with important emergency information
STUN/REVIVE
Stun/Revive enables dispatch and other users to disable/enable a radio if it is stolen, lost, or used maliciously
REMOTE MONITOR
Remote Monitor allows dispatcher to key the PTT button and listen in an emergency situation
Standard Accessories for PD482i DMR Two-Way Radio
Antenna
AN0153H12
VHF/GPS Antenna (147-160MHz/1575MHz)
VHF stubby Antenna, SMA connector, 147-160MHz, GPS 1575MHz, 17cm, with Hytera logo
Battery
BL2010
Lithium-Ion Battery (2000mAh)
Li-ion battery with 20 hours operating time (2000mAh)
Carrying
RO03
Wrist Strap
Nylon wrist strap
BC08
Belt Clip
Plastic belt clip with a spring and metal bracket
Charger
PS1014
Standard Switching Power Adapter
Standard Switching Power Adapter 100-240VAC 12VDC/1A Hytera (RoHS) (for CH10A07 single charger)
CH10A07
MCU Rapid-Rate Charger
MCU rapid-rate charger for charging both Lithium-ion and NI-MH batteries
Optional Accessories for PD482i DMR Two-Way Radio
Audio
SM08M3
Remote Speaker Microphone With 3.5mm Audio Jack and Swivel Clip
Compact designed remote speaker microphone with 3.5mm audio jack (for use with receive-only earpiece) and 360 degree swivel metal clip.
SM26M1
Remote Speaker Microphone (without emergency button)
Small, light and IP54 compliant remote speaker microphone with 2.5mm external audio connector.
ESM12
Earbud with In-line PTT and Microphone (Black)
Earbud (without earpiece) with VOX capability and in-line PTT microphone ensures convenient and reliable communications (Black)
EHM15-A
D-Style Earpiece with In-line PTT and Microphone (Black)
D-style earpiece with in-line PTT and microphone ideal for covert communications (Black)
ACM-01
PTT & MIC Water Proof Cable (for use with receive-only Earpiece)
IP54 compliant base set with PTT button and microphone can be used with a range of Hytera earbuds. The 3.5mm jack enables the replaced earbud to be connected directly to the ACM-01.
ES-01
Earbud without Earpiece (Receive-Only)
Reliable and ergonomically designed earbud to be used with various base sets. 3.5mm jack plug.
EA-01
Earbud with Transparent Acoustic Tube (Receive-Only)
Reliable and ergonomically designed earpiece with transparent acoustic tube to be used with various base sets. 3.5mm jack plug.
EH-01
C-Style Earpiece (Receive-Only)
Ergonomically designed C-style earpiece (Receive only). 3.5mm jack plug.
EH-02
Swivel Style Earpiece (Receive-Only)
Ergonomically designed swivel earpiece (Receive only). 3.5mm jack plug.
EHS17
Swivel Style Earpiece (Receive Only)
Ergonomically designed swivel earpiece (Receive only). 2.5mm jack plug.
EHS18
C-Style Earpiece (Receive Only)
Ergonomically designed C-style earpiece (Receive only). 2.5mm jack plug.
EAS03
Receive-Only Transparent Acoustic Tube Earpiece
Receive-Only Transparent Acoustic Tube Earpiece
ESW01
Bluetooth Earpiece with charger(requires PS1030 power adapter)
Bluetooth Earpiece with charger(requires PS1030 power adapter)
POA107
Charging adapter for wireless earpiece (ESW01)
The POA107 compact charger allows charging of the wireless headset ESW01 using a micro USB cable, this is an alternative charging solution for the ADN-01 or ADN-02.
POA121
Bluetooth Ring PTT
The wireless PTT ring is designed for finger wearing and allows you to trigger PTT functions without holding a portable radio in your hands.
Antenna
AN0435H13
UHF Antenna (400-470MHz)
UHF Stubby Antenna, SMA connector, 400-470MHz, 9cm, with Hytera logo
AN0435W09
UHF Antenna (400-470MHz)
UHF Whip Antenna, SMA connector, 400-470MHz, 16cm
AN0460W19
UHF Antenna (440-470MHz)
UHF Long and fine antenna SMA connector 440-470MHz
AN0495W04
UHF Antenna (470-520MHz)
UHF Whip Antenna, SMA connector, 470-520MHz, 16cm
AN0141H07
VHF/GPS Antenna (136-147MHz/1575MHz)
VHF Stubby Antenna, SMA connector,136-147MHz, GPS 1575MHz, 12cm, with Hytera logo
AN0153H08
VHF/GPS Antenna (147-160MHz/1575MHz)
VHF Stubby Antenna, SMA connector,147-160MHz, GPS 1575MHz, 12cm, with Hytera logo
AN0167H07
VHF/GPS Antenna (160-174MHz/1575MHz)
VHF Stubby Antenna, SMA connector,160-174MHz, GPS 1575MHz, 12cm, with Hytera logo
AN0160H13
VHF Antenna (146-174MHz)
VHF Antenna, SMA connector, 146-174MHz, 15cm, no logo
AN0141H06
VHF Antenna (136-147MHz)
VHF Antenna, SMA connector, 136-147MHz, 17cm, with Hytera logo
AN0153H07
VHF Antenna (147-160MHz)
VHF Stout Long Antenna, SMA connector, 147-160MHz, 17cm, with Hytera logo
AN0167H06
VHF Antenna (160-174MHz)
VHF Stout Long Antenna, SMA connector, 160-174MHz, 17cm, with Hytera logo
AN0155H08
VHF/GPS Antenna (136-174MHz/1575MHz)
VHF Stout Long Antenna, SMA connector, 136-174MHz, GPS 1575MHz, 20cm, with Hytera logo
Battery
BP1503
Lithium polymer (1500mAh)
Lithium polymer (1500mAh)
BL2010
Lithium-Ion Battery (2000mAh)
Li-ion battery with 20 hours operating time (2000mAh)
Carrying
BC08
Belt Clip
Plastic belt clip with a spring and metal bracket
RO03
Wrist Strap
Nylon wrist strap
BC19
Belt Clip
Plastic belt clip with a spring and metal bracket, can be secured to the radio using the screws supplied
NCN011
Nylon Carrying Case
Nylon carrying case with half-open design and back-lock belt loop for easy installation
PCN006
Waterproof Bag
Waterproof Bag
Charger
CH10A07
MCU Rapid-Rate Charger
MCU rapid-rate charger for charging both Lithium-ion and NI-MH batteries
CHV09
Vehicle Power Adapter
In the vehicle charging solution convenient for portable radio batteries.
POA59
Charging Unit
Charging unit provided for installation in MCA08 and MCA10 chargers
MCA08
Six-Unit Charger Including Power Adapter
Six-unit charger has the capacity to charge six batteries or portable radios simultaneously, whilst detecting the battery type and assigning the appropriate mode.
PS1014
Standard Switching Power Adapter
Standard Switching Power Adapter 100-240VAC 12VDC/1A Hytera (RoHS) (for CH10A07 single charger)
PS1030
Power Adapter (Micro USB)
Power adapter (Micro USB) for PD3 series enables hassle free charging via PC or laptop
Installation
BRK20
Wall-Mount Installation Kit
Enables secure installation of the multi-charger onto the wall for convenience and easy accessibility
Programming
PC76
Data programming cable
Data Programming Cable (USB Port)
DMR Extended Warranty
DMR Extended Warranty
DMR Extended Warranty
Extended warranty adds 2 years to the standard 3 year Hytera DMR product warranty for a total of 5 years of warranty protection.
Systems that work with PD482i DMR Two-Way Radio
Systems
SmartOne DMR Dispatch
Unified Communications and Dispatching
Hytera Bridge
PoC to DMR/Analog Radio Gateway
DMR Tier II Conventional Repeaters
Increase coverage, expand capacity, and improve signal quality
DMR IP Site Connect
Connect Repeater Sites with IP Networks
Technical Specifications
| Frequency Range | UHF: 350-470MHz VHF: 136-174MHz |
| Channel Capacity | 256 Channels (128 Analog, 128 Digital) |
| Zone Capacity | 16 Zones with 16 Channels per Zone |
| Channel Spacing | Analog: 12.5kHz / 20KHz / 25KHz Digital: 12.5kHz |
| Operational Voltage | 7.4W |
| Battery | 2000mAh (Li-Ion) Standard, 1500mAh Optional |
| Battery Life (5/5/90) | 22 hours Digital, 16 Analog (Standard 2000mAh) 16 hours Digital, 11 Analog (Optional 1500mAh) |
| Weight | 10.86oz (308g) |
| Dimensions | 4 5/8” x 2 5/32” x 1 15/32” (117 x 55 x 37mm) |
| Frequency Stability | ± 0.5ppm |
| Antenna Impedance | 50Ω |
| TTFF (Time to First Fix) Cold Start | <50 Seconds |
| TTFF (Time to First Fix) Hot Start | <5 Seconds |
| Horizontal Accuracy | <10 meters |
| Digital Sensitivity | 0.22µV (BER 5%) |
| Analog Sensitivity | 0.22µV (Typical) (12dB SINAD) 0.4µV (20dB SINAD) 0.22µV (12dB SINAD) |
| Adjacent Selectivity | TIA-603: 60dB @ 12.5kHz, 70dB @ 25kHz ETSI: 60dB @ 12.5kHz, 70dB @ 25kHz |
| Spurious Response Rejection | TIA-603: 70dB @ 12.5/25kHz ETSI: 70dB @ 12.5/25kHz |
| Intermodulation | TIA-603: 70dB @ 12.5/25kHz ETSI: 65dB @ 12.5/25kHz |
| Hum and Noise | 40dB @ 12.5kHz, 45dB @ 25kHz |
| Rated Audio Power Output | 0.5W |
| Rated Audio Distortion | ≤3% |
| Audio Response | +1 to -3dB |
| Conducted | <-57dBm |
| RF Power Output | VHF High Power: 5W, VHF Low Power: 1W UHF High Power: 4W, UHF Low Power: 1W |
| FM Modulation | 11K0F3E @ 12.5kHz 16K0F3E @ 25kHz |
| 4FSK Digital Modulation | 12.5kHz Data Only: 7K60FXD 12.5kHz Data and Voice: 7K60FXW |
| Conducted/Radiated Emission | -36dBm 1GHz |
| Modulation Limiting | ±2.5kHz @ 12.5kHz |
| FM Hum and Noise | 40dB @ 12.5kHz, 45dB @ 25kHz |
| Adjacent Channel Power | 60dB @ 12.5kHz, 70dB @ 25kHz |
| Audio Response | +1 to -3dB |
| Audio Distortion | ≤3% |
| Digital Vocoder Type | AMBE++ |
| Digital Protocol | ETSI-TS102 361-1,-2,-3 |
| Operating Temperature | -22oF to +140oF (-30oC to +60oC) |
| Storage Temperature | -40oF to +185oF (-40oC to +85oC) |
| ESD | IEC 61000-4-2 (Level 4)±8kV Contact, ±15kV Air |
| Dust and Water Ingress | IP54 Standard |
| Humidity | Per MIL-STD-810 C/D/E/F/G Standard |
| Shock and Vibration | Per MIL-STD-810 C/D/E/F/G Standard |
| PD482i-G-BT-Uv | UHF 350-470MHz (Antenna 400-470), 256CH, 4W, GPS, Bluetooth |
| PD482i-G-BT-V1 | VHF 136-174MHz (Antenna 147-160 ), 256CH, 1-5W, GPS, Bluetooth |
| PD482i-Uv | UHF 350-470MHz (Antenna 400-470) 256CH, 4W |
| PD482i-V1 | VHF 136-174MHz (Antenna 147-160) 256CH, 1-5W |
