AT&T Network Approved PTT over Cellular Radio
The Hytera PNC380S PoC device is a compact, rugged, and easy-to-operate handheld radio that utilizes Wi-Fi and existing nationwide 4G/LTE cellular networks for unlimited coverage and capacity. The PNC380S is designed for reliable business communications with instant group calling in the vehicle and on the job site. It is built based on an AT&T Certified LTE Module and has T-Mobile IoT Network Certification. The PNC380S can be quickly deployed without the significant infrastructure costs of traditional radio systems.
- Nationwide coverage with Wi-Fi and 3G/4G/LTE networks
- AT&T and T-Mobile Network Approved Device
- Industry leading voice quality with AI-based digital noise suppression
- Supports dispatching, group calling, and location tracking
- Voice, Video, and Text communications
- Compact and rugged devices that are easy to use
- Car Kit available for safe use in vehicles.
The PNC380S is part of the Hytera HALO Nationwide Group Communications Solution that enables Push-to-Talk over Cellular over existing 3G/4G/LTE Mobile Network Operator infrastructure and Wi-Fi networks. The PNC380S is supported on the Hytera HALO Nationwide PoC subscription based service, on the Hytera HALO OnSite customer owned PoC system, and Hytera HALO Connect unified PoC and LMR platform. The PNC380S is also supported on Hytera HALO Dispatch, a powerful web-based group communications and location tracking application.
EMERGENCY BUTTON
TFT LCD DISPLAY
MENU NAVIGATION
FULL KEYPAD
CLEAR AUDIO
COMPACT ANTENNA
8 MEGALPIXEL CAMERA
FLASHLIGHT
LONG-LIFE BATTERY
USB DATA/CHARGING PORT
BUILT-IN GPS

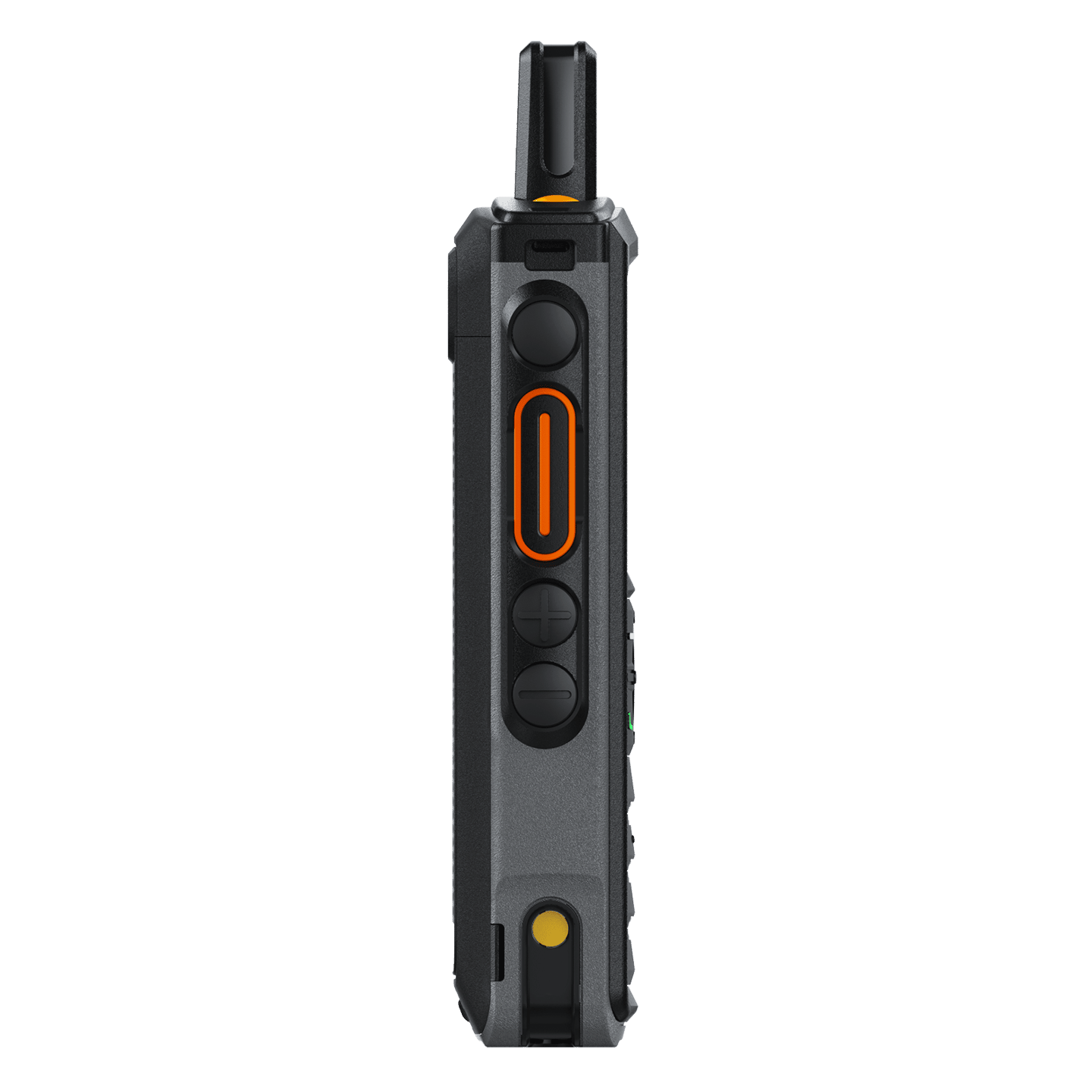

PROGRAMMABLE BUTTON
PUSH-TO-TALK
VOLUME CONTROL
MIL-STD & IP67 RATED
Functions
CERTIFIED NATIONWIDE COVERAGE
PTCRB certified, AT&T and T-Mobile approved Network Ready, and fully approved and tested by the leading US carrier for reliable nationwide connectivity
HIGH-DEFINITION LIVE VIDEO
Equipped with an 8 megapixel rear camera, the PNC380S enables real-time video streaming. Video communications improves situational awareness, and facilitates problem solving and decision making
GPS POSITIONING
Built-in GPS enables real-time tracking and positioning for the Hytera HALO Dispatch application
ERGONOMIC DESIGN
Compact and ergonomic design with easy-access buttons enables comfortable one-hand operation. Reversible belt clip for carrying with screen facing in or out
BUILT-IN BLUETOOTH
Built-in Bluetooth enables connectivity to earpieces, Push-to-Talk devices, and other wireless accessories
RELIABLE AND DURABLE
IP67 rated for protection from dust and water ingress up to 1 meter for 30 minutes. Compliant with MIL-STD-810-G for shock and vibration
LONG-LIFE BATTERY
Powerful 4,000mAh Lithium-Ion Polymer battery delivers up to 24 hours of operation
TEXT MESSAGING
Send, receive, and view text messages between dispatcher and other Hytera PoC devices
STUN/REVIVE
Dispatcher can remotely stun (disable) or revive (return to service) if the radio is lost or stolen
INSTANT GROUP AND INDIVIDUAL CALLING
The PNC380s Push-to-Talk button initiates instant half-duplex group calling or full duplex individual calling. Supports instant group calling from the HALO Dispatch web-based communications and location tracking application
BUILT-IN WI-FI
Built-in Wi-Fi supports in-building communications with seamless switching to LTE networks when outside Wi-Fi range
HIGH-QUALITY AUDIO
Digital noise suppression and high-volume speakers for excellent voice quality in loud environments. Provides high-quality digital audio performance for individual calls, group calls, and emergency calls
CAR KIT
Dash-mount car kit available for safe in-vehicle calling. Features optional external speaker, palm microphone, visor microphone and remote Bluetooth Push-to-Talk
TFT LCD DISPLAY
TFT LCD display provides high-resolution visibility even in bright daylight. Supports an easy-to-use GUI menu system with clean and simple navigation
LED FLASHLIGHT
Bright LED illumination at the touch of a button
SAFETY FEATURES
One-touch Emergency button enables one-touch emergency calls to dispatcher and sends alarms to other radios
Standard Accessories for PNC380S PoC Radio

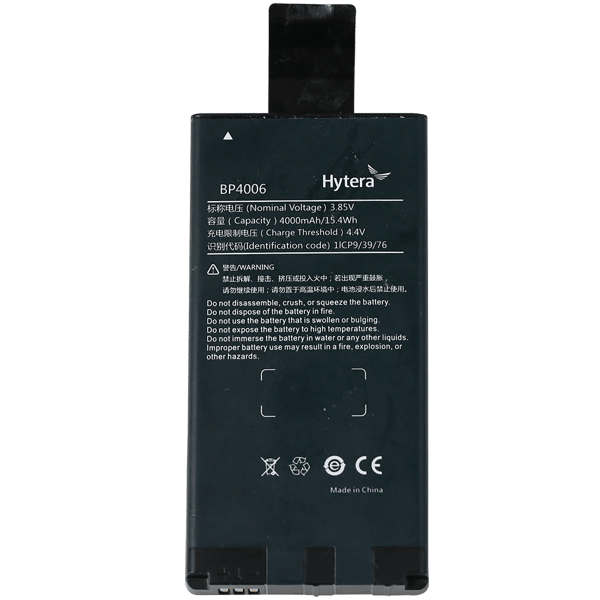

Battery
BP4006
Li-Ion Polymer Battery (4000mAh)
Li-Ion Polymer Battery with 24 hour operating time (4000mAh)
Carrying
RO03
Wrist Strap
Nylon wrist strap
BC50
Belt Clip
Belt Clip for PNC380S
Charger
PS2023
US-Standard Power Adapter
Power Adapter – Input: 100-240VAC, Output: 12VDC/2A
Programming
PC80
USB to Micro USB
USB to Micro USB
Optional Accessories for PNC380S PoC Radio
Audio
EHS24
C-Style Earpiece with Push-to-Talk Mic
C-Style Earpiece with Push-to-Talk Mic
POA121
Bluetooth Ring PTT
The wireless PTT ring is designed for finger wearing and allows you to trigger PTT functions without holding a portable radio in your hands.

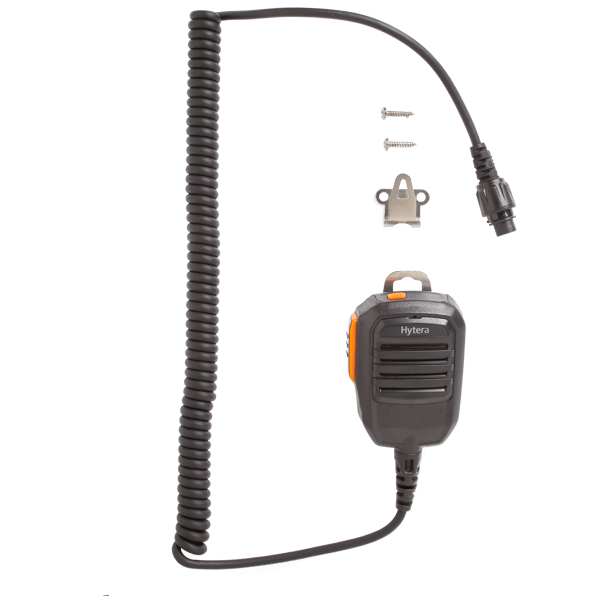

SM18A3
SM18A3 – Handheld Microphone (designed for connection to Car Kit)
IP67 compliant microphone for CK02
SM09S1
External Speaker for Car Kit
External speaker with clear voice output to be used with Hytera car kits CK02/CK02-E/CK03/CK03-E
EAS07
Earpiece with in-line PTT & Transparent Acoustic Tube
Earpiece with in-line PTT & Transparent Acoustic Tube
Battery
BP4006
Li-Ion Polymer Battery (4000mAh)
Li-Ion Polymer Battery with 24 hour operating time (4000mAh)
Carrying
RO03
Wrist Strap
Nylon wrist strap

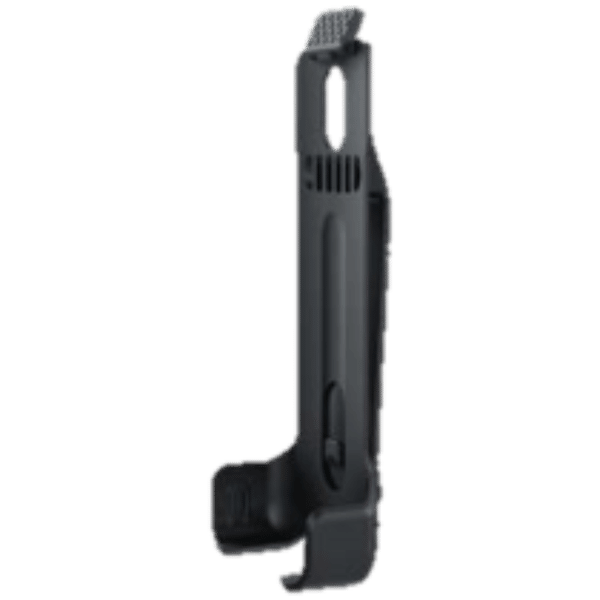

BC50
Belt Clip
Belt Clip for PNC380S
Charger
PS2023
US-Standard Power Adapter
Power Adapter – Input: 100-240VAC, Output: 12VDC/2A
MCL35-S
Multi-unit Charger
Multi-unit Charger PNC380S
Car Kit

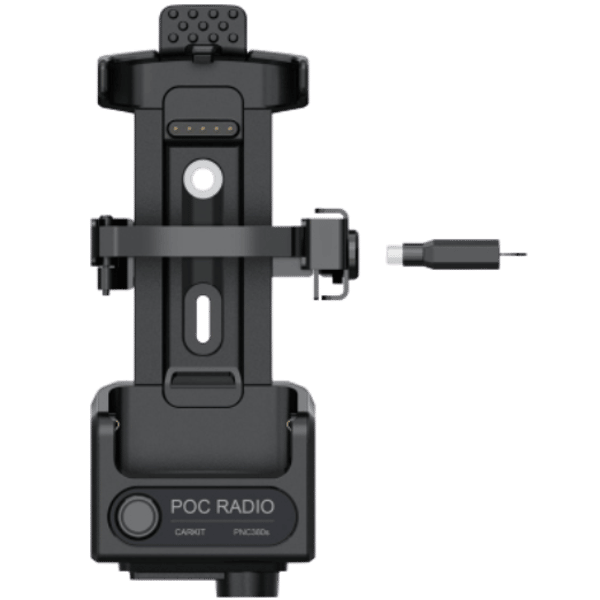

CK10
PoC Car Kit
The CK10 CAR KIT is a rugged bracket assembly that enables the PNC380S to be installed on a vehicle dashboard. The CAR KIT provides safe and legal mobile operation and can be easily removed for handheld job-site communications. The CAR KIT includes a locking bracket to ensure drivers who work inside the vehicle using the radio as a dash-mount mobile radio and not a handheld device. The CAR KIT has an on/off button for power, and ports for external speakers, microphones, and push-to-talk buttons. The CAR KIT also functions as a docking charger for the PNC380S.
Programming
PC80
USB to Micro USB
USB to Micro USB
Protection Plan
Halo Care
Halo Care
The HALO Care Protection Program covers repairs for one accidental damage instance within two years of purchase. Must be purchased at the time of initial purchase of the PoC device.
Systems that work with PNC380S PoC Radio
Systems
Hytera HALO Nationwide
Subscription-based PoC Radios as a Service
Hytera HALO OnSite and OnSite Plus
Own Your Own Push-to-Talk over Cellular System
Hytera HALO Connect
Integrates DMR Radio Networks with PoC and Third Party Radio Systems
HALO PoC Dispatch
Web-based PoC Dispatching Application
HALO Bridge
PoC to DMR/Analog Radio Gateway
Technical Specifications
| LTE | FDD:B2/B4/B5/B7/B12/B13/B25/B26 |
| WCDMA | B1/B2/B4/B5/B8 |
| GSM | 850/1900 MHz |
| WLAN | 2.4GHz and 5GHz, 802.11 b/g/n |
| Bluetooth | BT 4.2 |
| Positioning System | GPS/A-GPS |
| Dimensions (H x W x D) | 5 27/32” x 2 3/8” x1 1/8” (148 x 60 x 28mm) |
| Weight (with battery) | 208g (with battery) |
| Memory | RAM: 1GB ROM: 8GB Extended: Micro SD/TF card, up to 32GB |
| SIM Card | Nano SIM 12.3mm x 8.8mm |
| Display | 2.0'' 320×240 TFT/Non-touch |
| Ports | Micro USB 2.0 3.5mm Audio Jack Dock Charger Interface CAR KIT Connection Interface |
| Video and Images | Micro USB 2.0 3.5mm Audio Jack Dock Charger Interface CAR KIT Connection Interface Images: 8MP |
| Operating Voltage | 3.85V (Rated) |
| Battery | 4000mAh (Li-ion) |
| Battery Life | ≥24h (5-5-90 working cycle) |
| Audio Power Output | 1W (Rated) (Max: 2W) |
| Mic | Mic with Digital noise suppression |
| Dust and Water Proof | IP67 Standard |
| Shock & Vibration | MIL-STD-810 G Standard |
| Drop Resistance | 1.2m |
| ESD | IEC 61000-4-2 ±8 kV (Contact) ±12 kV (Air) |
| Operation Temperature | -4F to +140F (-20C to +60C) |
| Storage Temperature | -22F to +158F (-30C to +70C) |
