Commercial UHF and VHF Two-Way DMR Radios

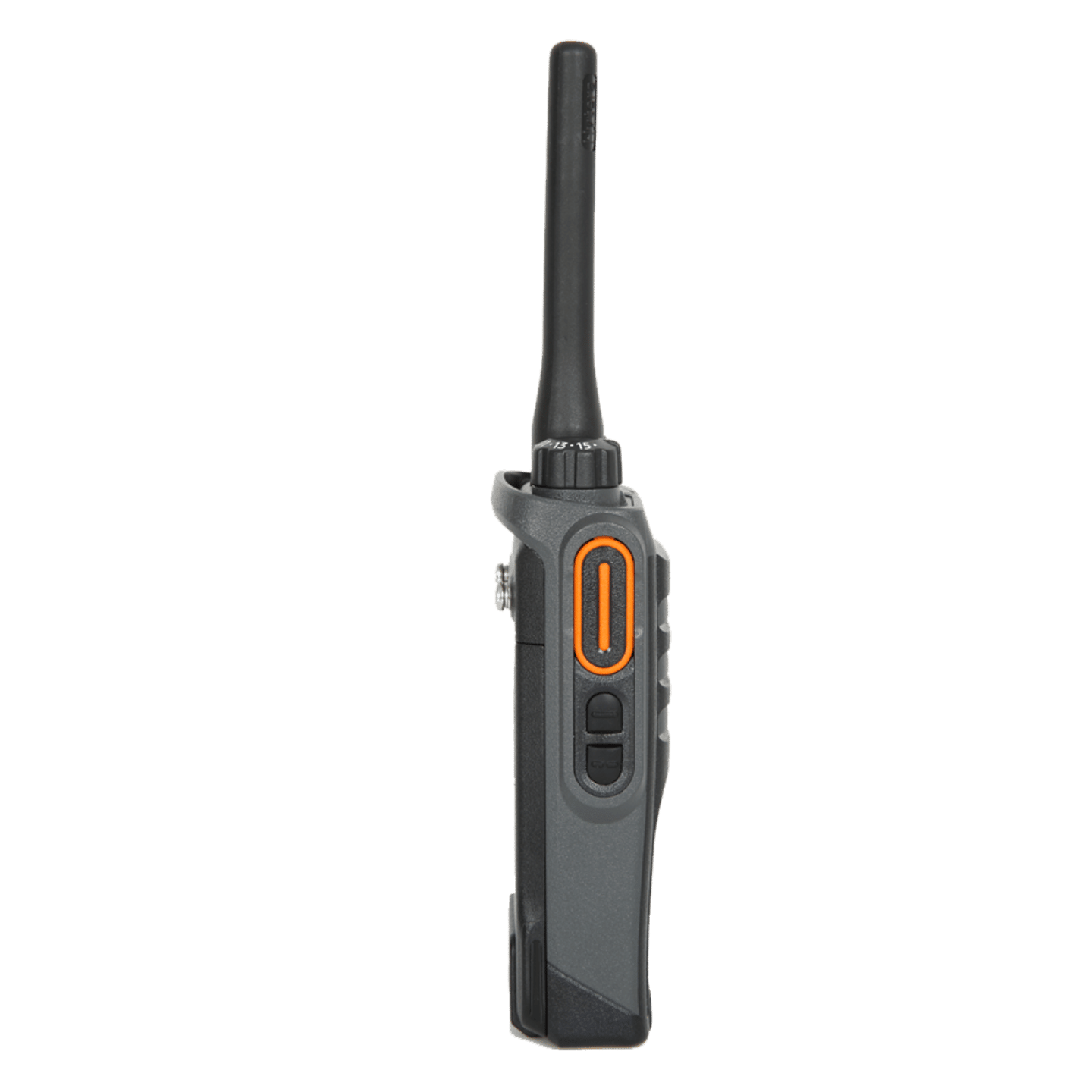

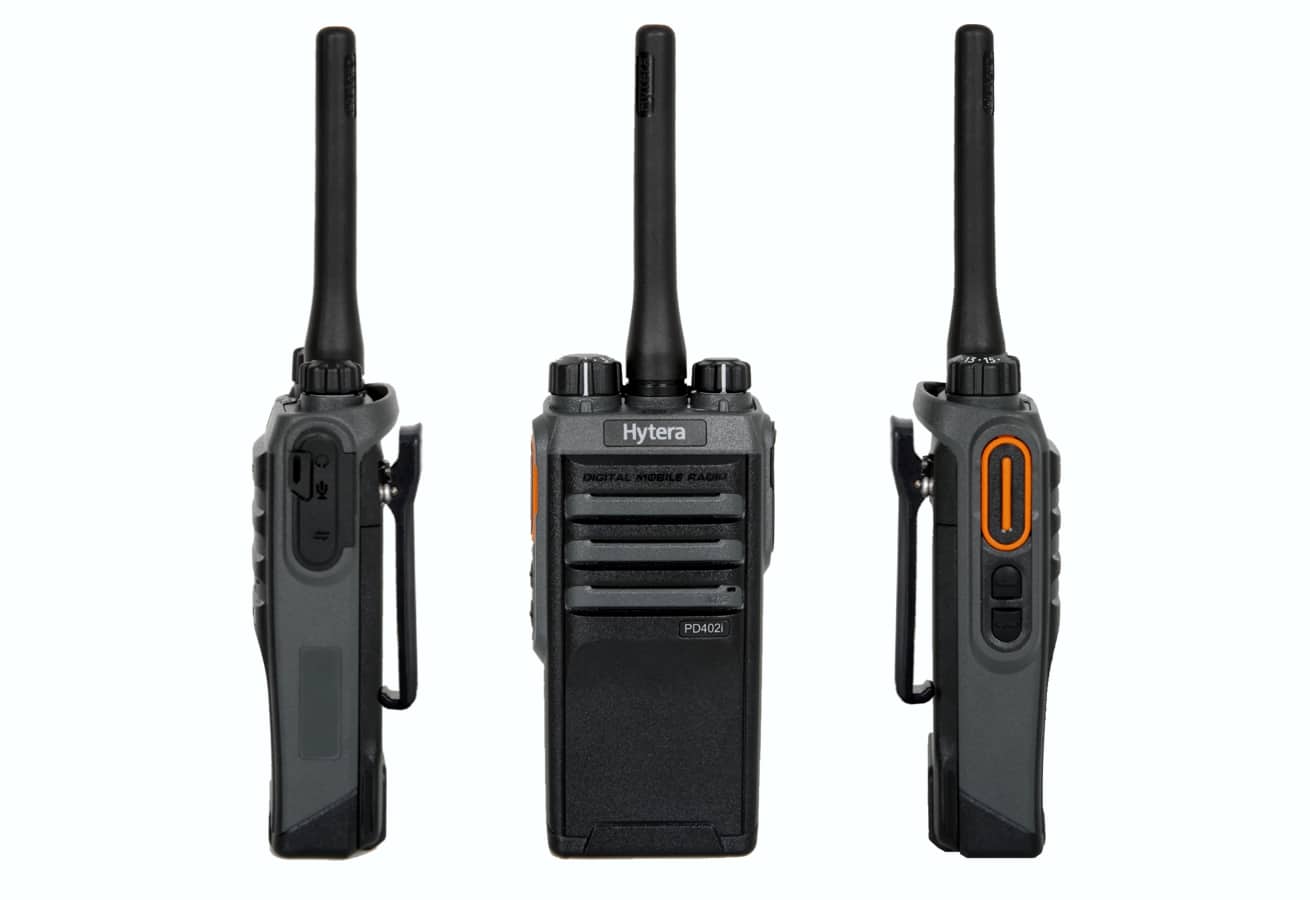

Robust and reliable, the Hytera PD402i portable digital radio offers a simple communication solution, ideal for users operating in manufacturing, facilities management or education environments.
ACCESSORY/DATA PORT
IP55 RATED
ROTATING CHANNEL CONTROL
VOLUME
CLEAR AUDIO
ANALOG AND DIGITAL
Operating time of approximately 16 hours in digital mode
PUSH-TO-TALK BUTTON
PROGRAMMABLE BUTTONS
LONG-LIFE BATTERY
Functions
ERGONOMIC AND EASY TO USE
Tactile buttons for no-look PTT and emergency calling
ANALOG AND DIGITAL OPERATION
The PD402i operates in analog or digital mode. Allows switching between the two modes for communication with analog radios. Enables a simple and cost-effective migration path from analog to digital.
HIGH-QUALITY AUDIO
Audio equalizer adjusts low, mid, and high frequency gain. Provides high-quality digital audio performance with loud and clear private calling, group calling, and all call.
LONG-LIFE BATTERY
Powerful Li-Ion 1500mAh battery. Delivers up to 16 hours of operation in digital mode and 12 hours in analog mode.
RELIABLE AND DURABLE
IP55 rated for water and dust ingress and compliant with MIL-STD-810-G for impact strength and durability.
EMERGENCY CALLING
One-touch Emergency Alarms can be sent to other radios with the programmable button. Improves worker safety and emergency response time.
PRE-PROGRAMMED TEXT MESSAGING
One-touch sending of pre-programmed text messages. Stores up to ten pre-defined text messages.
VOX
Voice activated communications (VOX) activates the microphone by speaking to enable hands-free operation.
UPGRADE FEATURES (OPTIONAL)
Encryption for secure audio and data. Remote Monitor allows dispatcher to key the PTT button and listen in an emergency situation. Stun/Revive enables dispatch and other users to disable/enable a radio if it is stolen, lost, or used maliciously.
SYSTEMS AND NETWORK FEATURES
The PD402i can be deployed on DMR Tier II systems. Roaming allows radios to seamlessly move between connected repeaters with non-stop voice transmission. Pseudo Trunk is a virtual trunking feature that automatically uses whichever digital timeslot is free to improve call connectivity and frequency efficiency.
Standard Accessories for PD402i DMR Two-Way Radio
Antenna
AN0435H13
UHF Antenna (400-470MHz)
UHF Stubby Antenna, SMA connector, 400-470MHz, 9cm, with Hytera logo
Battery

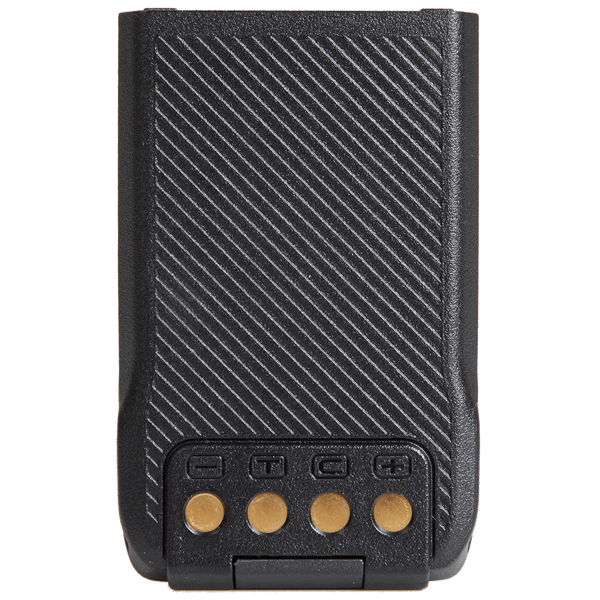

BL1504
Li-Ion Battery (1500mAh)
Li-ion battery with 16 hours operating time (1500mAh)
Carrying
RO03
Wrist Strap
Nylon wrist strap

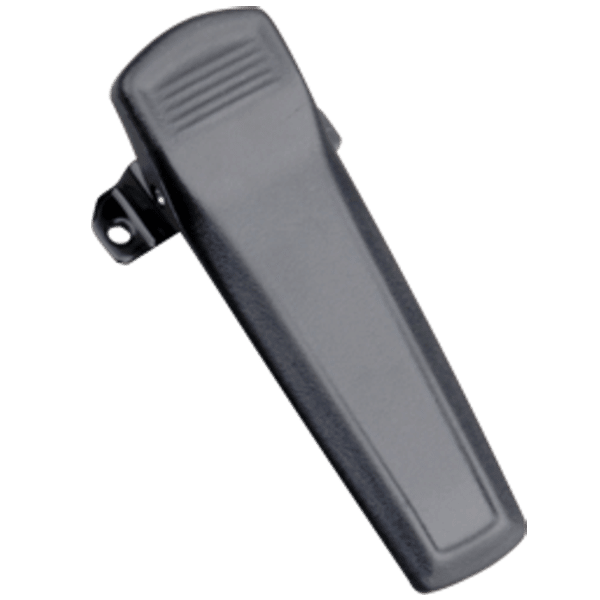

BC08
Belt Clip
Plastic belt clip with a spring and metal bracket
Charger
PS1014
Standard Switching Power Adapter
Standard Switching Power Adapter 100-240VAC 12VDC/1A Hytera (RoHS) (for CH10A07 single charger)
CH10A07
MCU Rapid-Rate Charger
MCU rapid-rate charger for charging both Lithium-ion and NI-MH batteries
Optional Accessories for PD402i DMR Two-Way Radio
Audio

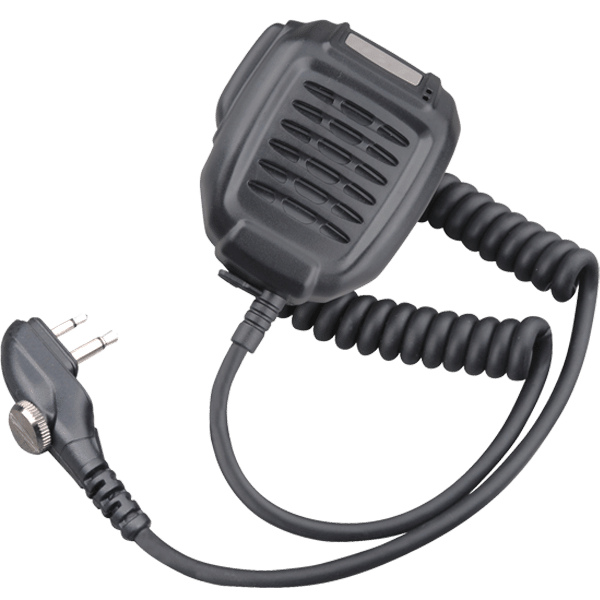

SM08M3
Remote Speaker Microphone With 3.5mm Audio Jack and Swivel Clip
Compact designed remote speaker microphone with 3.5mm audio jack (for use with receive-only earpiece) and 360 degree swivel metal clip.
SM13M1
External Microphone and Speaker
High quality , IP55 compliant and noise canceling microphone enabling clear and concise audio transmission in noisy operating environments

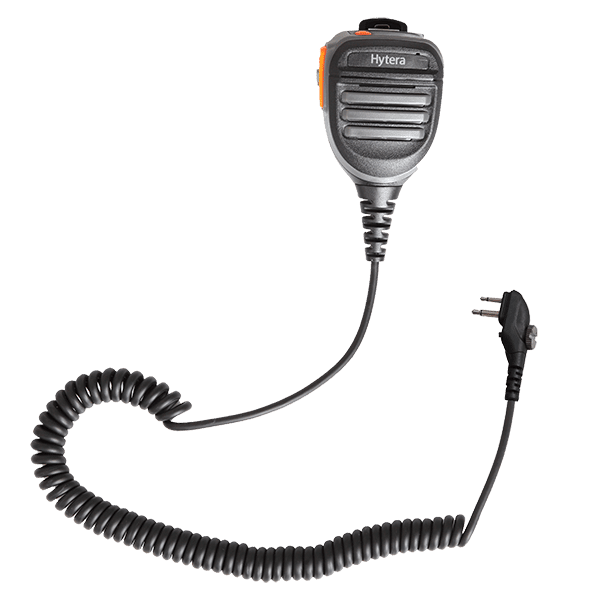

SM26M1
Remote Speaker Microphone (without emergency button)
Small, light and IP54 compliant remote speaker microphone with 2.5mm external audio connector.

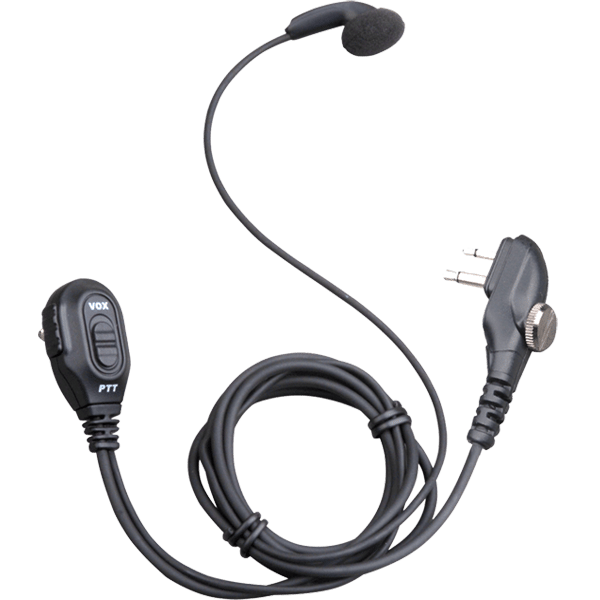

ESM12
Earbud with In-line PTT and Microphone (Black)
Earbud (without earpiece) with VOX capability and in-line PTT microphone ensures convenient and reliable communications (Black)

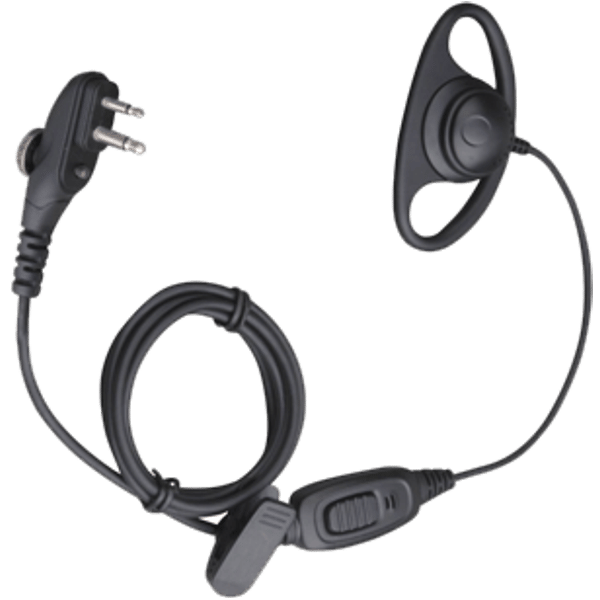

EHM15-A
D-Style Earpiece with In-line PTT and Microphone (Black)
D-style earpiece with in-line PTT and microphone ideal for covert communications (Black)

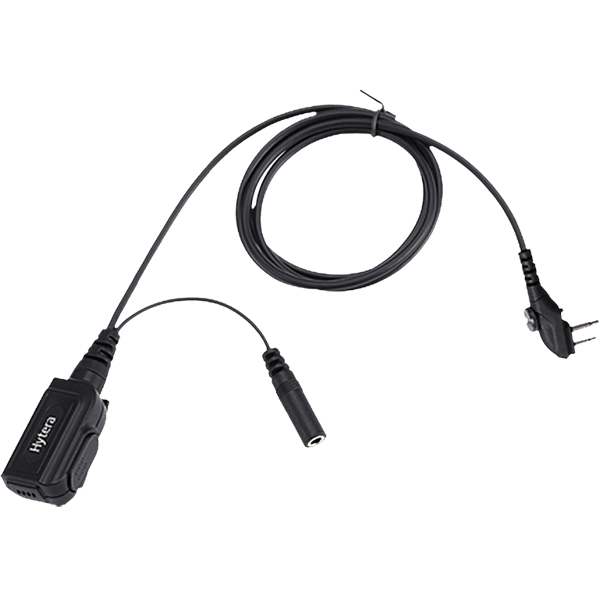

ACM-01
PTT & MIC Water Proof Cable (for use with receive-only Earpiece)
IP54 compliant base set with PTT button and microphone can be used with a range of Hytera earbuds. The 3.5mm jack enables the replaced earbud to be connected directly to the ACM-01.
ES-01
Earbud without Earpiece (Receive-Only)
Reliable and ergonomically designed earbud to be used with various base sets. 3.5mm jack plug.
ES-02
Earbud with Acoustic Tube (Receive-Only)
Reliable and ergonomically designed earpiece with acoustic tube to be used with various base sets. 3.5mm jack plug.
EH-01
C-Style Earpiece (Receive-Only)
Ergonomically designed C-style earpiece (Receive only). 3.5mm jack plug.
EH-02
Swivel Style Earpiece (Receive-Only)
Ergonomically designed swivel earpiece (Receive only). 3.5mm jack plug.
EHS17
Swivel Style Earpiece (Receive Only)
Ergonomically designed swivel earpiece (Receive only). 2.5mm jack plug.
EHS18
C-Style Earpiece (Receive Only)
Ergonomically designed C-style earpiece (Receive only). 2.5mm jack plug.
EAS03
Receive-Only Transparent Acoustic Tube Earpiece
Receive-Only Transparent Acoustic Tube Earpiece
ESW01
Bluetooth Earpiece with charger(requires PS1030 power adapter)
Bluetooth Earpiece with charger(requires PS1030 power adapter)
POA107
Charging adapter for wireless earpiece (ESW01)
The POA107 compact charger allows charging of the wireless headset ESW01 using a micro USB cable, this is an alternative charging solution for the ADN-01 or ADN-02.

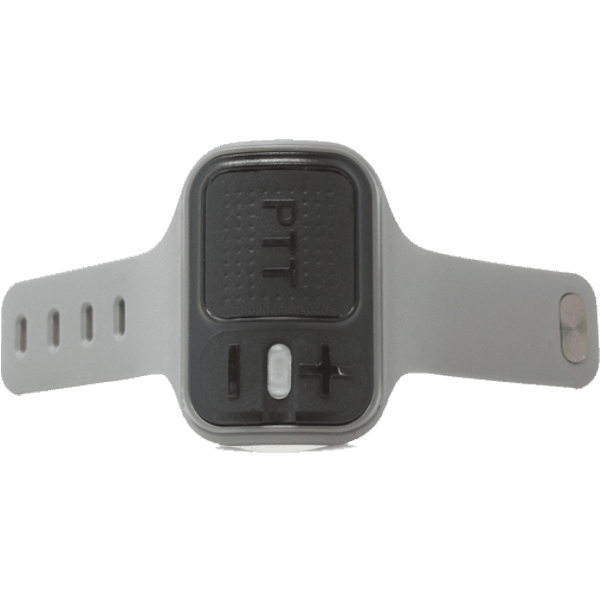

POA121
Bluetooth Ring PTT
The wireless PTT ring is designed for finger wearing and allows you to trigger PTT functions without holding a portable radio in your hands.
Antenna
AN0435H13
UHF Antenna (400-470MHz)
UHF Stubby Antenna, SMA connector, 400-470MHz, 9cm, with Hytera logo

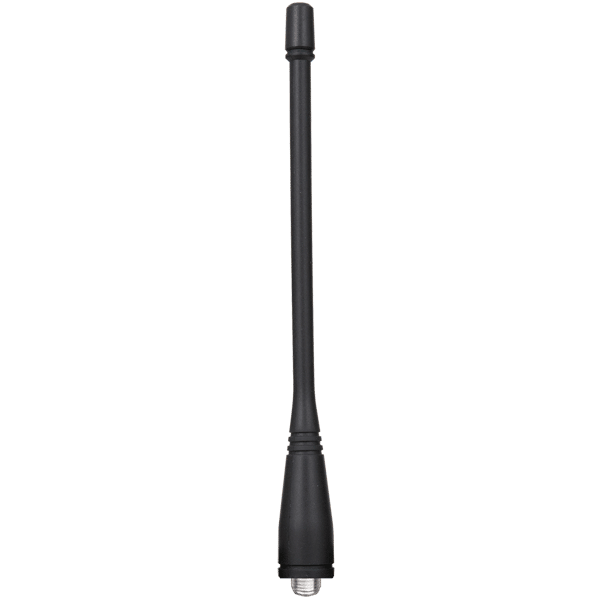

AN0435W09
UHF Antenna (400-470MHz)
UHF Whip Antenna, SMA connector, 400-470MHz, 16cm
AN0460W19
UHF Antenna (440-470MHz)
UHF Long and fine antenna SMA connector 440-470MHz

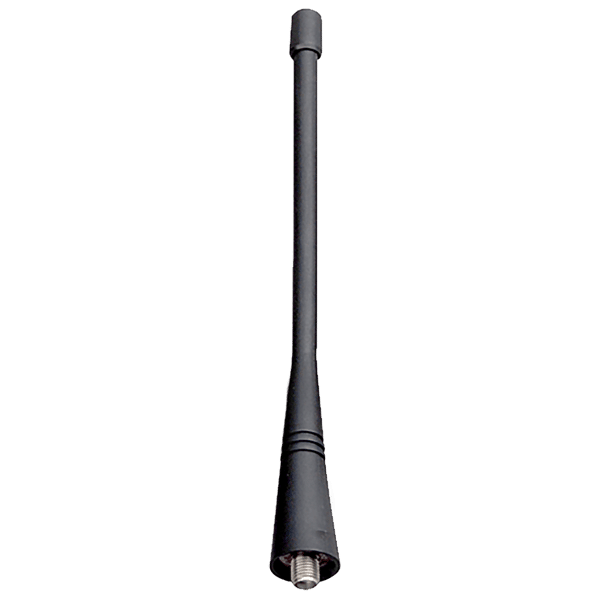

AN0495W04
UHF Antenna (470-520MHz)
UHF Whip Antenna, SMA connector, 470-520MHz, 16cm
AN0141H07
VHF/GPS Antenna (136-147MHz/1575MHz)
VHF Stubby Antenna, SMA connector,136-147MHz, GPS 1575MHz, 12cm, with Hytera logo
AN0153H08
VHF/GPS Antenna (147-160MHz/1575MHz)
VHF Stubby Antenna, SMA connector,147-160MHz, GPS 1575MHz, 12cm, with Hytera logo
AN0167H07
VHF/GPS Antenna (160-174MHz/1575MHz)
VHF Stubby Antenna, SMA connector,160-174MHz, GPS 1575MHz, 12cm, with Hytera logo

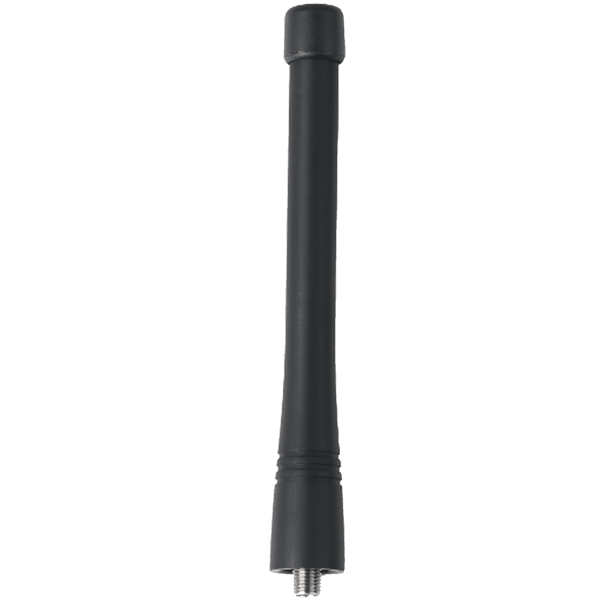

AN0160H13
VHF Antenna (146-174MHz)
VHF Antenna, SMA connector, 146-174MHz, 15cm, no logo
AN0141H06
VHF Antenna (136-147MHz)
VHF Antenna, SMA connector, 136-147MHz, 17cm, with Hytera logo

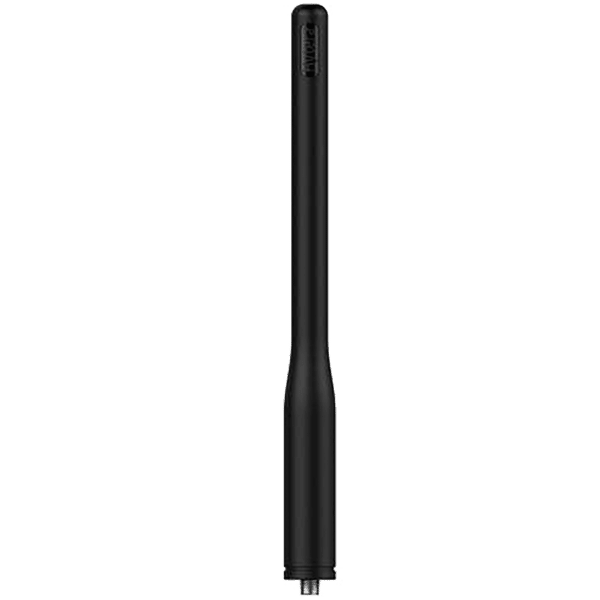

AN0153H07
VHF Antenna (147-160MHz)
VHF Stout Long Antenna, SMA connector, 147-160MHz, 17cm, with Hytera logo
AN0167H06
VHF Antenna (160-174MHz)
VHF Stout Long Antenna, SMA connector, 160-174MHz, 17cm, with Hytera logo
AN0155H08
VHF/GPS Antenna (147-160MHz/1575MHz)
VHF Stout Long Antenna, SMA connector, 136-174MHz, GPS 1575MHz, 20cm, with Hytera logo
Battery
BL1504
Li-Ion Battery (1500mAh)
Li-ion battery with 16 hours operating time (1500mAh)

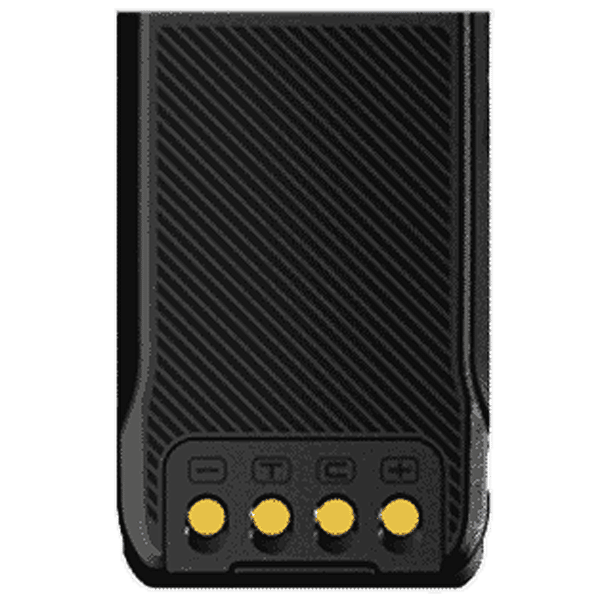

BL2010
Lithium-Ion Battery (2000mAh)
Li-ion battery with 20 hours operating time (2000mAh)
Carrying
BC08
Belt Clip
Plastic belt clip with a spring and metal bracket
RO03
Wrist Strap
Nylon wrist strap
BC19
Belt Clip
Plastic belt clip with a spring and metal bracket, can be secured to the radio using the screws supplied

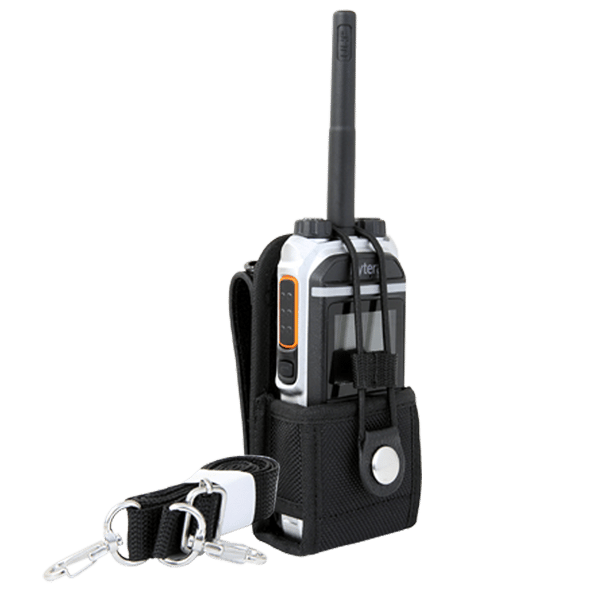

NCN011
Nylon Carrying Case
Nylon carrying case with half-open design and back-lock belt loop for easy installation

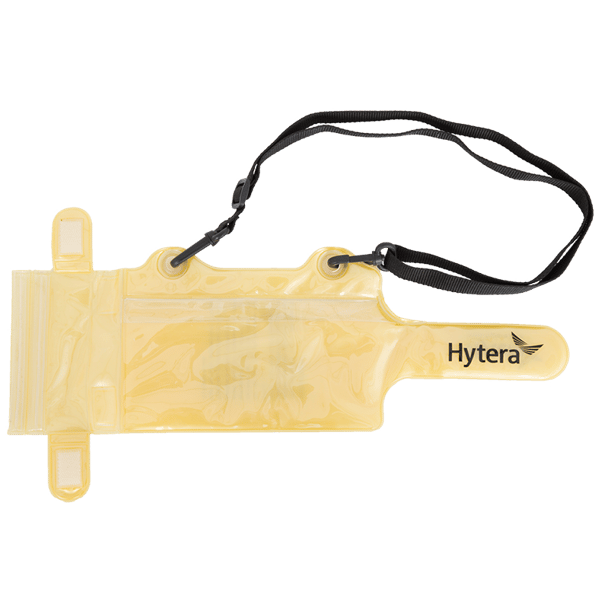

PCN006
Waterproof Bag
Waterproof Bag
Charger
CH10A07
MCU Rapid-Rate Charger
MCU rapid-rate charger for charging both Lithium-ion and NI-MH batteries
CHV09
Vehicle Power Adapter
In the vehicle charging solution convenient for portable radio batteries.
POA59
Charging Unit
Charging unit provided for installation in MCA08 and MCA10 chargers
MCA08
Six-Unit Charger Including Power Adapter
Six-unit charger has the capacity to charge six batteries or portable radios simultaneously, whilst detecting the battery type and assigning the appropriate mode.
PS1014
Standard Switching Power Adapter
Standard Switching Power Adapter 100-240VAC 12VDC/1A Hytera (RoHS) (for CH10A07 single charger)
PS1030
Power Adapter (Micro USB)
Power adapter (Micro USB) for PD3 series enables hassle free charging via PC or laptop
Installation
BRK20
Wall-Mount Installation Kit
Enables secure installation of the multi-charger onto the wall for convenience and easy accessibility
Programming

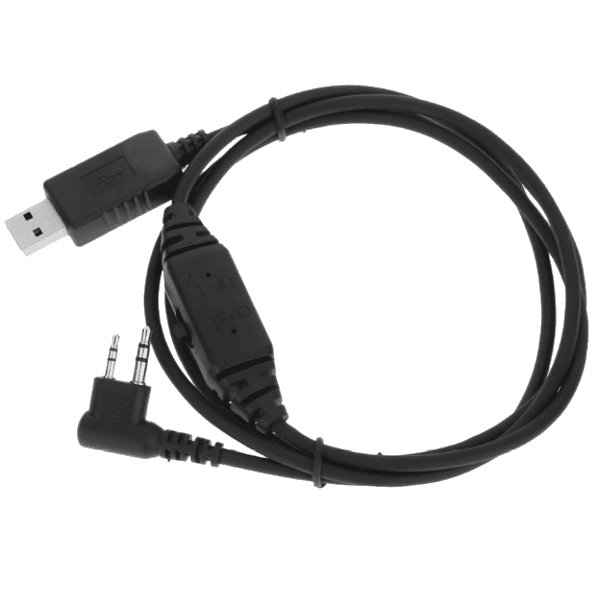

PC76
Data programming cable
Data Programming Cable (USB Port)
DMR Extended Warranty
DMR Extended Warranty
DMR Extended Warranty
Extended warranty adds 2 years to the standard 3 year Hytera DMR product warranty for a total of 5 years of warranty protection.
Systems that work with PD402i DMR Two-Way Radio
Systems
SmartOne DMR Dispatch
Unified Communications and Dispatching
Technical Specifications
| Frequency Range | UHF 400-470MHz VHF 136-174MHz |
| Channel Capacity | 256 Channels (128 Analog, 128 Digital) |
| Zone Capacity | 3 Zones with 16 Channels per Zone |
| Channel Spacing | 25/12.5kHz |
| Operational Voltage | 7.4W |
| Battery | 1500mAh (Li-Ion) Standard, 2000mAh Optional |
| Battery Life (5/5/90) | 1500mAh: 16 hours Digital, 12 hours Analog 2000mAh: 22 hours Digital, 16 hours Analog |
| Weight | 9.5oz (270g) |
| Dimensions | 4 13/32” x 2 1/8” x 1 3/32” (112 x 55 x 28mm) |
| Frequency Stability | ± 0.5ppm |
| Antenna Impedance | 50Ω |
| Digital Sensitivity | 0.22µV (BER 5%) |
| Analog Sensitivity | 0.22µV (Typical) (12dB SINAD) 0.4µV (20dB SINAD) 0.22µV (12dB SINAD) |
| Adjacent Selectivity | TIA-603: 60dB @ 12.5kHz, 70dB @ 25kHz ETSI: 60dB @ 12.5kHz, 70dB @ 25kHz |
| Spurious Response Rejection | TIA-603: 70dB @ 12.5/25kHz ETSI: 70dB @ 12.5/25kHz |
| Intermodulation | TIA-603: 70dB @ 12.5/25kHz ETSI: 65dB @ 12.5/25kHz |
| Hum and Noise | 40dB @ 12.5kHz, 45dB @ 25kHz |
| Rated Audio Power Output | 0.5W |
| Rated Audio Distortion | ≤3% |
| Audio Response | +1 to -3dB |
| Conducted Spurious Emission | <-57dBm |
| Operating Temperature | -22oF to +140oF (-30oC to +60oC) |
| Storage Temperature | -40oF to +185oF (-40oC to +85oC) |
| ESD | IEC 61000-4-2 (Level 4)±8kV Contact, ±15kV Air |
| Dust and Water Ingress | IP55 Standard |
| Humidity | Per MIL-STD-810 C/D/E/F/G Standard |
| Shock and Vibration | Per MIL-STD-810 C/D/E/F/G Standard |
| RF Power Output | VHF High Power: 5W, VHF Low Power: 1W, UHF High Power: 4W UHF Low Power: 1W |
| FM Modulation | 11K0F3E @ 12.5kHz |
| 4FSK Digital Modulation | 12.5kHz Data Only: 7K60FXD 12.5kHz Data and Voice: 7K60FXW |
| Conducted/Radiated Emission | -36dBm <1GHz, -30dBm >1GHz |
| Modulation Limiting | ±5.0kHz @ 25kHz, ±2.5kHz @ 12.5kHz |
| FM Hum and Noise | 40dB @ 12.5kHz, 45dB @ 25kHz |
| Adjacent Channel Power | 60dB @ 12.5kHz, 70dB @ 25kHz |
| Audio Response | +1 to -3dB |
| Audio Distortion | ≤3% |
| Digital Vocoder Type | AMBE++ |
| Digital Protocol | ETSI-TS102 361-1,-2,-3 |
| PD402i-V1 | VHF 136-174MHz, 1-5W Power |
| PD402i-U1 | UHF 400-470MHz, 1-4W Power |
