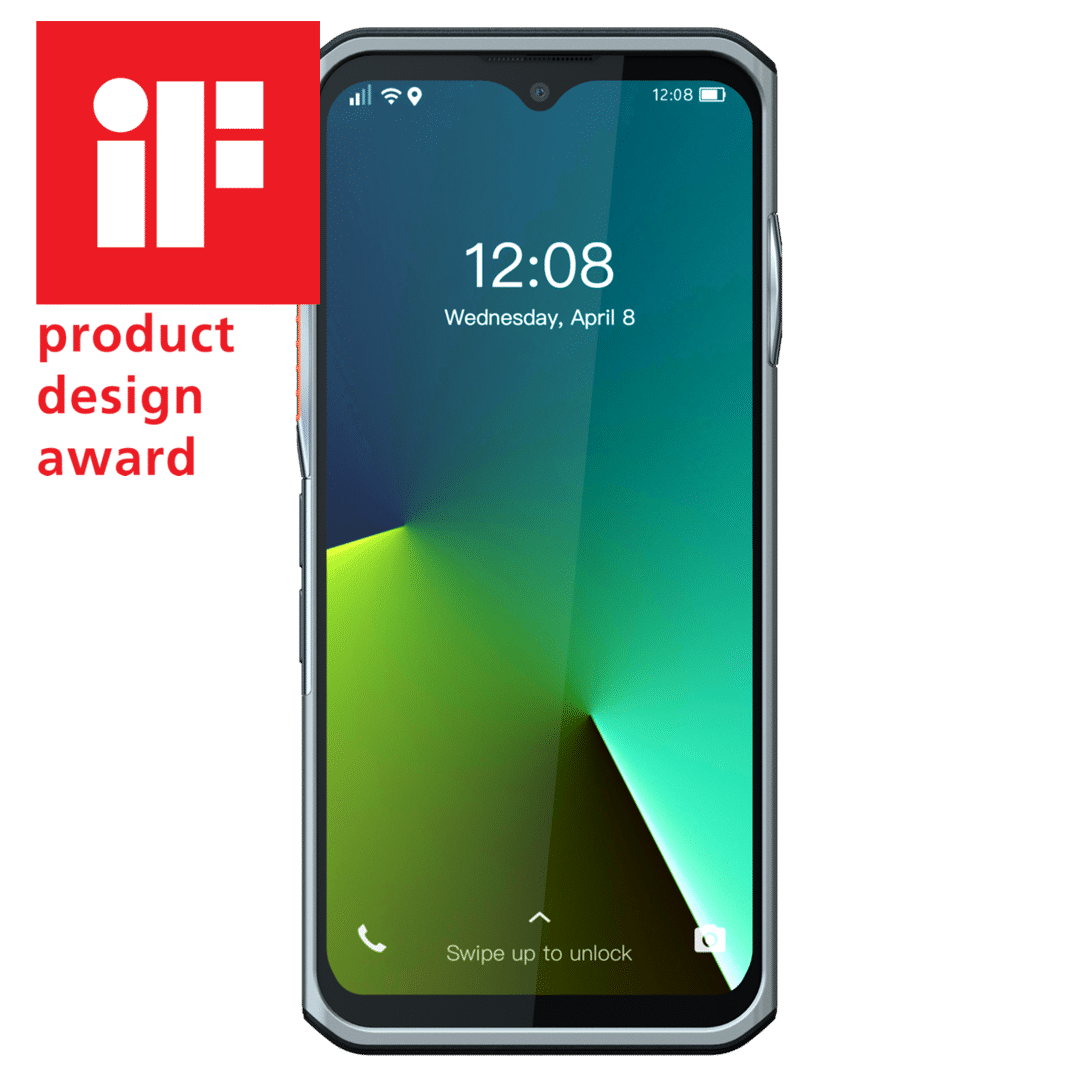

Push-to-Talk over Cellular Handheld Smart Device
The Hytera PNC560 is a Push-to-Talk over Cellular (PoC) radio and handheld smart device designed for nationwide business operations and remote workforce communications. The PNC560 combines the advantages of a compact mobile computer and a data collection terminal with the ruggedness, enhanced audio quality, and instant Push-to-Talk group communications of a professional PoC device. It features a built-in infrared scanner for warehouse, inventory management, and medical applications.
- Powerful Handheld Smart Device and Push-to-Talk Radio
- Built-In Infrared Barcode Scanner
- Industry-leading Voice Quality with Digital Noise Suppression
- Supports Instant Group Voice and Video Calling and Texting
- Rugged and Purpose Built for Professional Communications
- Seamless Switching between Cellular and Wi-Fi Networks
- Runs Android Business Apps
The PNC560 enables Push-to-Talk over Cellular communications using existing 4G/5G/LTE Mobile Network Operator infrastructure and Wi-Fi networks. The PNC560 is supported on the HORIZON and Hytera HALO Nationwide PoC subscription platforms, and on the HORIZON Dispatch and Hytera HALO Dispatch web-based group communications and fleet tracking applications.
INFRARED SCANNER
TOP MICROPHONE
8 MP FRONT CAMERA
LED INDICATOR
6.3" TOUCHSCREEN
ANDROID OPERATING SYSTEM
NOISE CANCELLING AUDIO
TWO REAR CAMERAS
FLASH/FLASHLIGHT
FINGERPRINT ON/OFF
MIL-STD & IP68 RATED
LONG-LIFE BATTERY
SPEAKER
USB TYPE C
3.5MM AUDIO JACK
BUILT-IN GPS
SCAN BUTTON
PUSH-TO-TALK BUTTON
VOLUME CONTROL
BUILD-IN WI-FI
BUILT-IN BLUETOOTH
Functions
NATIONWIDE COVERAGE
National wide-area communication with mobile LTE cellular connectivity
BUILT-IN WI-FI
Built-in 2.4GHz and 5GHz Wi-Fi supports in-building communications with seamless switching to LTE networks when outside Wi-Fi range
INSTANT GROUP AND INDIVIDUAL CALLING
Dedicated Push-to-Talk button initiates instant voice or video calls to groups or individuals
POWERFUL DEVICE ENGINE
QualComm 8-core platform provides stable and smooth multi-task operations
VIDEO CALLING
Supports user-initiated video calls and sharing high-resolution images with the Hytera Dispatch application and other PoC devices
TEXT AND AUDIO MESSAGING
Send, receive, and view text messages between dispatcher and other Hytera PoC devices, also record and send audio messages
SECURITY PROTECTION
The PNC560 features biometric fingerprint and facial recognition with fast unlock for secure access, and Android security features protect against unauthorized access and virus/hacker attacks, and provides safebox secure file storage
BUILT-IN BARCODE SCANNER
Built-in infrared scanner head reads 1D and 2D barcodes and QR codes in milliseconds from up to two feet away, and supports barcode scanning and logistics applications. Optional Android Application Package (APK) available for integrating the scanner functionality with other applications
THREE HIGH-DEFINITION CAMERAS
Three separate high resolution cameras, including a screen-facing, wide-angle camera, and two rear-facing cameras with telephoto and wide-angle lenses
LONG-LIFE BATTERY
Powerful 5,040mAh Lithium-Ion Polymer battery delivers up to 15 hours of continuous operation and supports quick charging by desktop charger and USB
DUAL SIM
Dual SIM cards provide flexibility for two network data plans
ULTRA-RUGGED AND DURABLE
Compliant with MIL-STD-810-G for shock and vibration, and IP68 rated to be impervious to dust and fine powders, and can be submerged in 5 feet of water for 30 minutes
ANDROID 12 OPERATING SYSTEM
Supports the latest Android OS business apps for, inventory management, security, and unified operations and communications
ERGONOMIC DESIGN
Ergonomic design with easy-access buttons
6.3 INCH TOUCHSCREEN DISPLAY
Large screen enables multiple simultaneous operations, supports wet hand and glove touch interaction, and provides clear display in bright sunlight
GPS POSITIONING
GPS enables real-time tracking and positioning for the Hytera Dispatch application
BUILT-IN SCANNER
The PNC560 features an integrated infrared scanner head that reads 1D and 2D barcodes and QR codes in milliseconds from up to two feet away for all-in-one ease of use in warehouse, delivery, inventory, and medical applications. The Android operating system supports a variety of scanner apps.
STATE-OF-THE-ART CAMERAS
The PNC560 features three separate high resolution cameras, including an 8MP screen-facing, wide-angle camera, an 8MP telephoto and 48MP wide-angle rear-facing lenses. It supports low-light photography and HDR (High Dynamic Range) for clear images at night or strong light-contrast environments, and features a lens stabilization algorithm that reduces blurring associated with camera motion.
Standard Accessories for PNC560 PoC Mobile Computer
Battery
BP4901
Li-Ion Polymer Battery (5040mAh)
Li-Ion Polymer Battery (5040mAh)
Charger
PS3007
US-Standard Power Adapter
Power Adapter – Input: 100-240VAC, Output: 5VDC/2A
Programming
PC158
Programming Cable – USB Type C
Programming Cable – USB Type C
Carrying
POA200
Tempered Glass Screen Protector
Screen Protector
Optional Accessories for PNC560 PoC Mobile Computer
Audio
EHS24
C-Style Earpiece with Push-to-Talk Mic
C-Style Earpiece with Push-to-Talk Mic
POA121
Bluetooth Ring PTT
The wireless PTT ring is designed for finger wearing and allows you to trigger PTT functions without holding a portable radio in your hands.
SM27W2
Bluetooth Remote Speaker Mic with charging cable
Bluetooth wireless remote speaker microphone finished (IP67)
EAS07
Earpiece with in-line PTT & Transparent Acoustic Tube
Earpiece with in-line PTT & Transparent Acoustic Tube
EHW08
Bluetooth Earpiece with PTT button and microphone
Bluetooth Earpiece with PTT button and microphone
Battery
BP4901
Li-Ion Polymer Battery (5040mAh)
Li-Ion Polymer Battery (5040mAh)
Carrying
BC39
Belt Clip
Belt Clip
POA200
Tempered Glass Screen Protector
Screen Protector
POA207
Protective Case with Hand Strap
Protective Case with Hand Strap for PNC560
Installation
BRK37
Protective Case with Mounting Bracket
Protective Case with Mounting Bracket PNC560
Charger
CH20L19
Desktop Charger
PNC560 Desktop Charger
PS3007
US-Standard Power Adapter
Power Adapter – Input: 100-240VAC, Output: 5VDC/2A
Programming
PC158
Programming Cable – USB Type C
Programming Cable – USB Type C
Protection Plan
Hytera PoC Protection Plan
Hytera PoC Protection Plan
The Hytera PoC Protection Plan covers repairs for one accidental damage instance within two years of purchase. Must be purchased at the time of initial purchase of the PoC device.
Systems that work with PNC560 PoC Mobile Computer
Systems
HORIZON Nationwide
Subscription-based PoC Radios as a Service
HORIZON Dispatch
Web-based PoC Dispatching Application
Hytera HALO Nationwide
Subscription-based PoC Radios as a Service
Hytera HALO PoC Dispatch
Web-based PoC Dispatching Application
Hytera Bridge
PoC to DMR/Analog Radio Gateway
Technical Specifications
| 5G | N1/N2/N3/N5/N20/N28/N41/N66/N71/N78 |
| LTE-FDD | B1/B2/B3/B4/B5/B7/B8/B12/B13/B17/B20/B26/B28 |
| LTE-TDD | B38/B39/B40/B41/B2/B43/B48 |
| WCDMA | B2/B4/B5/B8 |
| GSM | 850/900/1800/1900 |
| Wi-Fi | 2.4GHz/5GHz 802.11b/g/n/ac |
| Bluetooth | BT 5.0 |
| Positioning System | GPS/Galileo/BDS/A-GPS |
| Audio Formats | MP3, eAAC, G.711, Windows Media Audio 9/10/Pro, AMR-NB, AMR-WB |
| Image Formats | JPG, GIF, BMP, PNG, WebP |
| Video Formats | 1080p@30fps, MPEG-4, 3GP, P0, H.264, VP9, BP/MP/HP/ASP, DivX 4x/5x/6x |
| Audio Power Output | 3W rated |
| Microphone | Microphone with AI-based noise suppression |
| Operating Temperature | -4°F to +140°F (-20°C to +60°C) |
| Storage Temperature | -22°F to +158°F (-30°C to +70°C) |
| ESD | IEC 61000-4-2 (Level 4) 8kV Contact, 12kV Air |
| Dust and Water Ingress | IP68 Standard, Full submersion at 5 feet for 30 minutes |
| Humidity | Per MIL-STD-810 C/D/E/F/G Standard |
| Shock and Vibration | Per MIL-STD-810 C/D/E/F/G Standard Drop Proof to 5 Feet |
| 3GPP | MCX Release 15, Standard: 400,000 presses |
| Environmental | RoHS/REACH |
| Certication | FCC, CE, IC, GMS |
| Battery | 5,040mAh (Li-Ion Polymer) |
| Battery Life | Up to 15 hours continuous use |
| Weight | 9.5oz (270g) |
| Dimensions (H x W x D) | 6 9/16” x 3 1/32” x 1/2” (167 x 77 x 13mm) |
| Operating System | Android 12 |
| Memory | 4GB RAM + 32GB ROM |
| Card Slots | 2X Nano SIM, or 1X Nano SIM and 1X MicroSD 128Gb |
| Display | 6.3” Gorilla Glass, FHD+, 2340x1080, Supports Multi-Touch, Wet, and Glove Touch |
| Camera | 8MP Front Facing, 8MP Rear Facing Telephoto, and 48MP (via software algorithm) Wide Angle Rear Facing |
| Flash / Flashlight | Supported |
| Ports | USB Type C Charger Interface, 3.5mm Audio Interface |
| Physical Interface Buttons | 1x Push-to-Talk, 2x Volume (+/-), 1x Programmable Button for Scanning or other functions, 1x Power with Fingerprint Recognition |
| Sensors | Fingerprint, Acceleration, Gravity, Gyroscope, Geomagnetic, Infrared, Light |
