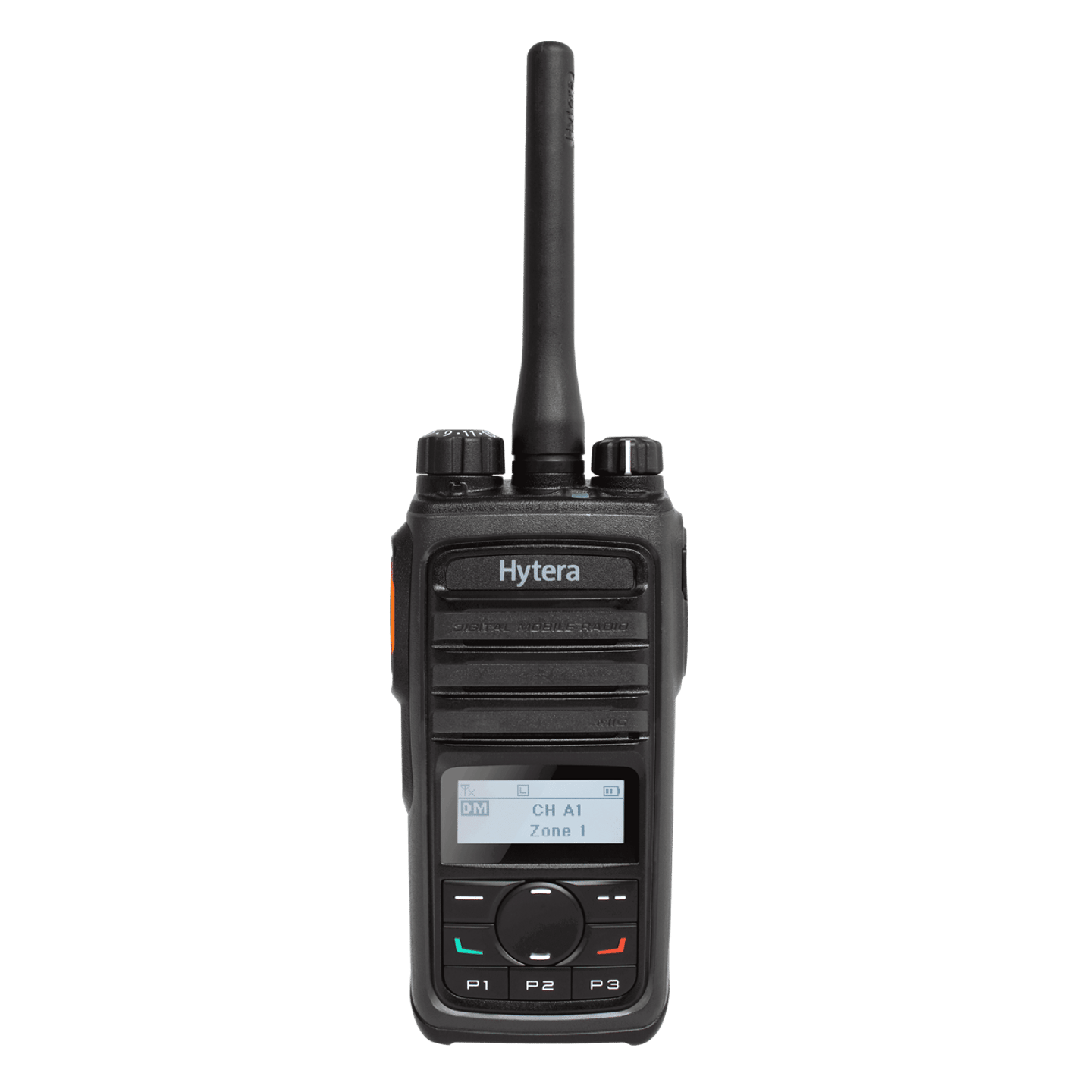

Commercial UHF and VHF Two-Way DMR Radios with LCD Display
Packed with functionality, the Hytera PD562i portable digital radio impresses with its safety features and flexibility to support for both digital and analog communications, ideal for manufacturing, events and hospitality environments.
Maximize Channel Capacity
Rugged and Reliable
One Touch Simplicity
Safer Workforce
Long Battery Life
Functions
QUICK TEXT MESSAGES
Up to 25 pre-programmed via CPS
RADIO CHECK
Allows other radio users to check if a radio is available
RRS
Radio Register Service, allowing a dispatching application to see when a radio is switched on or switched off.
EMERGENCY MODE
Raise an alarm with top priority to a base station or to other radios with the pre-programmed emergency mode, identifying the ID of the person issuing the alarm. Also receive emergency notifications.
PSEUDO TRUNKING
Using pseudo-trunking, a Hytera patented technology, slots can be shared to improve capacity usage with transmissions either direct to handset or to repeater
XPT
Hytera XPT (Extended Pseudo Trunking) enables you to use limited spectrum resources more efficiently, dynamically assigning channel resource without needing a dedicated control channel
STUN
You can disable/enable the radio remotely, ideal if a device is lost, stolen or being misused.
ROAMING
This feature allows the radio to switch between sites on Multi-site Conventional and XPT systems, ensuring seamless communication
Standard Accessories for PD562i DMR Two-Way Radio
Antenna
AN0435H13
UHF Antenna (400-470MHz)
UHF Stubby Antenna, SMA connector, 400-470MHz, 9cm, with Hytera logo
Battery
BP1503
Lithium polymer (1500mAh)
Lithium polymer (1500mAh)
Carrying
RO03
Wrist Strap
Nylon wrist strap
BC08
Belt Clip
Plastic belt clip with a spring and metal bracket
Charger
PS1014
Standard Switching Power Adapter
Standard Switching Power Adapter 100-240VAC 12VDC/1A Hytera (RoHS) (for CH10A07 single charger)
CH10A07
MCU Rapid-Rate Charger
MCU rapid-rate charger for charging both Lithium-ion and NI-MH batteries
Optional Accessories for PD562i DMR Two-Way Radio
Audio
SM08M3
Remote Speaker Microphone With 3.5mm Audio Jack and Swivel Clip
Compact designed remote speaker microphone with 3.5mm audio jack (for use with receive-only earpiece) and 360 degree swivel metal clip.
SM26M1
Remote Speaker Microphone (without emergency button)
Small, light and IP54 compliant remote speaker microphone with 2.5mm external audio connector.
ESM12
Earbud with In-line PTT and Microphone (Black)
Earbud (without earpiece) with VOX capability and in-line PTT microphone ensures convenient and reliable communications (Black)
EHM15-A
D-Style Earpiece with In-line PTT and Microphone (Black)
D-style earpiece with in-line PTT and microphone ideal for covert communications (Black)
ACM-01
PTT & MIC Water Proof Cable (for use with receive-only Earpiece)
IP54 compliant base set with PTT button and microphone can be used with a range of Hytera earbuds. The 3.5mm jack enables the replaced earbud to be connected directly to the ACM-01.
ES-01
Earbud without Earpiece (Receive-Only)
Reliable and ergonomically designed earbud to be used with various base sets. 3.5mm jack plug.
EA-01
Earbud with Transparent Acoustic Tube (Receive-Only)
Reliable and ergonomically designed earpiece with transparent acoustic tube to be used with various base sets. 3.5mm jack plug.
EH-01
C-Style Earpiece (Receive-Only)
Ergonomically designed C-style earpiece (Receive only). 3.5mm jack plug.
EH-02
Swivel Style Earpiece (Receive-Only)
Ergonomically designed swivel earpiece (Receive only). 3.5mm jack plug.
EHS17
Swivel Style Earpiece (Receive Only)
Ergonomically designed swivel earpiece (Receive only). 2.5mm jack plug.
EHS18
C-Style Earpiece (Receive Only)
Ergonomically designed C-style earpiece (Receive only). 2.5mm jack plug.
EAS03
Receive-Only Transparent Acoustic Tube Earpiece
Receive-Only Transparent Acoustic Tube Earpiece
Antenna
AN0435H13
UHF Antenna (400-470MHz)
UHF Stubby Antenna, SMA connector, 400-470MHz, 9cm, with Hytera logo
AN0435W09
UHF Antenna (400-470MHz)
UHF Whip Antenna, SMA connector, 400-470MHz, 16cm
AN0460W19
UHF Antenna (440-470MHz)
UHF Long and fine antenna SMA connector 440-470MHz
AN0141H07
VHF/GPS Antenna (136-147MHz/1575MHz)
VHF Stubby Antenna, SMA connector,136-147MHz, GPS 1575MHz, 12cm, with Hytera logo
AN0153H08
VHF/GPS Antenna (147-160MHz/1575MHz)
VHF Stubby Antenna, SMA connector,147-160MHz, GPS 1575MHz, 12cm, with Hytera logo
AN0167H07
VHF/GPS Antenna (160-174MHz/1575MHz)
VHF Stubby Antenna, SMA connector,160-174MHz, GPS 1575MHz, 12cm, with Hytera logo
AN0160H13
VHF Antenna (146-174MHz)
VHF Antenna, SMA connector, 146-174MHz, 15cm, no logo
AN0141H06
VHF Antenna (136-147MHz)
VHF Antenna, SMA connector, 136-147MHz, 17cm, with Hytera logo
AN0153H07
VHF Antenna (147-160MHz)
VHF Stout Long Antenna, SMA connector, 147-160MHz, 17cm, with Hytera logo
AN0167H06
VHF Antenna (160-174MHz)
VHF Stout Long Antenna, SMA connector, 160-174MHz, 17cm, with Hytera logo
Battery
BP1503
Lithium polymer (1500mAh)
Lithium polymer (1500mAh)
BL2010
Lithium-Ion Battery (2000mAh)
Li-ion battery with 20 hours operating time (2000mAh)
Carrying
BC08
Belt Clip
Plastic belt clip with a spring and metal bracket
RO03
Wrist Strap
Nylon wrist strap
NCN011
Nylon Carrying Case
Nylon carrying case with half-open design and back-lock belt loop for easy installation
PCN006
Waterproof Bag
Waterproof Bag
Charger
CH10A07
MCU Rapid-Rate Charger
MCU rapid-rate charger for charging both Lithium-ion and NI-MH batteries
CHV09
Vehicle Power Adapter
In the vehicle charging solution convenient for portable radio batteries.
POA59
Charging Unit
Charging unit provided for installation in MCA08 and MCA10 chargers
MCA08
Six-Unit Charger Including Power Adapter
Six-unit charger has the capacity to charge six batteries or portable radios simultaneously, whilst detecting the battery type and assigning the appropriate mode.
PS1014
Standard Switching Power Adapter
Standard Switching Power Adapter 100-240VAC 12VDC/1A Hytera (RoHS) (for CH10A07 single charger)
Installation
BRK20
Wall-Mount Installation Kit
Enables secure installation of the multi-charger onto the wall for convenience and easy accessibility
Programming
PC63
Programming Cable (USB)
Programming cable for portable radios in PD5i series
DMR Extended Warranty
DMR Extended Warranty
DMR Extended Warranty
Extended warranty adds 2 years to the standard 3 year Hytera DMR product warranty for a total of 5 years of warranty protection.
Systems that work with PD562i DMR Two-Way Radio
Systems
XPT Extended Pseudo Trunk
Single-site and Multi-site Extended Pseudo Trunking (XPT)
SmartOne DMR Dispatch
Unified Communications and Dispatching
Hytera Bridge
PoC to DMR/Analog Radio Gateway
DMR Tier II Conventional Repeaters
Increase coverage, expand capacity, and improve signal quality
DMR IP Site Connect
Connect Repeater Sites with IP Networks
Technical Specifications
| Frequency Range | VHF: 136-174MHz UHF1: 400-470MHz |
| Channel Capacity | 512 (32 zones with 16 channels per zone) |
| Digital Protocol | ETSI-TS102 361-1,2 & 3 |
| Battery Life (5-5-90 Duty Cycle) | 1500mAh, Analog 11h, Digital 16h |
| Dimensions (W×H×D) | 4.25" x 2.12" x 1.14", 115 x 54 x 30mm |
| Weight | 7.7 oz, 280g (1500mAh Li-ion) |
| Display | 3 line monochrome |
| Keypad | Partial Keypad |
| Programmable Buttons | 6 |
| Dust & Water Intrusion | IP54 Standard |
| GPS | NO |
| Telemetry | NO |
| Option Board | NO |
| Intrinsically Safe Option | NO |
| Bluetooth Audio | NO |
| Alert Call | YES |
| Remote Monitor | YES |
| Priority Interrupt | YES |
| IP Site Connect | YES |
| Work Order | YES (requires latest firmware) |
| 5 Tone Signaling | YES |
| 2 Tone Signallng | YES |
| HDC1200 Signaling | YES |
| DTMF (Phone Patch) | NO |
| Intelligent audio | YES |
| VOX | YES |
| Priority Scan | YES |
| GPS SMS | NO |
| Vibration | NO |
| Lone Worker | YES (requires latest firmware) |
| Mandown | NO |
| Digital Encryption | Basic encryption as standard (10, 32 & 64 character keys)Advanced encryption NO |
| Multiple Key Encryption Decode | YES |
| Multi-language Menu | YES |
| Power on & off user logo programming | No |
| Voice Interrupt | Yes (TX Interrupt for voice call, emergency call, remote dekey, text message) |
| No of Contacts (Conventional) | Digital 1024 Analog 2-Tone 32 Analog HDC1200 N/A Analog 5-Tone N/A |
| Text Messaging | 256 characters (via Quick Text only) |
| MPT1327 / 1343 Trunking | No |
| Tier 3 Trunking | No |
| Over-the-Air Programming | YES via SmartDispatch |
| Analog Only Version | Not Available |
| Wireless Charging | No |
| RFID Reader | No |
| Mixed Mode Operation | No |
| Data Services via Bluetooth | N/A |
