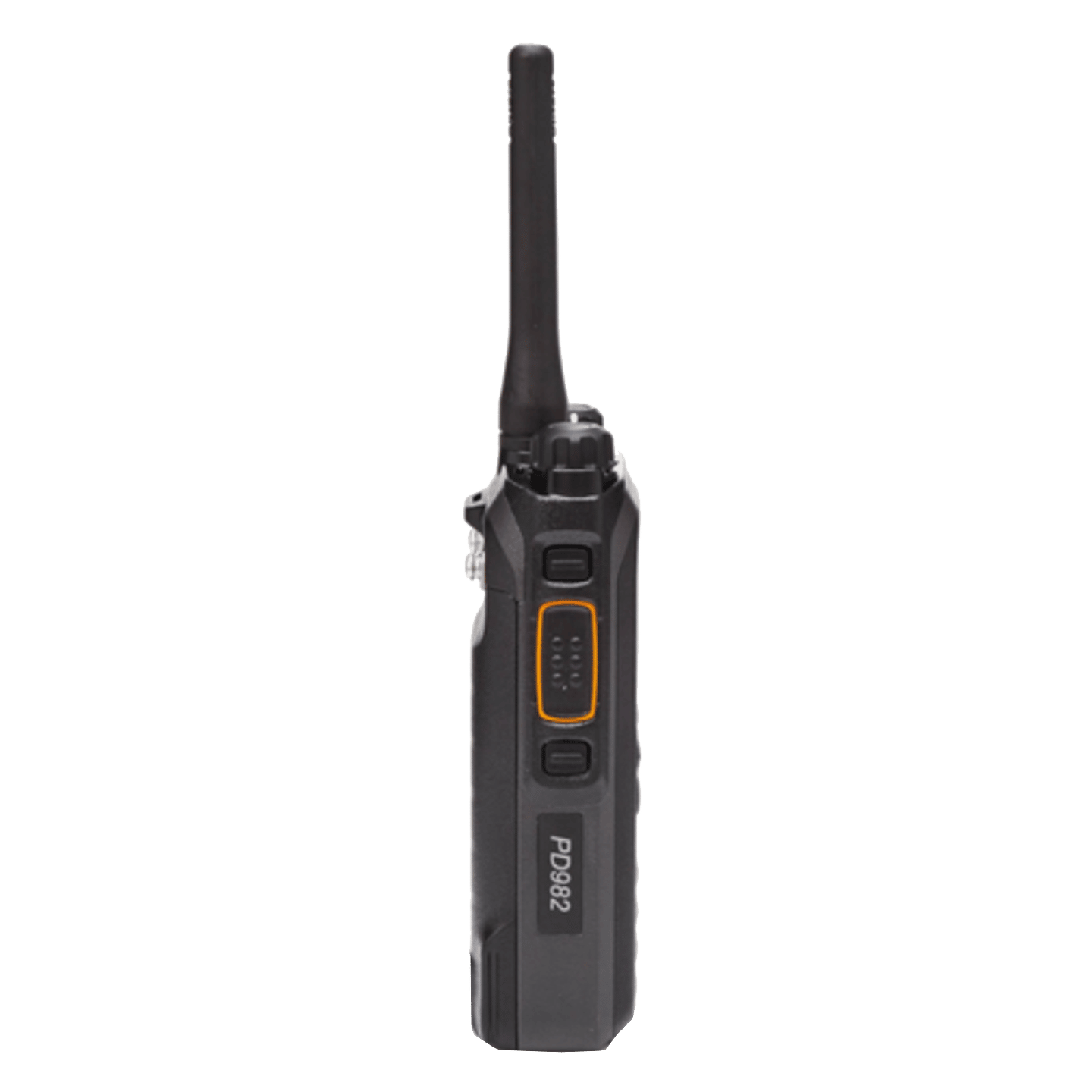

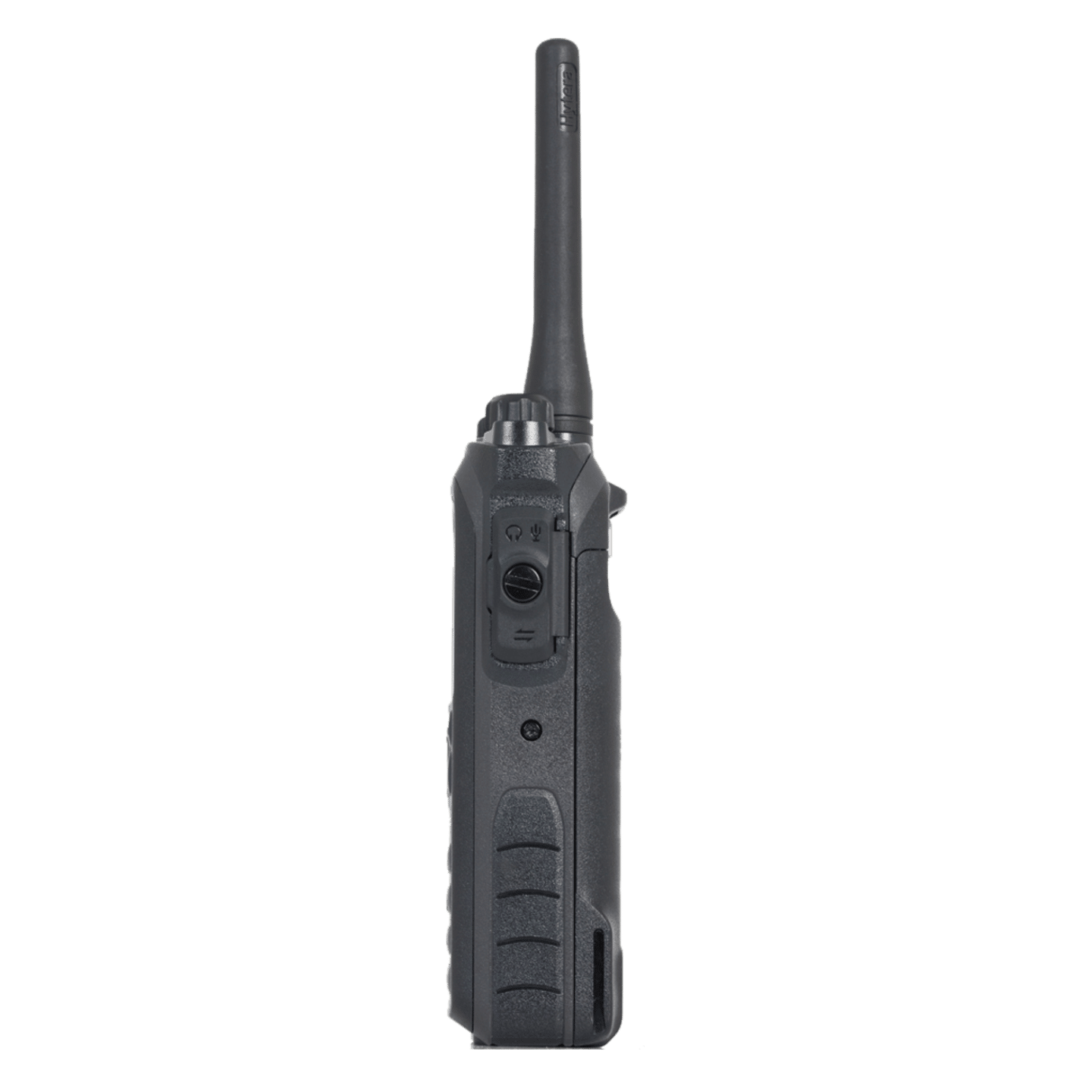

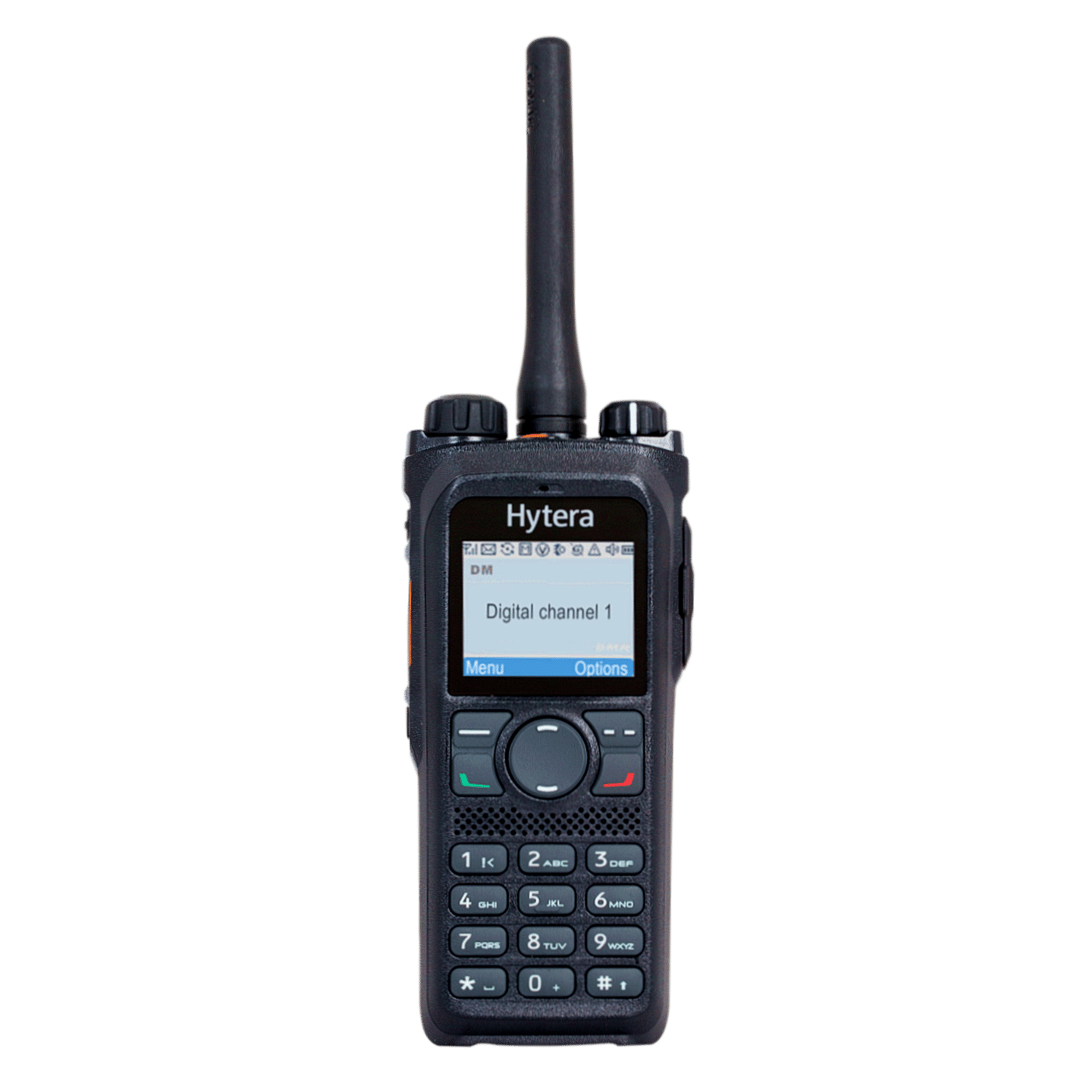

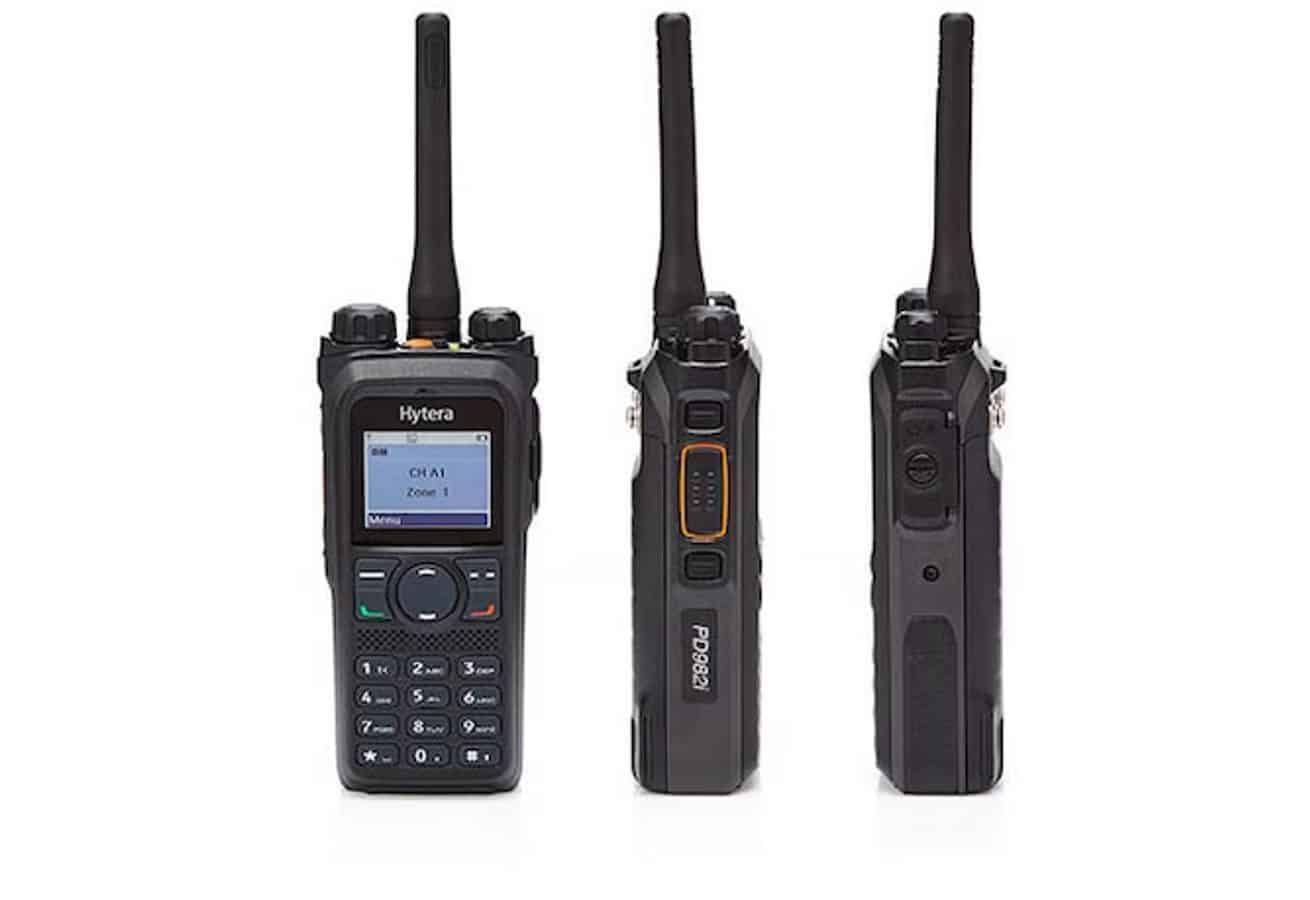

iSeries Professional DMR Two-Way Radio with LCD Display, Full Keypad, and Tier III Trunking
Professional and versatile, the Hytera PD982i is the ultimate portable digital radio. Offering a range of advanced features and an exceptional audio experience, the PD982i can be utilized in all working environments, playing an integral role in your communications network.
Increased Coverage
Using the handset to retransmit communications across a site via the innovative single frequency repeater mode (licensed)
Clear Communication
Thanks to the latest audio processing technology and in-built speaker, the PD982i offers you outstanding audio quality and noise cancelation
Rugged and Reliable
Dust and waterproof, rated IP68, sustaining performance in harsh environments
Full Duplex Call
Send and receive communications simultaneously to enable a conversation, rather than a classic one-way transmission
Wireless Connectivity
Supports Bluetooth 4.0 for audio connectivity and programming
Functions
BLUETOOTH AUDIO
Bluetooth 4.0 for wireless connectivity to audio devices to improve user experience.
XPT
Hytera XPT (Extended Pseudo Trunking) enables you to use limited spectrum resources more efficiently, dynamically assigning channel resource without needing a dedicated control channel.
MAN DOWN
Optional (PD982G only), the man down feature will let you know if the radio has been tilted past a certain angle. This may happen for instance if the radio user has fallen over or is unconscious or injured. The alarm will be triggered after a warning is issued to the user.
EMERGENCY MODE
Raise an alarm with top priority to a base station or to other radios with the pre-programmed emergency mode, identifying the ID of the person issuing the alarm. Also receive emergency notifications.
PSEUDO TRUNKING IN DMO AND RMO
Using pseudo-trunking, a Hytera patented technology, slots can be shared to improve capacity usage with transmissions either direct to handset or to repeater.
FULL DUPLEX CALLS
Tier III (R8.0 firmware) Conventional (end Q2 2017) via firmware upgrade.
LONE WORKER
The lone worker feature uses a timer in the radio to measure inactivity. If the timer expires, a warning is issued, and if there is no response to that, the alarm is triggered.
GPS
Optional (PD982G only), enabling location based services to improve safety and control.
VOICE RECORDING
Record your transmission and call data for future analysis. Requires micro SD card and separate application for playback, chargeable licence
SINGLE FREQUENCY REPEATER
Utilise your PD982 radio as a repeater to improve coverage across your site (chargeable licence)
Standard Accessories for PD982i DMR Two-Way Radio
Antenna

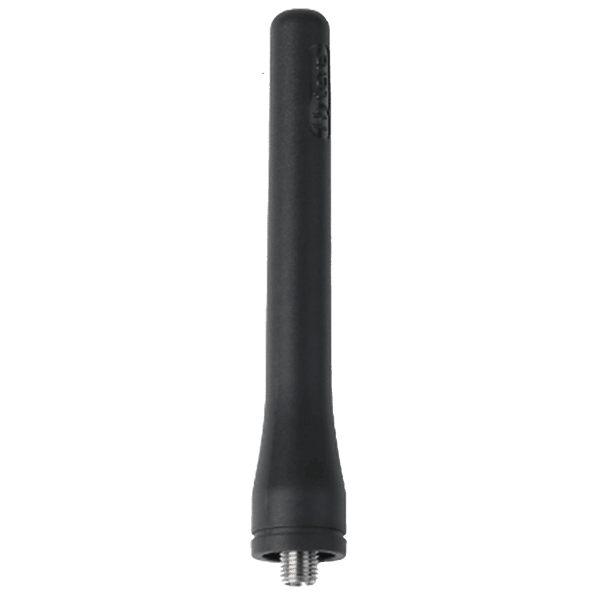

AN0873H07
UHF/GPS Antenna (806-941MHz/1575MHz)
UHF Antenna, SMA connector, 806-941MHz, GPS 1575MHz, 9cm, with Hytera logo
Battery
BL2016
Lithium-Ion Battery (2000mAh)
Lithium-Ion Battery with 20 hours operating time (2000mAh)
Carrying
RO04
Leather Wrist Strap
Leather wrist strap

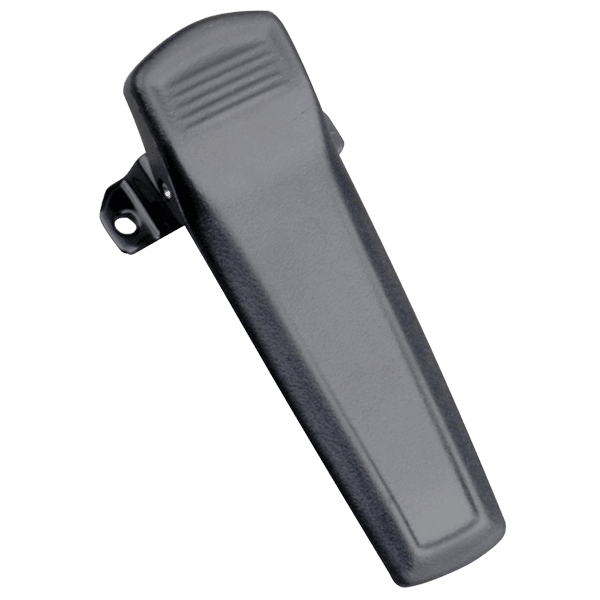

BC19
Belt Clip
Plastic belt clip with a spring and metal bracket, can be secured to the radio using the screws supplied
Charger

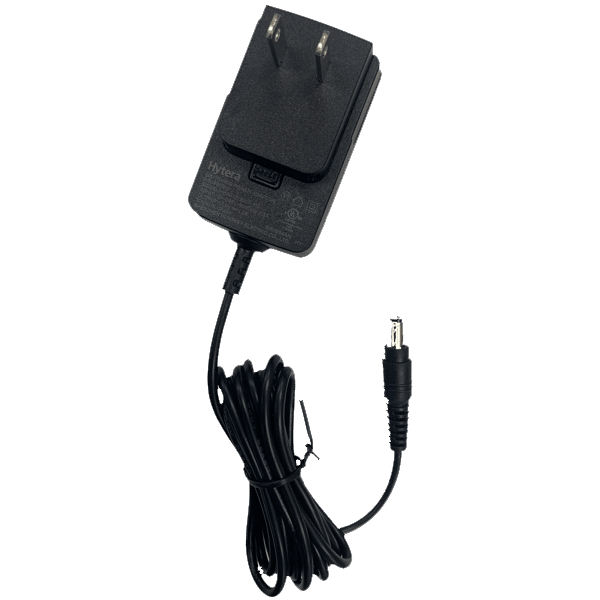

PS1014
Standard Switching Power Adapter
Standard Switching Power Adapter 100-240VAC 12VDC/1A Hytera (RoHS) (for CH10A07 single charger)

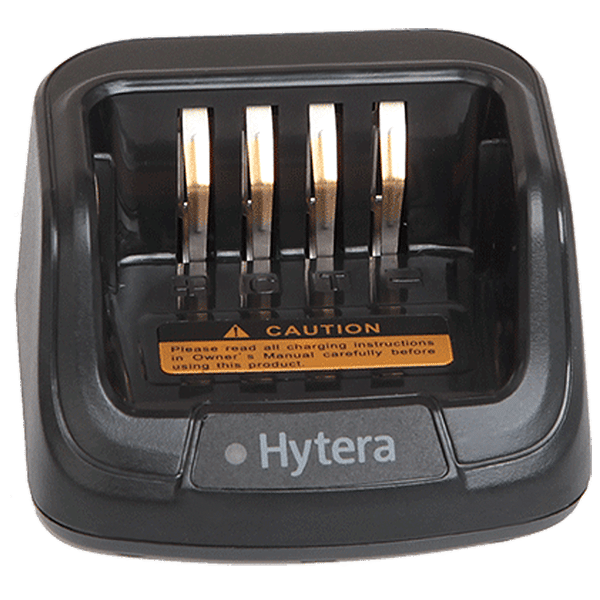

CH10A07
MCU Rapid-Rate Charger
MCU rapid-rate charger for charging both Lithium-ion and NI-MH batteries
Optional Accessories for PD982i DMR Two-Way Radio
Audio

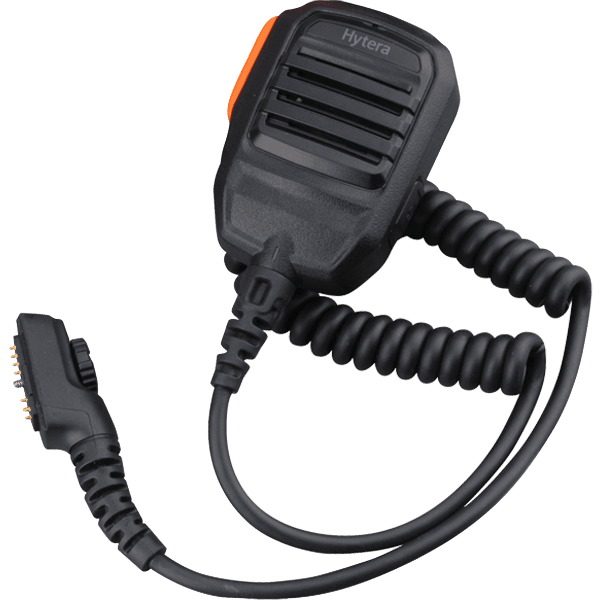

SM18N2
Remote Speaker Microphone (IP67)
Reliable, robust and IP67 compliant remote speaker microphone with emergency call button and 3.5mm external earpiece jack.

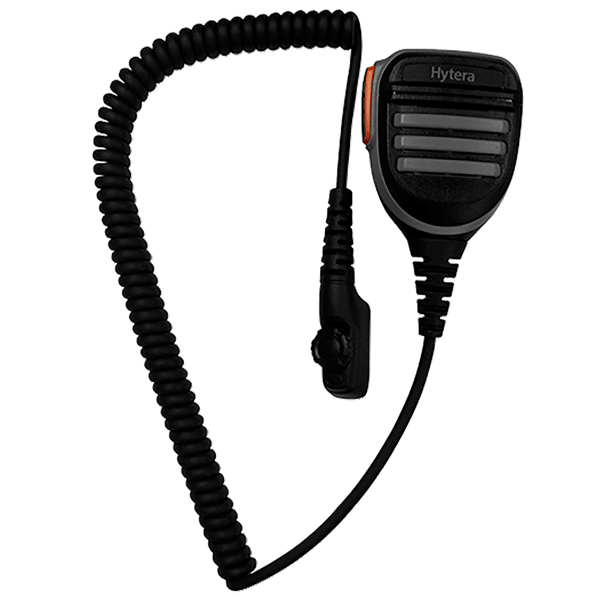

SM26N3
Remote Speaker Microphone (with emergency button)
IP67 compliant remote speaker microphone with emergency button

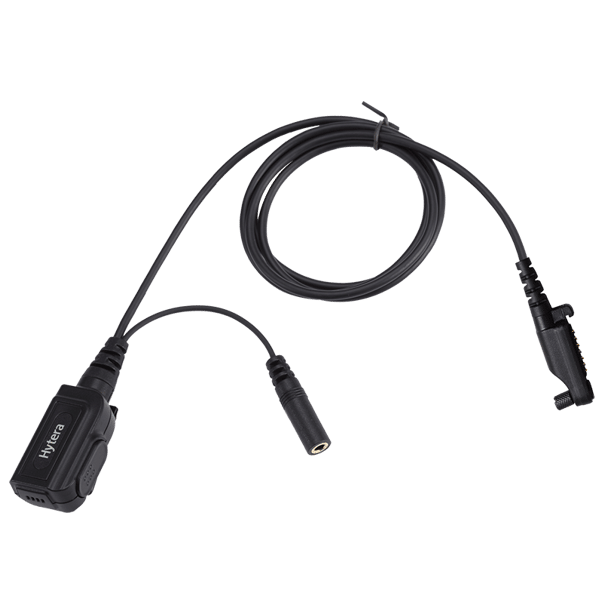

ACN-01
PTT and MIC cable (for use with receive-only Earpiece)
IP54 compliant PTT button and microphone, supports VOX function and consists of 3.5mm jack socket enabling user to replace earbuds for comfort and hygiene purposes

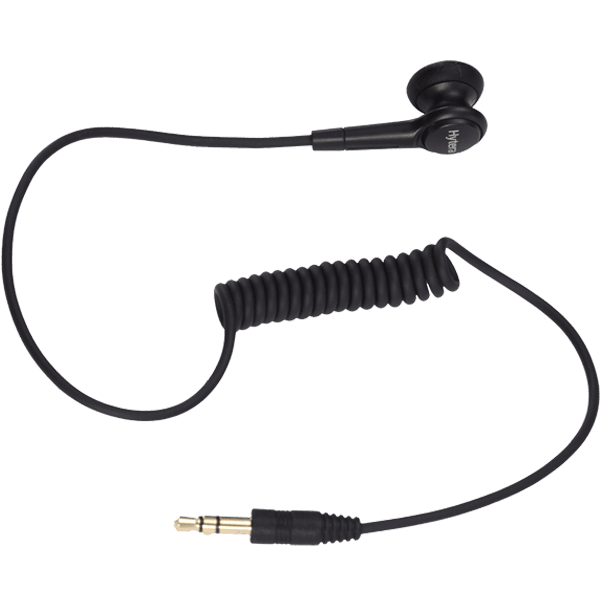

ES-01
Earbud without Earpiece (Receive-Only)
Reliable and ergonomically designed earbud to be used with various base sets. 3.5mm jack plug.
ES-02
Earbud with Acoustic Tube (Receive-Only)
Reliable and ergonomically designed earpiece with acoustic tube to be used with various base sets. 3.5mm jack plug.

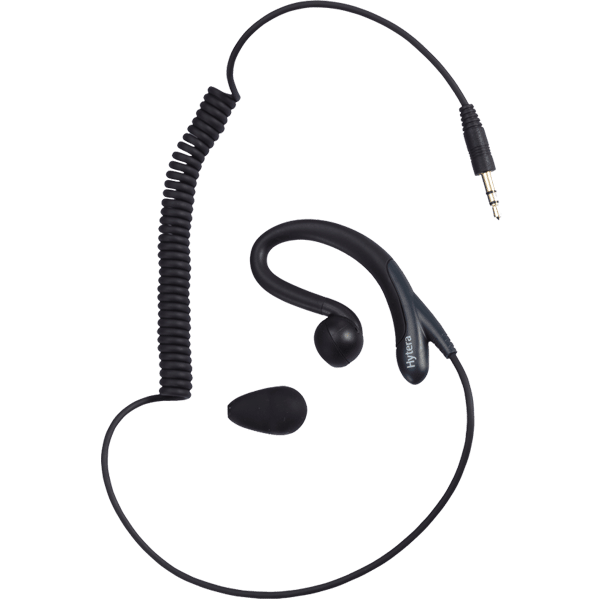

EH-01
C-Style Earpiece (Receive-Only)
Ergonomically designed C-style earpiece (Receive only). 3.5mm jack plug.
EH-02
Swivel Style Earpiece (Receive-Only)
Ergonomically designed swivel earpiece (Receive only). 3.5mm jack plug.

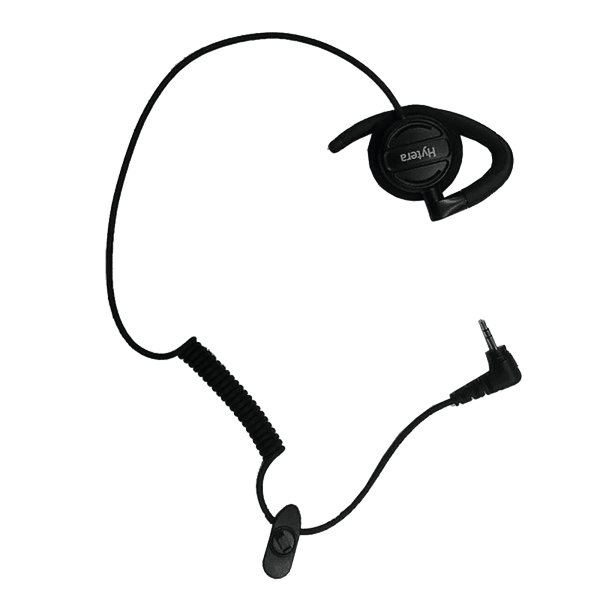

EHS17
Swivel Style Earpiece (Receive Only)
Ergonomically designed swivel earpiece (Receive only). 2.5mm jack plug.

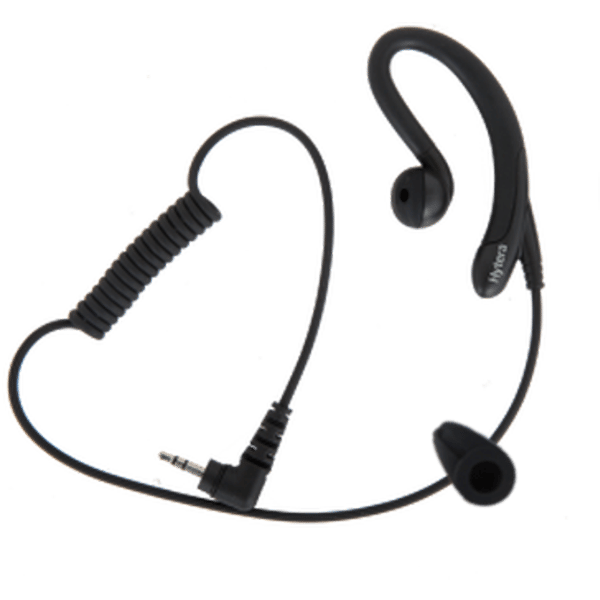

EHS18
C-Style Earpiece (Receive Only)
Ergonomically designed C-style earpiece (Receive only). 2.5mm jack plug.

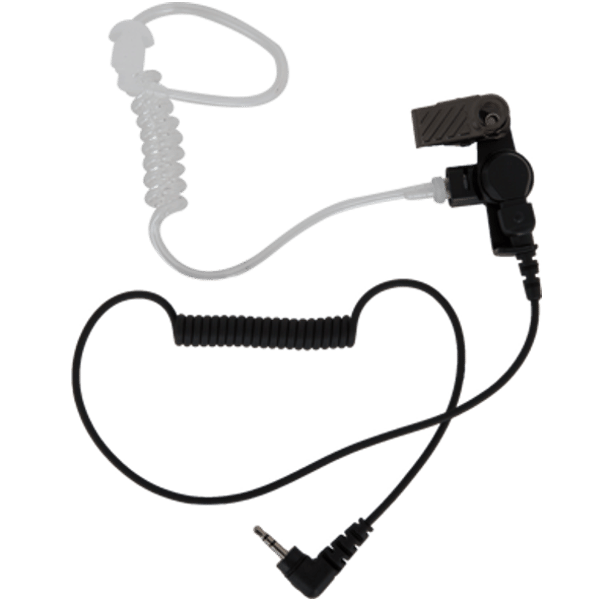

EAS03
Receive-Only Transparent Acoustic Tube Earpiece
Receive-Only Transparent Acoustic Tube Earpiece

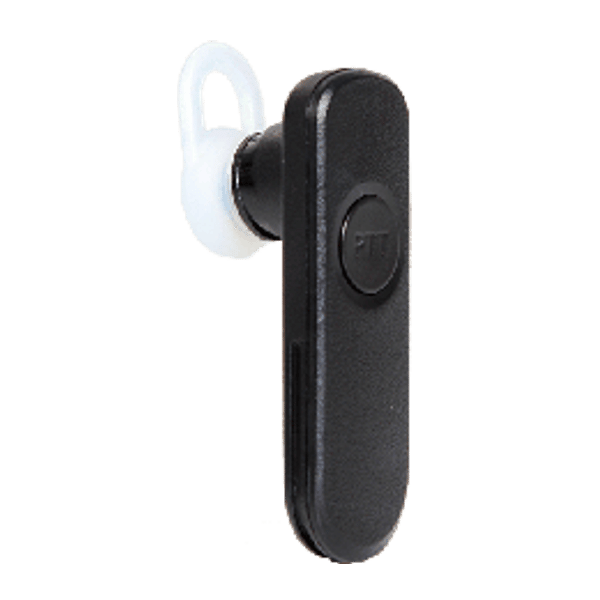

ESW01
Bluetooth Earpiece with charger(requires PS1030 power adapter)
Bluetooth Earpiece with charger(requires PS1030 power adapter)

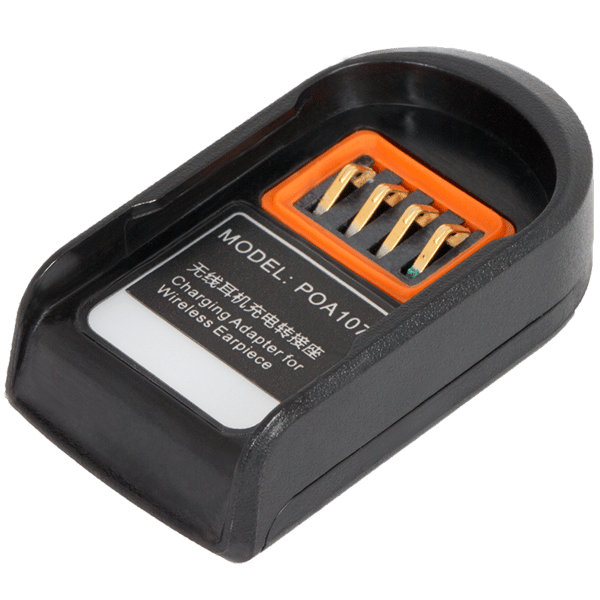

POA107
Charging adapter for wireless earpiece (ESW01)
The POA107 compact charger allows charging of the wireless headset ESW01 using a micro USB cable, this is an alternative charging solution for the ADN-01 or ADN-02.
POA47
Bluetooth PTT with two programmable keys
Small and discreet designed Bluetooth PTT for covert and convenient communication. Two programmable keys can be programmed with volume and channel up and down functions via CPS
EAN17
3-Wire Earpiece with Acoustic Tube, Microphone and PTT (Beige)
3-wire earpiece with detachable acoustic tube, clip, separate PTT and microphone for discreet communication (Beige)

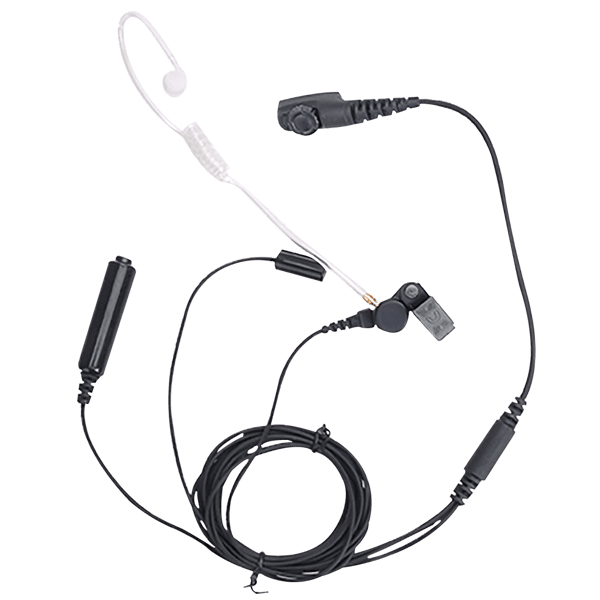

EAN18
3-Wire Earpiece with Acoustic Tube, Microphone and PTT (Black)
3-wire earpiece with detachable acoustic tube, clip, separate PTT and microphone for discreet communication (Black)

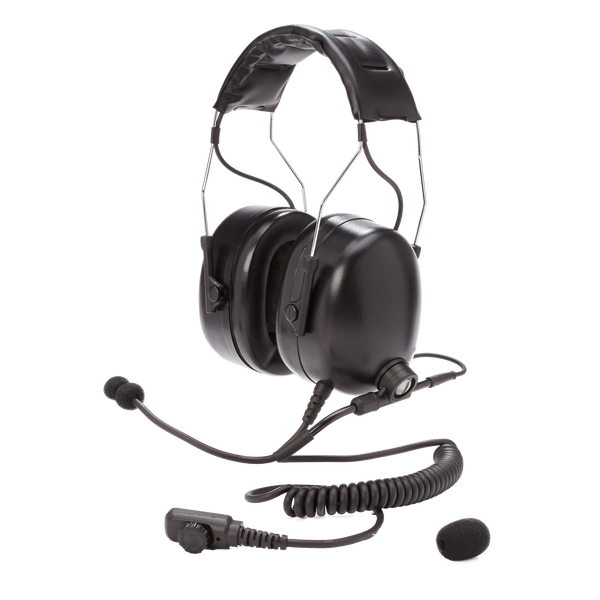

ECN18
Noise Protection Headset
Heavy duty headset with microphone, offering noise protection with in-built speakers, protecting your hearing and allowing the user to operate the radio in noisy environments.
EWN09
Wireless Earphone, Neck Loop, Microphone and PTT (Beige)
Wireless earphone, neck loop, microphone and PTT ideal for discreet communication (Beige). Consists of EWN10 and POA42
Antenna
AN0375H14
UHF/GPS Antenna (350-400MHz/1575MHz)
UHF Antenna, SMA connector, 350-400MHz, GPS 1575MHz, 9cm, with Hytera logo

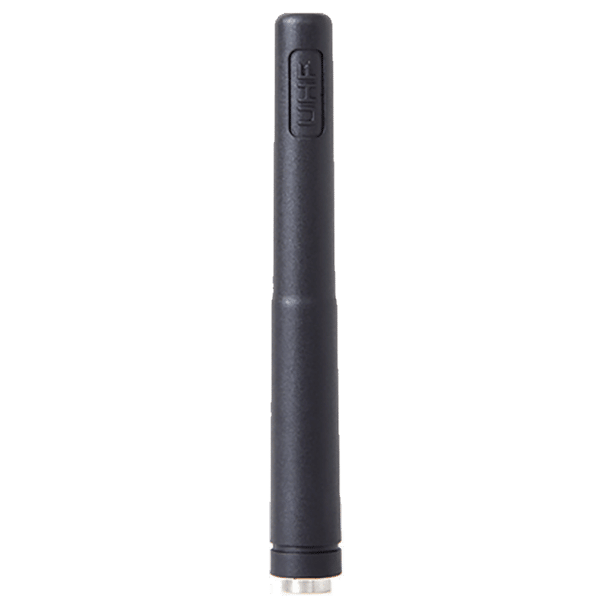

AN0435H21
UHF/GPS Antenna (400-470MHz/1575MHz)
UHF Antenna, SMA connector, 400-470MHz, GPS 1575MHz, 9cm, with Hytera logo
AN0141H06
VHF Antenna (136-147MHz)
VHF Antenna, SMA connector, 136-147MHz, 17cm, with Hytera logo
AN0153H12
VHF/GPS Antenna (147-160MHz/1575MHz)
VHF stubby Antenna, SMA connector, 147-160MHz, GPS 1575MHz, 17cm, with Hytera logo
AN0167H06
VHF Antenna (160-174MHz)
VHF Stout Long Antenna, SMA connector, 160-174MHz, 17cm, with Hytera logo

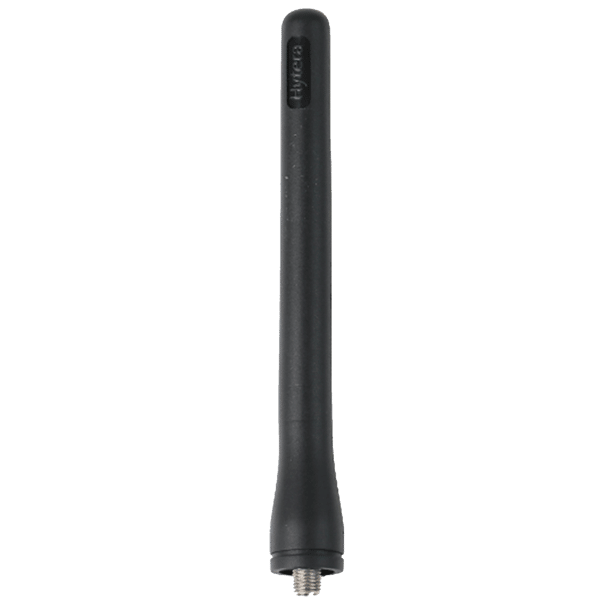

AN0141H07
VHF/GPS Antenna (136-147MHz/1575MHz)
VHF Stubby Antenna, SMA connector,136-147MHz, GPS 1575MHz, 12cm, with Hytera logo
AN0153H08
VHF/GPS Antenna (147-160MHz/1575MHz)
VHF Stubby Antenna, SMA connector,147-160MHz, GPS 1575MHz, 12cm, with Hytera logo

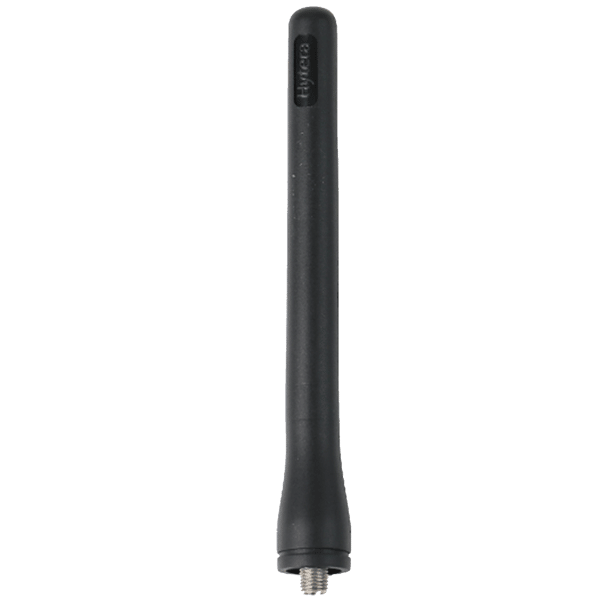

AN0167H07
VHF/GPS Antenna (160-174MHz/1575MHz)
VHF Stubby Antenna, SMA connector,160-174MHz, GPS 1575MHz, 12cm, with Hytera logo

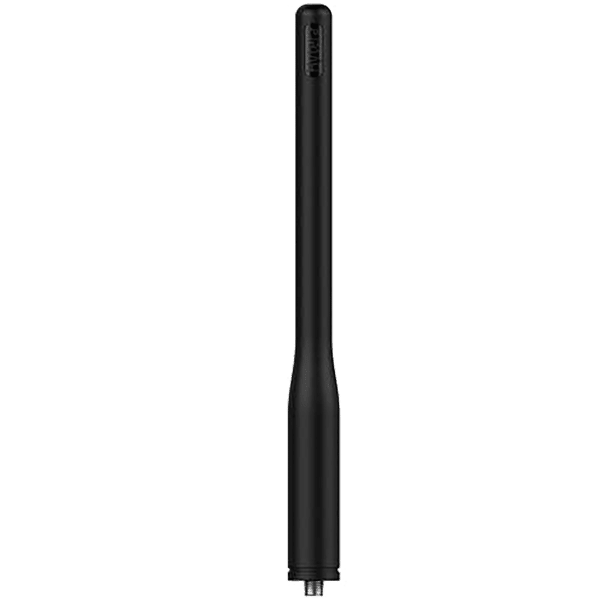

AN0155H08
VHF/GPS Antenna (147-160MHz/1575MHz)
VHF Stout Long Antenna, SMA connector, 136-174MHz, GPS 1575MHz, 20cm, with Hytera logo
Battery
BL2016
Lithium-Ion Battery (2000mAh)
Lithium-Ion Battery with 20 hours operating time (2000mAh)
BL2509
Lithium-Ion Battery (2500mAh)
Lithium-ion battery (2500mAh)
BL3005
Lithium-Ion Intelligent Battery (3000mAh)
Lithium-Ion intelligent battery (3000mAh)
Carrying
BC19
Belt Clip
Plastic belt clip with a spring and metal bracket, can be secured to the radio using the screws supplied

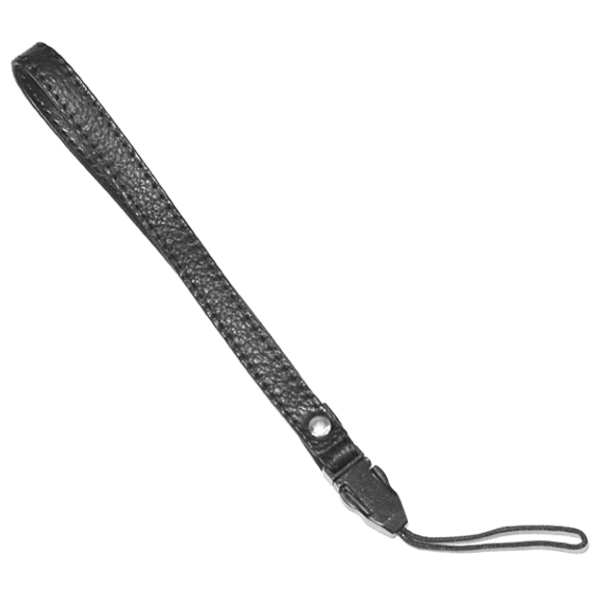

RO04
Leather Wrist Strap
Leather wrist strap
LCY012
Leather Carring Case
Leather Carrying Case with LCD display and keypad, for thin battery

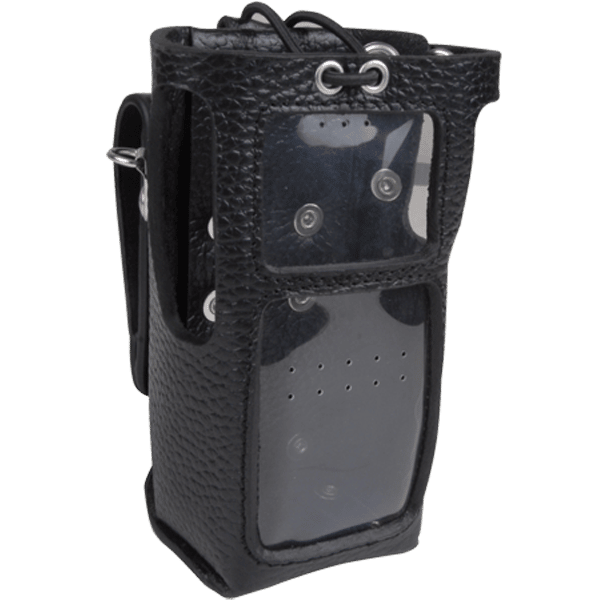

LCY006
Leather Case with Swivel Belt Clip
Leather case delivering exceptional performance in wearability with D-type buckle and swivel belt clip
Charger
CH10A07
MCU Rapid-Rate Charger
MCU rapid-rate charger for charging both Lithium-ion and NI-MH batteries

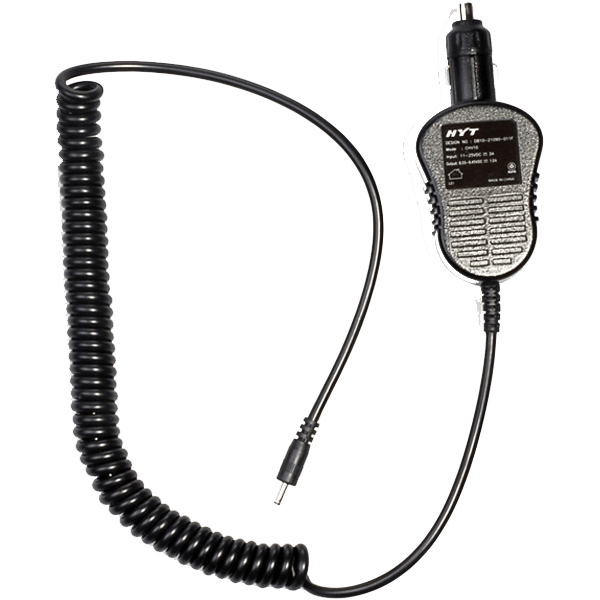

CHV09
Vehicle Power Adapter
In the vehicle charging solution convenient for portable radio batteries.

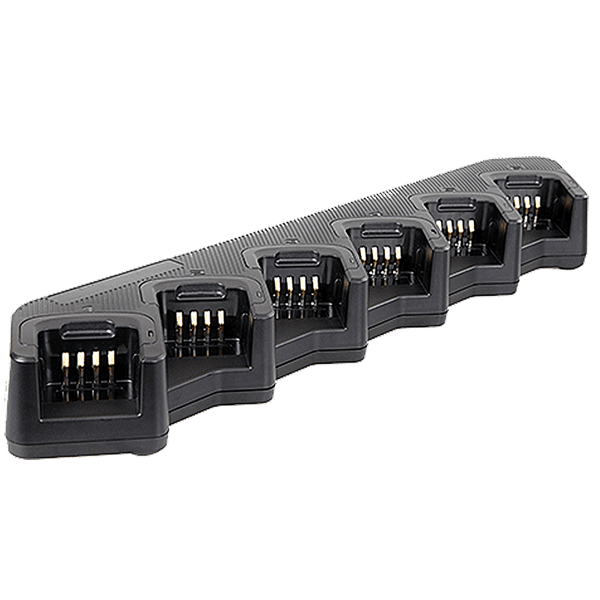

MCA08
Six-Unit Charger Including Power Adapter
Six-unit charger has the capacity to charge six batteries or portable radios simultaneously, whilst detecting the battery type and assigning the appropriate mode.

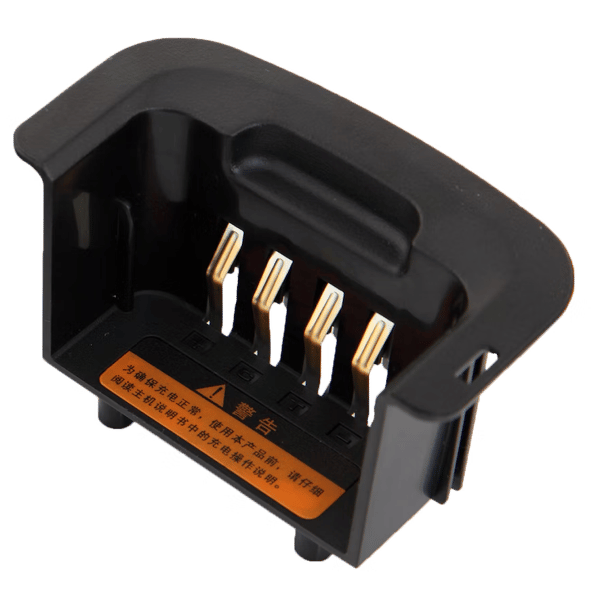

POA59
Charging Unit
Charging unit provided for installation in MCA08 and MCA10 chargers
PS1014
Standard Switching Power Adapter
Standard Switching Power Adapter 100-240VAC 12VDC/1A Hytera (RoHS) (for CH10A07 single charger)

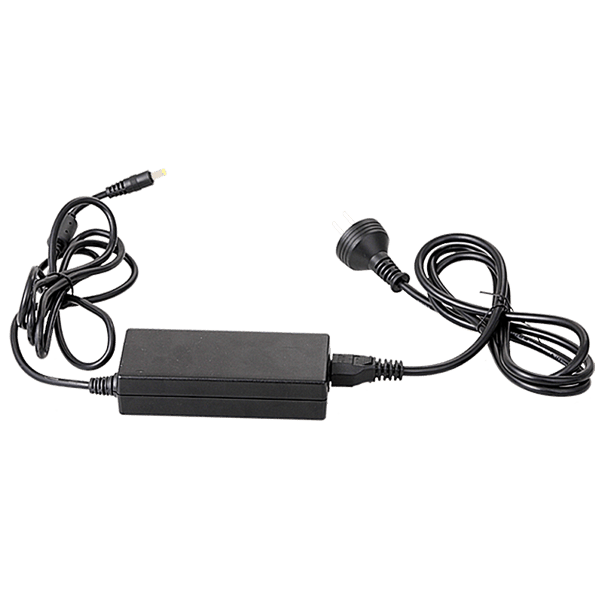

PS7501
Power adapter switching
Power adapter switching MCU MCA05/MCA02/MCA03/MCA08/MCL15
PS1030
Power Adapter (Micro USB)
Power adapter (Micro USB) for PD3 series enables hassle free charging via PC or laptop
Installation

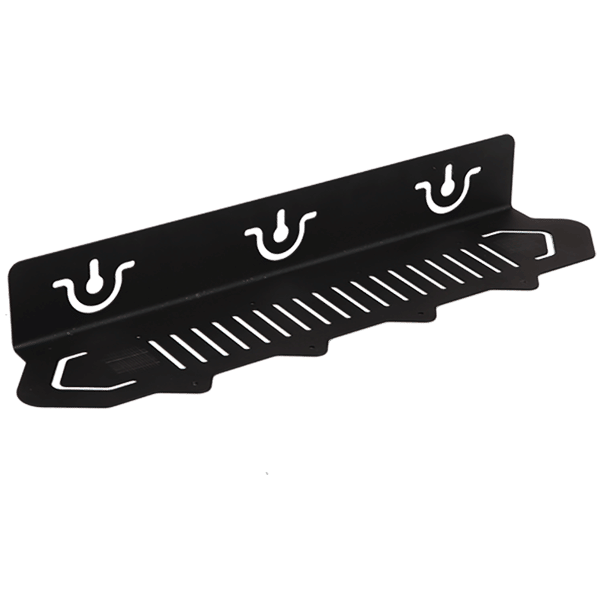

BRK20
Wall-Mount Installation Kit
Enables secure installation of the multi-charger onto the wall for convenience and easy accessibility
Programming
PC38
Programming Cable (USB to Serial)
Programming cable for portable radios in PD7i series
CP14
Cloning Cable
Cloning Cable

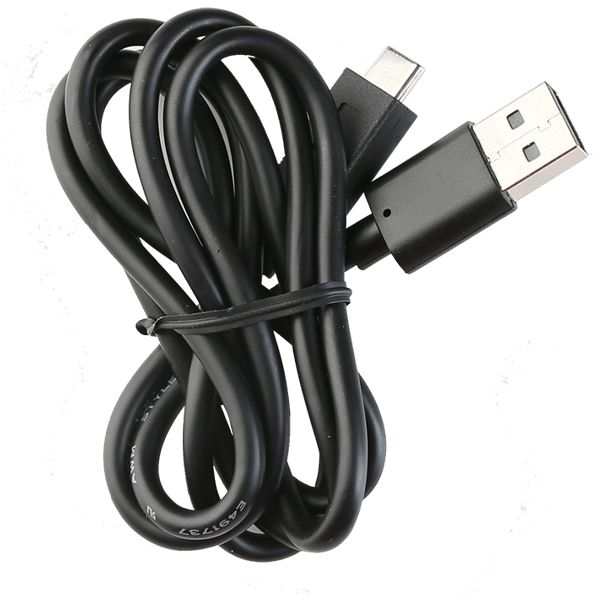

PC143
Programming Cable – USB Type C
Programming Cable – USB Type C
DMR Extended Warranty
DMR Extended Warranty
DMR Extended Warranty
Extended warranty adds 2 years to the standard 3 year Hytera DMR product warranty for a total of 5 years of warranty protection.
Systems that work with PD982i DMR Two-Way Radio
Systems

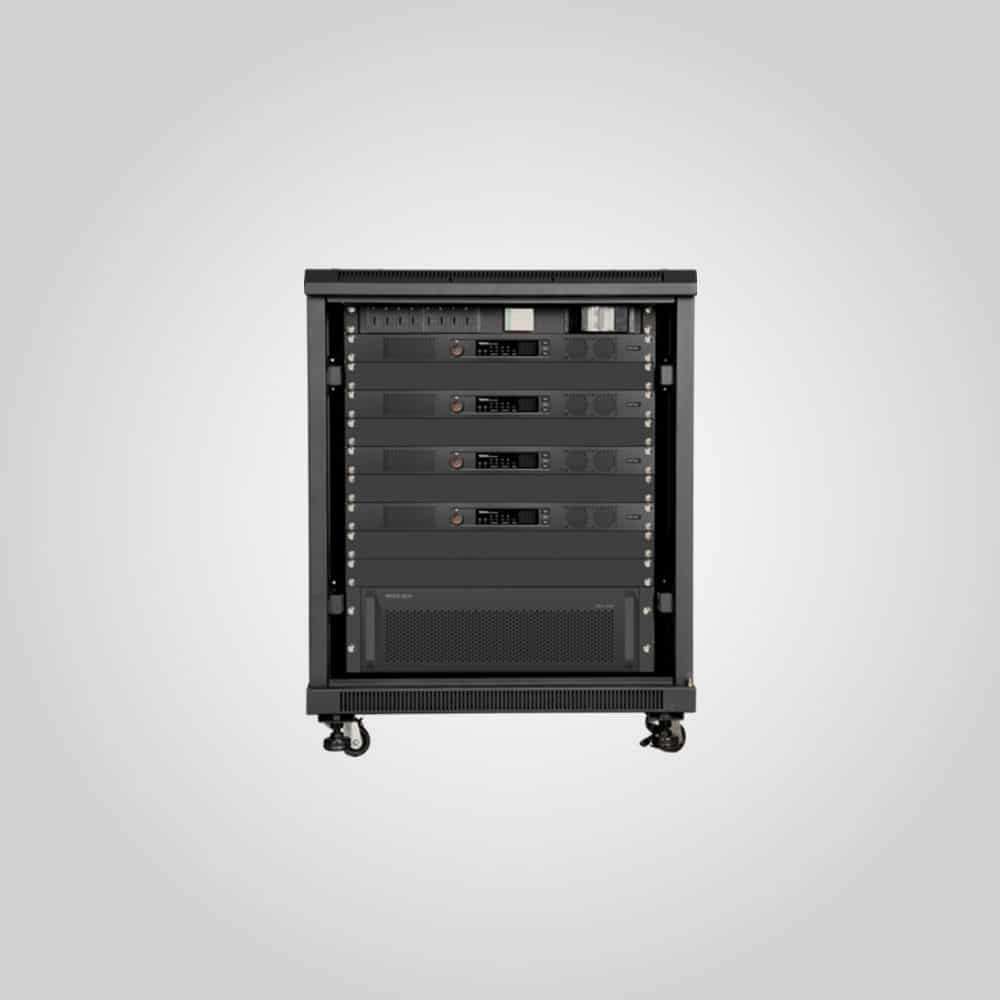

XPT Extended Pseudo Trunk
Single-site and Multi-site Extended Pseudo Trunking (XPT)

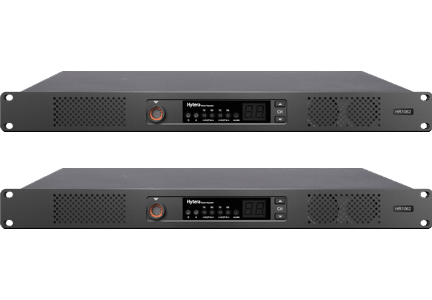

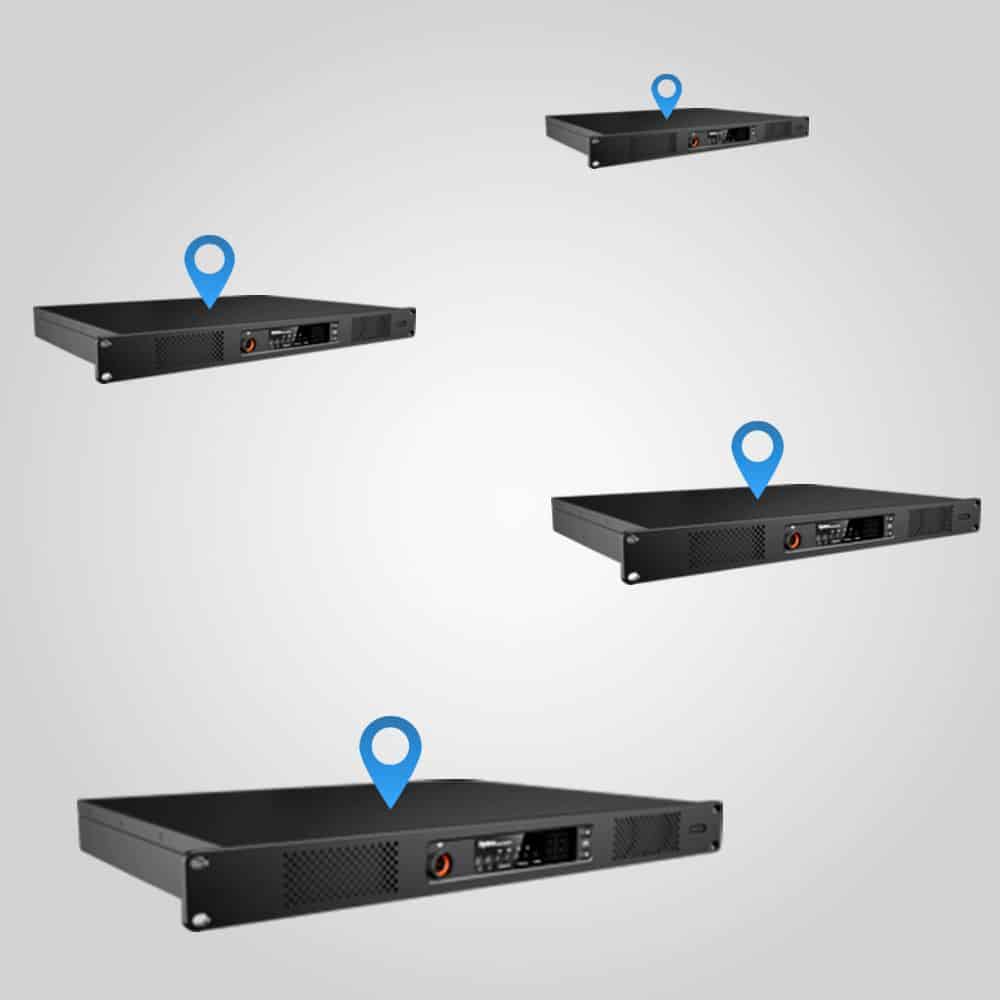

DMR IP Site Connect
Connect Repeater Sites with IP Networks

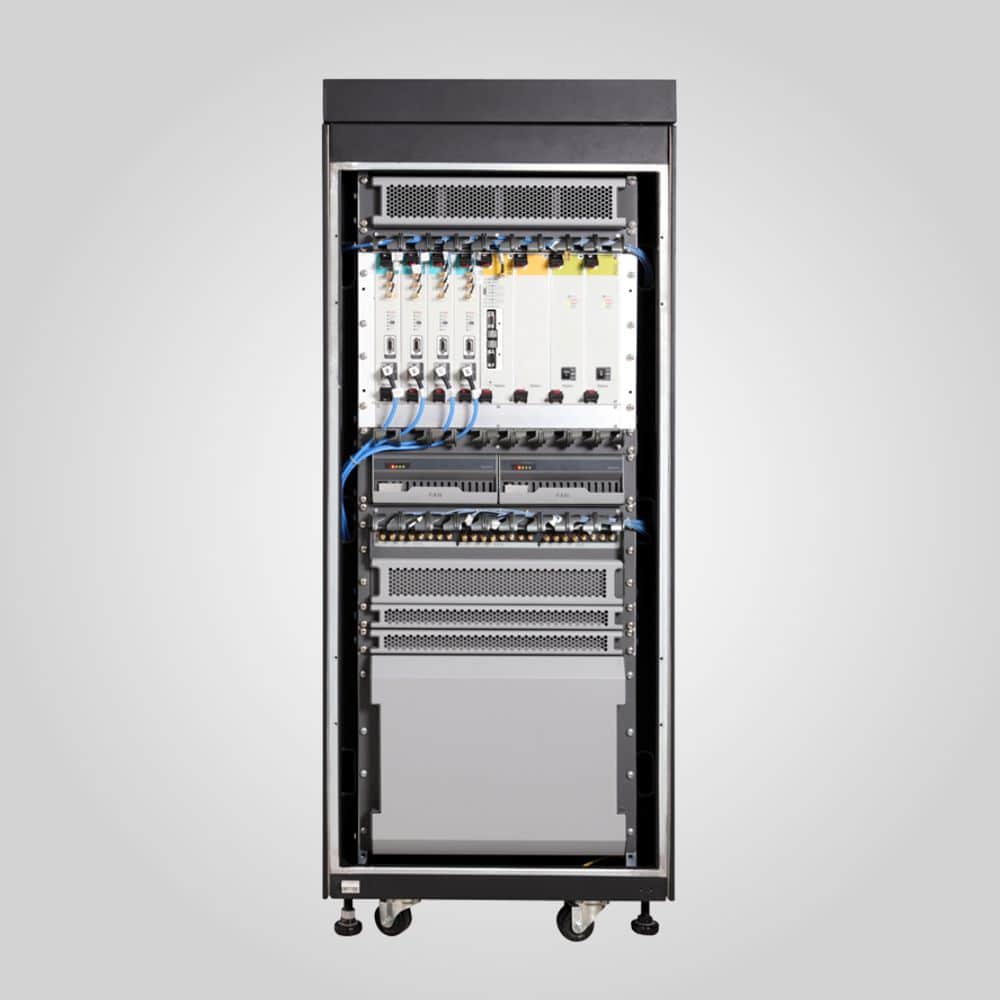

DMR Tier III
Digital Radio Trunking Systems

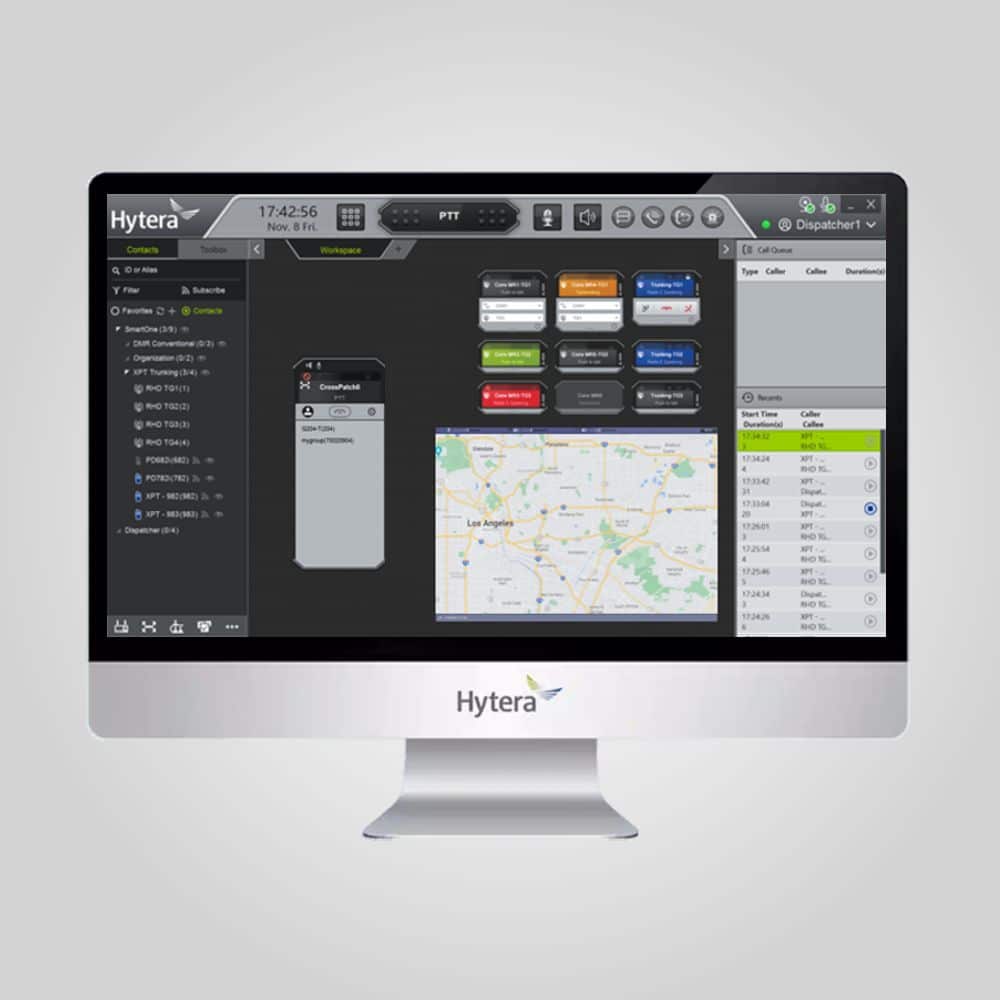

SmartOne DMR Dispatch
Unified Communications and Dispatching
Technical Specifications
| Frequency Range | UHF5: 806-870MHz |
| Channel Capacity | 1024 (64 zones with 256 channels per zone) |
| Digital Protocol | ETSI-TS102 361-1,2 & 3 |
| Battery Life (5-5-90 Duty Cycle) | 2000mAh, Analog 14.5h, Digital 19h |
| Dimensions (W×H×D) | 5.15" X 2.12" X 1.41", 131 X 54.5 X 36(mm) |
| Weight | 11.8 oz, 335g with standard battery and antenna |
| Display | 160 x 128 pixels, 65536 colors 1.8 inch, 4 rows |
| Keypad | Full Keypad |
| Programmable Buttons | 5 |
| Dust & Water Intrusion | IP68 Standard |
| RRS | YES |
| Telemetry | YES |
| Option Board | YES |
| Intrinsically Safe Option | NO |
| Radio Check | YES |
| Alert Call | YES |
| Stun / Unstun | YES |
| Remote Monitor | YES |
| Priority Interrupt | YES |
| IP Site Connect | YES |
| Roaming | YES |
| Work Order | YES |
| 5 Tone Signaling | YES |
| 2 Tone Signaling | YES |
| HDC1200 Signaling | YES |
| DTMF (Phone Patch) | YES |
| Intelligent audio | YES |
| VOX | YES |
| Priority Scan | YES |
| GPS SMS | Optional |
| Vibration | YES |
| Scrambler (Analog) | YES |
| Digital Encryption | Basic encryption as standard (10, 32 & 64 character keys). 40 bit Enhanced Encryption as StandardAdvanced encryption (Hytera or DMRA 128 bits and 256bits AES) available via chargeable license file. |
| Multiple Key Encryption Decode | YES |
| Multilanguage Menu | YES |
| Power on & off user logo programming | YES |
| Voice Interrupt | Yes (TX Interrupt for voice call, emergency call, remote dekey, text message.) |
| No of Contacts (Conventional) | Digital 1024 Analog 2-Tone 32 Analog HDC1200 200 Analog 5-Tone 255 |
| No of Contacts (Trunking) | Private Contacts 512 Group Contacts 1024 |
| Text Messaging | 256 characters |
| Quick Text Messages | Up to 25 pre-programmed via CPS |
| MPT1327 / 1343 Trunking | Yes via free of charge license key |
| Tier 3 Trunking | Available via chargeable license file |
| Over-the-Air Programming | Yes via smartdispatch 4.0 |
| Analog Only Version | Not Available |
| Micro SD Card | YES. Maximum capacity 32GB. (latest firmware required & chargeable license) |
| Data Services via Bluetooth | Due end Q2 2017 |
