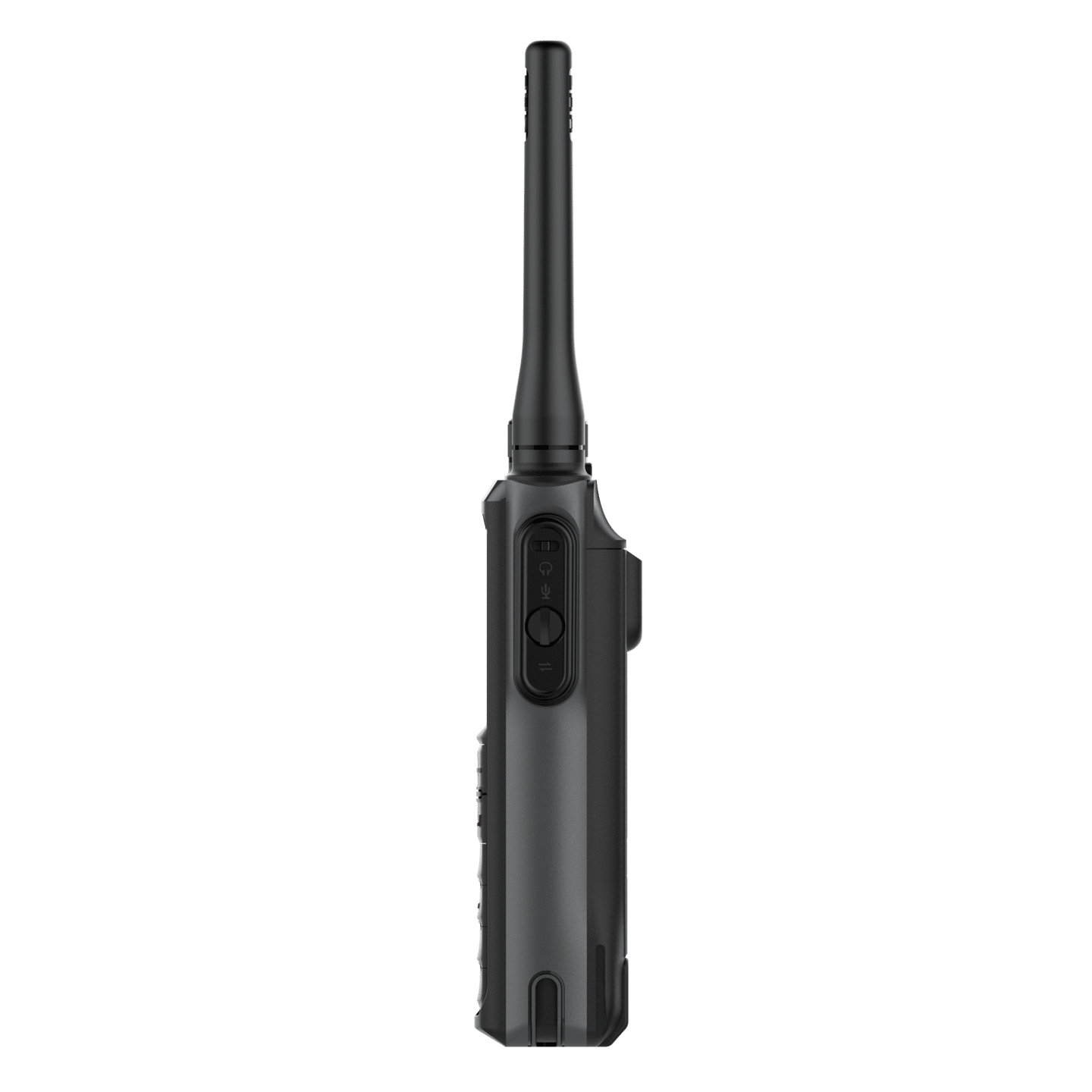

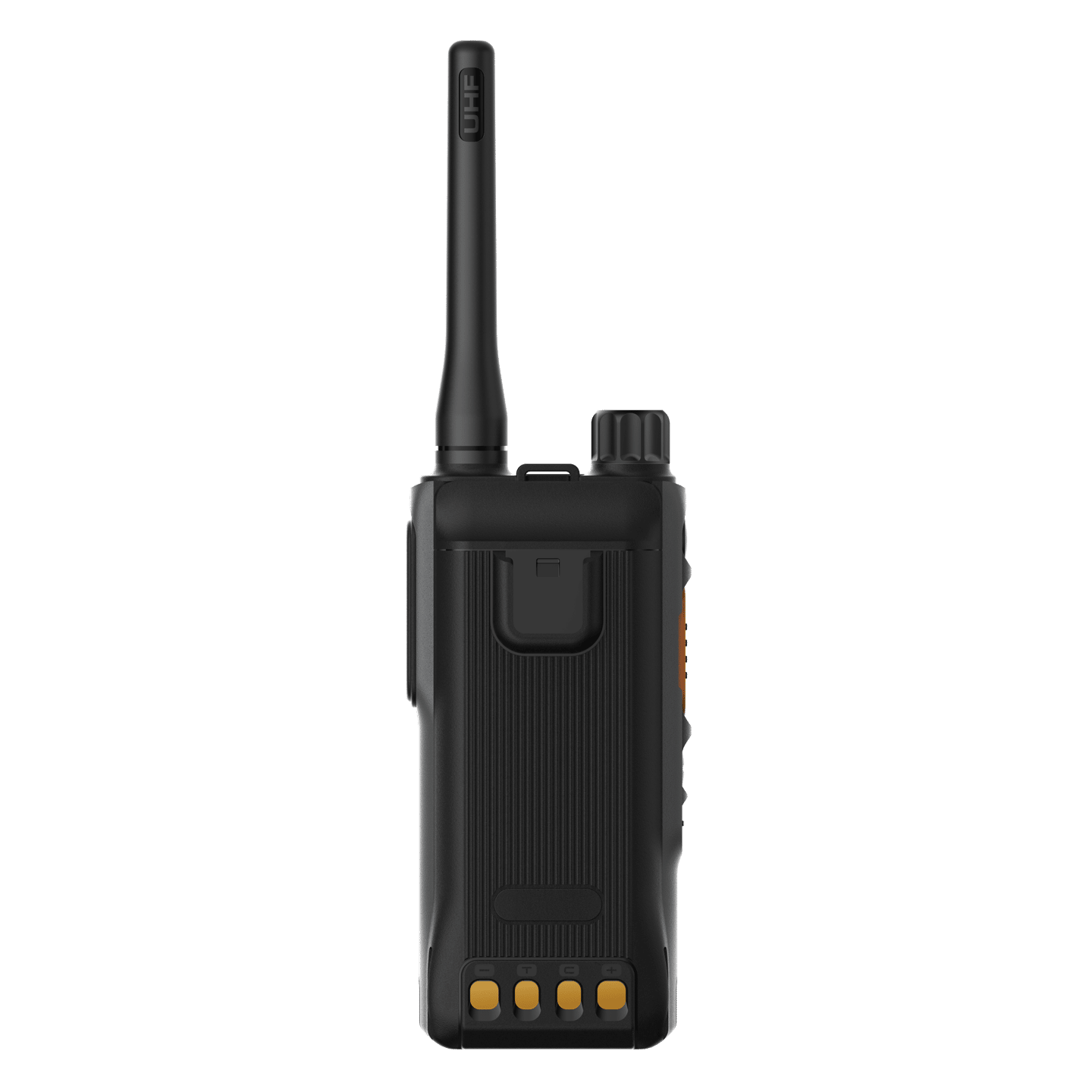

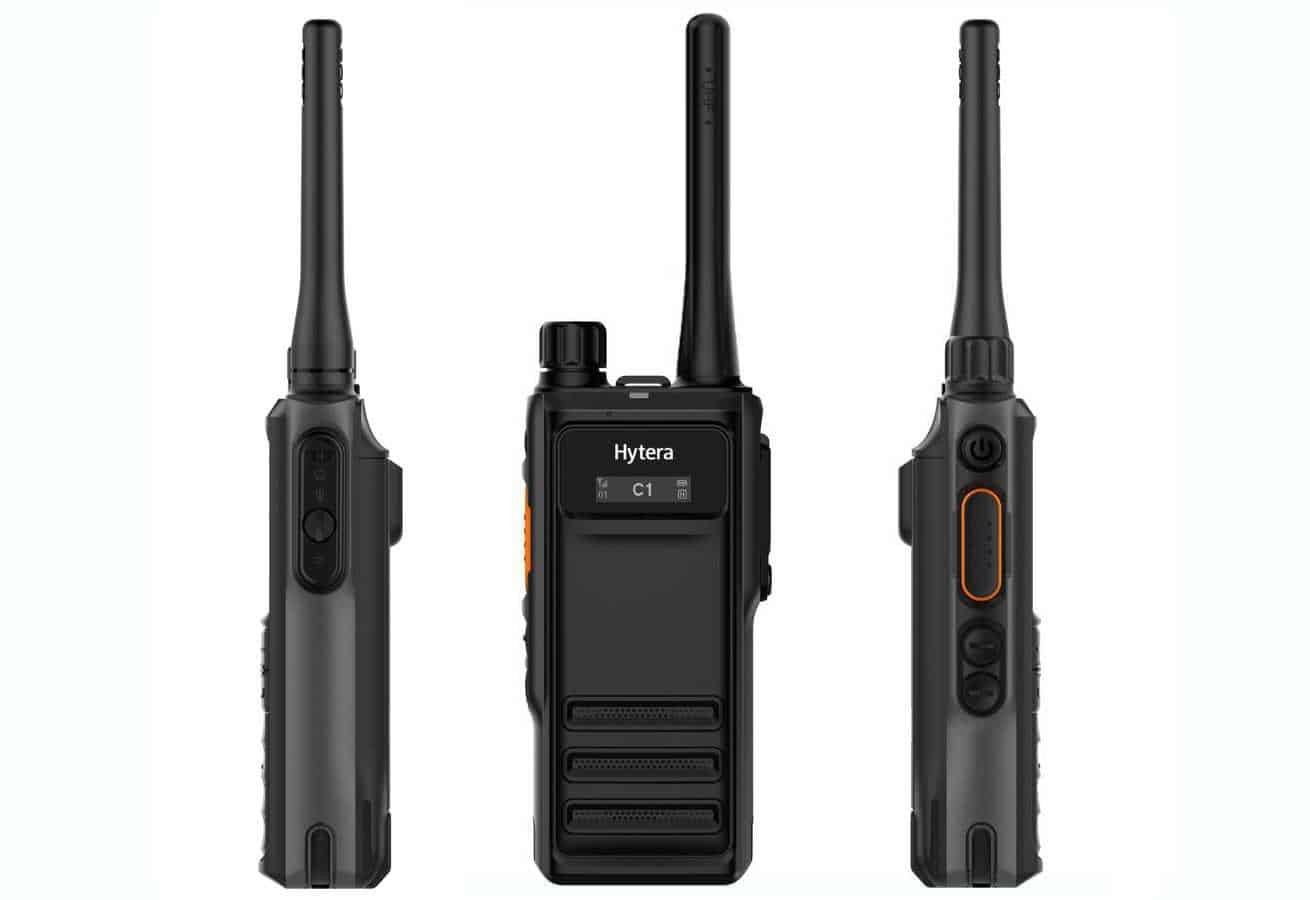

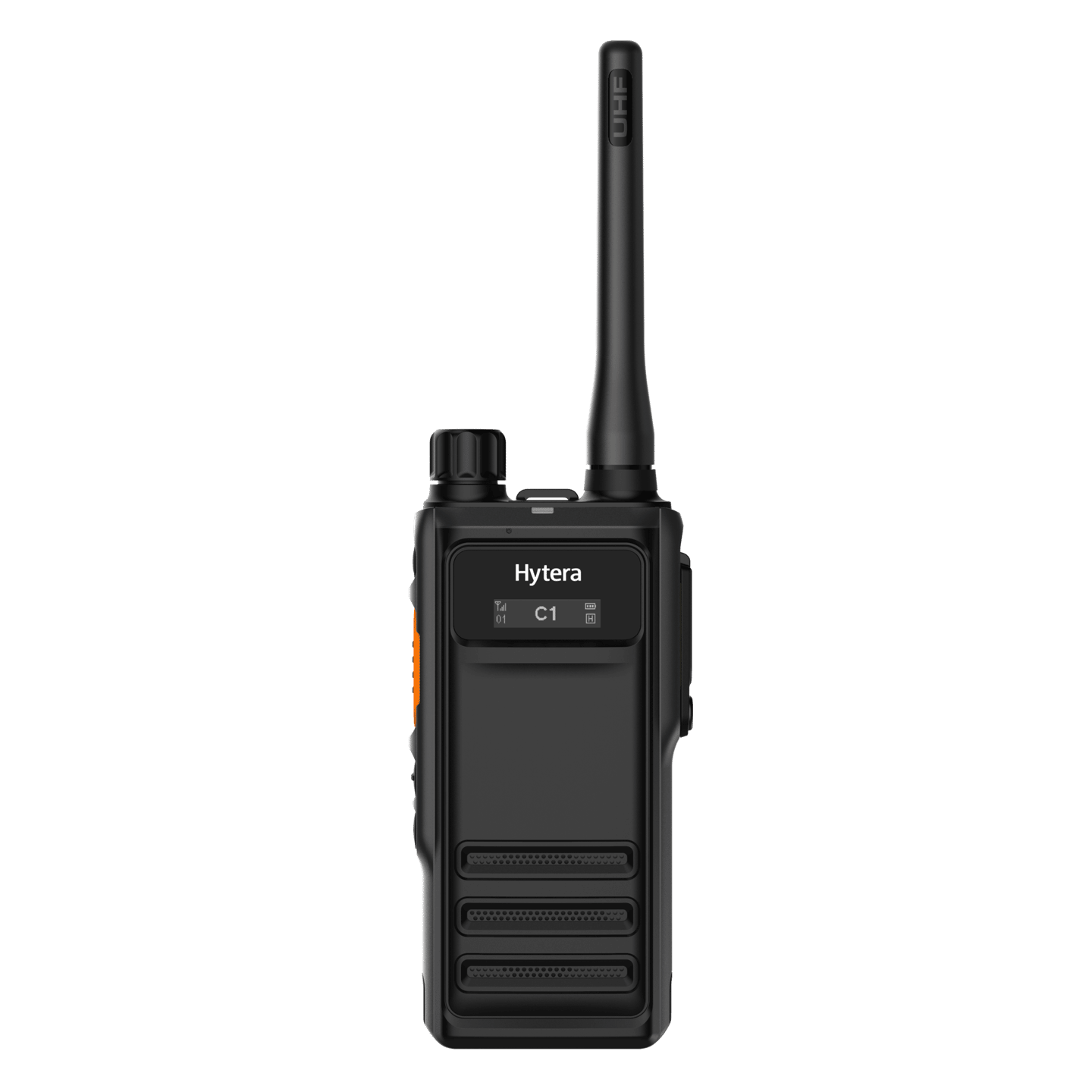

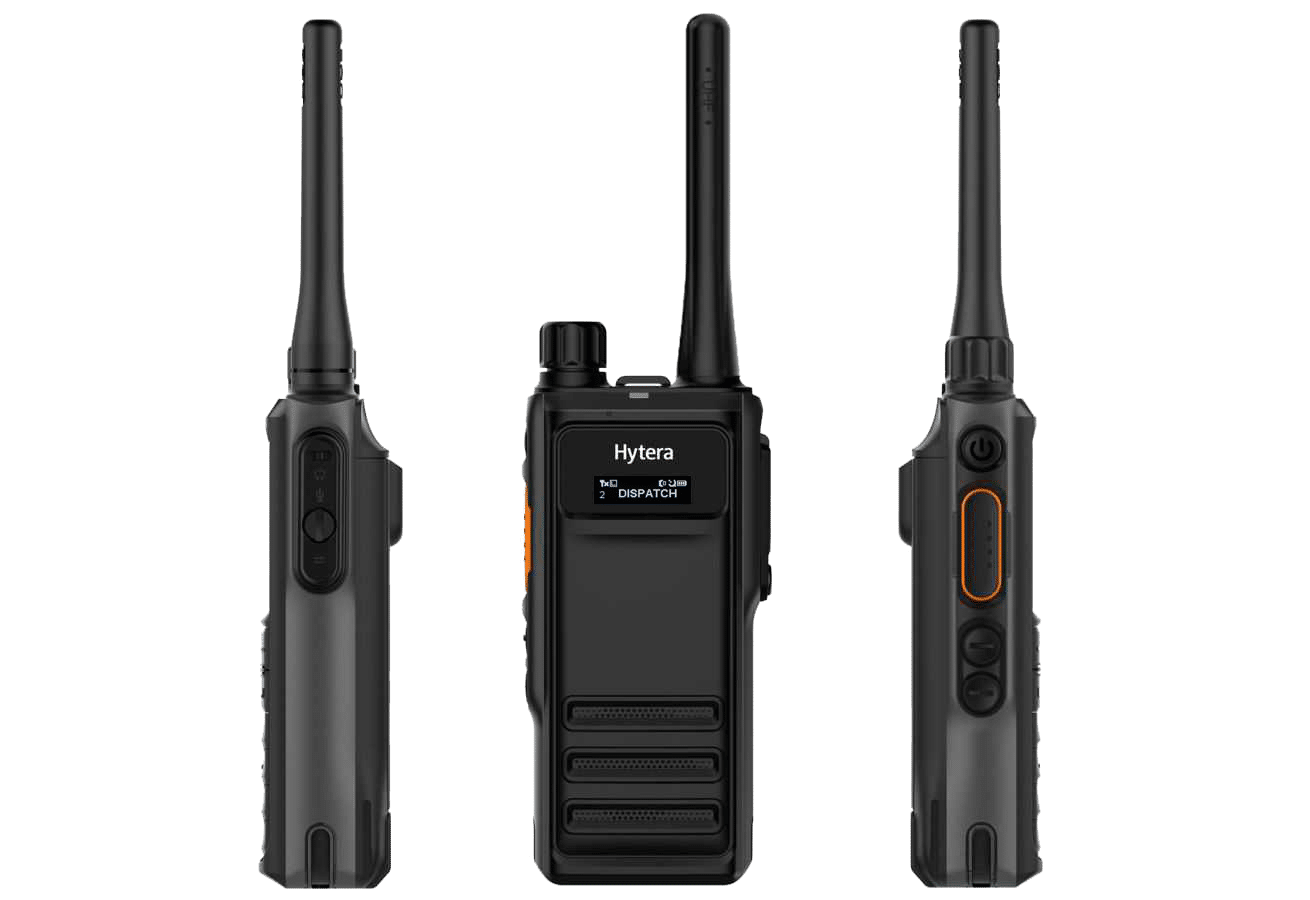

H-Series Compact Professional DMR Two-Way Radio with OLED Display and Optional GPS and Bluetooth

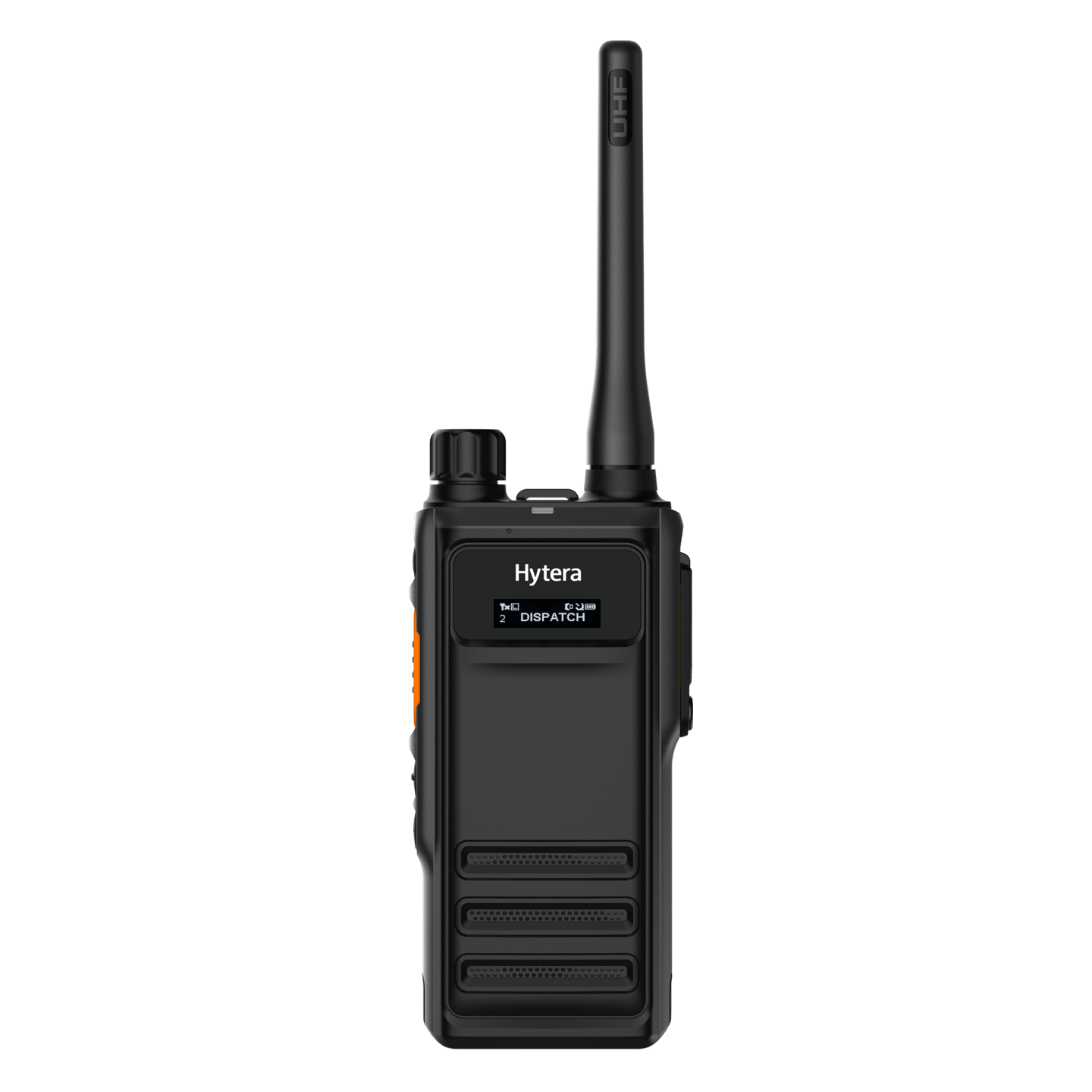

The Hytera HP602 H-Series DMR radios are the next-generation in creative style and functionality that elevates the industry standard in professional two-way radios.

The HP602 is the new state-of-the-art in digital radio communications, providing a more efficient experience with loud and clear audio, longer battery life, intuitive user interface, extended range, and ruggedness.

The HP602 features a one-line OLED display and delivers exceptional value with abundant features, GPS, a 20-hour Lithium Polymer battery, and industry-leading audio performance.

The HP602 H-Series radios empower employees in customer service or severe working environments with efficient and reliable communications.

POWERFUL ANTENNA (-122dBm)

Higher sensitivity for longer range

\

360 SMART KNOB

Tactile and easy to find control for both volume and channel switching

\

OLED DISPLAY

0.91-inch display that shows the channel, signal strength, power status, and power level

\

WATER PORTING SPEAKER

Water automatically drains from the speaker for clear audio in wet conditions

\

AI NOISE SUPPRESSION

Artificial Intelligence provides real time digital noise suppression

\

LIGHTWEIGHT AND COMPACT

Thin and light design with advanced materials that weigh less than 10 ounces

\

BUILT-IN BLUETOOTH

Supports both audio and data, and enables connectivity to wireless accessories

\

LITHIUM POLYMER BATTERY

Delivers up to 20 hours of operation

\

VIBRATE MODE

Provides silent call notification

\

PUSH-TO-TALK BUTTON

One-touch instant individual or group calling

\

PROGRAMMABLE BUTTONS

Two programmable buttons for emergency calling and other controls

\

RUGGED DESIGN

IP67 and MIL-STD-810G compliant

\

END TO END ENCRYPTION

Advanced encryption protects voice and data transmission with advanced ARC4 and AES algorithms

\

Functions

LOUDER AND CLEARER AUDIO

Hytera provides industry-leading audio quality through a large forward-facing speaker, and AIbased voice enhancement with deep learning ability that can accurately extract voice from noise in real time and decreases unwanted background noises as loud as 30db.

ENHANCED WORKER SAFETY

The HP602 radios are designed for worker safety with a programmable emergency button, emergency calling, and priority interrupt. Lone Worker prompts the user to press a key or speak to indicate they are safe. Man Down allows the radio to automatically enter emergency mode when the radio is inclined at a pre-set angle or remains motionless.

HIGHER LEVEL OF RUGGEDNESS

The HP602 is fully compliant with the IP67 and MIL-STD- 810 G standards. It is dustproof, water resistant, and can stand up to drop shock testing at 2 meters. The HP6 Series anti-magnetic speaker does not attract magnetic metal dust and shavings.

ENHANCED GPS LOCATION TRACKING

The HP602 radios can report current location information to other radios, the dispatcher, or a third-party application in real time, enhancing the efficiency of visualized dispatch applications. GPS data can be transmitted during voice calls for immediate location targeting, and GPS data can be compressed to increase channel capacity and reduce hardware cost.

BLUETOOTH

Built-in Bluetooth supports both audio and data, and enables connectivity to wireless accessories.

EXTENDED COVERAGE AND CONNECTIVITY

The HP602 extends radio range through increased Tx power, Rx sensitivity, improved antenna gain, and reduced attenuation. This produces a 25% increase in coverage distance and signal penetration through buildings. The enhanced coverage improves efficiency and reduces network infrastructure costs. Two patented technologies and a voice buffer reduces packet loss during Rx handover for consistently clear calls and fewer dropped words.

THINNER AND LIGHTER

An optimized mechanical design with advanced materials, and a lightweight lithium polymer battery delivers a compact radio that weighs less than 10 ounces.

LONGER BATTERY LIFE

The latest in lithium polymer technology is used to power the HP6 Series radios for excellent performance. The battery is light and small, achieving a shift life of 20 hours on high transmit power with a duty cycle of 5/5/90.

CLEAR AND BRIGHT DISPLAY

The HP602 features a 0.91-inch OLED display that shows the channel, signal strength, power status, and power level.

HIGHER SECURITY

The HP602 supports Digital End-to-End and Over-the-Air Encryption for voice and data transmitted on digital channels to prevent eavesdropping. Hardware encryption is implemented through a built-in encryption card. Software encryption uses the secure and reliable ARC4 and AES encryption algorithms. Radio authentication prevents unauthorized users from accessing the system. If a radio is lost or stolen, the system can Stun or Kill the radio to prevent unauthorized use.

MULTI-SYSTEM OPERATION

The HP602 can be deployed in a wide variety of analog and digital radio networks, including Analog and Digital Conventional, MPT and XPT Trunking, DMR Tier II Trunking, IP Multi-Site Connect, and DMR Simulcast Systems.

GREATER CALLING FLEXIBILITY

A variety of calling modes provides the flexibility to communicate with any or all users. The HP6 Series supports Individual Calls (radio to radio, radio to dispatcher), Group Calls (one radio to many, dispatcher to many), All Call (broadcast call to all radios, transmit only), and Telephone Calls (requires connectivity to PSTN, PABX or SIP networks).

Standard Accessories for HP602 DMR Two-Way Radio

Antenna

AN0153H07

VHF Antenna (147-160MHz)

VHF Stout Long Antenna, SMA connector, 147-160MHz, 17cm, with Hytera logo

Battery

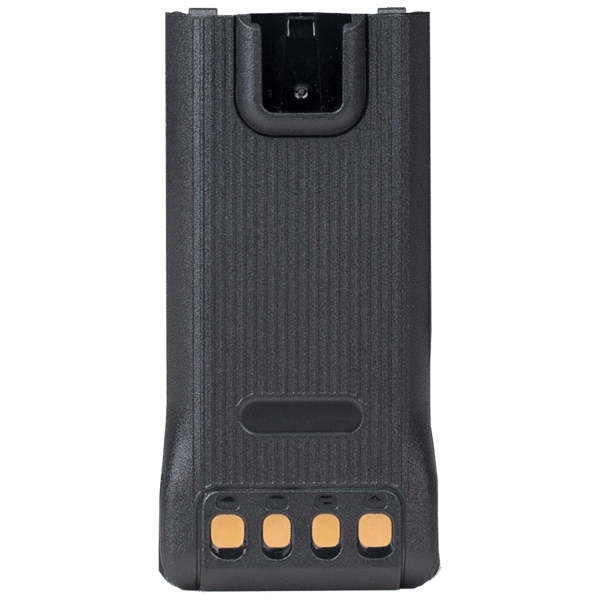

BP2002

Li-Ion Polymer Battery (2000mAh)

Li-Ion Polymer Battery with 20 hour operating time (2000mAh)

Carrying

RO03

Wrist Strap

Nylon wrist strap

BC48

Belt Clip

Belt Clip

Charger

PS1014

Standard Switching Power Adapter

Standard Switching Power Adapter 100-240VAC 12VDC/1A Hytera (RoHS) (for CH10A07 single charger)

CH10L27

Single-unit Charger for Li-ion polymer battery

Drop-In Single Unit Charger

Optional Accessories for HP602 DMR Two-Way Radio

Audio

EHW08

Bluetooth Earpiece with PTT button and microphone

Bluetooth Earpiece with PTT button and microphone

SM27W2

Bluetooth Remote Speaker Mic with charging cable

Bluetooth wireless remote speaker microphone finished (IP67)

ESW01

Bluetooth Earpiece with charger(requires PS1030 power adapter)

Bluetooth Earpiece with charger(requires PS1030 power adapter)

POA121

Bluetooth Ring PTT

The wireless PTT ring is designed for finger wearing and allows you to trigger PTT functions without holding a portable radio in your hands.

ACN-02-P

PTT and Microphone cable

Intrinsically Safe Mic and PTT button with VOX and 3.5mm Jack Receive-only Earpiece (IP54 )

ES-01

Earbud without Earpiece (Receive-Only)

Reliable and ergonomically designed earbud to be used with various base sets. 3.5mm jack plug.

EA-01

Earbud with Transparent Acoustic Tube (Receive-Only)

Reliable and ergonomically designed earpiece with transparent acoustic tube to be used with various base sets. 3.5mm jack plug.

EH-01

C-Style Earpiece (Receive-Only)

Ergonomically designed C-style earpiece (Receive only). 3.5mm jack plug.

EH-02

Swivel Style Earpiece (Receive-Only)

Ergonomically designed swivel earpiece (Receive only). 3.5mm jack plug.

EHS17

Swivel Style Earpiece (Receive Only)

Ergonomically designed swivel earpiece (Receive only). 2.5mm jack plug.

EHS18

C-Style Earpiece (Receive Only)

Ergonomically designed C-style earpiece (Receive only). 2.5mm jack plug.

EAS03

Receive-Only Transparent Acoustic Tube Earpiece

Receive-Only Transparent Acoustic Tube Earpiece

EAN21-P

3-Wire Earpiece with Acoustic Tube, Microphone and PTT (Beige)

Intrinsically Safe 3-wire Surveillance Earpiece with Transparent Acoustic Tube

EAN24-P

Earpiece with Acoustic Tube and In-line PTT (Black)

Earpiece with detachable acoustic tube, clip , in-line PTT and microphone (Black)

EHN26-P

C-style Earpiece with In-line PTT and Microphone (Black)

Intrinsically Safe C-style Earpiece with microphone and in-line PTT button

SM26N1-P

Remote Speaker Microphone

Remote Speaker Microphone with emergency button (IP67)

SM26N2-P

Remote Speaker Microphone

Remote Speaker Microphone with emergency button and 2.5mm audio jack(IP54)

ECN21-P

Noise canceling headphones

Intrinsically Safe Noise-Cancelling Headset with PTT and boom microphone

Antenna

AN0153H08

VHF/GPS Antenna (147-160MHz/1575MHz)

VHF Stubby Antenna, SMA connector,147-160MHz, GPS 1575MHz, 12cm, with Hytera logo

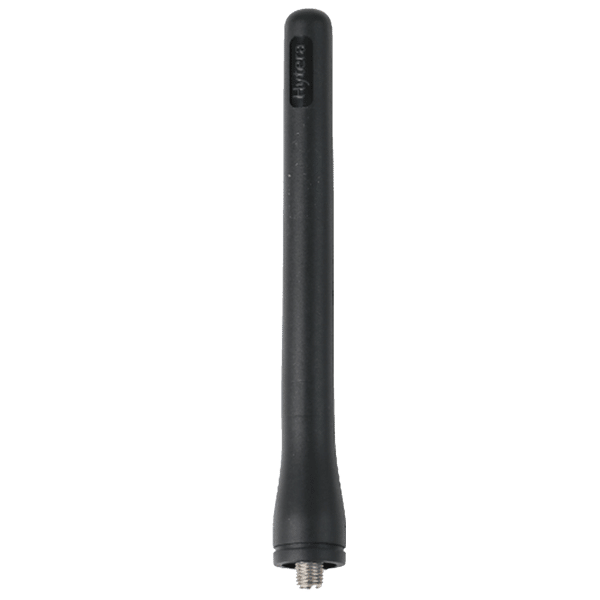

AN0157H01

VHF/GPS Antenna (150-165MHz/1575MHz)

VHF Stubby Antenna, SMA connector, 12cm, 150-165MHz, GPS 1575MHz

AN0167H07

VHF/GPS Antenna (160-174MHz/1575MHz)

VHF Stubby Antenna, SMA connector,160-174MHz, GPS 1575MHz, 12cm, with Hytera logo

AN0160H16

VHF Antenna (145-175MHz)

VHF Stubby Antenna, SMA connector, 12cm, 145-175MHz

AN0153H07

VHF Antenna (147-160MHz)

VHF Stout Long Antenna, SMA connector, 147-160MHz, 17cm, with Hytera logo

AN0167H06

VHF Antenna (160-174MHz)

VHF Stout Long Antenna, SMA connector, 160-174MHz, 17cm, with Hytera logo

AN0155H08

VHF/GPS Antenna (136-174MHz/1575MHz)

VHF Stout Long Antenna, SMA connector, 136-174MHz, GPS 1575MHz, 20cm, with Hytera logo

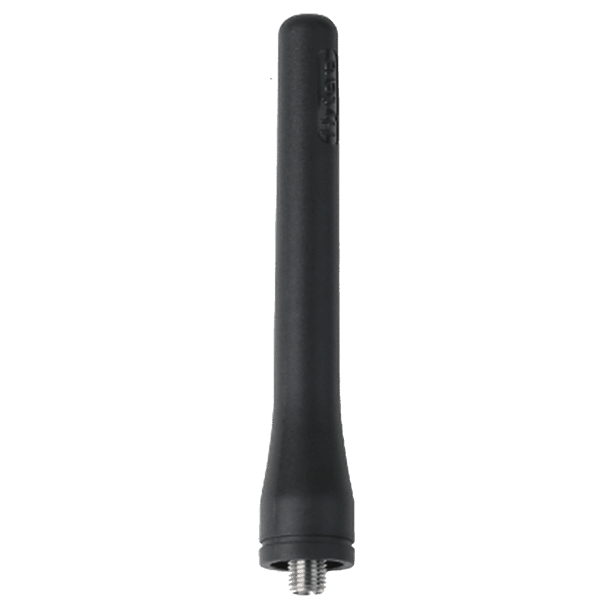

AN0485H05

UHF Antenna (450-520MHz)

UHF Stubby Antenna, SMA connector, 9cm, 450-520MHz

AN0435W09

UHF Antenna (400-470MHz)

UHF Whip Antenna, SMA connector, 400-470MHz, 16cm

AN0445W05

UHF Antenna (410-480MHz)

UHF Whip Antenna, SMA connector, 16cm, 410-480MHz

AN0495W04

UHF Antenna (470-520MHz)

UHF Whip Antenna, SMA connector, 470-520MHz, 16cm

Battery

BP2002

Li-Ion Polymer Battery (2000mAh)

Li-Ion Polymer Battery with 20 hour operating time (2000mAh)

Carrying

BC48

Belt Clip

Belt Clip

RO03

Wrist Strap

Nylon wrist strap

NCN011

Nylon Carrying Case

Nylon carrying case with half-open design and back-lock belt loop for easy installation

Charger

CH10L27

Single-unit Charger for Li-ion polymer battery

Drop-In Single Unit Charger

PS1014

Standard Switching Power Adapter

Standard Switching Power Adapter 100-240VAC 12VDC/1A Hytera (RoHS) (for CH10A07 single charger)

CHV09

Vehicle Power Adapter

In the vehicle charging solution convenient for portable radio batteries.

MCL39

Smart Multi-Unit Charger for Li-ion/Li-polymer Batteries

6-Radio Multi-Unit Charger

Installation

BRK20

Wall-Mount Installation Kit

Enables secure installation of the multi-charger onto the wall for convenience and easy accessibility

Programming

PC152

USB programming cable

USB programming cable

DMR Extended Warranty

DMR Extended Warranty

DMR Extended Warranty

Extended warranty adds 2 years to the standard 3 year Hytera DMR product warranty for a total of 5 years of warranty protection.

Systems that work with HP602 DMR Two-Way Radio

Systems

XPT Extended Pseudo Trunk

Single-site and Multi-site Extended Pseudo Trunking (XPT)

DMR IP Site Connect

Connect Repeater Sites with IP Networks

DMR Tier III

Digital Radio Trunking Systems

SmartOne DMR Dispatch

Unified Communications and Dispatching

Hytera Bridge

PoC to DMR/Analog Radio Gateway

DMR Tier II Conventional Repeaters

Hytera DMR Tier II Conventional Repeater Systems increase coverage, expand capacity, and improve signal quality

Technical Specifications

General

Frequency Range UHF 400-527 MHZ , VHF 136-174MHz
Channel Capacity 1,024 Channels (512 Analog, 512 Digital)
Zone Capacity 64 Zones with 256 Channels per Zone
Channel Spacing 12.5kHz / 20kHz / 25kHz
Operational Voltage 7.7V (Rated)
Battery 2000mAh Li-Ion Polymer
Battery Life (5/5/90) 16 Hours with GPS on, 20 Hours GPS disabled
Weight 9.35oz (265g)
Dimensions (H x W x D) 43/4” x 25/32” x 13/16” (122 x 55 x 30.5mm) (without antenna)
Frequency Stability ± 0.5ppm
Antenna Impedance 50Ω
Display OLED 0.91” Display
Bluetooth BT 5.0 BLE+EDR

GPS (5 Satellites visible at nominal 130dBm)

Time to First Fix Cold Start <60 Seconds (Typical TTFF)
Time to First Fix Hot Start <10 Seconds (Typical TTFF)
Horizontal Accuracy <5 meters

Receiver

Digital Sensitivity 0.18μV (BER 5%)
Analog Sensitivity 0.16μV (Typical) (12dB SINAD) 0.18μV (12dB SINAD)
Adjacent Selectivity TIA-603: [email protected], 70dB@20/25kHz ETSI: [email protected], 70dB@20/25kHz
Spurious Response Rejection TIA-603: [email protected]/20/25kHz ETSI: [email protected]/20/25kHz
Intermodulation TIA-603: [email protected]/20/25kHz ETSI: [email protected]/20/25kHz
Hum and Noise [email protected], 43dB@20kHz, 45dB@25kHz
Rated Audio Power Output 0.5W
Rated Audio Distortion ≤3%
Audio Response +1 to -3dB
Conducted Spurious Emission <-57dBm

Transmitter

RF Power Output VHF High Power: 5W, VHF Low Power: 1W UHF High Power: 4W, UHF Low Power: 1W
FM Modulation 11K0F3E @ 12.5kHz 14K0F3E @ 20kHz 16K0F3E @ 25kHz
4FSK Digital Modulation 12.5kHz Data Only: 7K60FXD 12.5kHz Data and Voice: 7K60FXW
Conducted/Radiated Emission -36dBm 1GHz
Modulation Limiting ±2.5kHz @ 12.5kHz, ±4.0kHz @ 20kHz, ±5.0kHz @ 25kHz
FM Hum and Noise 40dB @ 12.5kHz, 43dB @ 20kHz, 45dB @ 25kHz
Adjacent Channel Power 60dB @ 12.5kHz, 70dB @ 25kHz
Audio Response +1 to -3dB
Audio Distortion ≤3%
Digital Vocoder Type AMBE+2TM

Environmental

Operating Temperature -0°F to +140°F (-20°C to +60°C)
Storage Temperature -40°F to +185°F (-40°C to +85°C)
ESD IEC 61000-4-2 (Level 4) ±8kV Contact, ±15kV Air
Dust and Water Ingress IP67 Standard
Humidity Per MIL-STD-810 C/D/E/F/G Standard
Shock and Vibration Per MIL-STD-810 C/D/E/F/G Standard

Ordering Information

HP602-Um UHF 400-527MHz (Antenna 400-470MHz), 1-4W
HP602-V1 VHF 136-174MHz (Antenna 153-164MHz), 1-5W
HP602-G-BT-Um UHF 400-527MHz (Antenna 400-470MHz), 1-4W, with GPS and Bluetooth
HP602-G-BT-V1 VHF 136-174MHz (Antenna 153-164MHz), 1-5W with GPS and Bluetooth
