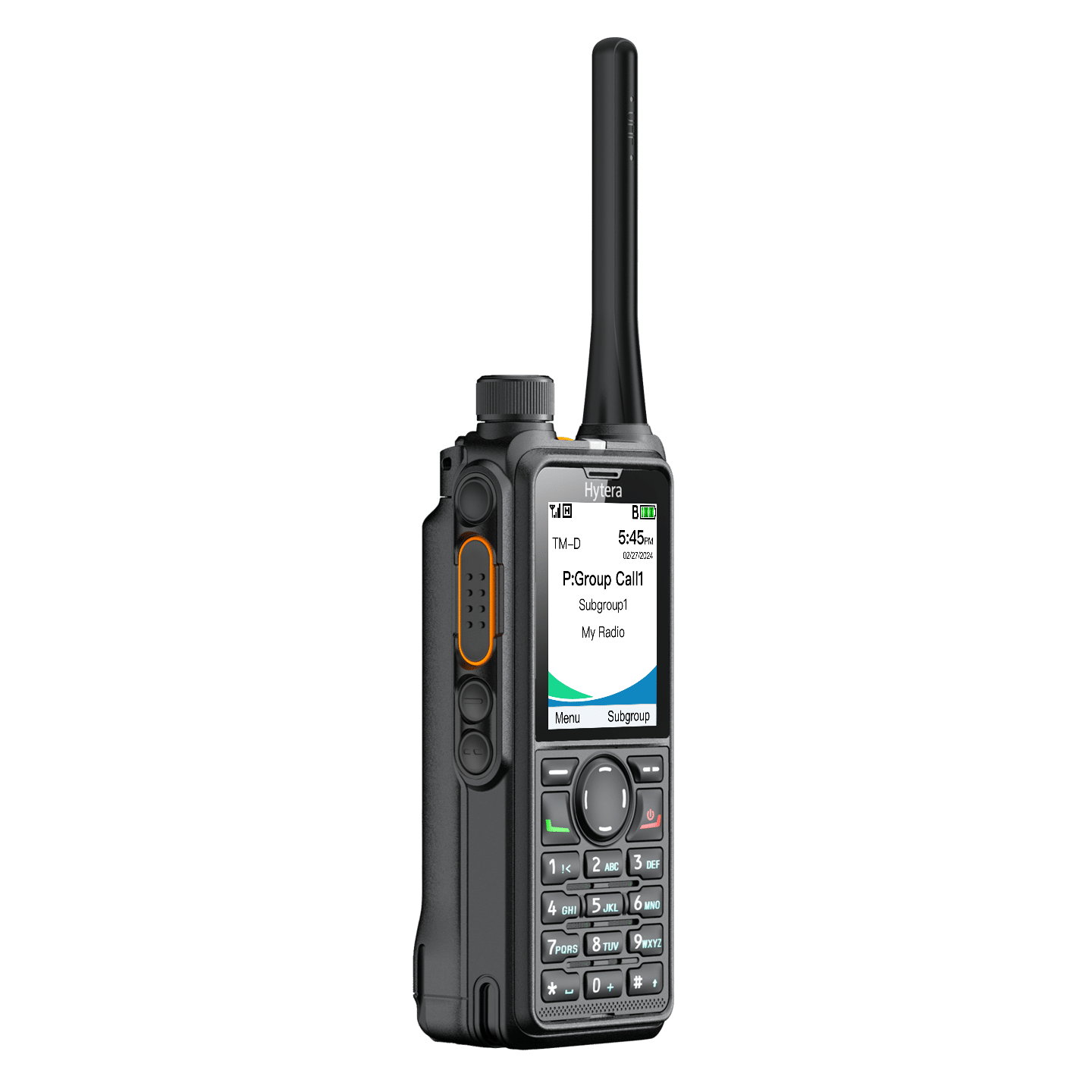

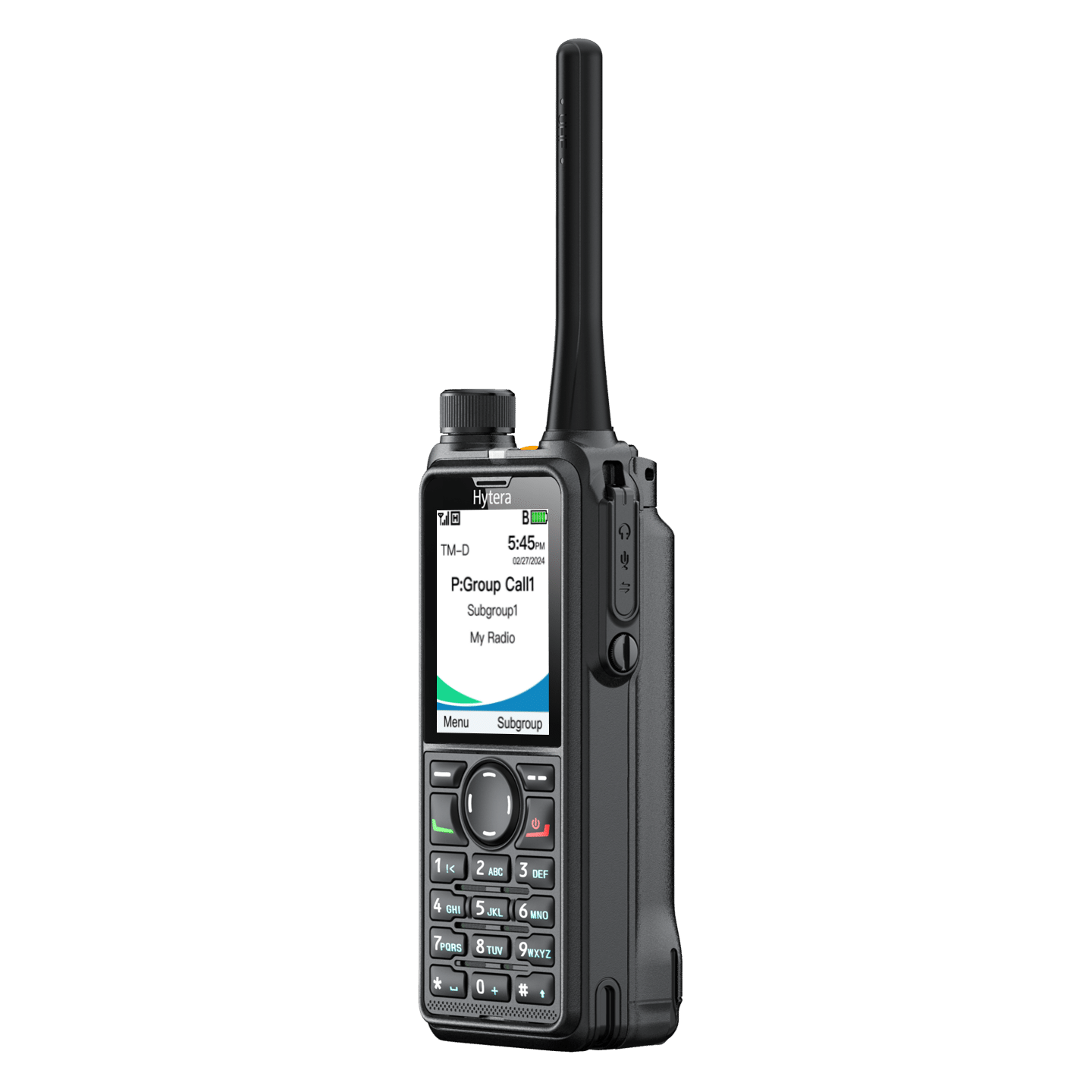

H-Series Intrinsically Safe DMR Two-Way Radio with LCD Display, Full Keypad, and Optional GPS and Bluetooth
The Hytera HP782-IS H-Series Intrinsically Safe DMR radios are state-ot-the-art in creative style and functionality that elevate the industrial standard in professional two-way radios.
The HP782-IS provides a more efficient experience with loud and clear audio, longer battery life, intuitive user interface, extended range, and ruggedness.
The HP782-IS features a 2.4" TFD-LCD display and full keypad that support a wide variety of functions, a 24-hour Lithium Polymer battery, GPS, extended range, and industry-leading audio performance.
The HP782-IS H-Series radios empower industrial, mining, and energy production employees with safe, efficient, and reliable communications.
EXTENDED RANGE
High sensitivity (-122dBm) for longer range
PUSH-TO-TALK BUTTON
One-touch instant individual or group calling
PROGRAMMABLE BUTTONS
Two programmable buttons for emergency calling and other controls
AI NOISE SUPPRESSION
Artificial Intelligence provides real time digital noise suppression
FULL KEYPAD
Wear-resistant keypad and navigation buttons
POWERFUL ANTENNA
Higher sensitivity for longer range
360 SMART KNOB
Tactile and easy to find control for both volume and channel switching
2.4" HD TFT-LCD DISPLAY
Clear and bright with 6-icon navigation
WATER PORTING SPEAKER
Water automatically drains from the speaker for clear audio in wet conditions
BUILT-IN BLUETOOTH
Supports both audio and data, and enables connectivity to wireless accessories
END-TO-END ENCRYPTION
Advanced encryption protects voice and data transmission with advanced ARC4 and AES algorithms
LITHIUM POLYMER BATTERY
Delivers up to 24 hours of operation
RUGGED DESIGN
IP68, and MIL-STD-810G compliant
MICRO SD CARD
Enables additional capabilities like voice recording
Functions
Intrinsically Safe
HP782-IS radio batteries, and accessories are certified for use in hazardous areas with explosive gas and dust.
LOUDER AND CLEARER AUDIO
Hytera provides industry-leading audio quality through a large 36mm forward-facing optimized speaker that provides up to 93dB of loudness, and AI-based voice enhancement with deep learning ability that can accurately extract voice from noise in real time and decreases unwanted background noises as loud as 30db.
LONGER BATTERY LIFE
The latest in lithium polymer technology is used to power the HP782 adios for excellent performance. The Intrinsically Safe battery delivers a shift life of over 24 hours on high transmit power with a duty cycle of 5/5/90.
ENHANCED GPS LOCATION TRACKING
The HP782-IS radios with optional GPS can report current location information to other radios, the dispatcher, or thirdparty applications in real time, enhancing the efficiency of visualized dispatch applications.
BLUETOOTH AND MICROSD CARD
Optional built-in Bluetooth enables connectivity to wireless accessories. The MicroSD card provides additional capabilities like voice recording.
EXTENDED COVERAGE AND CONNECTIVITY
The HP782-IS radios extend radio range through increased Tx power efficiency, Rx sensitivity, improved antenna gain, and reduced attenuation. This produces a 25% increase in coverage distance and signal penetration through buildings. The enhanced coverage improves efficiency and reduces network infrastructure costs.
HIGHER LEVEL OF RUGGEDNESS
The HP782-IS radios are fully compliant with the IP68 and MIL-STD- 810 G standards. They are dust proof, impervious to water jets, submersible to a depth of 2 meters for 4 hours, and can stand up to drop shock testing at 2 meters. The anti-magnetic speaker does not attract magnetic metal dust and shavings.
ENHANCED WORKER SAFETY
The HP782-IS radios are designed for worker safety with an easy access emergency button, emergency calling, and priority interrupt. Lone Worker prompts the user to press a key or speak to indicate they are safe. Man Down allows the radio to automatically enter emergency mode when the radio is inclined at a pre-set angle or remains motionless.
CLEAR AND BRIGHT DISPLAY
The HP782-IS features a 2.4-inch, 240×320 HD TFT-LCD display with up to 10 lines of content and an intuitive nine-grid interface.
HIGHER SECURITY
Supports Digital End-to-End and Over-the-Air Encryption for voice and data transmitted on digital channels to prevent eavesdropping. Hardware encryption is implemented through a built-in encryption card. Software encryption uses the secure and reliable ARC4 and AES encryption algorithms. Radio authentication prevents unauthorized users from accessing the system. If a radio is lost or stolen, the system can Stun or Kill the radio to prevent unauthorized use.
MULTI-SYSTEM OPERATION
The HP782-IS radios can be deployed in a wide variety of analog and digital radio networks, including Analog and Digital Conventional, MPT and XPT Trunking, DMR Tier II and Tier III Trunking, IP Multi-Site Connect, and DMR Simulcast Systems.
GREATER CALLING FLEXIBILITY
A variety of calling modes provides the flexibility to communicate with any or all users. The HP782-IS radios support Individual Calls (radio to radio, radio to dispatcher), Group Calls (one radio to many, dispatcher to many), All Call (broadcast call to all radios, transmit only), and Telephone Calls (requires connectivity to PSTN, PABX or SIP networks).
Standard Accessories for HP782-IS Intrinsically Safe Radio
Antenna
AN0155H15
VHF/GPS Antenna (146-164MHz/1575MHz)
VHF Stout Long Antenna, SMA-male, 17cm, 146-164MHz, GPS 1575MHz
Battery
BL2801-Ex
Intrinsically Safe Certified Li-Ion IS Battery (2850mAh)
Intrinsically Safe Certified Li-Ion IS Battery with 29 hour operating time(2850mAh)
Carrying
RO03
Wrist Strap
Nylon wrist strap
BC39
Belt Clip
Belt Clip
Charger
PS1014
Standard Switching Power Adapter
Standard Switching Power Adapter 100-240VAC 12VDC/1A Hytera (RoHS) (for CH10A07 single charger)
CH10L30
Single-unit Charger for Li-ion polymer battery
Drop-In Single Unit Charger
Optional Accessories for HP782-IS Intrinsically Safe Radio
Audio
ACN-02-P
PTT and Microphone cable
Intrinsically Safe Mic and PTT button with VOX and 3.5mm Jack Receive-only Earpiece (IP54 )
ES-01
Earbud without Earpiece (Receive-Only)
Reliable and ergonomically designed earbud to be used with various base sets. 3.5mm jack plug.
EA-01
Earbud with Transparent Acoustic Tube (Receive-Only)
Reliable and ergonomically designed earpiece with transparent acoustic tube to be used with various base sets. 3.5mm jack plug.
EH-01
C-Style Earpiece (Receive-Only)
Ergonomically designed C-style earpiece (Receive only). 3.5mm jack plug.
EH-02
Swivel Style Earpiece (Receive-Only)
Ergonomically designed swivel earpiece (Receive only). 3.5mm jack plug.
EAN21-P
3-Wire Earpiece with Acoustic Tube, Microphone and PTT (Beige)
Intrinsically Safe 3-wire Surveillance Earpiece with Transparent Acoustic Tube
EHN26-P
C-style Earpiece with In-line PTT and Microphone (Black)
Intrinsically Safe C-style Earpiece with microphone and in-line PTT button
SM26N1-P
Remote Speaker Microphone
Remote Speaker Microphone with emergency button (IP67)
SM26N2-P
Remote Speaker Microphone
Remote Speaker Microphone with emergency button and 2.5mm audio jack(IP54)
ECN21-P
Noise canceling headphones
Intrinsically Safe Noise-Cancelling Headset with PTT and boom microphone
Antenna
AN0155H13
VHF/GPS Antenna (136-174MHz/1575MHz)
VHF Stout Long Antenna, SMA-male, 20cm, 136-174MHz, GPS 1575MHz
AN0155H15
VHF/GPS Antenna (146-164MHz/1575MHz)
VHF Stout Long Antenna, SMA-male, 17cm, 146-164MHz, GPS 1575MHz
AN0158H06
VHF/GPS Antenna (153-164MHz/1575MHz)
VHF Stubby Antenna, SMA-male, 9cm, 153-164MHz, GPS 1575MHz
AN0148H07
VHF/GPS Antenna (144-154MHz/1575MHz)
VHF Stubby Antenna, SMA-male, 9cm, 144-154MHz, GPS 1575MHz
AN0168H05
VHF/GPS Antenna (163-174MHz/1575MHz)
VHF Stubby Antenna, SMA-male, 9cm, 163-174MHz, GPS 1575MHz
AN0435H25
UHF/GPS Antenna (400-470MHz/1575MHz)
UHF Stubby Antenna, SMA-male, 9cm, 400-470MHz, GPS 1575MHz
AN0485H19
UHF/GPS Antenna (450-5270MHz/1575MHz)
UHF Stubby Antenna, SMA-male, 9cm, 450-527MHz, GPS 1575MHz
Battery
BL2801-Ex
Intrinsically Safe Certified Li-Ion IS Battery (2850mAh)
Intrinsically Safe Certified Li-Ion IS Battery with 29 hour operating time(2850mAh)
Carrying
BC39
Belt Clip
Belt Clip
RO03
Wrist Strap
Nylon wrist strap
LCY026
Leather Carry Case
Leather Carry Case for Radios with Display (black)
Charger
CH10L30
Single-unit Charger for Li-ion polymer battery
Drop-In Single Unit Charger
PS1014
Standard Switching Power Adapter
Standard Switching Power Adapter 100-240VAC 12VDC/1A Hytera (RoHS) (for CH10A07 single charger)
CHV09
Vehicle Power Adapter
In the vehicle charging solution convenient for portable radio batteries.
MCL39
Smart Multi-Unit Charger for Li-ion/Li-polymer Batteries
6-Radio Multi-Unit Charger
Installation
BRK20
Wall-Mount Installation Kit
Enables secure installation of the multi-charger onto the wall for convenience and easy accessibility
Programming
PC152
USB programming cable
USB programming cable
DMR Extended Warranty
DMR Extended Warranty
DMR Extended Warranty
Extended warranty adds 2 years to the standard 3 year Hytera DMR product warranty for a total of 5 years of warranty protection.
Systems that work with HP782-IS Intrinsically Safe Radio
Systems
XPT Extended Pseudo Trunk
Single-site and Multi-site Extended Pseudo Trunking (XPT)
DMR IP Site Connect
Connect Repeater Sites with IP Networks
DMR Tier III
Digital Radio Trunking Systems
SmartOne DMR Dispatch
Unified Communications and Dispatching
Hytera Bridge
PoC to DMR/Analog Radio Gateway
DMR Tier II Conventional Repeaters
Increase coverage, expand capacity, and improve signal quality
Technical Specifications
| Frequency Range | UHF 350-470MHz , VHF 136-174MHz |
| Channel Capacity | 1,024 Channels (512 Analog, 512 Digital) |
| Zone Capacity | 64 Zones with 256 Channels per Zone |
| Channel Spacing | 12.5kHz / 20kHz / 25kHz |
| Operational Voltage | 7.4V (Rated) |
| Battery | 2850mAh Li-Ion Polymer UL 913 certified |
| Battery Life (5/5/90) | HP782-IS: 24 Hours, 28 Hours GPS disabled |
| Weight (with antenna and battery) | HP782-IS: 13.7oz (389g) |
| Dimensions (H x W x D) | 5 3/16” x 2 5/32” x 1 7/16” (132 x 55 x 36.5mm) without antenna |
| Frequency Stability | ± 0.5ppm |
| Antenna Impedance | 50Ω |
| Display | HP782-IS: LCD 2.4”, 320x240, 262,000 colors |
| Bluetooth | BT 5.0 BLE+EDR |
| Time to First Fix Cold Start | <60 Seconds (Typical TTFF) |
| Time to First Fix Hot Start | <10 Seconds (Typical TTFF) |
| Horizontal Accuracy | <5 meters |
| Digital Sensitivity | 0.18μV (BER 5%) |
| Analog Sensitivity | 0.16μV (Typical) (12dB SINAD) 0.18μV (12dB SINAD) |
| Adjacent Selectivity | TIA-603: [email protected], 70dB@20/25kHz ETSI: [email protected], 70dB@20/25kHz |
| Spurious Response Rejection | TIA-603: [email protected]/20/25kHz ETSI: [email protected]/20/25kHz |
| Intermodulation | TIA-603: [email protected]/20/25kHz ETSI: [email protected]/20/25kHz |
| Hum and Noise | [email protected], 43dB@20kHz, 45dB@25kHz |
| Rated Audio Power Output | 0.5W |
| Rated Audio Distortion | ≤3% |
| Audio Response | +1 to -3dB |
| Conducted Spurious Emission | <-57dBm |
| RF Power Output | VHF High Power: 5W, VHF Low Power: 1W UHF High Power: 4W, UHF Low Power: 1W |
| FM Modulation | 11K0F3E @ 12.5kHz 14K0F3E @ 20kHz 16K0F3E @ 25kHz |
| 4FSK Digital Modulation | 12.5kHz Data Only: 7K60FXD 12.5kHz Data and Voice: 7K60FXW |
| Conducted/Radiated Emission | -36dBm 1GHz |
| Modulation Limiting | ±2.5kHz @ 12.5kHz ±4.0kHz @ 20kHz ±5.0kHz @ 25kHz |
| FM Hum and Noise | 40dB @ 12.5kHz, 45dB @ 25kHz |
| Adjacent Channel Power | 60dB @ 12.5kHz, 70dB @ 25kHz |
| Audio Response | +1 to -3dB |
| Audio Distortion | ≤3% |
| Digital Vocoder Type | AMBE+2TM |
| Operating Temperature | -22°F to +140°F (-30°C to +60°C) |
| Storage Temperature | -40°F to +185°F (-40°C to +85°C) |
| ESD | IEC 61000-4-2 (Level 4) ±8kV Contact, ±15kV Air |
| Dust and Water Ingress | IP68 Standard |
| Humidity | Per MIL-STD-810 C/D/E/F/G Standard |
| Shock and Vibration | Per MIL-STD-810 C/D/E/F/G Standard |
