H-Series Professional DMR Two-Way Radio with OLED Display and Optional GPS and Bluetooth

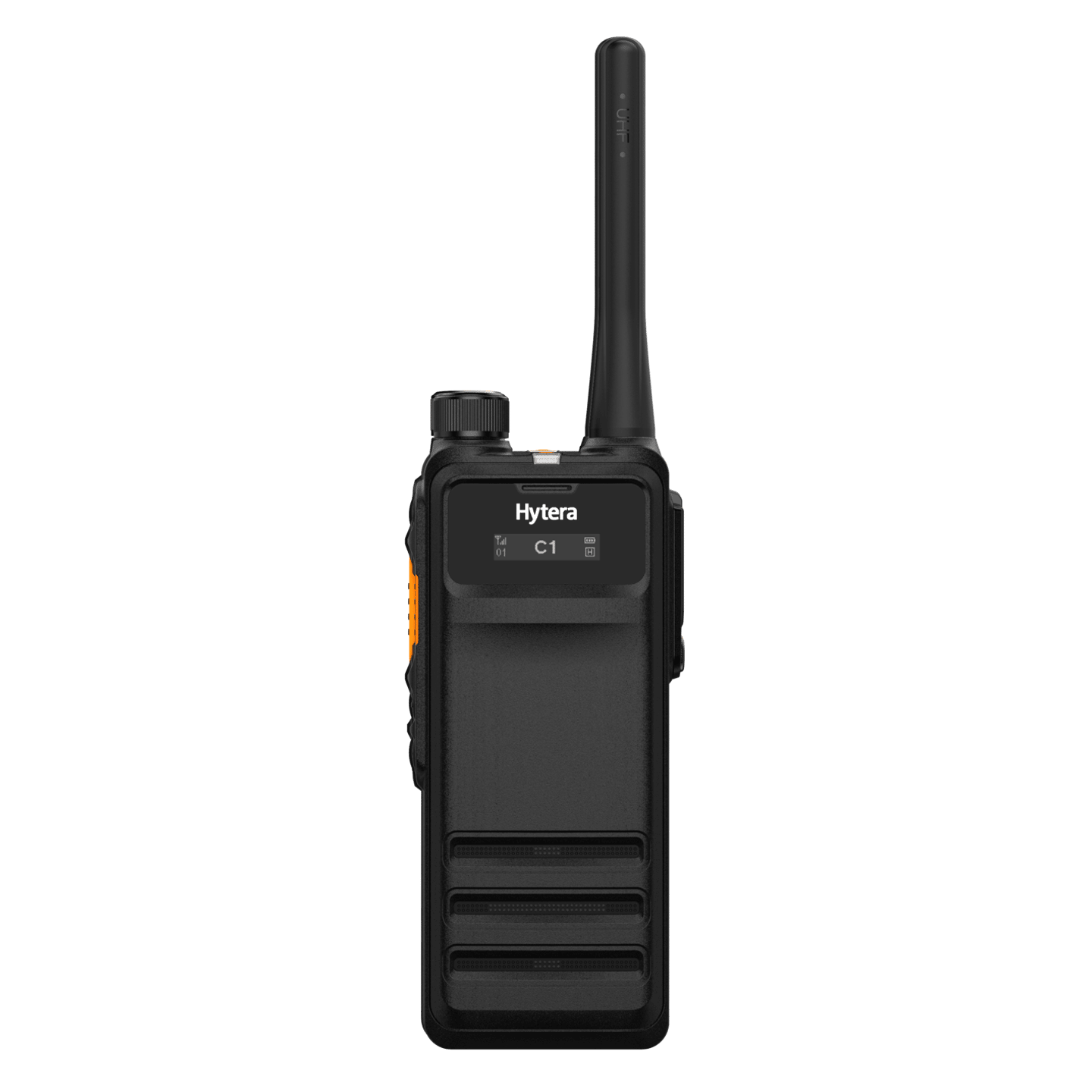

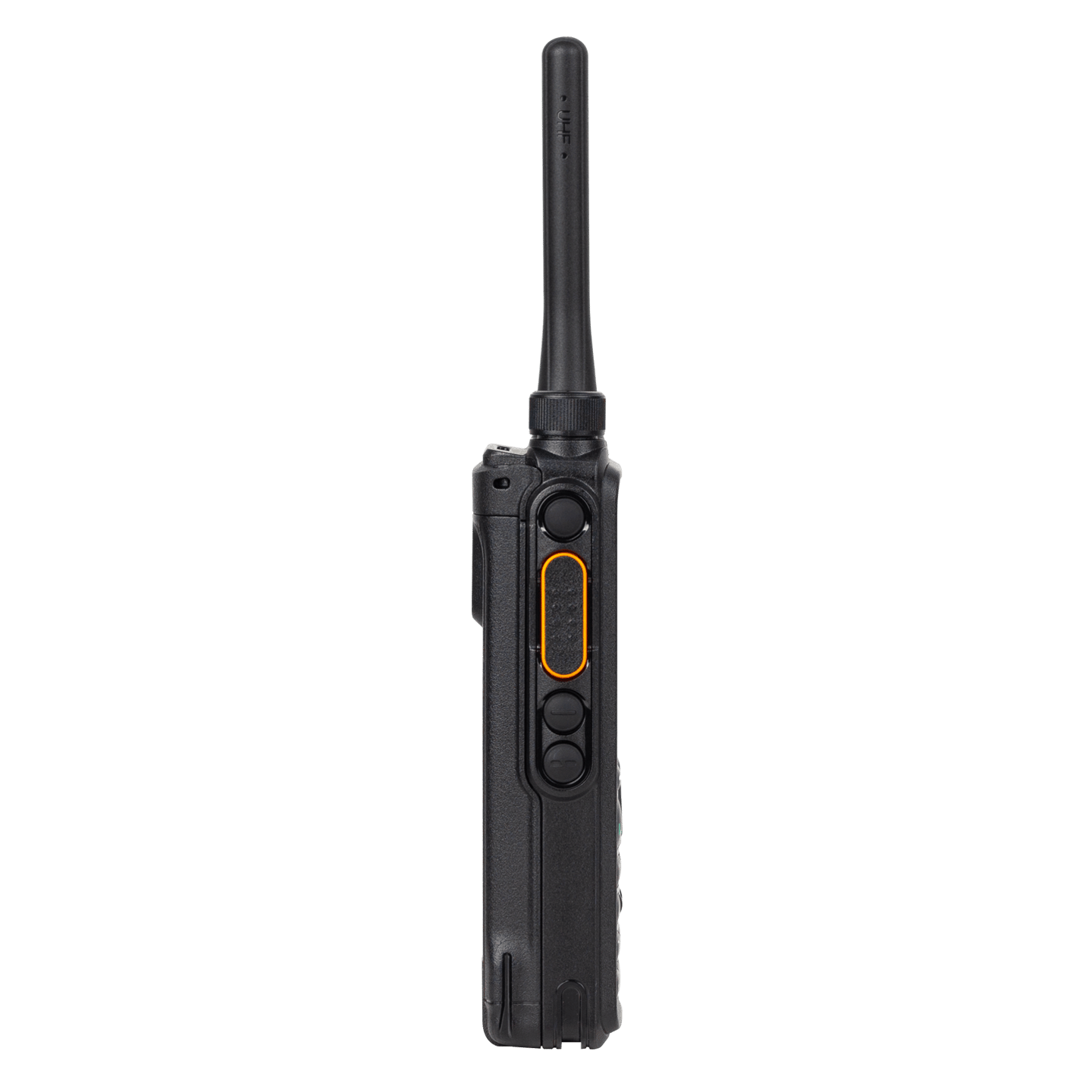

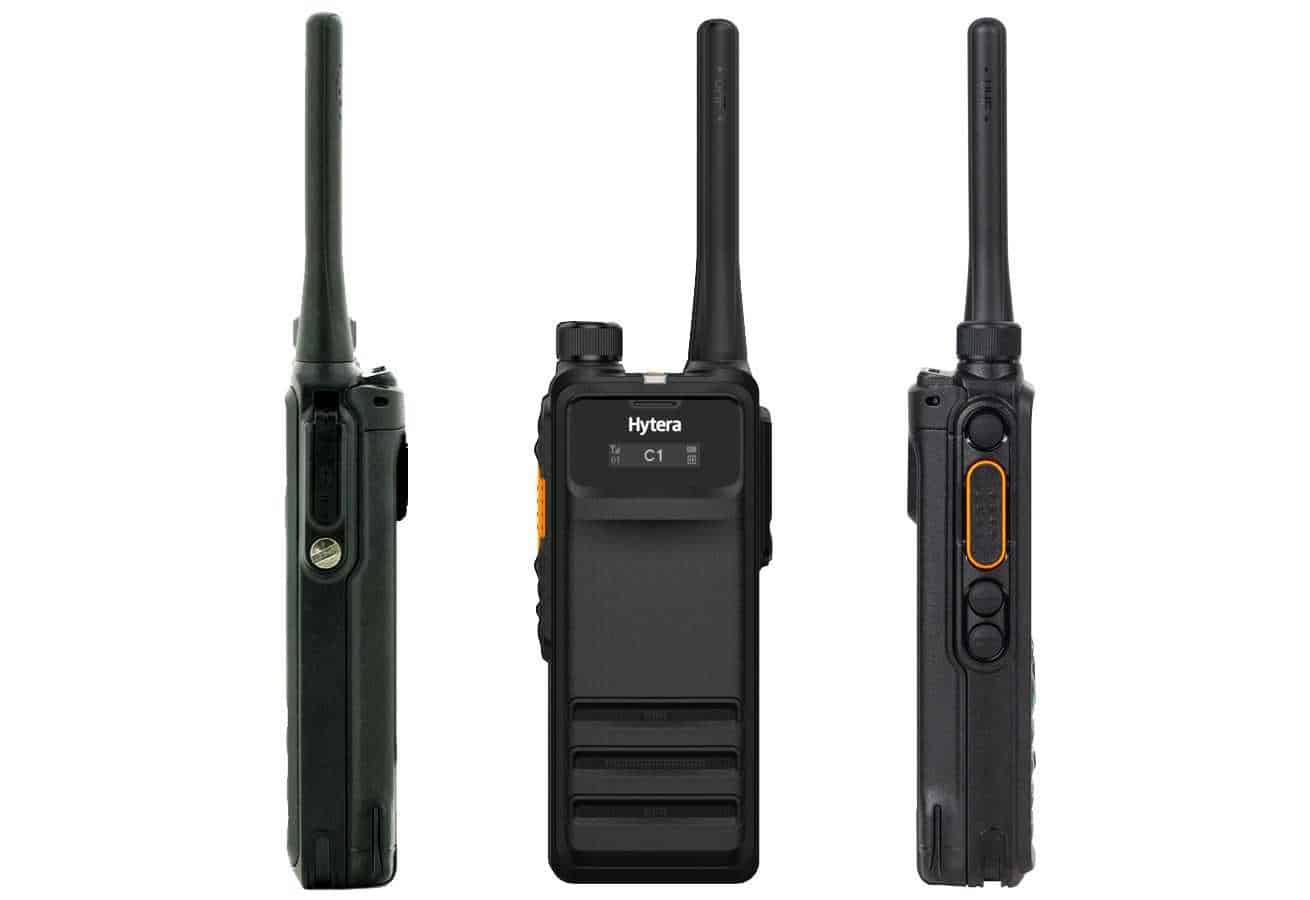

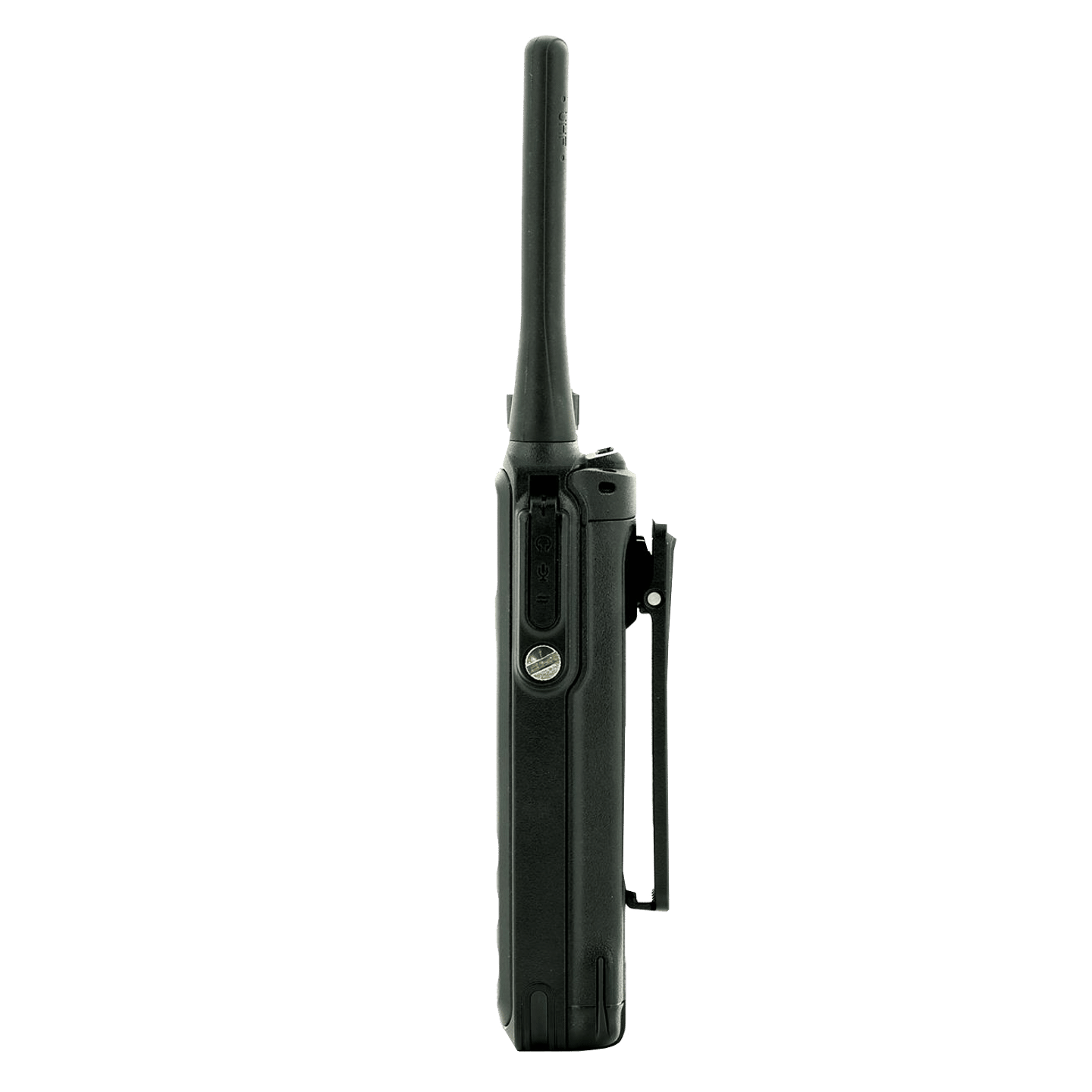

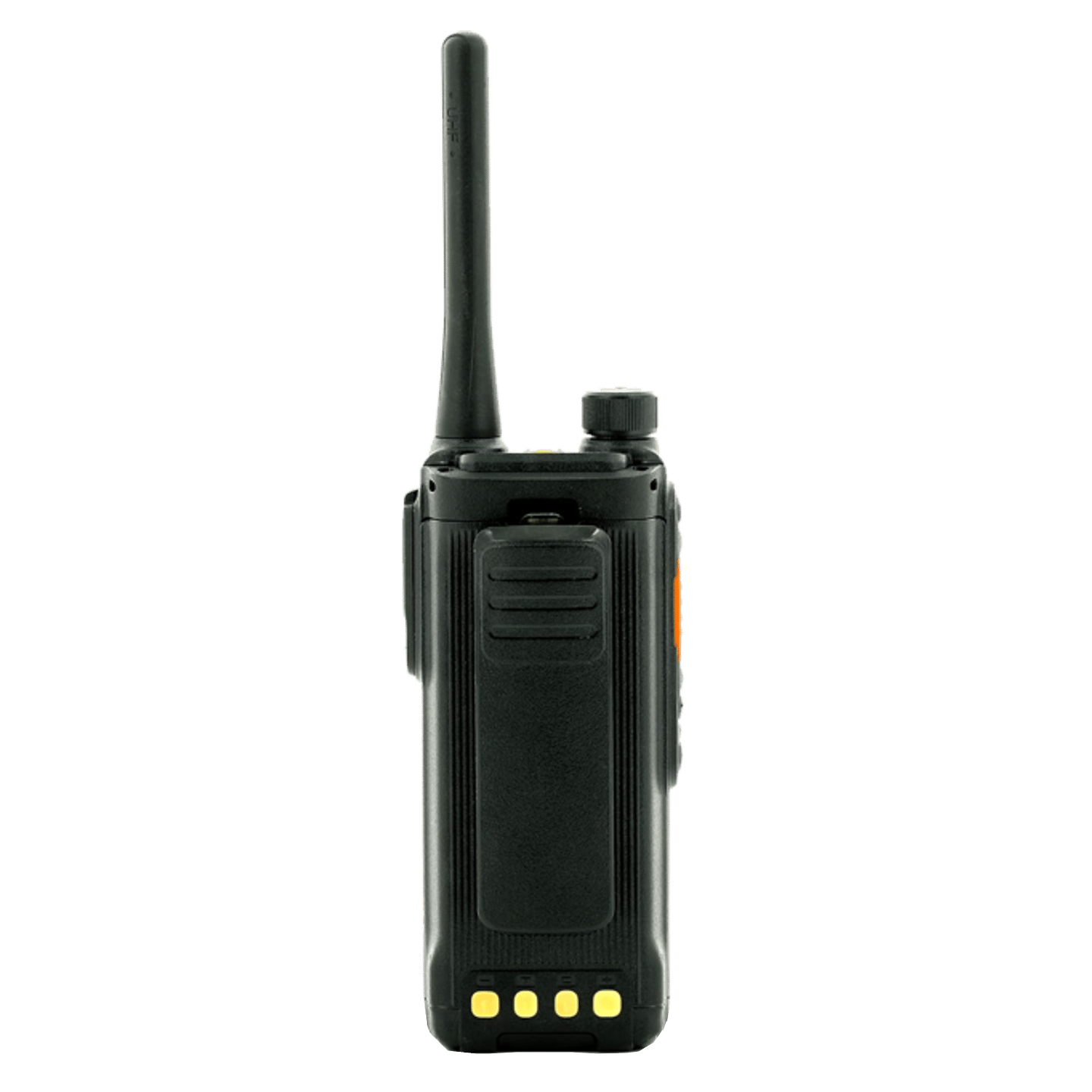

The Hytera HP702 H-Series DMR radios are the next-generation in creative style and functionality that elevates the industry standard in professional two-way radios.
The HP702 is the new state-of-the-art in digital radio communications, providing a more efficient experience with loud and clear audio, longer battery life, intuitive user interface, extended range, and ruggedness.
The HP702 features a one-line OLED display and delivers exceptional value with abundant features, GPS, a 24-hour Lithium Polymer battery, and industry-leading audio performance.
The HP702 H-Series radios empower employees in customer service or severe working environments with efficient and reliable communications.
LIGHTWEIGHT AND COMPACT
Thin and light design with advanced materials that weigh less than 11 ounces
LITHIUM POLYMER BATTERY
Delivers up to 24 hours of operation
RUGGED DESIGN
IP68 and MIL-STD-810G compliant
BUILT-IN BLUETOOTH
Supports both audio and data, and enables connectivity to wireless accessories
POWERFUL ANTENNA
Higher sensitivity for longer range
360 SMART KNOB
Tactile and easy to find control for both volume and channel switching
EASY ACCESS EMERGENCY BUTTON
Tactile and easy to find control for both volume and channel switching
OLED DISPLAY
0.91-inch display that shows the channel, signal strength, power status, and power level
END TO END ENCRYPTION
Advanced encryption protects voice and data transmission with advanced ARC4 and AES algorithms
AI NOISE SUPPRESSION
Artificial Intelligence provides real time digital noise suppression
WATER PORTING SPEAKER
Water automatically drains from the speaker for clear audio in wet conditions
PUSH-TO-TALK BUTTON
One-touch instant individual or group calling
PROGRAMMABLE BUTTONS
Two programmable buttons for emergency calling and other controls
VIBRATE MODE
Provides silent call notification
MICRO SD CARD
Enables additional capabilities like voice recording
Functions
LOUDER AND CLEARER AUDIO
Hytera provides industry-leading audio quality through a large 36mm forward-facing optimized speaker that provides up to 93dB of loudness, and AI-based voice enhancement with deep learning ability that can accurately extract voice from noise in real time and decreases unwanted background noises as loud as 30db. Water-porting technology quickly drains water out of speaker cavity to maintain audio clarity.
HIGHER LEVEL OF RUGGEDNESS
The HP702 is fully compliant with the IP68 and MIL-STD- 810 G standards. It is dustproof, impervious to water jets, submersible to a depth of 2 meters for 4 hours, and can stand up to drop shock testing at 2 meters. The HP7 Series antimagnetic speaker does not attract magnetic metal dust and shavings.
LONGER BATTERY LIFE90
The latest in lithium polymer technology is used to power the HP7 Series radios for excellent performance. The battery is light and small, achieving a shift life of 24 hours on high transmit power with a duty cycle of 5/5/90.
ENHANCED GPS LOCATION TRACKING
The HP702 radios with optional GPS can report current location information to other radios, the dispatcher, or third-party applications in real time, enhancing the efficiency of visualized dispatch applications. GPS data can be transmitted during voice calls for immediate location targeting, and GPS data can be compressed to increase channel capacity and reduce hardware cost.
BLUETOOTH AND MICROSD CARD
Optional built-in Bluetooth enables connectivity to wireless accessories. The MicroSD card provides additional capabilities like voice recording.
EXTENDED COVERAGE AND CONNECTIVITY
The HP702 extends radio range through increased Tx power efficiency, Rx sensitivity, improved antenna gain, and reduced attenuation. This produces a 25% increase in coverage distance and signal penetration through buildings. The enhanced coverage improves efficiency and reduces network infrastructure costs. Two patented technologies and a voice buffer reduces packet loss during Rx handover for consistently clear calls and fewer dropped words.
THINNER AND LIGHTER
An optimized mechanical design with advanced materials, a 4.3mm speaker, and a lightweight lithium polymer battery delivers a compact radio only 29.5mm thick that weighs less than 11 ounces.
ENHANCED WORKER SAFETY
The HP702 radios are designed for worker safety with an easy access emergency button, emergency calling, and priority interrupt. Lone Worker prompts the user to press a key or speak to indicate they are safe. Man Down allows the radio to automatically enter emergency mode when the radio is inclined at a pre-set angle or remains motionless.
CLEAR AND BRIGHT DISPLAY
The HP702 features a 0.91-inch OLED display that shows the channel, signal strength, power status, power level, and BT status.
HIGHER SECURITY
The HP702 supports Digital End-to-End and Over-the-Air Encryption for voice and data transmitted on digital channels to prevent eavesdropping. Hardware encryption is implemented through a built-in encryption card. Software encryption uses the secure and reliable ARC4 and AES encryption algorithms. Radio authentication prevents unauthorized users from accessing the system. If a radio is lost or stolen, the system can Stun or Kill the radio to prevent unauthorized use.
MULTI-SYSTEM OPERATION
The HP702 can be deployed in a wide variety of analog and digital radio networks, including Analog and Digital Conventional, MPT and XPT Trunking, DMR Tier II and Tier III Trunking, IP Multi- Site Connect, and DMR Simulcast Systems
GREATER CALLING FLEXIBILITY
A variety of calling modes provides the flexibility to communicate with any or all users. The HP7 Series supports Individual Calls (radio to radio, radio to dispatcher), Group Calls (one radio to many, dispatcher to many), All Call (broadcast call to all radios, transmit only), and Telephone Calls (requires connectivity to PSTN, PABX or SIP networks).
Standard Accessories for HP702 DMR Two-Way Radio
Antenna
AN0155H15
VHF/GPS Antenna (146-164MHz/1575MHz)
VHF Stout Long Antenna, SMA-male, 17cm, 146-164MHz, GPS 1575MHz
Battery
BP2403
Li-Ion Polymer Battery (2400mAh)
Li-Ion Polymer Battery with 26 hour operating time (2400mAh)
Carrying
RO03
Wrist Strap
Nylon wrist strap
BC39
Belt Clip
Belt Clip
Charger
PS1014
Standard Switching Power Adapter
Standard Switching Power Adapter 100-240VAC 12VDC/1A Hytera (RoHS) (for CH10A07 single charger)
CH10L30
Single-unit Charger for Li-ion polymer battery
Drop-In Single Unit Charger
Optional Accessories for HP702 DMR Two-Way Radio
Audio
EHW08
Bluetooth Earpiece with PTT button and microphone
Bluetooth Earpiece with PTT button and microphone
SM27W2
Bluetooth Remote Speaker Mic with charging cable
Bluetooth wireless remote speaker microphone finished (IP67)
ESW01
Bluetooth Earpiece with charger(requires PS1030 power adapter)
Bluetooth Earpiece with charger(requires PS1030 power adapter)
POA121
Bluetooth Ring PTT
The wireless PTT ring is designed for finger wearing and allows you to trigger PTT functions without holding a portable radio in your hands.
ACN-02-P
PTT and Microphone cable
Intrinsically Safe Mic and PTT button with VOX and 3.5mm Jack Receive-only Earpiece (IP54 )
ES-01
Earbud without Earpiece (Receive-Only)
Reliable and ergonomically designed earbud to be used with various base sets. 3.5mm jack plug.
EA-01
Earbud with Transparent Acoustic Tube (Receive-Only)
Reliable and ergonomically designed earpiece with transparent acoustic tube to be used with various base sets. 3.5mm jack plug.
EH-01
C-Style Earpiece (Receive-Only)
Ergonomically designed C-style earpiece (Receive only). 3.5mm jack plug.
EH-02
Swivel Style Earpiece (Receive-Only)
Ergonomically designed swivel earpiece (Receive only). 3.5mm jack plug.
EHS17
Swivel Style Earpiece (Receive Only)
Ergonomically designed swivel earpiece (Receive only). 2.5mm jack plug.
EHS18
C-Style Earpiece (Receive Only)
Ergonomically designed C-style earpiece (Receive only). 2.5mm jack plug.
EAS03
Receive-Only Transparent Acoustic Tube Earpiece
Receive-Only Transparent Acoustic Tube Earpiece
EAN21-P
3-Wire Earpiece with Acoustic Tube, Microphone and PTT (Beige)
Intrinsically Safe 3-wire Surveillance Earpiece with Transparent Acoustic Tube
EAN24-P
Earpiece with Acoustic Tube and In-line PTT (Black)
Earpiece with detachable acoustic tube, clip , in-line PTT and microphone (Black)
EHN26-P
C-style Earpiece with In-line PTT and Microphone (Black)
Intrinsically Safe C-style Earpiece with microphone and in-line PTT button
SM26N1-P
Remote Speaker Microphone
Remote Speaker Microphone with emergency button (IP67)
SM26N2-P
Remote Speaker Microphone
Remote Speaker Microphone with emergency button and 2.5mm audio jack(IP54)
ECN21-P
Noise canceling headphones
Intrinsically Safe Noise-Cancelling Headset with PTT and boom microphone
Antenna
AN0155H13
VHF/GPS Antenna (136-174MHz/1575MHz)
VHF Stout Long Antenna, SMA-male, 20cm, 136-174MHz, GPS 1575MHz
AN0155H15
VHF/GPS Antenna (146-164MHz/1575MHz)
VHF Stout Long Antenna, SMA-male, 17cm, 146-164MHz, GPS 1575MHz
AN0158H06
VHF/GPS Antenna (153-164MHz/1575MHz)
VHF Stubby Antenna, SMA-male, 9cm, 153-164MHz, GPS 1575MHz
AN0148H07
VHF/GPS Antenna (144-154MHz/1575MHz)
VHF Stubby Antenna, SMA-male, 9cm, 144-154MHz, GPS 1575MHz
AN0168H05
VHF/GPS Antenna (163-174MHz/1575MHz)
VHF Stubby Antenna, SMA-male, 9cm, 163-174MHz, GPS 1575MHz
AN0435H25
UHF/GPS Antenna (400-470MHz/1575MHz)
UHF Stubby Antenna, SMA-male, 9cm, 400-470MHz, GPS 1575MHz
AN0485H19
UHF/GPS Antenna (450-5270MHz/1575MHz)
UHF Stubby Antenna, SMA-male, 9cm, 450-527MHz, GPS 1575MHz
Battery
BP2403
Li-Ion Polymer Battery (2400mAh)
Li-Ion Polymer Battery with 26 hour operating time (2400mAh)
Carrying
BC39
Belt Clip
Belt Clip
RO03
Wrist Strap
Nylon wrist strap

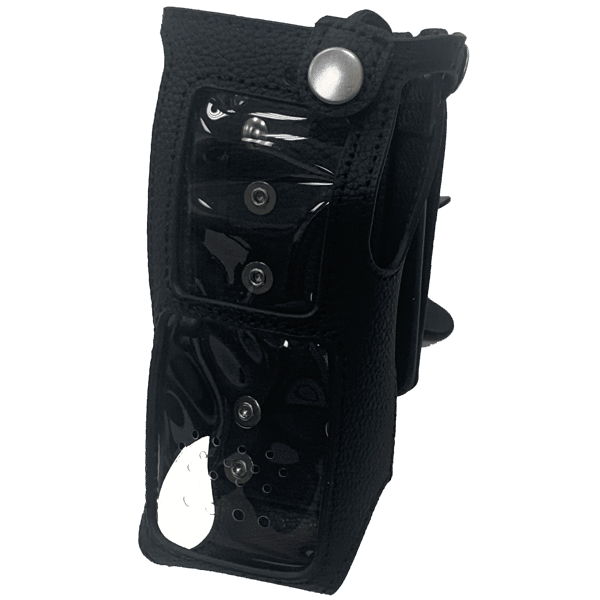

LCY025
Leather Carry Case
Leather Carrying Case, black, with display window
Charger
CH10L30
Single-unit Charger for Li-ion polymer battery
Drop-In Single Unit Charger
PS1014
Standard Switching Power Adapter
Standard Switching Power Adapter 100-240VAC 12VDC/1A Hytera (RoHS) (for CH10A07 single charger)
CHV09
Vehicle Power Adapter
In the vehicle charging solution convenient for portable radio batteries.
MCL39
Smart Multi-Unit Charger for Li-ion/Li-polymer Batteries
6-Radio Multi-Unit Charger
Installation
BRK20
Wall-Mount Installation Kit
Enables secure installation of the multi-charger onto the wall for convenience and easy accessibility
Programming
PC152
USB programming cable
USB programming cable
DMR Extended Warranty
DMR Extended Warranty
DMR Extended Warranty
Extended warranty adds 2 years to the standard 3 year Hytera DMR product warranty for a total of 5 years of warranty protection.
Systems that work with HP702 DMR Two-Way Radio
Systems
XPT Extended Pseudo Trunk
Single-site and Multi-site Extended Pseudo Trunking (XPT)
DMR IP Site Connect
Connect Repeater Sites with IP Networks
DMR Tier III
Digital Radio Trunking Systems
SmartOne DMR Dispatch
Unified Communications and Dispatching
Hytera Bridge
PoC to DMR/Analog Radio Gateway
DMR Tier II Conventional Repeaters
Increase coverage, expand capacity, and improve signal quality
Technical Specifications
| Frequency Range | UHF 350-470MHz , VHF 136-174MHz |
| Channel Capacity | 1,024 Channels (512 Analog, 512 Digital) |
| Zone Capacity | 64 Zones with 256 Channels per Zone |
| Channel Spacing | 12.5kHz / 20kHz / 25kHz |
| Operational Voltage | 7.7V (Rated) |
| Battery | 2400mAh Li-Ion Polymer |
| Battery Life (5/5/90) | UHF - 24 Hours, 26 Hours GPS disabled VHF - 21 Hours, 25 Hours GPS disabled |
| Weight | 10.23oz (290g) |
| Dimensions (H x W x D) | 5 3/16” x 2 5/32” x 1 5/32” (132 x 55 x 29.5mm) without antenna |
| Frequency Stability | ± 0.5ppm |
| Antenna Impedance | 50Ω |
| Display | OLED 0.91” Display |
| Bluetooth | BT 5.0 BLE+EDR |
| Time to First Fix Cold Start | <60 Seconds (Typical TTFF) |
| Time to First Fix Hot Start | <10 Seconds (Typical TTFF) |
| Horizontal Accuracy | <5 meters Receiver |
| Digital Sensitivity | 0.18μV (BER 5%) |
| Analog Sensitivity | 0.16μV (Typical) (12dB SINAD) 0.18μV (12dB SINAD) |
| Adjacent Selectivity | TIA-603: [email protected], 70dB@20/25kHz ETSI: [email protected], 70dB@20/25kHz |
| Spurious Response Rejection | TIA-603: [email protected]/20/25kHz ETSI: [email protected]/20/25kHz |
| Intermodulation | TIA-603: [email protected]/20/25kHz ETSI: [email protected]/20/25kHz |
| Hum and Noise | [email protected], 43dB@20kHz, 45dB@25kHz |
| Rated Audio Power Output | 0.5W |
| Rated Audio Distortion | ≤3% |
| Audio Response | +1 to -3dB |
| Conducted Spurious Emission | <-57dBm |
| RF Power Output | VHF High Power: 5W, VHF Low Power: 1W UHF High Power: 4W, UHF Low Power: 1W |
| FM Modulation | 11K0F3E @ 12.5kHz 14K0F3E @ 20kHz 16K0F3E @ 25kHz |
| 4FSK Digital Modulation | 12.5kHz Data Only: 7K60FXD 12.5kHz Data and Voice: 7K60FXW |
| Conducted/Radiated Emission | -36dBm 1GHz |
| Modulation Limiting | ±2.5kHz @ 12.5kHz ±4.0kHz @ 20kHz ±5.0kHz @ 25kHz |
| FM Hum and Noise | 40dB @ 12.5kHz, 45dB @ 25kHz |
| Adjacent Channel Power | 60dB @ 12.5kHz, 70dB @ 25kHz |
| Audio Response | +1 to -3dB |
| Audio Distortion | ≤3% |
| Digital Vocoder Type | AMBE+2TM |
| Operating Temperature | -0°F to +140°F (-20°C to +60°C) |
| Storage Temperature | -40°F to +185°F (-40°C to +85°C) |
| ESD | IEC 61000-4-2 (Level 4) ±8kV Contact, ±15kV Air |
| Dust and Water Ingress | IP68 Standard |
| Humidity | Per MIL-STD-810 C/D/E/F/G Standard |
| Shock and Vibration | Per MIL-STD-810 C/D/E/F/G Standard |
| HP702-Uv | UHF 350-470MHz (Antenna 400-470MHz), 1-4W |
| HP702-V1 | VHF 136-174MHz (Antenna 153-164MHz), 1-5W |
| HP702-G-BT-Uv | UHF 350-470MHz (Antenna 400-470MHz), 1-4W, with GPS and Bluetooth |
| HP702-G-BT-V1 | VHF 136-174MHz (Antenna 153-164MHz), 1-5W with GPS and Bluetooth |
