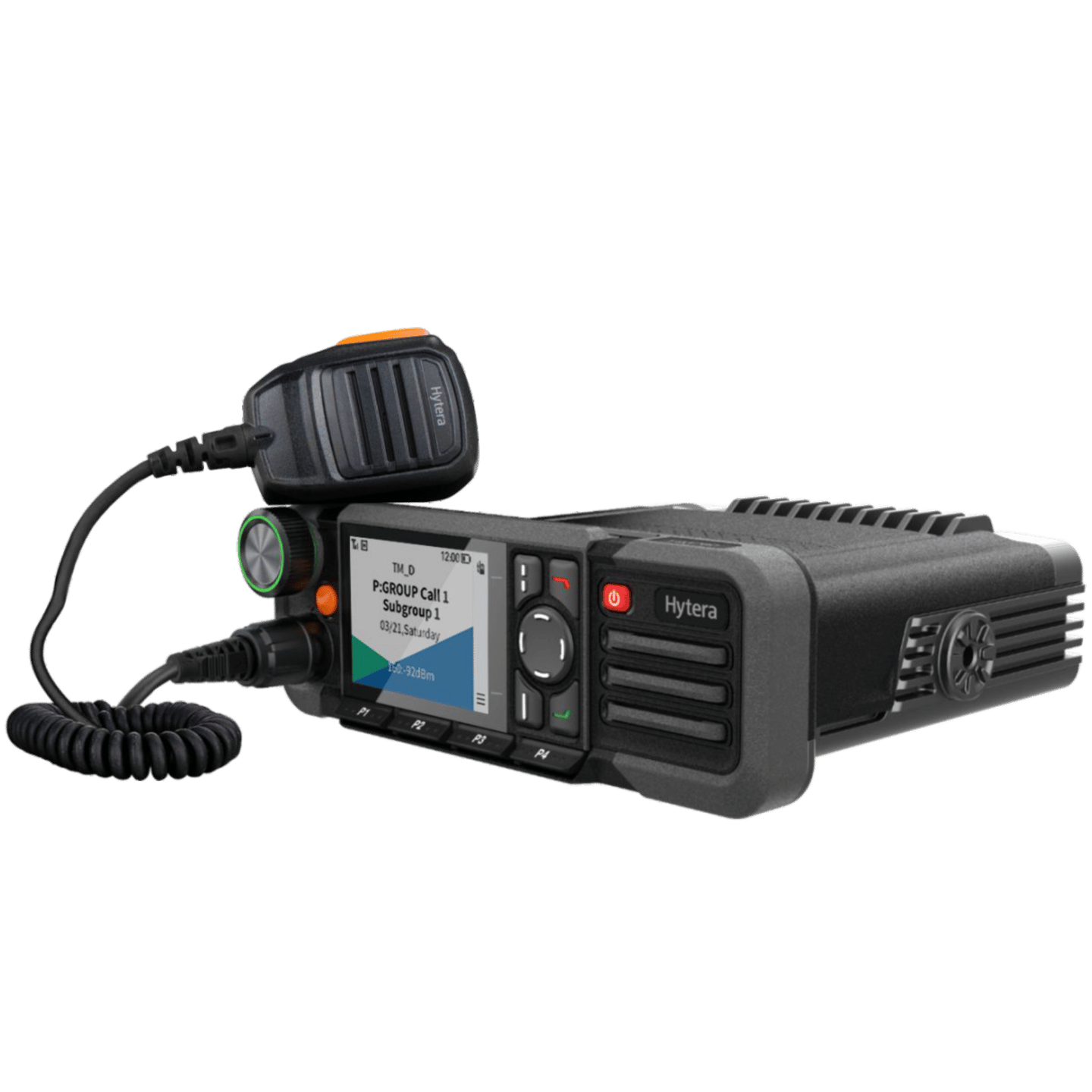

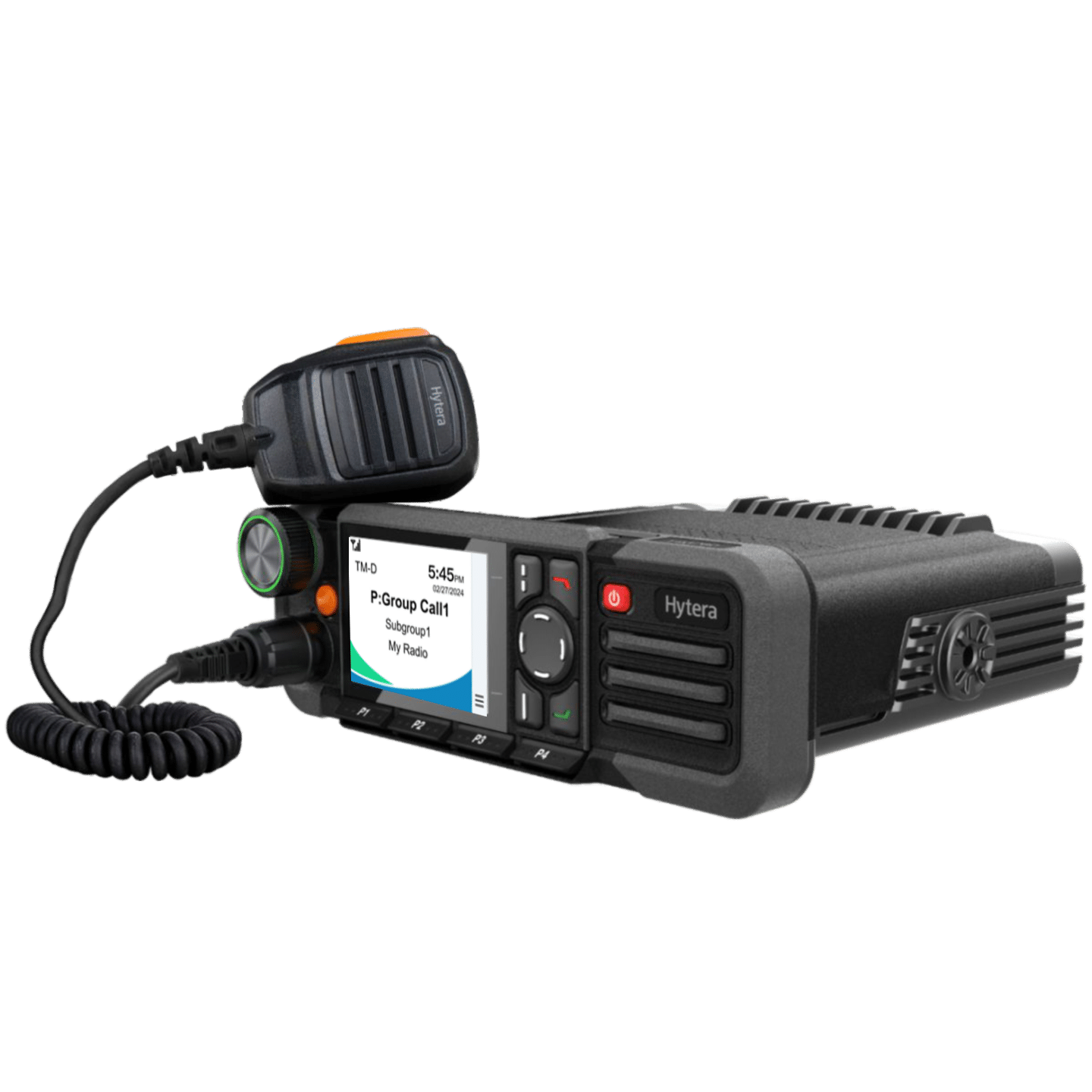

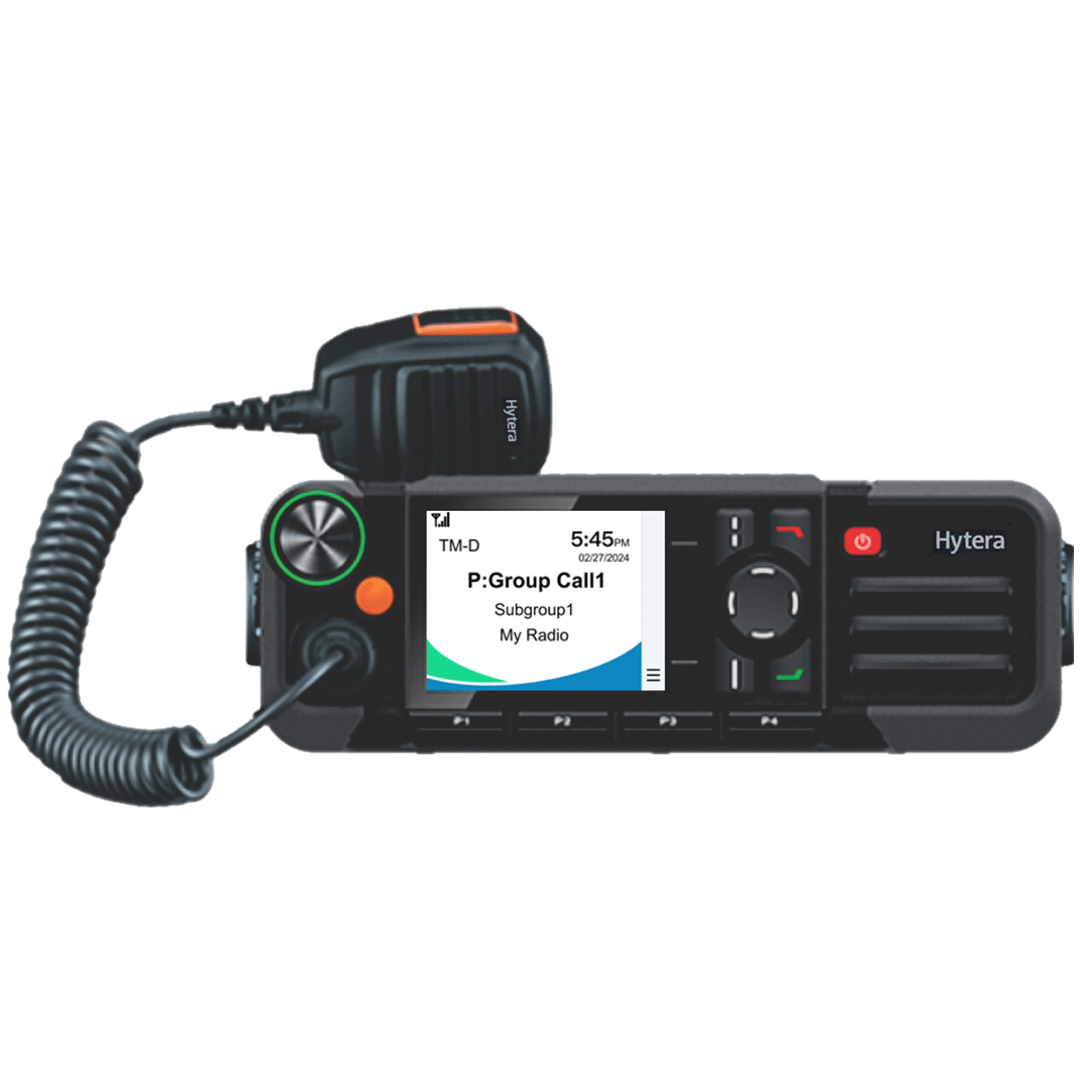

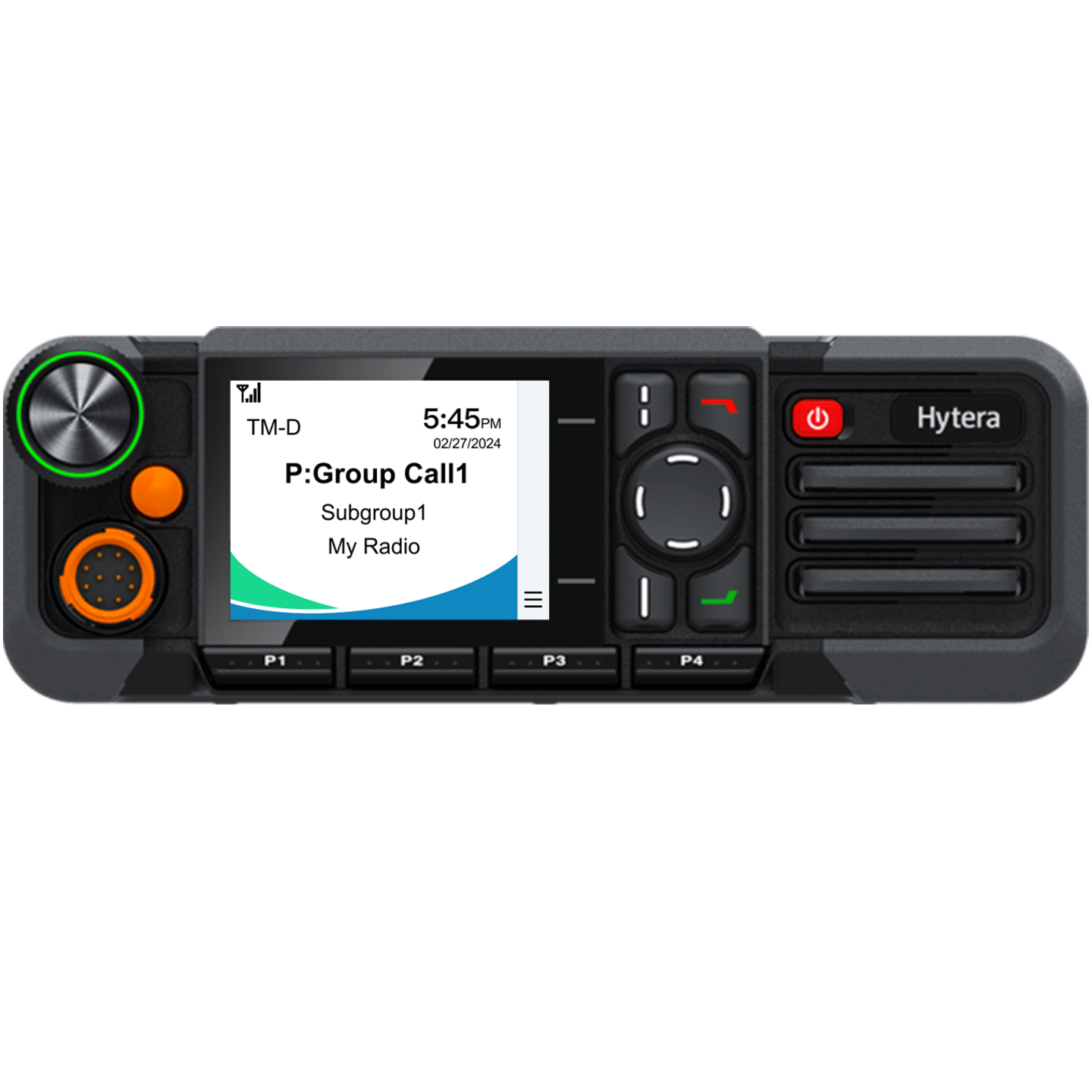

H-Series Professional DMR Mobile Radio and Gateway with LCD Display, and Optional GPS and Bluetooth
The Hytera HM782 H-Series DMR mobile radios are the next-generation in creative style and functionality that elevates the industry standard in professional two-way radios.
The HM782 is the new state-of-the-art in digital mobile radio communications, providing a more efficient experience with loud and clear audio, intuitive user interface, gateway functionality, and extended range.
The HP782 features a 2.4" TFD-LCD display and full keypad that support a wide variety of functions, GPS, and industry-leading audio performance.
The HP782 H-Series mobile radios empower mobile and fleet employees with efficient and reliable communications.

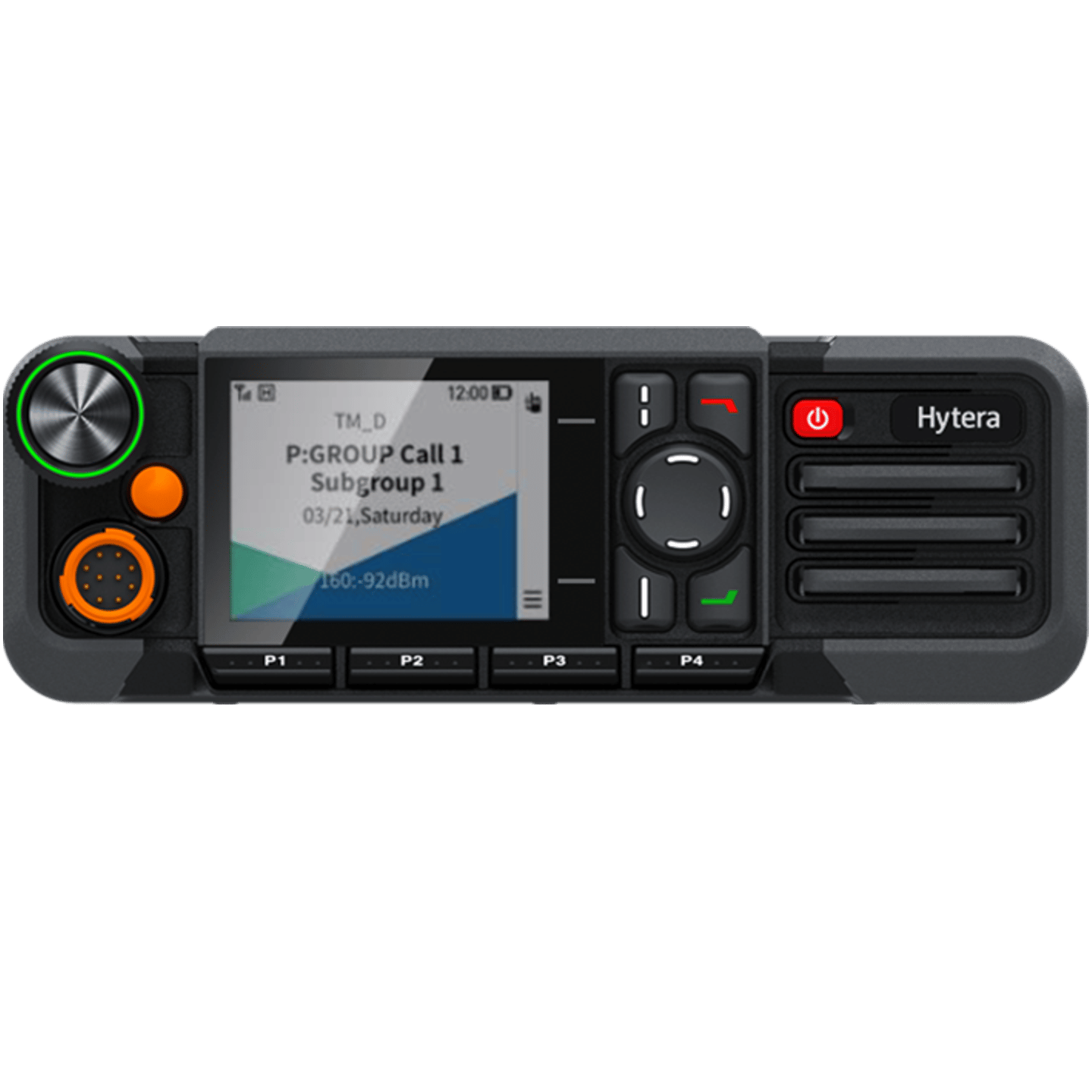

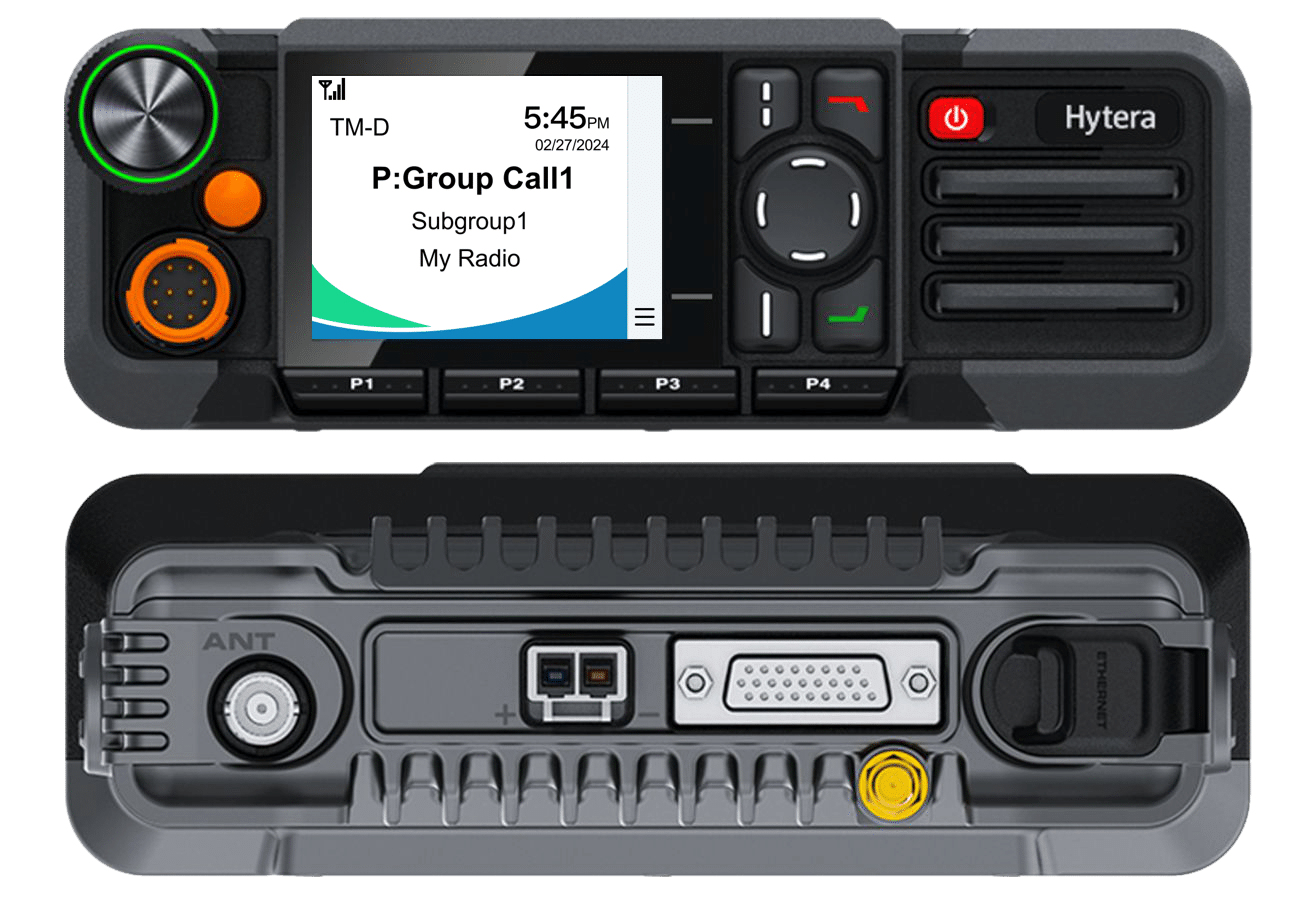

360 SMART KNOB
Tactile and easy to find control for both volume and channel switching
EMERGENCY BUTTON
Easy-access for instant emergency calls
HANDHELD MIC PORT
Secure connector for external microphones
2.4" HD TFT-LCD DISPLAY
Clear and bright with 6-icon navigation
PIANO BUTTONS
Ergonomic raised programmable buttons
NAVIGATION BUTTONS
Tactile buttons keep eyes on the road
BUILT-IN SPEAKER
Loudspeaker for clear audio in noisy vehicles
AI NOISE SUPPRESSION
Artificial Intelligence provides real time digital noise suppression
RUGGED DESIGN
IP54 and MIL-STD-810G compliant
BUILT-IN BLUETOOTH
For wireless accessories

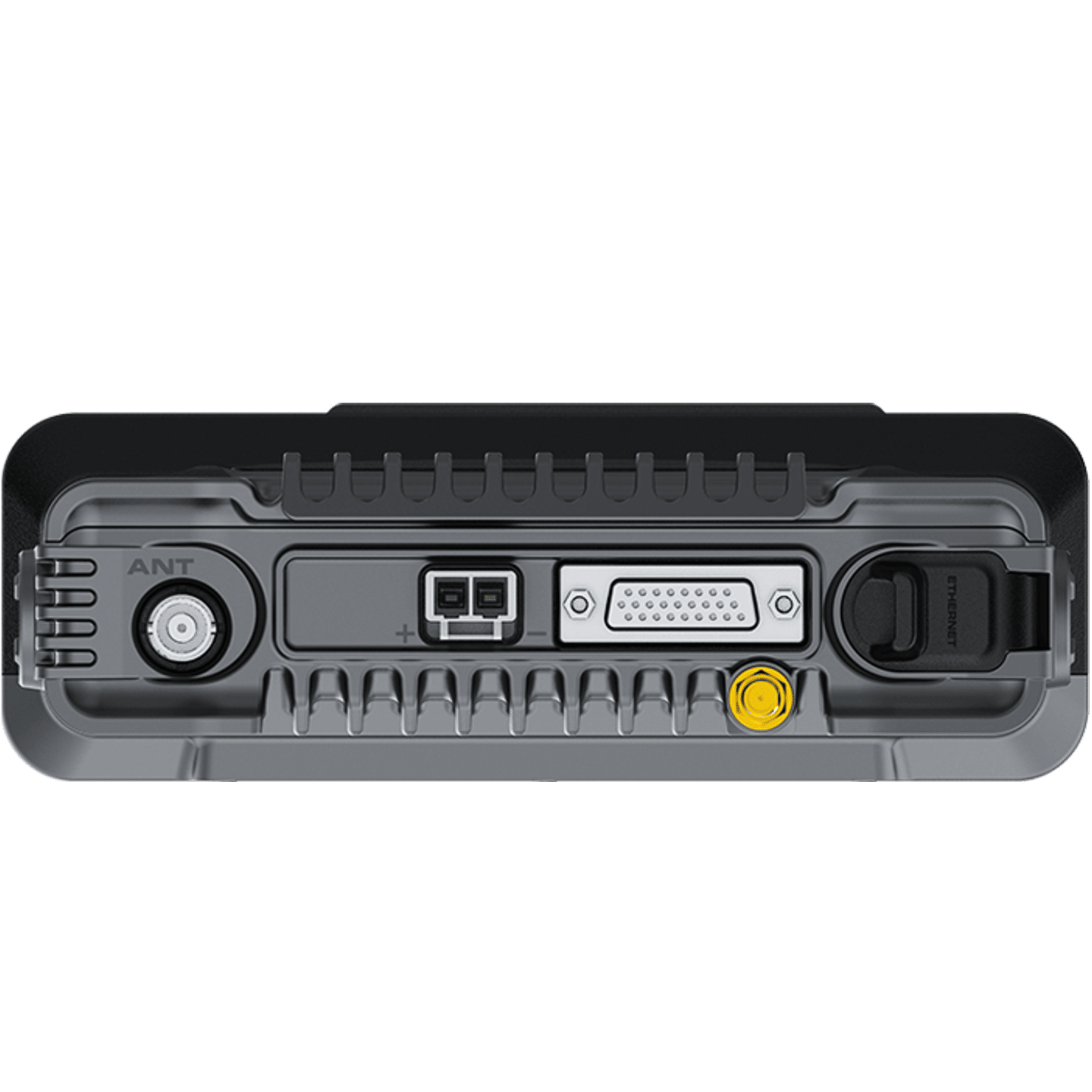

ANTENNA PORT
Higher sensitivity for longer range
POWER PORT
Cable to car battery or ignition
ACCESSORY PORT
For accessories or gateway functions
ETHERNET RJ-45 PORT
For network and gateway functions
GPS ANTENNA PORT
Optional GPS for Dispatching Applications

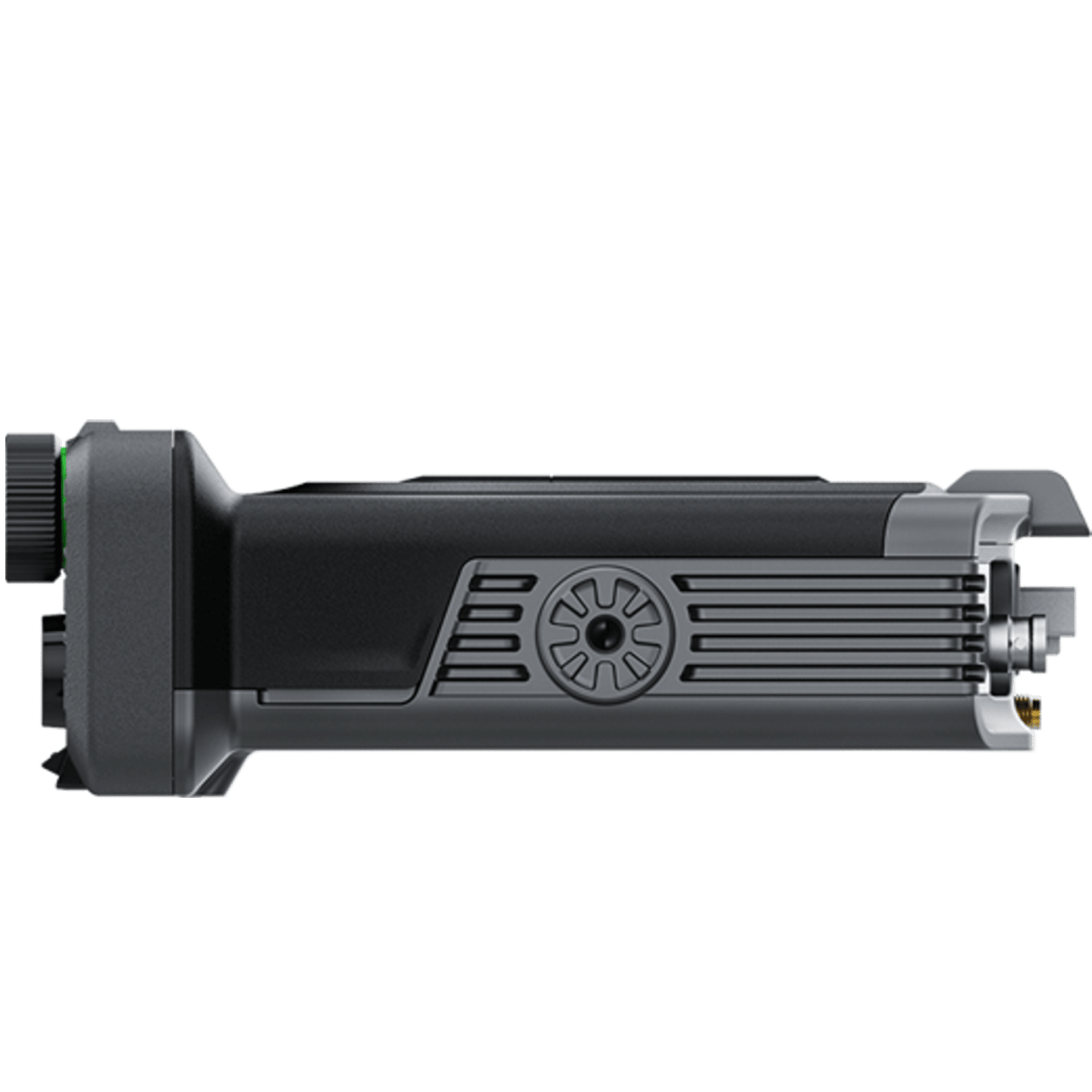

ALUMINUM CHASSIS
Compact, fast-cooling 1DIN chassis
Functions
MULTI-SYSTEM FLEXIBILITY
The HM782 can be deployed in Analog and Digital Conventional, MPT and XPT Trunking, DMR Tier II and Tier III Trunking, IP Multi-Site Connect, and DMR Simulcast Systems.
CLEAR AND BRIGHT DISPLAY
The HM782 features a 2.4-inch, 240×300 HD TFTLCD display with an intuitive six-grid navigation interface with large type and icons. The display supports 262,000 colors, and is clearly visible in bright sunlight.
LOUDER AND CLEARER AUDIO
Hytera provides industry-leading audio quality through an optimized forward-facing loudspeaker and AI-based voice enhancement with deep learning ability that can accurately extract voice from noise in real time and decreases unwanted background noises as loud as 30db.
HIGHER SECURITY
The HM782 supports Digital End-to-End and Overthe- Air Encryption for voice and data. Hardware encryption is implemented through a built-in encryption card. Advanced software encryption uses the ARC4 and AES encryption algorithms.
WIRELESS LINK
In situations where a wired IP network is unavailable between two repeaters, two HM782 radios using different frequencies can provide a wireless link between the repeaters.
GREATER CALLING FLEXIBILITY
The HM782 supports Individual Calls (radio to radio, radio to dispatcher), Group Calls (one radio to many, dispatcher to many), All Call (broadcast call to all radios, transmit only), and Telephone Calls (with connectivity to PSTN, PABX or SIP networks).
ENHANCED WORKER SAFETY
The HM782 radios are designed for worker safety with an easy access emergency button, emergency calling, and priority interrupt. Lone Worker prompts the user to press a key at preset intervals to indicate they are safe. Large tactile knobs and piano-style buttons provide easy access that keep eyes on the road.
ENHANCED GPS LOCATION TRACKING
The HM782 reports current location information to other radios, the dispatcher, or a third-party applications in real time, enhancing the efficiency of visualized dispatch applications. GPS data is transmitted during voice calls for immediate location targeting, and GPS data can be compressed to increase channel capacity and reduce hardware cost.
DURABLE AND RUGGED
IP54 compliant for water and dust ingress, and MIL-STD- 810 G for shock and humidity.
BACK-TO-BACK
The HM782 can be deployed Back-to-Back to enable communication between analog and digital radios, or radios with different frequencies. Two HM782 radios can be deployed Back-to-Back, or one radio and a repeater can be used.
CLARITY TRANSMISSION
The Clarity Transmission feature provides a wireless data path between remote network devices and a central network management station. HM782 radios function as compact gateway devices and provide wireless channels that transparently transmit data without any modi
IP MULTI-SITE CONNECT
Multiple HM782 mobile radios can be connected to an Ethernet/IP network to provide a reliable and cost-effective method to connect remote radio sites and extend coverage areas. IP Transit can connect radio sites with analog or digital radios, and radios with different frequencies.
Standard Accessories for HM782 Mobile Radio
Audio

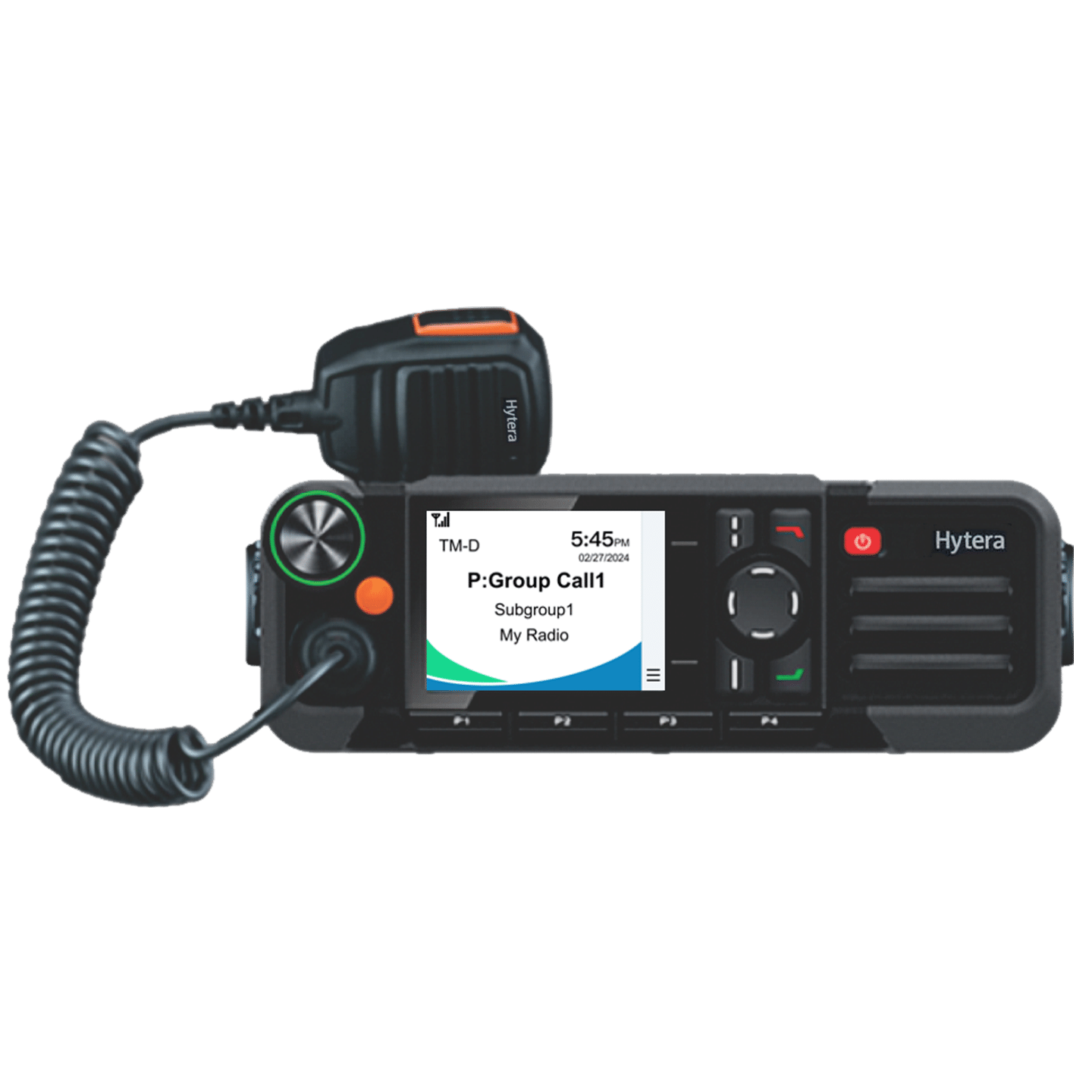

SM16A1
Portable Microphone (IP54)
IP54 compliant portable microphone with 10-pin aviation connector to be used with mobile radios
Charger
PWC10
DC Power Cable (10ft)
10ft (3M) DC power cable for mobile radios
Installation

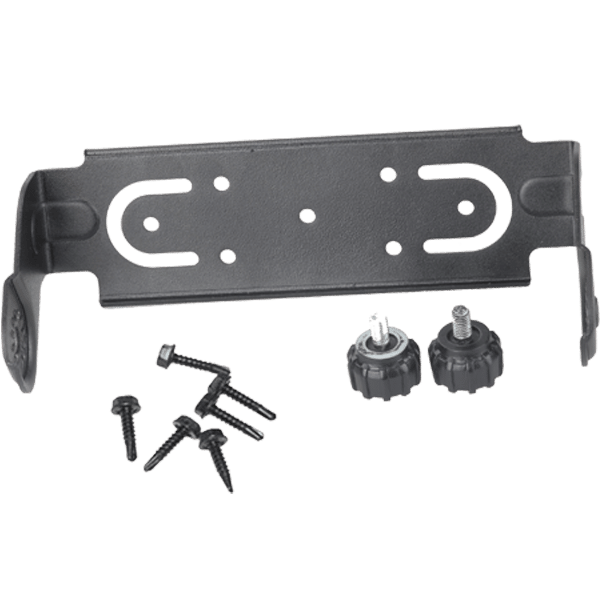

BRK08
Vehicle Installation Kit
Mobile radio bracket for in-vehicle installation
Optional Accessories for HM782 Mobile Radio
Audio
SM27W2
Bluetooth Remote Speaker Mic with charging cable
Bluetooth wireless remote speaker microphone finished (IP67)
SM16A1
Portable Microphone (IP54)
IP54 compliant portable microphone with 10-pin aviation connector to be used with mobile radios
SM16A2
Portable Microphone (IP67)
Rugged, reliable and IP67 compliant portable microphone ensures excellent peformance in challenging environments. For use with repeater and mobile radios

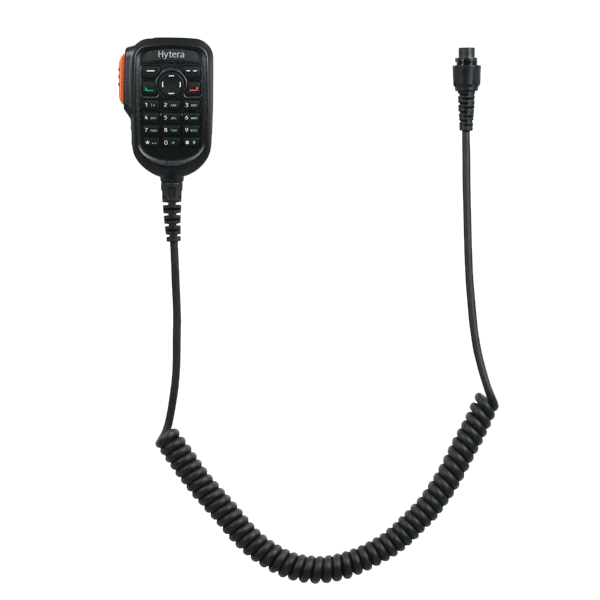

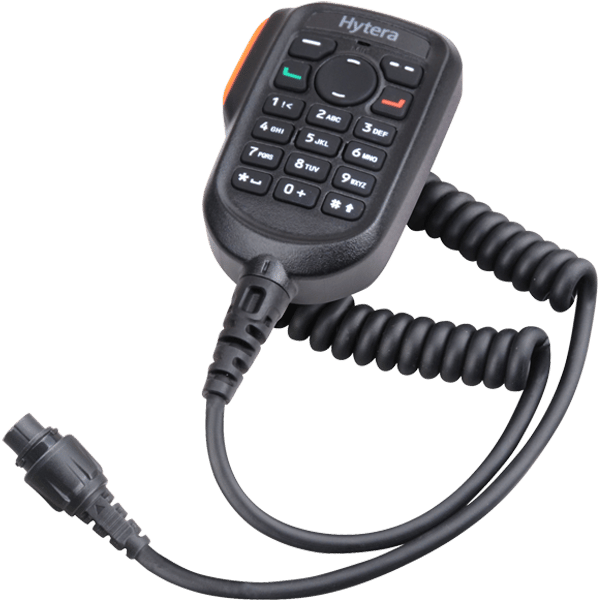

SM19A1
Portable Microphone with Keypad (IP54)
Ergonomically designed portable microphone with large programmable keys and emergency call button for ease of use and convenience
SM09D1
External Speaker (15W) with DB26 pin audio port
External speaker with clear voice output and adjustable bracket, to be used with mobile radios (15W). This is mountable on a horizontal or vertical surface and has an adjustable bracket.The large speaker with high output power provides clear audio even under noisy environments. DB26 pin audio port.
SM10A1
Table Microphone with Large PTT
Table microphone with large PTT and lockable monitor key enabling convenient and efficient operation

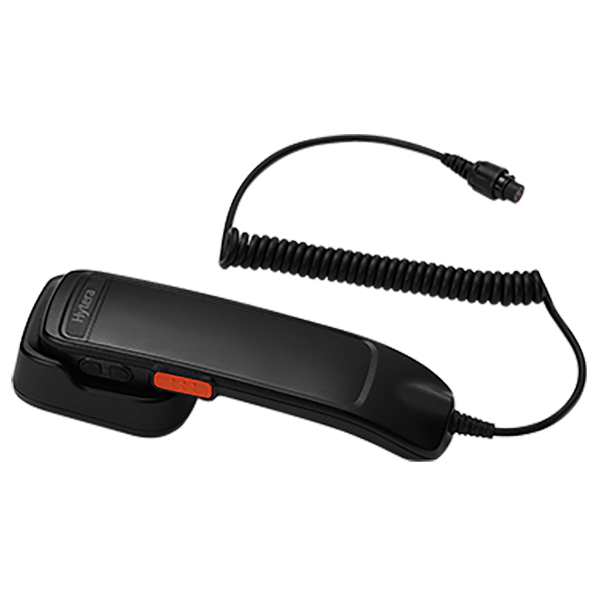

SM20A1
Telephone Style Handset
Telephone style handset with 10-pin aviation interface for secure communication. Ideal device for private conversation delivering clear output.
SM20A2
Telephone-style handset with keypad without display
Ergonomically designed telephone-style handset convenient for private conversations. With multiple keys available for programming based on your preference. Emergency alarm capability with one-button operation.
Antenna
GPS04
Vehicle GPS Antenna
Vehicle GPS Antenna (SMA,1575MHZ)
Charger
PWC10
DC Power Cable (10ft)
10ft (3M) DC power cable for mobile radios
PWC12
DC Power Cable (5M)
5 Metre DC power cable for mobile radios
PS22002
External Power Supply (300W)
300W external power supply for mobile radios and repeaters
PV8002
Power Supply
Power Supply (24VDC to 12VDC)

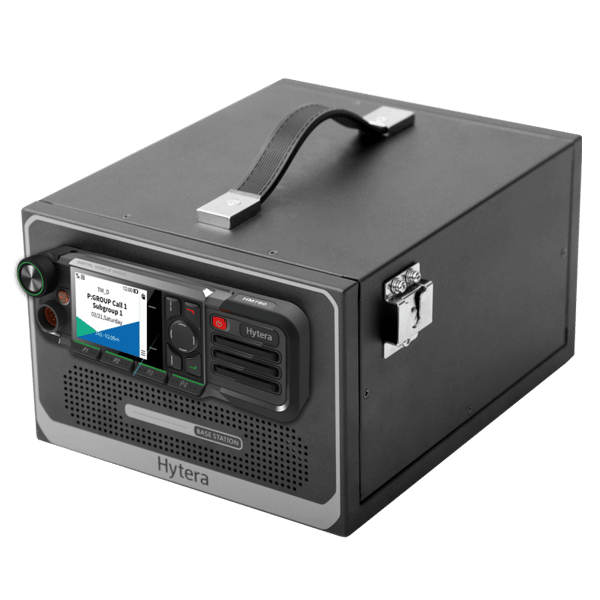

PS16001(H)
Power Supply of Base Station Cabinet
Base Station Chassis Power Supply, includes GPS cable. 90~264VAC 13.6V/22A National Standard

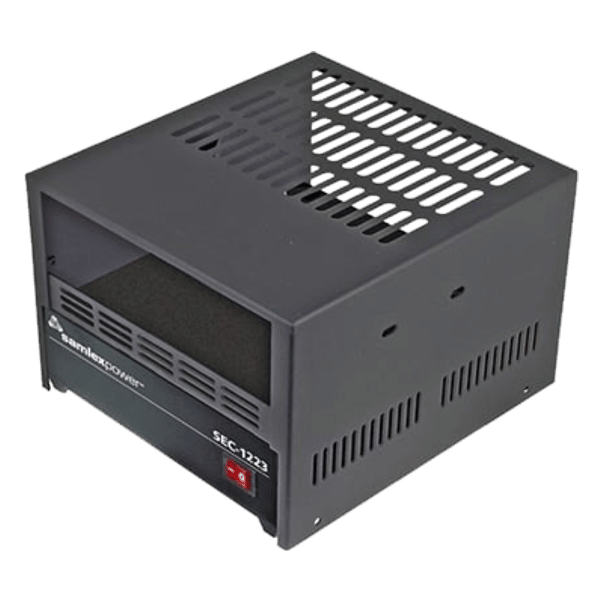

DC-HM78X
Desktop Cabinet
Desktop Cabinet for HM782 with SEC1223 power supply 120VAC, Output 13.8VDC, 23Amps
Installation
BRK08
Vehicle Installation Kit
Mobile radio bracket for in-vehicle installation
Programming
PC37
Programming Cable
Programming cable for mobile radios and repeater
PC60
Ignition Cable
Ignition cable connected to the rear of mobile radio, enabling the radio to switch on and off automatically in vehicles (ignition sense)
PC47
Programming cable (USB) with toggle switch
Programming cable with toggle switch to use with mobile radios and repeaters
DMR Extended Warranty
DMR Extended Warranty
DMR Extended Warranty
Extended warranty adds 2 years to the standard 3 year Hytera DMR product warranty for a total of 5 years of warranty protection.
Systems that work with HM782 Mobile Radio
Systems
XPT Extended Pseudo Trunk
Single-site and Multi-site Extended Pseudo Trunking (XPT)
DMR IP Site Connect
Connect Repeater Sites with IP Networks
DMR Tier III
Digital Radio Trunking Systems
SmartOne DMR Dispatch
Unified Communications and Dispatching
Hytera Bridge
PoC to DMR/Analog Radio Gateway
DMR Tier II Conventional Repeaters
Increase coverage, expand capacity, and improve signal quality
Technical Specifications
| Frequency Range | UHF 350-470MHz , VHF 136-174MHz |
| Channel Capacity | 1,024 Channels (512 Analog, 512 Digital) |
| Zone Capacity | 64 Zones with 256 Channels per Zone |
| Channel Spacing | 12.5kHz / 20kHz / 25kHz |
| Operational Voltage | 13.6V ±15% |
| Current Drain | Standby: <0.5A Receive: <2.0A Transmit: 1W <3A, 5W <4A, 25W <8A, 45/50W <12A |
| Weight | 56.1oz (1,520g) |
| Dimensions (HxWxD) | 2 7/16” x 6 31/32” x 7 1/16” (61.5 x 177 x 179mm) |
| Frequency Stability | ± 0.5ppm |
| Antenna Impedance | 50Ω |
| Display | LCD 2.4”, 240x320, 262,000 colors, 10 rows |
| Bluetooth | BT 5.0 BLE+EDR |
| Digital Sensitivity | 0.18μV (BER5 5%) |
| Analog Sensitivity | 0.16μV (Typical) (12dB SINAD) 0.18μV (12dB SINAD) |
| Adjacent Selectivity | TIA-603: [email protected], 70dB@20/25kHz ETSI: [email protected], 70dB@20/25kHz |
| Spurious Response Rejection | TIA-603: [email protected]/20/25kHz ETSI: [email protected]/20/25kHz |
| Intermodulation | TIA-603: [email protected]/20/25kHz ETSI: [email protected]/20/25kHz |
| Blocking | TIA-603: 80dB ETSI: 84dB |
| Hum and Noise | [email protected], 43dB@20kHz, 45dB@25kHz |
| Rated Audio Power Output | Internal (20 Ohm load) 3W, 8W Max External (8 Ohm load) 8W, 20W Max |
| Rated Audio Distortion | ≤3% |
| Audio Response | +1 to -3dB |
| Conducted Spurious Emission | <-57dBm |
| RF Power Output | Low Power: UHF: 1-25W, VHF: 5-25W High Power: UHF: 1-45W, VHF: 5-50W |
| FM Modulation | 11K0F3E @ 12.5kHz 14K0F3E @ 20kHh 16K0F3E @ 25kHz |
| 4FSK Digital Modulation | 12.5kHz Data Only: 7K60FXD 12.5kHz Data and Voice: 7K60FXW |
| Conducted/Radiated Emission | -36dBm 1GHz |
| Modulation Limiting | ±2.5kHz @ 12.5kHz ±4.0kHz @ 20kHz ±5.0kHz @ 25kHz |
| FM Hum and Noise | 40dB @ 12.5kHz, 43dB @ 20kHz, 45dB @ 20/25kHz |
| Adjacent Channel Power | 60dB @ 12.5kHz, 70dB @ 20/25kHz |
| Audio Response | +1 to -3dB |
| Audio Distortion | ≤3% |
| Digital Vocoder Type | AMBE+2TM |
| Operating Temperature | -22°F to +140°F (-30°C to +60°C) |
| Storage Temperature | -40°F to +185°F (-40°C to +85°C) |
| ESD | IEC 61000-4-2 (Level 4) ±8kV Contact, ±15kV Air |
| Dust and Water Ingress | IP54 Standard |
| Humidity | Per MIL-STD-810 C/D/E/F/G Standard |
| Shock and Vibration | Per MIL-STD-810 C/D/E/F/G Standard |
| Time to First Fix Cold Start | <60 Seconds (Typical TTFF) |
| Time to First Fix Hot Start | <10 Seconds (Typical TTFF) |
| Horizontal Accuracy | <5 meters |
| HM782-Uv | UHF 350-470MHz, 1-45W |
| HM782-V1 | VHF 136-174MHz, 5-50W |
| HM782-G-BT-Uv | UHF 350-470MHz, 1-45W, with GPS and Bluetooth |
| HM782-G-BT-V1 VHF | VHF 136-174MHz, 5-50W, with GPS and Bluetooth |
