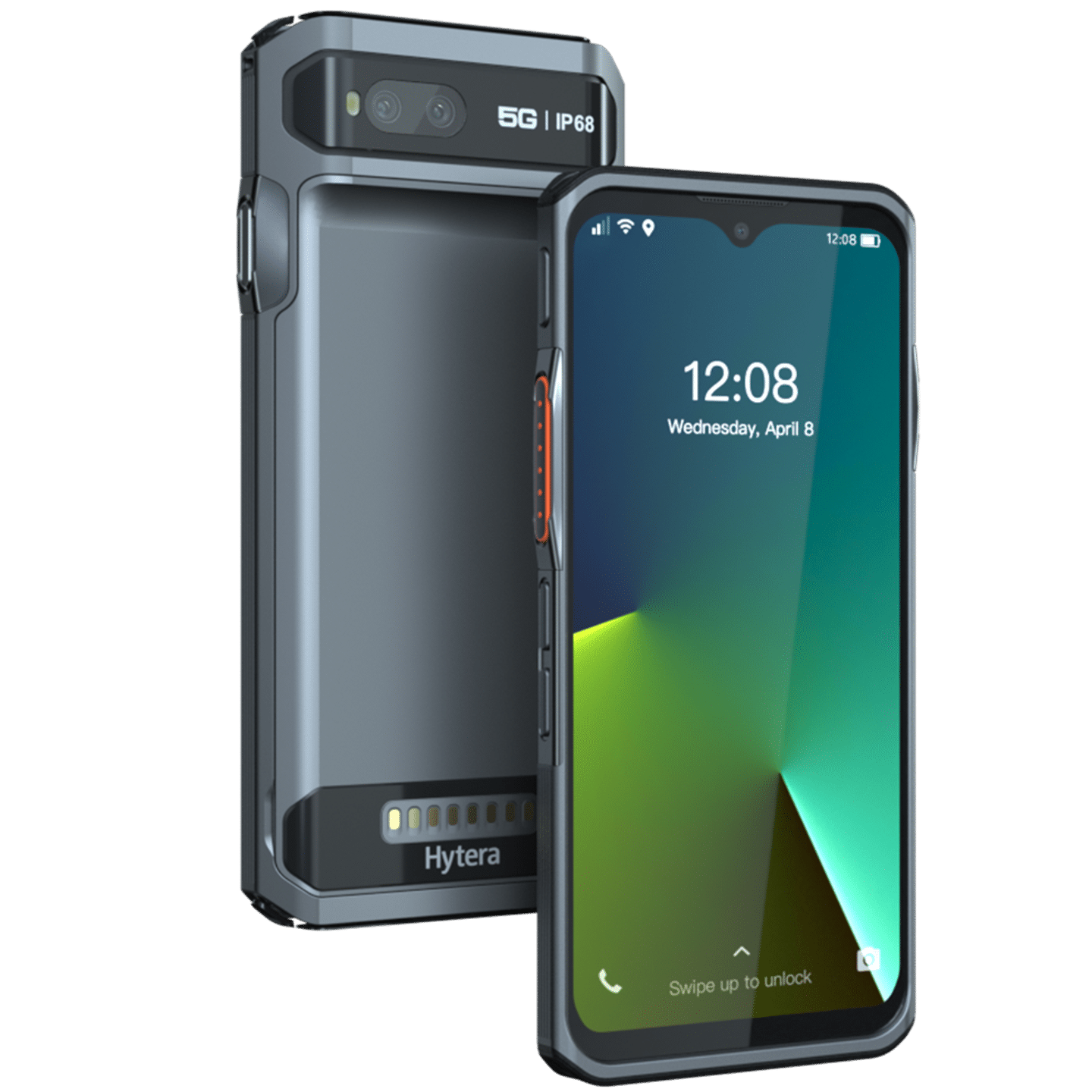

PNC560S PoC Smart Device

Push-to-Talk over Cellular Handheld Smart Device

The Hytera PNC560S is a Push-to-Talk over Cellular (PoC) radio and handheld smart device designed for nationwide business operations and remote workforce communications. The PNC560S combines the advantages of a compact mobile computer with the ruggedness, enhanced audio quality, and nationwide Push-to-Talk group communications of a professional PoC device. The PNC560S provides a cost-effective solution for unified PoC communications.

Nationwide calling with 4G/LTE and 5G cellular networks
Powerful Handheld Smart Device and Push-to-Talk Radio
Industry-leading Audio Quality with AI-Based Digital Noise Suppression
Rugged and Purpose Built for Professional Communications
Runs Android Business Apps

The PNC560S enables Push-to-Talk over Cellular communications using existing 4G/LTE and 5G Mobile Network Operator infrastructure and Wi-Fi networks. The PNC560S is supported on the HORIZON and Hytera HALO Nationwide PoC subscription platforms, and on the HORIZON Dispatch and Hytera HALO Dispatch web-based group communications and fleet tracking applications.

Data Sheet Owner's Manual

Functions

NATIONWIDE COVERAGE

Nationwide mobile 4G/LTE and 5G cellular connectivity, and optional multi-carrier SIM supports three mobile carriers and switches over when a carrier’s signal is no longer present

BUILT-IN WI-FI

Built-in 2.4GHz and 5GHz Wi-Fi supports in-building communications with seamless switching to LTE networks when outside Wi-Fi range.

INDUSTRY-LEADING AUDIO QUALITY

AI-based digital noise cancellation and high-volume speakers for excellent voice quality in loud environments. Minimum call volume can be enabled in the platform for all users to prevent muting audio and missing calls. Group calls can be built on the fly from contacts on the screen interface.

FLEXIBLE GROUP AND INDIVIDUAL CALLING

Enables instant half-duplex group calling (one caller speaks at a time) or full duplex individual calling (both callers speak any time). Supports cross-enterprise group calls to any other company with HORIZON PoC service. Zones can be used to organize multiple call groups through the screen interface.

6.3 INCH TOUCHSCREEN DISPLAY

Large screen enables multiple simultaneous operations, provides clear display in bright sunlight, and supports wet hand and glove touch interaction.

MULTIMEDIA AND TEXT CAPABILITIES

Supports sharing high-resolution images and video with HORIZON Dispatch and other PoC devices. Send, receive, and view text messages between dispatcher and other Hytera PoC devices. Supports recording and sending audio messages.

THREE HIGH-DEFINITION CAMERAS

Three separate high resolution cameras, including a screen-facing, wide-angle camera, and two rear-facing cameras with telephoto and wide-angle lenses.

LONG-LIFE BATTERY

Powerful 5,040mAh Lithium-Ion Polymer battery delivers up to 15 hours of continuous operation and supports quick charging by desktop charger and USB.

DUAL SIM

Dual SIM cards provide flexibility for two network data plans.

RUGGED AND DURABLE

Compliant with MIL-STD-810-G for shock and vibration, and IP68 rated for complete water and dust resistance.

ANDROID 12 OPERATING SYSTEM

Supports the latest Android OS business apps for inventory management, security, and unified communications.

SECURE COMMUNICATIONS

Supports AES128/256, ARC4, SM4, and Quantum encryption algorithms for secure and private communications.

POWERFUL DEVICE ENGINE

QualComm 8-core platform for smooth multi-task operations.

GPS POSITIONING

Enables real-time location tracking with the HORIZON Dispatch application.

Standard Accessories for PNC560S PoC Mobile Computer

Battery

BP4901 Lithium-Polymer Battery

High-Capacity IP68-Rated Lithium-Polymer Battery The Hytera...

5G	N1/N2/N3/N5/N20/N28/N41/N66/N71/N78
LTE-FDD	B1/B2/B3/B4/B5/B7/B8/B12/B13/B17/B20/B26/B28
LTE-TDD	B38/B39/B40/B41/B2/B43/B48
WCDMA	B2/B4/B5/B8
GSM	850/900/1800/1900
Wi-Fi	2.4GHz/5GHz 802.11b/g/n/ac
Bluetooth	BT 5.0
Positioning System	GPS/Galileo/BDS/A-GPS
Audio Formats	MP3, eAAC, G.711, Windows Media Audio 9/10/Pro, AMR-NB, AMR-WB
Image Formats	JPG, GIF, BMP, PNG, WebP
Video Formats	1080p@30fps, MPEG-4, 3GP, P0, H.264, VP9, BP/MP/HP/ASP, DivX 4x/5x/6x

Operating Temperature	-4°F to +140°F (-20°C to +60°C)
Storage Temperature	-22°F to +158°F (-30°C to +70°C)
ESD	IEC 61000-4-2 (Level 4) 8kV Contact, 12kV Air
Dust and Water Ingress	IP68 Standard, Full submersion at 5 feet for 30 minutes
Humidity	Per MIL-STD-810 C/D/E/F/G Standard
Shock and Vibration	Per MIL-STD-810 C/D/E/F/G Standard Drop Proof to 5 Feet
3GPP	MCX Release 15, Standard: 400,000 presses

Environmental	RoHS/REACH
Certication	FCC, CE, IC, GMS

Battery	5,040mAh (Li-Ion Polymer)
Battery Life	Up to 15 hours continuous use
Weight	9.5oz (270g)
Dimensions (H x W x D)	6 9/16” x 3 1/32” x 1/2” (167 x 77 x 13mm)
Operating System	Android 12
Memory	4GB RAM + 32GB ROM
Card Slots	2X Nano SIM, or 1X Nano SIM and 1X MicroSD 128Gb
Display	6.3” Gorilla Glass, FHD+, 2340x1080, Supports Multi-Touch, Wet, and Glove Touch
Camera	8MP Front Facing, 8MP Rear Facing Telephoto, and 48MP (via software algorithm) Wide Angle Rear Facing
Flash / Flashlight	Supported

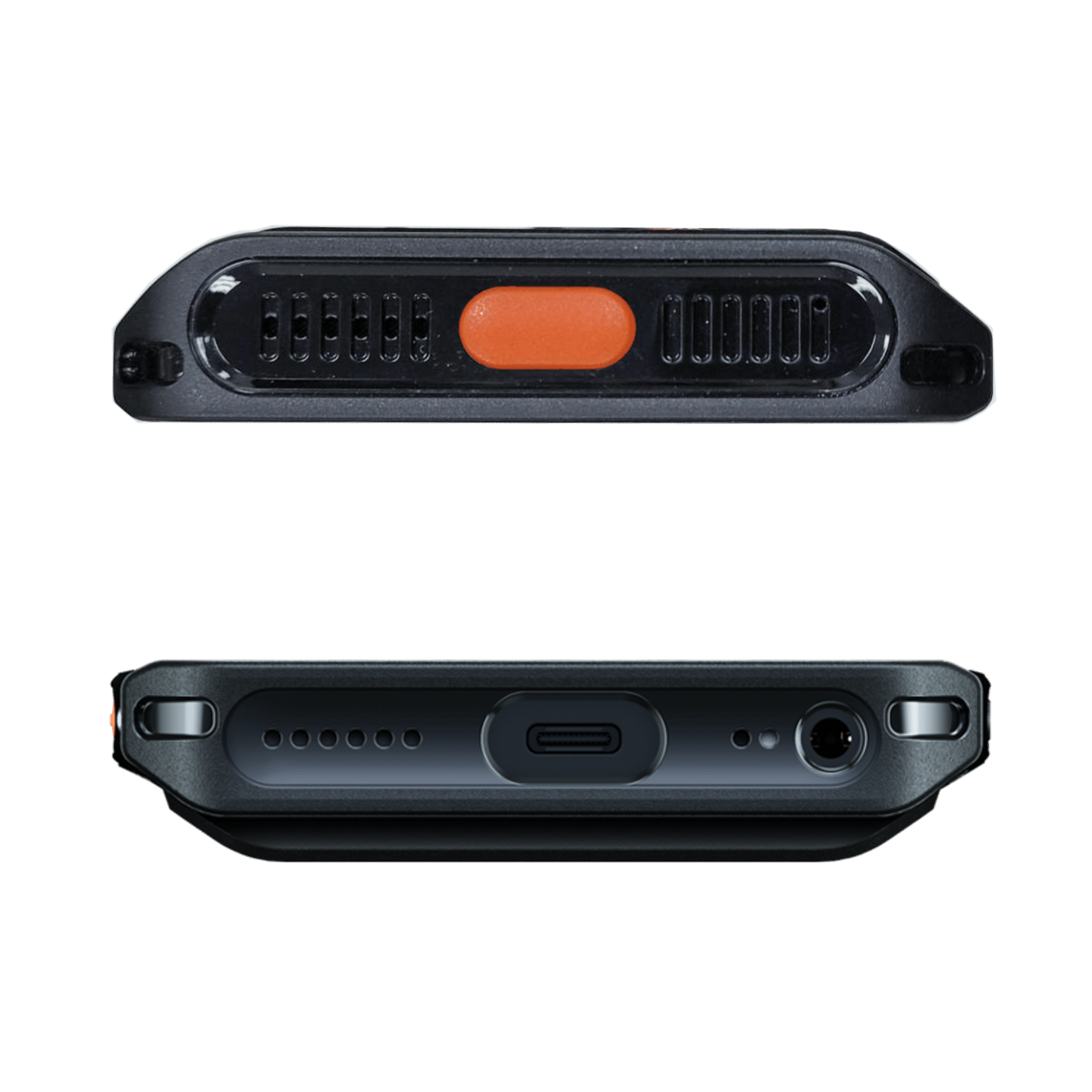

Ports	USB Type C Charger Interface, 3.5mm Audio Interface

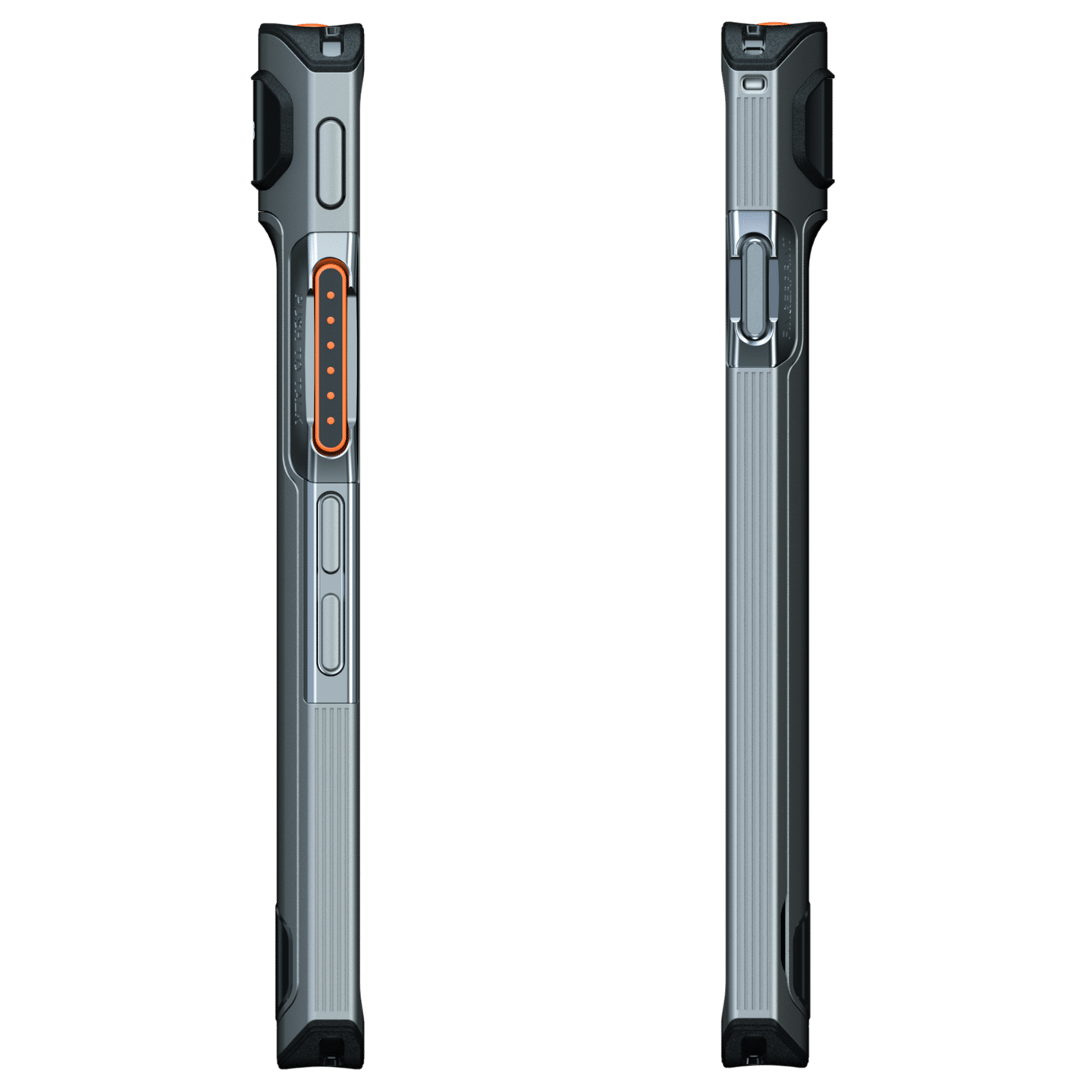

Physical Interface Buttons	1x Push-to-Talk, 2x Volume (+/-), 1x Programmable Button, 1x Emergency Button, 1x Power with Fingerprint Recognition
Sensors	Fingerprint, Acceleration, Gravity, Gyroscope, Geomagnetic, Light

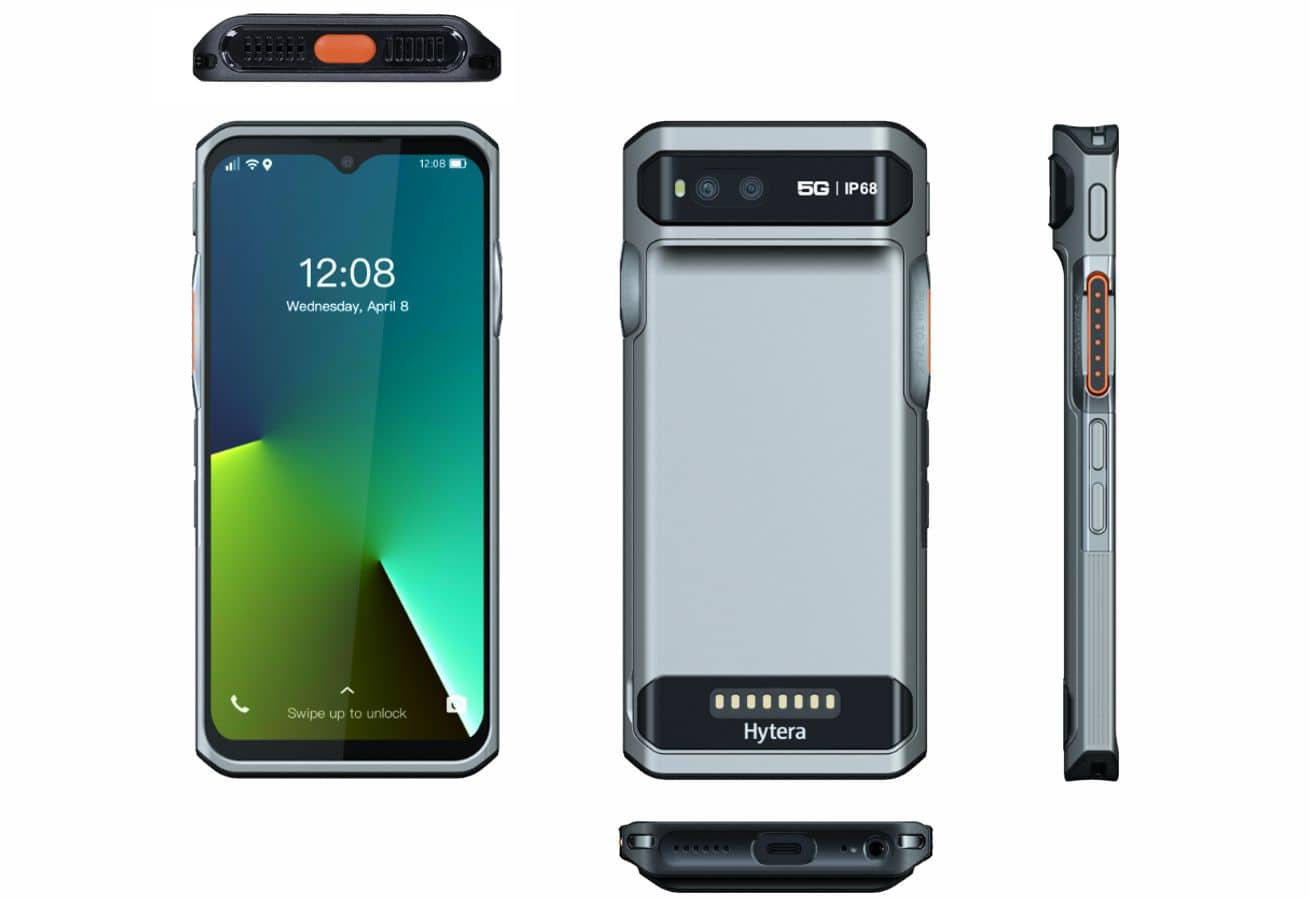

Push-to-Talk over Cellular Handheld Smart Device

TOP SPEAKER (1 of 2)

EMERGENCY BUTTON

MICROPHONE

8 MP FRONT CAMERA

LED INDICATOR

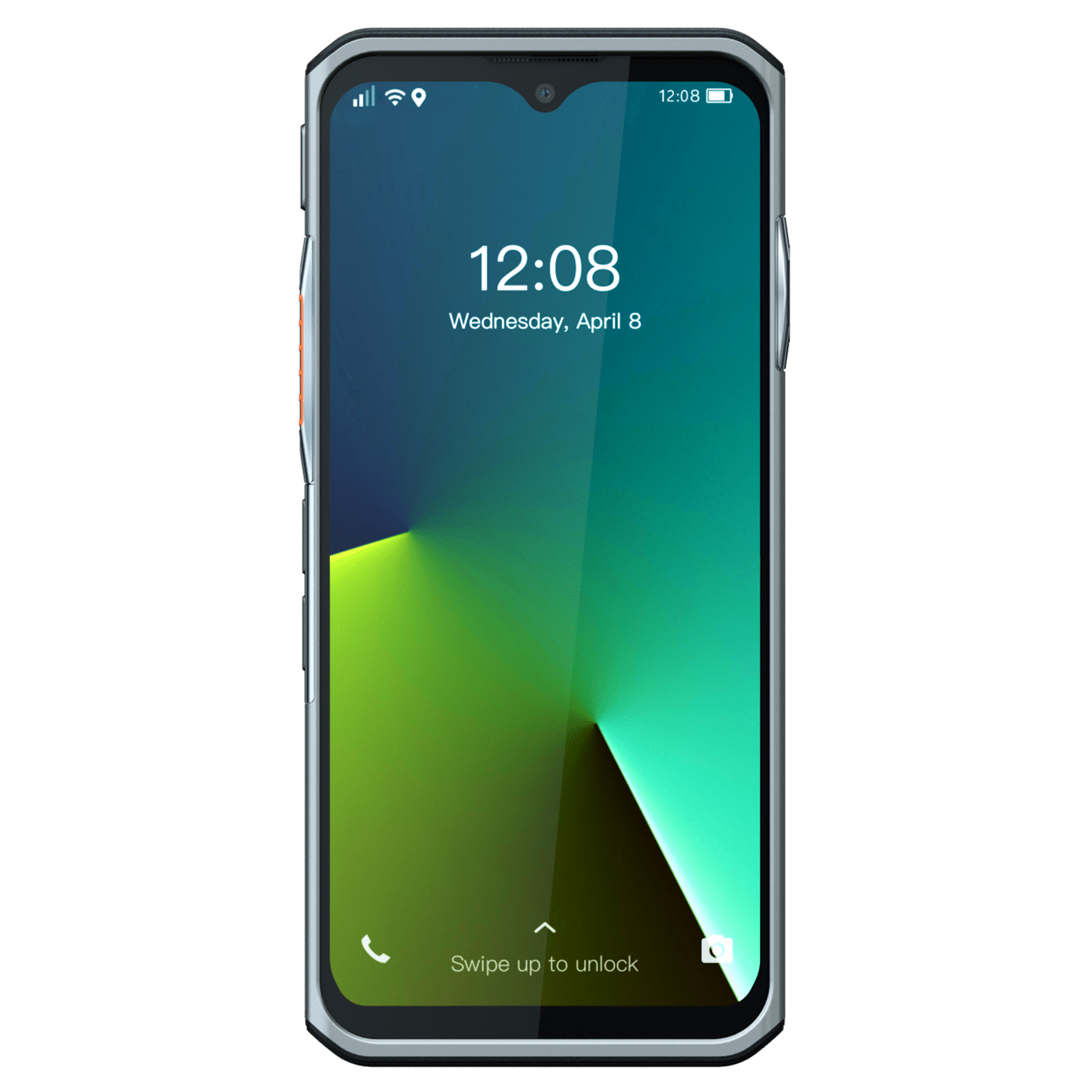

6.3" TOUCHSCREEN

ANDROID OPERATING SYSTEM

NOISE CANCELLING AUDIO

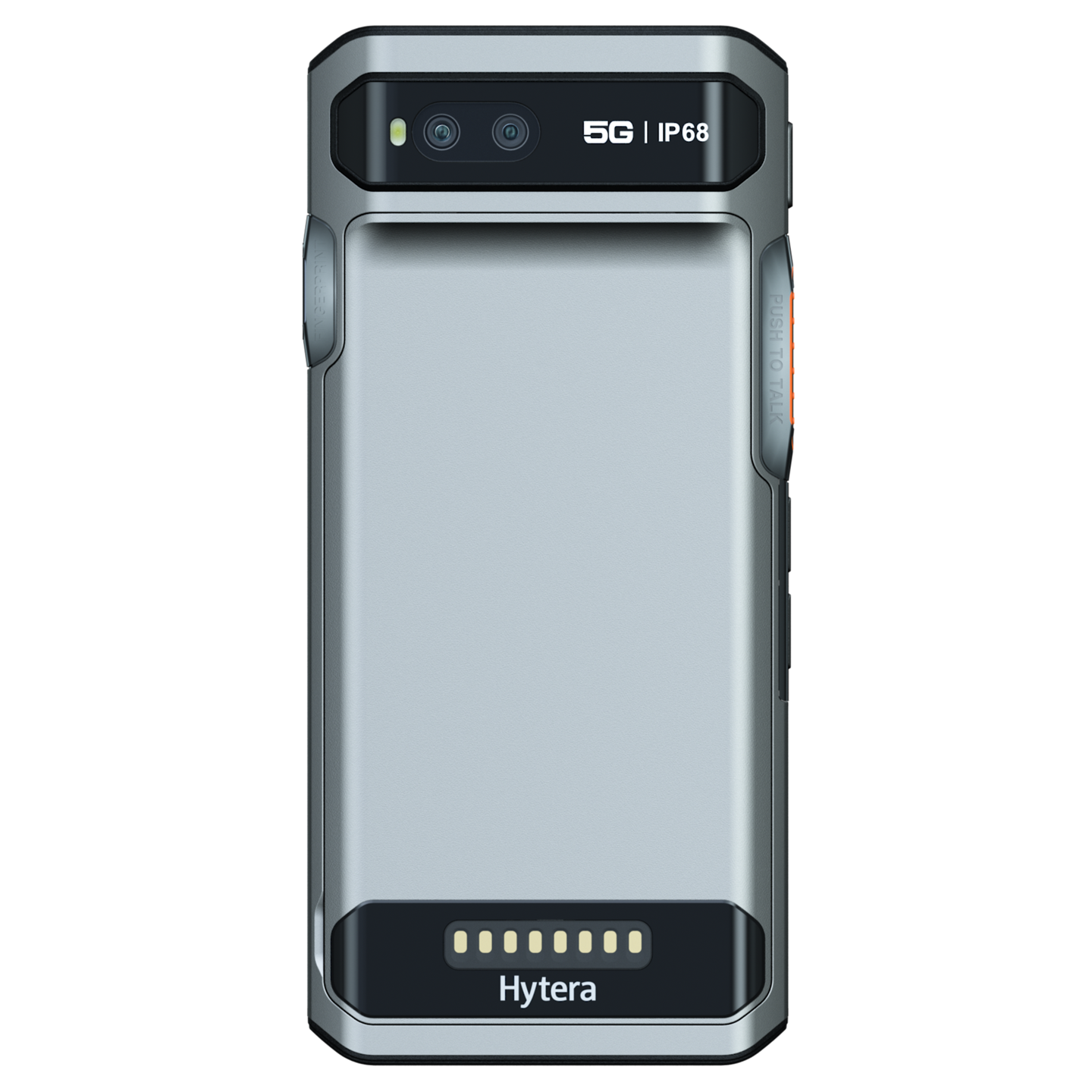

TWO REAR CAMERAS

FLASH/FLASHLIGHT

FINGERPRINT ON/OFF
