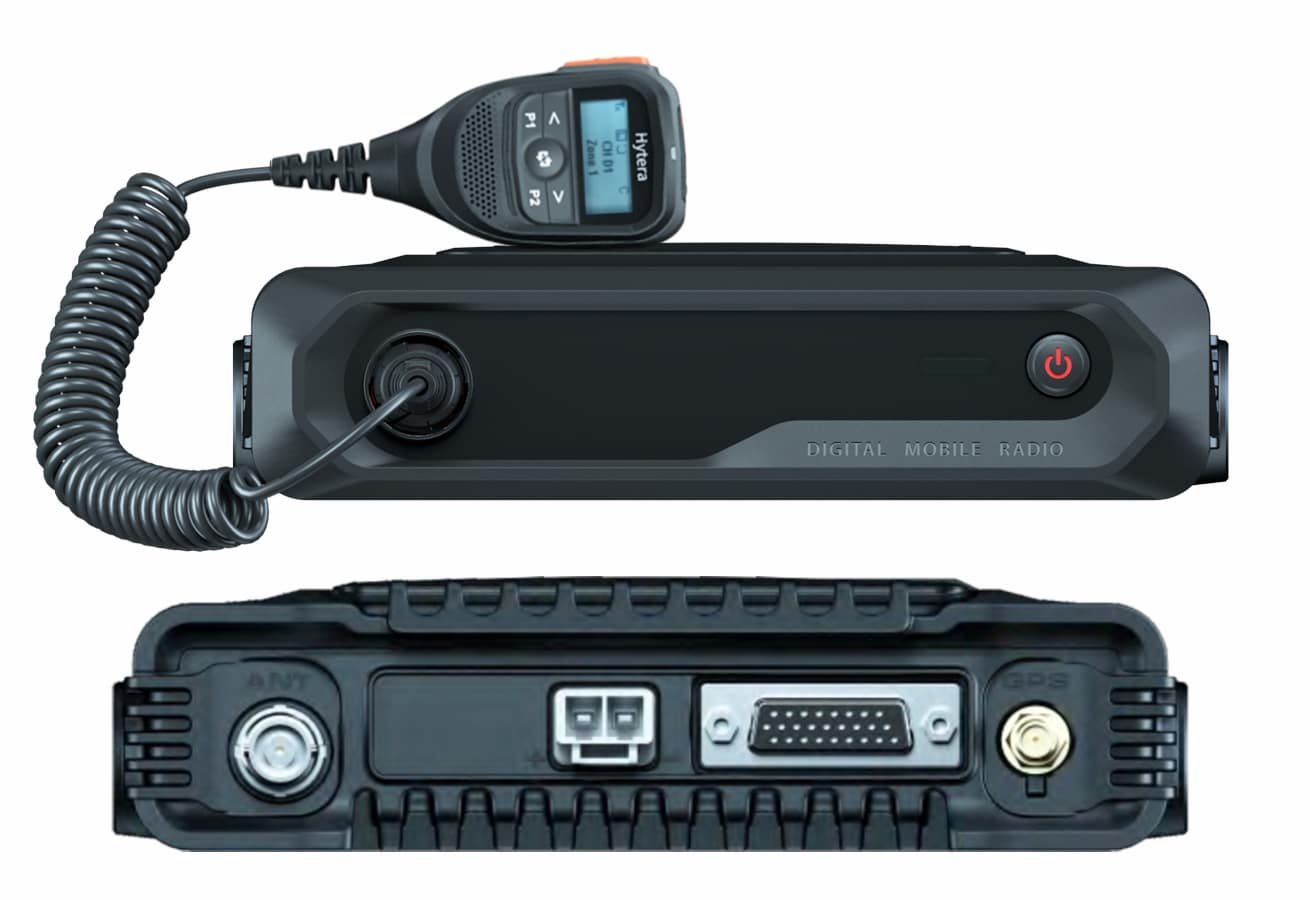

H-Series entry-level DMR mobile radio with optional GPS and Bluetooth
The Hytera HM652 H-Series DMR mobile radios are the next-generation in creative style and functionality that elevates the industry standard in professional two-way radios.
The HM652 is the new state-of-the-art in digital mobile radio communications, providing a more efficient experience with loud and clear audio, intuitive user interface, and extended range.
The Hytera HM652 is a new generation of entry-level professional DMR mobile two-way radios designed to provide reliable voice and data communications for remote workers and fleet operations.
- Compact, lightweight, and easy to install
- Simple operation with the handheld control head
- AI-based noise cancellation for industry-leading audio quality in loud vehicles
- High RX sensitivity ensures reliable communication
The HP652 H-Series mobile radios empower mobile and fleet employees with efficient and reliable communications.
AI-Based Digital Noise Reduction

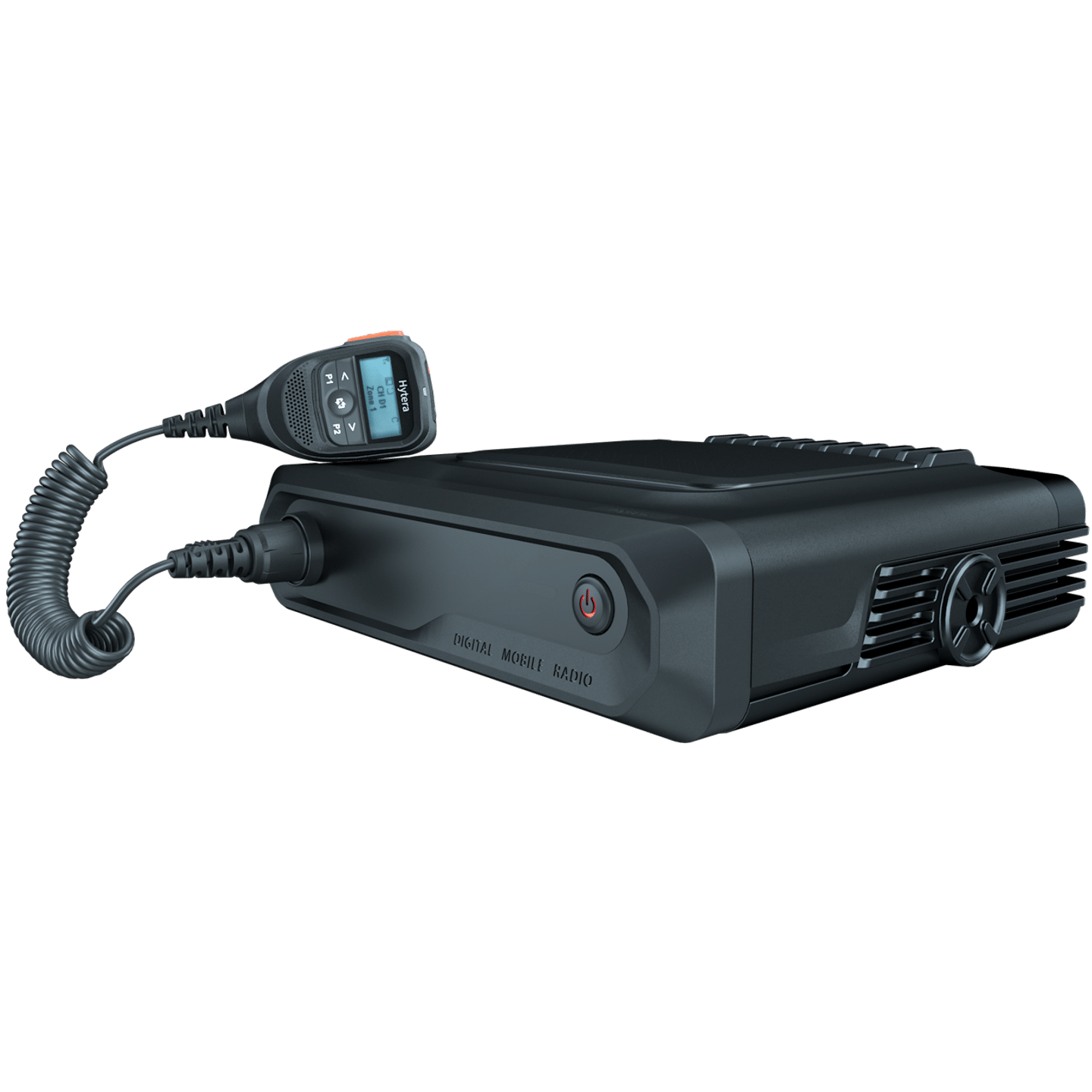

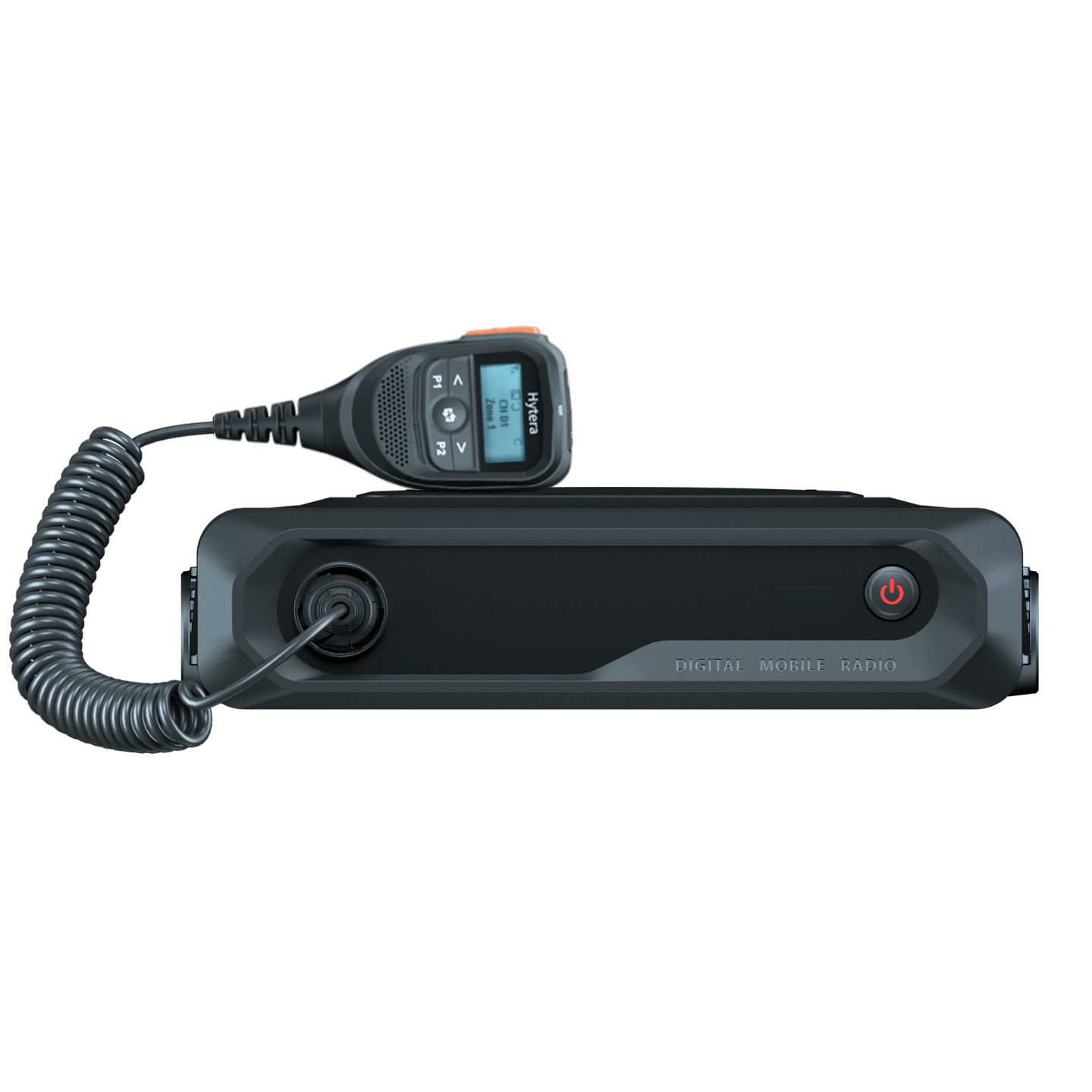

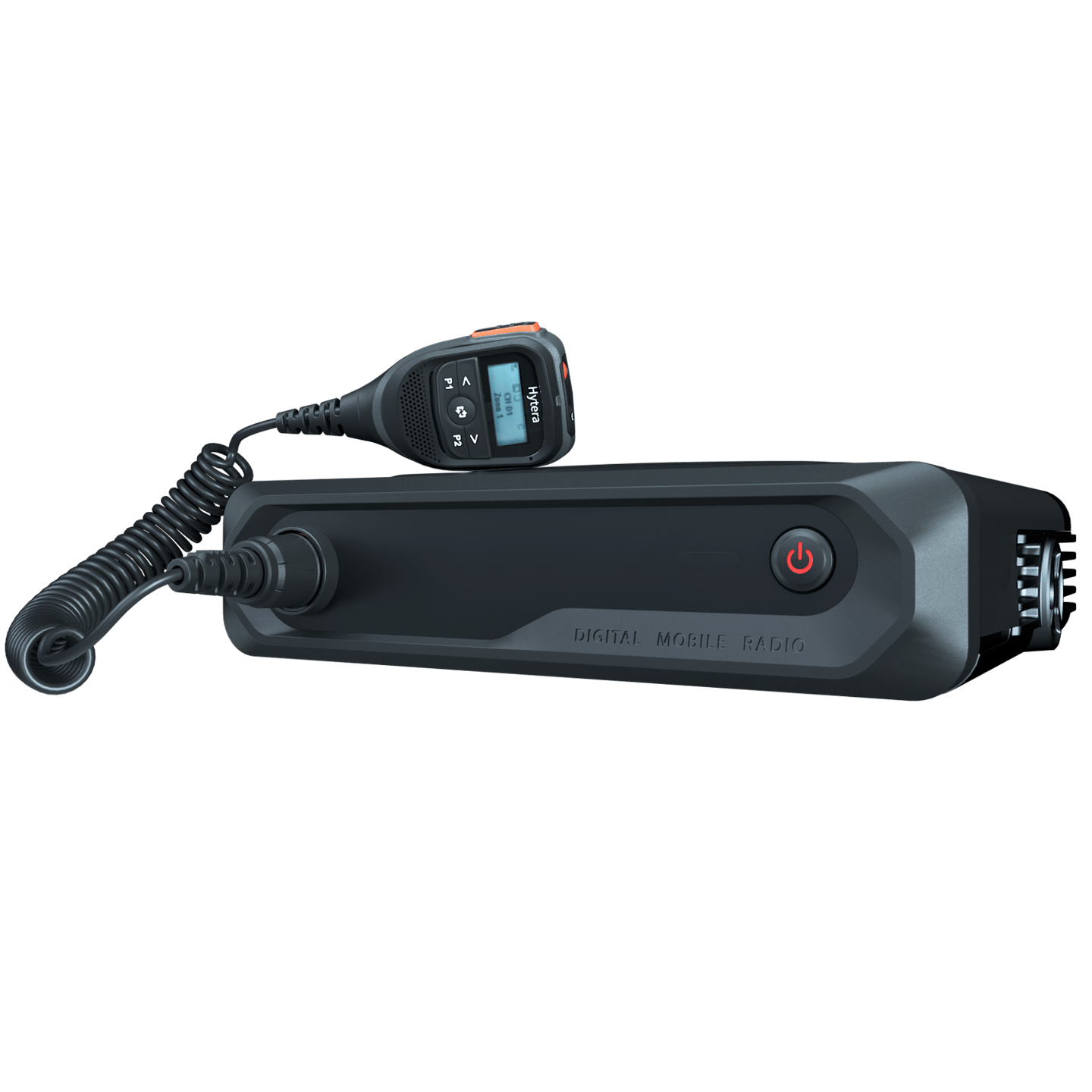

Handheld Control Head with LCD Display
Secure 10-Pin Aviation Connector
Optional Bluetooth 5.0
Power

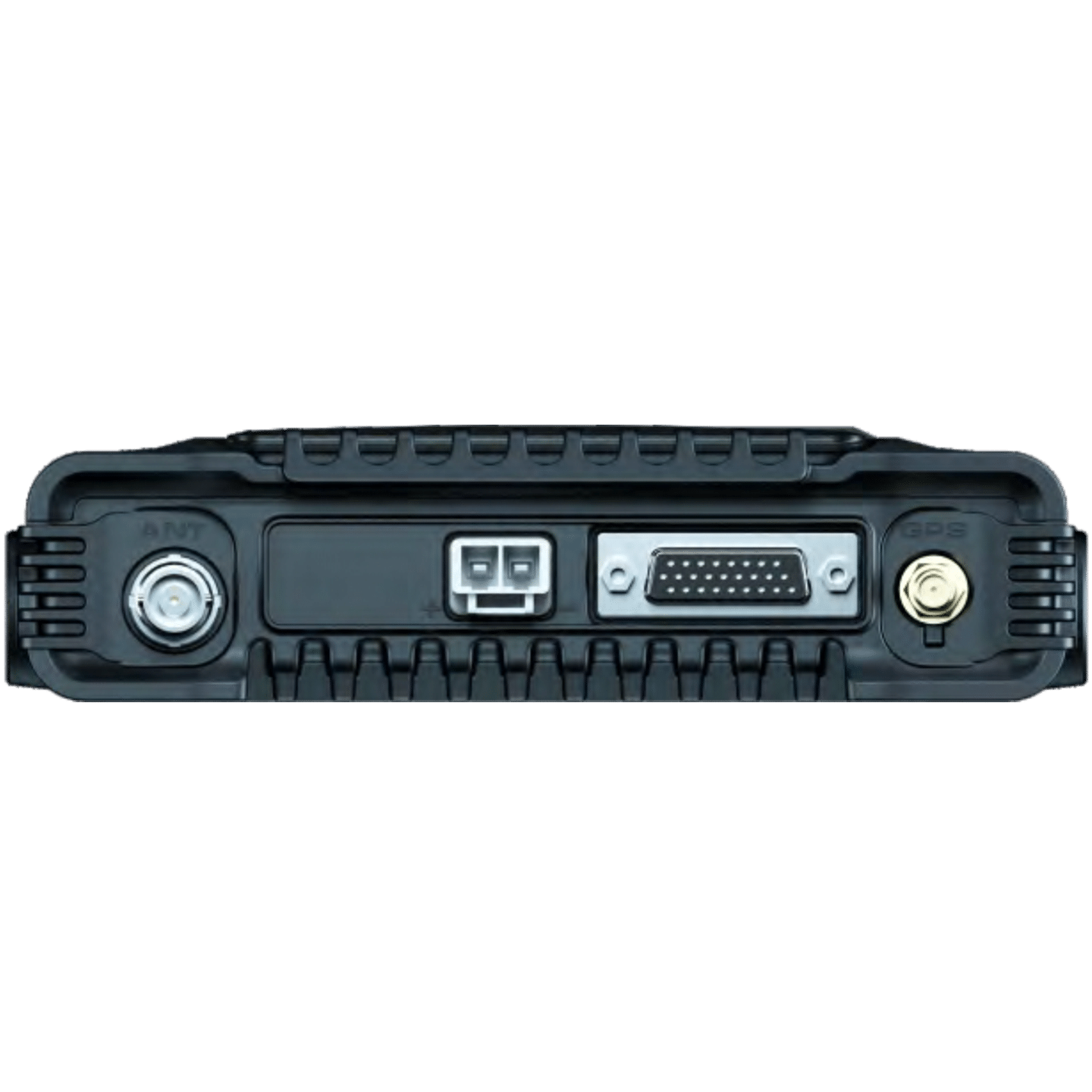

Antenna Port

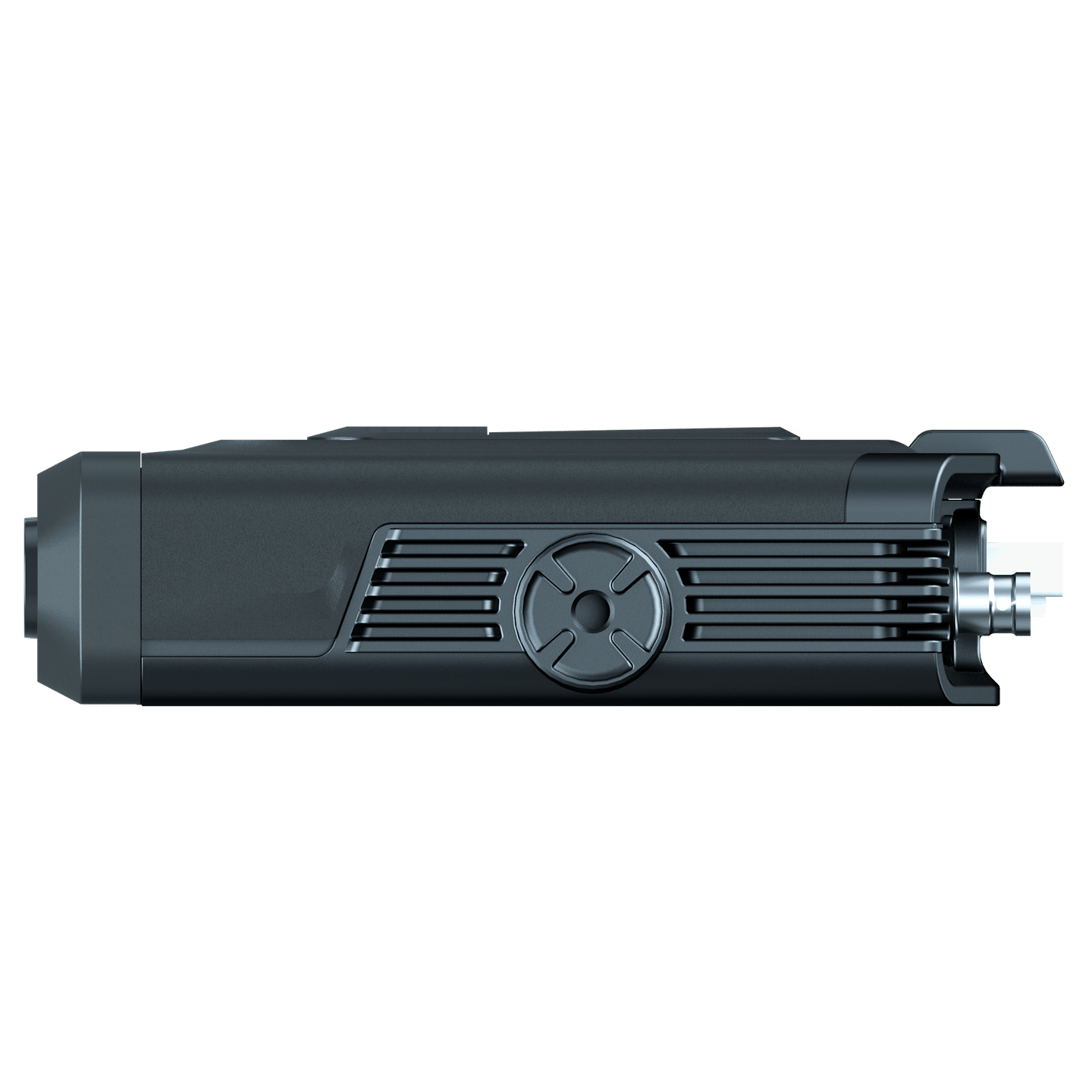

Compact Chassis with Fast-Cooling Aluminum Case
Accessory and Cable Port
Power Connector
IP54 and MIL-STD-810G
Optional GPS Antenna Port
Functions
LOUDER AND CLEARER AUDIO
Industry-leading audio quality through AI-based voice enhancement with deep learning ability that can accurately extract voice from background noise in real time. The howling suppression prevents feedback between two radios in the same vehicle, ensuring clear and uninterrupted communication on the move.
IMPROVED WORKER SAFETY
The HM652 is designed for worker safety with an easy access emergency call button. Lone Worker prompts the user to press a key at preset intervals to indicate they are safe. Optional Priority Interrupt (with license) allows a dispatcher to interrupt existing calls with important emergency information, and a dispatcher can remotely enable and disable radios.
ANALOG OR DIGITAL MODE
The HM6 series can operate in either analog or digital mode, which is the ideal solution for you to migrate from analog to digital with minimal disruption and investment.
DURABLE AND RUGGED
IP54 compliant for water and dust ingress, and MIL-STD- 810 G for shock and humidity. The 10pin aviation connector for the Handheld Control Head is tight and secure, and coil cable has excellent stretching ability for long service life.
ENHANCED GPS LOCATION TRACKING
HM652 models that support GPS report current location information to other radios, the dispatcher, or third-party applications in real time, enhancing the efficiency of visualized dispatch applications. GPS data is transmitted during voice calls for immediate location targeting, and GPS data is compressed to increase channel capacity and reduce hardware cost.
GREATER RANGE
With high RX sensitivity, the HM652 delivers clear and dependable communication even in areas where the signal is unstable or weak.
HIGHER SECURITY
Supports Digital End-to-End Encryption for voice and data. Optional advanced AES 2456 bit encryption is also available (optional with a license).
HANDHELD CONTROL HEAD
The Handheld Control Head provides easy operation with a convenient location to control power, switch channels or contacts, adjust volume, or view messages.
BUILT-IN BLUETOOTH
HM652 models that feature Bluetooth support audio handset accessories to improve safety and productivity during in-vehicle communications
MULTI-SYSTEM FLEXIBILITY
The HM652 mobile radios can be deployed in Analog and Digital Conventional, DMR Tier II, and optional Hytera XPT Trunking (multi-site with license), and Roaming between repeater sites.
GREATER CALLING FLEXIBILITY
Supports Individual Calls (radio to radio, radio to dispatcher), Group Calls (one radio to many, dispatcher to many), and All Call (broadcast call to all radios, transmit only).
CLARITY TRANSMISSION
The Clarity Transmission feature provides a wireless data path between remote network devices and a central network management station. HM6 mobile radios function as compact gateway devices and provide wireless channels that transparently transmit data without any modication, and can be deployed in a variety of monitoring and industrial control processes.
BACK-TO-BACK
The HM652 can be deployed Back-to-Back to enable communication between analog and digital radios, or radios with different frequencies. Two HM652 radios can be deployed Back-to-Back, or one radio and a repeater can be used.
Standard Accessories for HM652 DMR Mobile Radios
Audio
SM25A1
Remote Speaker Microphone with LCD Display (for use with MD652i/MD652iG mobile radios only)
Ergonomically designed and IP54 compliant remote speaker microphone with LCD display for radio status monitoring.
Charger
PWC10
DC Power Cable (10ft)
10ft (3M) DC power cable for mobile radios
Installation
BRK44
Mounting Bracket
Mounting Bracket for HM6
Optional Accessories for HM652 DMR Mobile Radios
Audio
SM09D1
External Speaker (15W) with DB26 pin audio port
External speaker with clear voice output and adjustable bracket, to be used with mobile radios (15W). This is mountable on a horizontal or vertical surface and has an adjustable bracket.The large speaker with high output power provides clear audio even under noisy environments. DB26 pin audio port.
SM09D2
External Speaker
External speaker with clear voice output and 16.4 ft (5m) cable
SM25A1
Remote Speaker Microphone with LCD Display (for use with MD652i/MD652iG mobile radios only)
Ergonomically designed and IP54 compliant remote speaker microphone with LCD display for radio status monitoring.
SM27W1
Wireless Speaker Microphone
Bluetooth speaker microphone with LCD display offers flexibility and convenience when using mobile radios. Extends the talking distance of mobile radios by nearly 100 feet. Order with ADA-01 Adapter.
Antenna
GPS04
Vehicle GPS Antenna
Vehicle GPS Antenna (SMA,1575MHZ)
Charger
PWC10
DC Power Cable (10ft)
10ft (3M) DC power cable for mobile radios
PS22002
External Power Supply (300W)
300W external power supply for mobile radios and repeaters
PV8002
Power Supply
Power Supply (24VDC to 12VDC)
SEC1223
External Power Supply for Desktop Operation
Power Supply Input 120VAC, Output 13.8VDC, 23 Amps
Installation
BRK44
Mounting Bracket
Mounting Bracket for HM6
BRK12
Installation Kit for Power Pack (Black)
Installation of up to two external power packs (PS22002) in a 19″ equipment rack
BRK14
Installation Kit for Power Pack (Grey)
Installation of up to two external power packs (PS22002) in a 19″ equipment rack
Programming
PC37
Programming Cable
Programming cable for mobile radios and repeater
PC47
Programming cable (USB) with toggle switch
Programming cable with toggle switch to use with mobile radios and repeaters
PC49
Back-to-Back Data Cable
Back-to-Back data cable for mobiles and repeaters
PC60
Ignition Cable
Ignition cable connected to the rear of mobile radio, enabling the radio to switch on and off automatically in vehicles (ignition sense)
PC80
USB to Micro USB
USB to Micro USB
DMR Extended Warranty
DMR Extended Warranty
DMR Extended Warranty
Extended warranty adds 2 years to the standard 3 year Hytera DMR product warranty for a total of 5 years of warranty protection.
Systems that work with HM652 DMR Mobile Radios
Systems
XPT Extended Pseudo Trunk
Single-site and Multi-site Extended Pseudo Trunking (XPT)
DMR IP Site Connect
Connect Repeater Sites with IP Networks
SmartOne DMR Dispatch
Unified Communications and Dispatching
Hytera Bridge
PoC to DMR/Analog Radio Gateway
DMR Tier II Conventional
Hytera DMR Tier II Conventional Repeater Systems increase coverage, expand capacity, and improve signal quality
Technical Specifications
Frequency Range | UHF 400-470MHz |
Channel Capacity | 512 Channels (Analog or Digital) |
Zone Capacity | 32 Zones with up to 32 Channels per Zone |
Channel Spacing | 12.5kHz / 20kHz / 25kHz |
Operational Voltage | 13.6V ±15% |
Current Drain | Standby: <0.5A Receive: <2.0A Transmit: 5W <4A, 45W UHF |
Weight | 2lb, 6.8oz (1100g) |
Dimensions (HxWxD) | 2 21/32” x 6 15/32” x 7 1/16” (42x164x154mm) |
Frequency Stability | ± 0.5ppm |
Antenna Impedance | 50Ω |
Display | Monochrome LCD on SM25A1 Handheld |
Bluetooth | BT 5.0 BLE+EDR |
Digital Sensitivity | 0.18μV (BER5 5%) |
Analog Sensitivity | 0.16μV (Typical) (12dB SINAD) 0.18μV (12dB SINAD) |
Adjacent Selectivity | TIA-603: [email protected], 70dB@20/25kHz ETSI: [email protected], 70dB@20/25kHz |
Spurious Response Rejection | TIA-603: [email protected]/20/25kHz ETSI: [email protected]/20/25kHz |
Intermodulation | TIA-603: [email protected]/20/25kHz ETSI: [email protected]/20/25kHz |
Blocking | TIA-603: 00dB ETSI: 84dB |
Hum and Noise | [email protected], 43dB@20kHz, 45dB@25kHz |
Rated Audio Power Output | Internal (20 Ohm load) 3W, 8W Max External (8 Ohm load) 8W, 20W Max |
Rated Audio Distortion | ≤3% |
Audio Response | +1 to -3dB |
Conducted Spurious Emission | <-57dBm |
RF Power Output | UHF High Power 5-45W |
FM Modulation | 11K0F3E @ 12.5kHz 14K0F3E @ 20kHh 16K0F3E @ 25kHz |
4FSK Digital Modulation | 12.5kHz Data Only: 7K60FXD 12.5kHz Data and Voice: 7K60FXW |
Conducted/Radiated Emission | -36dBm 1GHz |
Modulation Limiting | ±2.5kHz @ 12.5kHz ±4.0kHz @ 20kHz ±5.0kHz @ 25kHz |
FM Hum and Noise | 40dB @ 12.5kHz, 43dB @ 20kHz, 45dB @ 20/25kHz |
Adjacent Channel Power | 60dB @ 12.5kHz, 70dB @ 20/25kHz |
Audio Response | +1 to -3dB |
Audio Distortion | ≤3% |
Digital Vocoder Type | AMBE+2TM |
Operating Temperature | -22°F to +140°F (-30°C to +60°C) |
Storage Temperature | -40°F to +185°F (-40°C to +85°C) |
ESD | IEC 61000-4-2 (Level 4) ±8kV Contact, ±15kV Air |
Dust and Water Ingress | IP54 Standard |
Humidity | Per MIL-STD-810H US Military Standard |
Shock and Vibration | Per MIL-STD-810H US Military Standard |
Time to First Fix Cold Start | <60 Seconds (Typical TTFF) |
Time to First Fix Hot Start | <10 Seconds (Typical TTFF) |
Horizontal Accuracy | <5 meters |
HM652-U1 | UHF 400-470MHz, 5-45W |
HM652-G-BT-U1 | UHF 400-470MHz, 5-45W with GPS and Bluetooth |
