Rugged and Cost-Effective UHF and VHF DMR Two-Way Radios

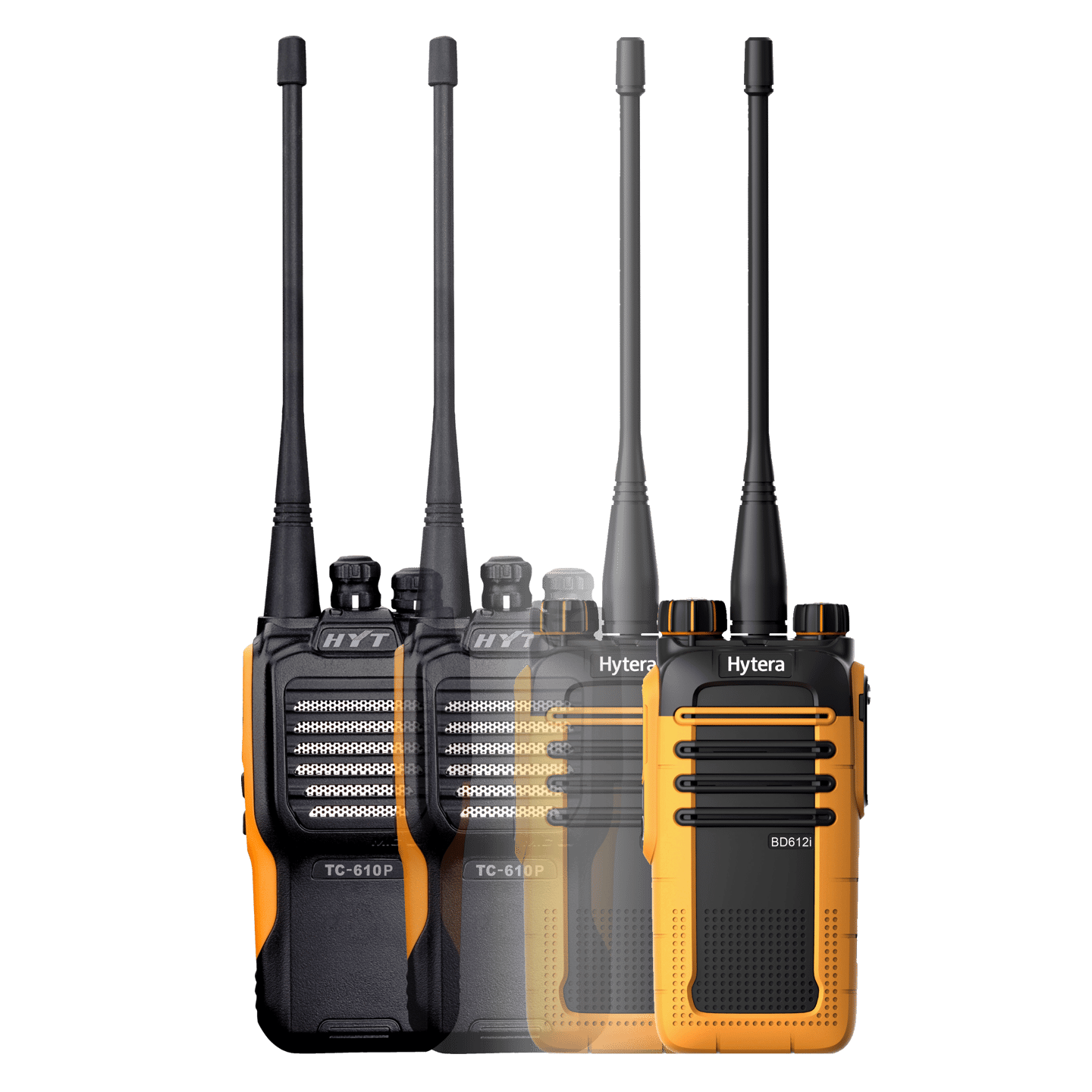

The BD612i digital radios are the next generation of the TC6 analog radios, and improves on the legendary Hytera ruggedness, performance, and value.
- Built rugged for the most demanding environments
- Digital audio quality for clear calls on noisy job sites
- Powerful battery for reliable operation over long shifts
- Extended range to improve efficiency and reduce infrastructure costs
Improved Digital Performance
The BD612i radios feature digital noise cancellation for improved audio quality, and long battery life for up to 16 hours of operation. Digital encoding and high output power provides excellent reception and extended range.
Light and Compact
Weighing less than 9 ounces, the light and compact design makes the BD612i easy to carry and operate.
Rugged and Reliable
The BD612i is built to the MIL STD-810-G standard for shock and temperature endurance, and complies with the IP66 standard for water and dust resistance.
CHANNEL SELECTOR
TRANSMIT & RECEIVE LED
POWER & VOLUME
PUSH-TO-TALK BUTTON
AUDIO ACCESSORY JACK
PROGRAMMABLE BUTTON
SPEAKER & DIGITAL MIC
IP66 AND MIL-STD180G
LONG-LIFE BATTERY
Functions
ERGONOMIC AND EASY TO USE
Tactile buttons for no-look PTT and emergency calling, and simple operation with channel and power/volume knobs. LED Indicator shows transmit and receive status in green and red lights.
ANALOG OR DIGITAL OPERATION
The BD612i operates in analog or digital mode, and allows switching between the two modes for communication with analog radios. This enables simple and cost-effective migration path to digital systems.
HIGH QUALITY AUDIO
Audio equalizer adjusts low, mid, and high frequency gain provides the best audio performance in noisy job sites or quiet offices.
LONG-LIFE BATTERY
Powerful 1500mAh Lithium Ion battery delivers up to 16 hours of operation, and an optional 2000mAh Lithium Ion battery delivers up to 22 hours of operation.
RELIABLE AND DURABLE
Compliant with MIL-STD-810-G for impacts and vibration, and IP66 rated for water and dust resistance
SCANNING
Allows listening to communications on other channels
DMR
DMR signaling enables group call, private call, and all call transmitting with PTT ID. Supports DMR Tier II repeaters to extend coverage.
ANTI-INTERFERENCE
Digital encoding and error correcting reduces signal interference on the same frequency.
EMERGENCY CALLING
One-touch Emergency Alarms can be sent to other radios with the programmable button to improve worker safety and emergency response time.
Standard Accessories for BD612i DMR Two-Way Radio
Antenna
AN0435W09
UHF Antenna (400-470MHz)
UHF Whip Antenna, SMA connector, 400-470MHz, 16cm
Battery
BL1506
1500mAh Li-Ion Battery
1500mAh Li-Ion Battery
Carrying
RO03
Wrist Strap
Nylon wrist strap
BC08
Belt Clip
Plastic belt clip with a spring and metal bracket
Charger
PS1014
Standard Switching Power Adapter
Standard Switching Power Adapter 100-240VAC 12VDC/1A Hytera (RoHS) (for CH10A07 single charger)
CH10L23
Drop-In Single Unit Charger
General MCU Rapid-rate Charger
Optional Accessories for BD612i DMR Two-Way Radio
Audio
SM08M3
Remote Speaker Microphone With 3.5mm Audio Jack and Swivel Clip
Compact designed remote speaker microphone with 3.5mm audio jack (for use with receive-only earpiece) and 360 degree swivel metal clip.
SM26M1
Remote Speaker Microphone (without emergency button)
Small, light and IP54 compliant remote speaker microphone with 2.5mm external audio connector.
ESM12
Earbud with In-line PTT and Microphone (Black)
Earbud (without earpiece) with VOX capability and in-line PTT microphone ensures convenient and reliable communications (Black)
EHM15-A
D-Style Earpiece with In-line PTT and Microphone (Black)
D-style earpiece with in-line PTT and microphone ideal for covert communications (Black)
ACM-01
PTT & MIC Water Proof Cable (for use with receive-only Earpiece)
IP54 compliant base set with PTT button and microphone can be used with a range of Hytera earbuds. The 3.5mm jack enables the replaced earbud to be connected directly to the ACM-01.
ES-01
Earbud without Earpiece (Receive-Only)
Reliable and ergonomically designed earbud to be used with various base sets. 3.5mm jack plug.
EA-01
Earbud with Transparent Acoustic Tube (Receive-Only)
Reliable and ergonomically designed earpiece with transparent acoustic tube to be used with various base sets. 3.5mm jack plug.
EH-01
C-Style Earpiece (Receive-Only)
Ergonomically designed C-style earpiece (Receive only). 3.5mm jack plug.
EH-02
Swivel Style Earpiece (Receive-Only)
Ergonomically designed swivel earpiece (Receive only). 3.5mm jack plug.
EHS17
Swivel Style Earpiece (Receive Only)
Ergonomically designed swivel earpiece (Receive only). 2.5mm jack plug.
EHS18
C-Style Earpiece (Receive Only)
Ergonomically designed C-style earpiece (Receive only). 2.5mm jack plug.
EAS03
Receive-Only Transparent Acoustic Tube Earpiece
Receive-Only Transparent Acoustic Tube Earpiece
ESW01
Bluetooth Earpiece with charger(requires PS1030 power adapter)
Bluetooth Earpiece with charger(requires PS1030 power adapter)
POA107
Charging adapter for wireless earpiece (ESW01)
The POA107 compact charger allows charging of the wireless headset ESW01 using a micro USB cable, this is an alternative charging solution for the ADN-01 or ADN-02.
POA121
Bluetooth Ring PTT
The wireless PTT ring is designed for finger wearing and allows you to trigger PTT functions without holding a portable radio in your hands.
Antenna
AN0435H13
UHF Antenna (400-470MHz)
UHF Stubby Antenna, SMA connector, 400-470MHz, 9cm, with Hytera logo
AN0435W09
UHF Antenna (400-470MHz)
UHF Whip Antenna, SMA connector, 400-470MHz, 16cm
AN0460W19
UHF Antenna (440-470MHz)
UHF Long and fine antenna SMA connector 440-470MHz
AN0141H07
VHF/GPS Antenna (136-147MHz/1575MHz)
VHF Stubby Antenna, SMA connector,136-147MHz, GPS 1575MHz, 12cm, with Hytera logo
AN0153H08
VHF/GPS Antenna (147-160MHz/1575MHz)
VHF Stubby Antenna, SMA connector,147-160MHz, GPS 1575MHz, 12cm, with Hytera logo
AN0167H07
VHF/GPS Antenna (160-174MHz/1575MHz)
VHF Stubby Antenna, SMA connector,160-174MHz, GPS 1575MHz, 12cm, with Hytera logo
AN0160H13
VHF Antenna (146-174MHz)
VHF Antenna, SMA connector, 146-174MHz, 15cm, no logo
AN0141H06
VHF Antenna (136-147MHz)
VHF Antenna, SMA connector, 136-147MHz, 17cm, with Hytera logo
AN0153H07
VHF Antenna (147-160MHz)
VHF Stout Long Antenna, SMA connector, 147-160MHz, 17cm, with Hytera logo
AN0167H06
VHF Antenna (160-174MHz)
VHF Stout Long Antenna, SMA connector, 160-174MHz, 17cm, with Hytera logo
AN0155H08
VHF/GPS Antenna (136-174MHz/1575MHz)
VHF Stout Long Antenna, SMA connector, 136-174MHz, GPS 1575MHz, 20cm, with Hytera logo
Battery
BL1506
1500mAh Li-Ion Battery
1500mAh Li-Ion Battery
BL2018
2000mAh Li-ion battery
2000mAh Li-ion battery BD5i
Carrying
BC08
Belt Clip
Plastic belt clip with a spring and metal bracket
RO03
Wrist Strap
Nylon wrist strap
NCN011
Nylon Carrying Case
Nylon carrying case with half-open design and back-lock belt loop for easy installation
Charger
CH10L23
Drop-In Single Unit Charger
General MCU Rapid-rate Charger
CHV09
Vehicle Power Adapter
In the vehicle charging solution convenient for portable radio batteries.
MCL19
Multi-unit Charger
Multi-unit Charger for Li-ion Battery with power supply (12V/7A)
PS1014
Standard Switching Power Adapter
Standard Switching Power Adapter 100-240VAC 12VDC/1A Hytera (RoHS) (for CH10A07 single charger)
PS1030
Power Adapter (Micro USB)
Power adapter (Micro USB) for PD3 series enables hassle free charging via PC or laptop
Programming
PC76
Data programming cable
Data Programming Cable (USB Port)
DMR Extended Warranty
DMR Extended Warranty
DMR Extended Warranty
Extended warranty adds 2 years to the standard 3 year Hytera DMR product warranty for a total of 5 years of warranty protection.
Systems that work with BD612i DMR Two-Way Radio
Systems
SmartOne DMR Dispatch
Unified Communications and Dispatching
HALO Bridge
PoC to DMR/Analog Radio Gateway
DMR Tier II Conventional
Hytera DMR Tier II Conventional Repeater Systems increase coverage, expand capacity, and improve signal quality
Technical Specifications
| Frequency Range | UHF: 400-470 MHz, VHF: 136-174 MHz |
| Channel Capacity | 48 Channels (24 Analog, 24 Digital) |
| Zone Capacity | 3 Zones with 16 Channels per Zone |
| Channel Spacing | 25/12.5kHz |
| Operational Voltage | 7.2V |
| Li-Ion Battery | 1500mAh Standard, 2000mAh Optional |
| Battery Life (5/5/90) | 1500mAh: 16 hours Digital, 12 hours Analog, 2000mAh: 22 hours Digital, 16 hours Analog |
| Weight | 8.5 ounces (240g) |
| Dimensions | 4 1/4” x 2 1/8” x 1 5/32” (108 x 54 x 29mm) |
| Frequency Stability | ± 0.5ppm |
| Antenna Impedance | 50Ω |
| Digital Sensitivity | 0.22μV (BER 5%) |
| Analog Sensitivity | 0.22μV (Typical) (12dB SINAD) 0.4μV (20dB SINAD) |
| Adjacent Selectivity | TIA-603: 65dB @ 12.5kHz, 70dB @ 25kHz |
| Spurious Response Rejection | TIA-603: 70dB @ 12.5/25kHz |
| Intermodulation | TIA-603: 65dB @ 12.5/25kHz |
| Hum and Noise | 40dB @ 12.5kHz, 45dB @ 25kHz |
| Rated Audio Power Output | 0.5W |
| Rated Audio Distortion | ≤5% |
| Audio Response | +1 to -3dB |
| Conducted Spurious Emission | <-57dBm |
| RF Power Output | VHF High Power: 5W VHF Low Power: 1W UHF High Power: 4W UHF Low Power: 1W |
| FM Modulation | 11K0F3E @ 12.5kHz 16K0F3E @ 25kHz |
| 4FSK Digital Modulation | 12.5kHz Data Only: 7K60FXD 12.5kHz Data and Voice: 7K60FXW |
| Conducted/Radiated Emission | -36dBm <1GHz / -30dBm >1GHz |
| Modulation Limiting | ±2.5kHz @ 12.5kHz ±5.0kHz @ 25kHz |
| FM Hum and Noise | 40dB @ 12.5kHz, 45dB @ 25kHz |
| Adjacent Channel Power | 60dB @ 12.5kHz, 70dB @ 25kHz |
| Audio Response | +1 to -3dB |
| Audio Distortion | ≤3% |
| Digital Vocoder Type | AMBE++ |
| Digital Protocol | ETSI-TS102 361-1,-2,-3 |
| Operating Temperature | -22°F to +140°F (-30°C to +60°C) |
| Storage Temperature | -40°F to +185°F (-40°C to +85°C) |
| ESD | IEC 61000-4-2 (Level 4) ±8kV Contact, ±15kV Air |
| Dust and Water Ingress | IP66 Standard |
| Humidity | Per MIL-STD-810 C/D/E/F/G Standard |
| Shock and Vibration | Per MIL-STD-810 C/D/E/F/G Standard |
| BD612i-V1 | VHF 136-174MHz, Standard Antenna 146-174MHz, 48 Channels |
| BD612i-U1 | UHF 400-470MHz, Standard Antenna 400-470MHz, 48 Channels |
