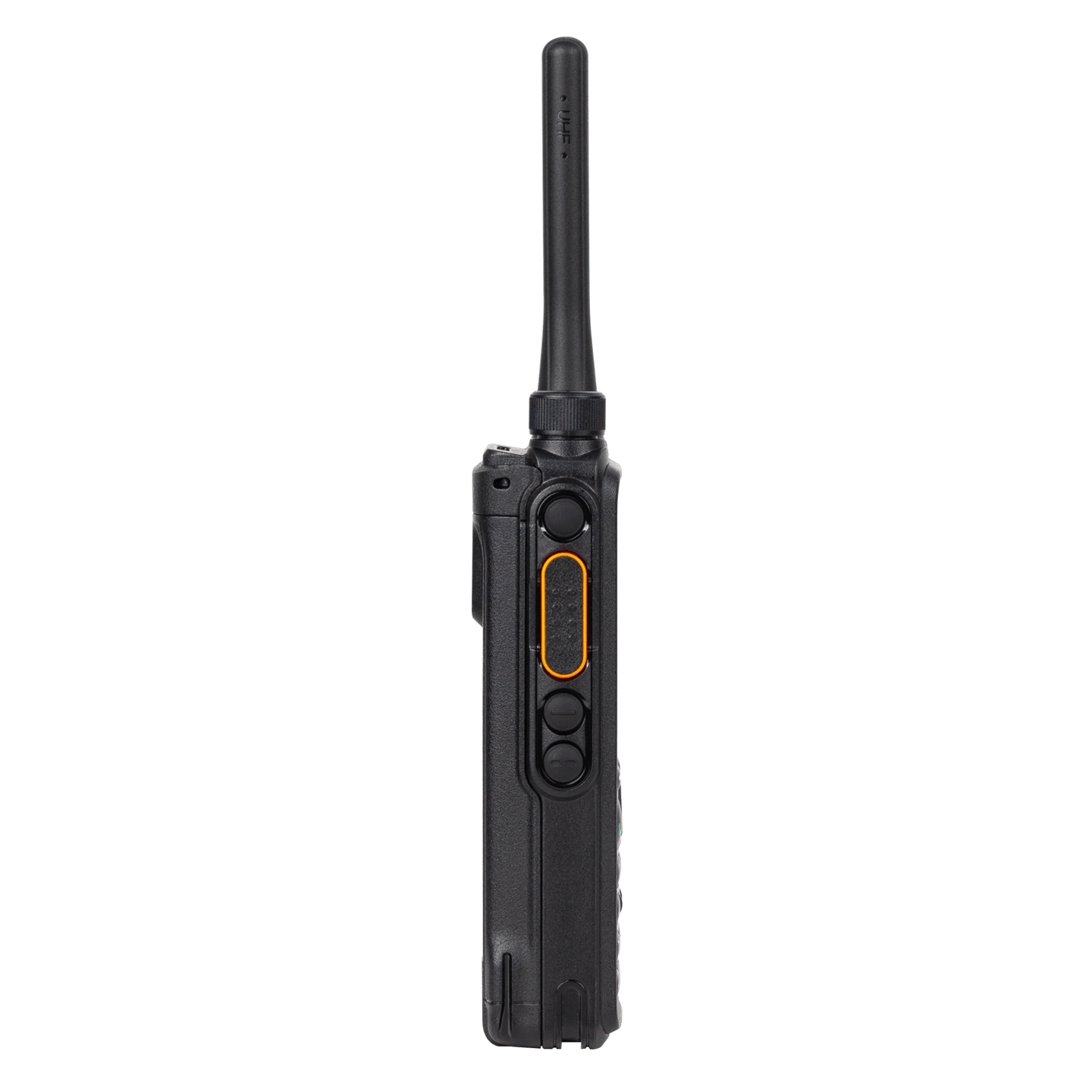

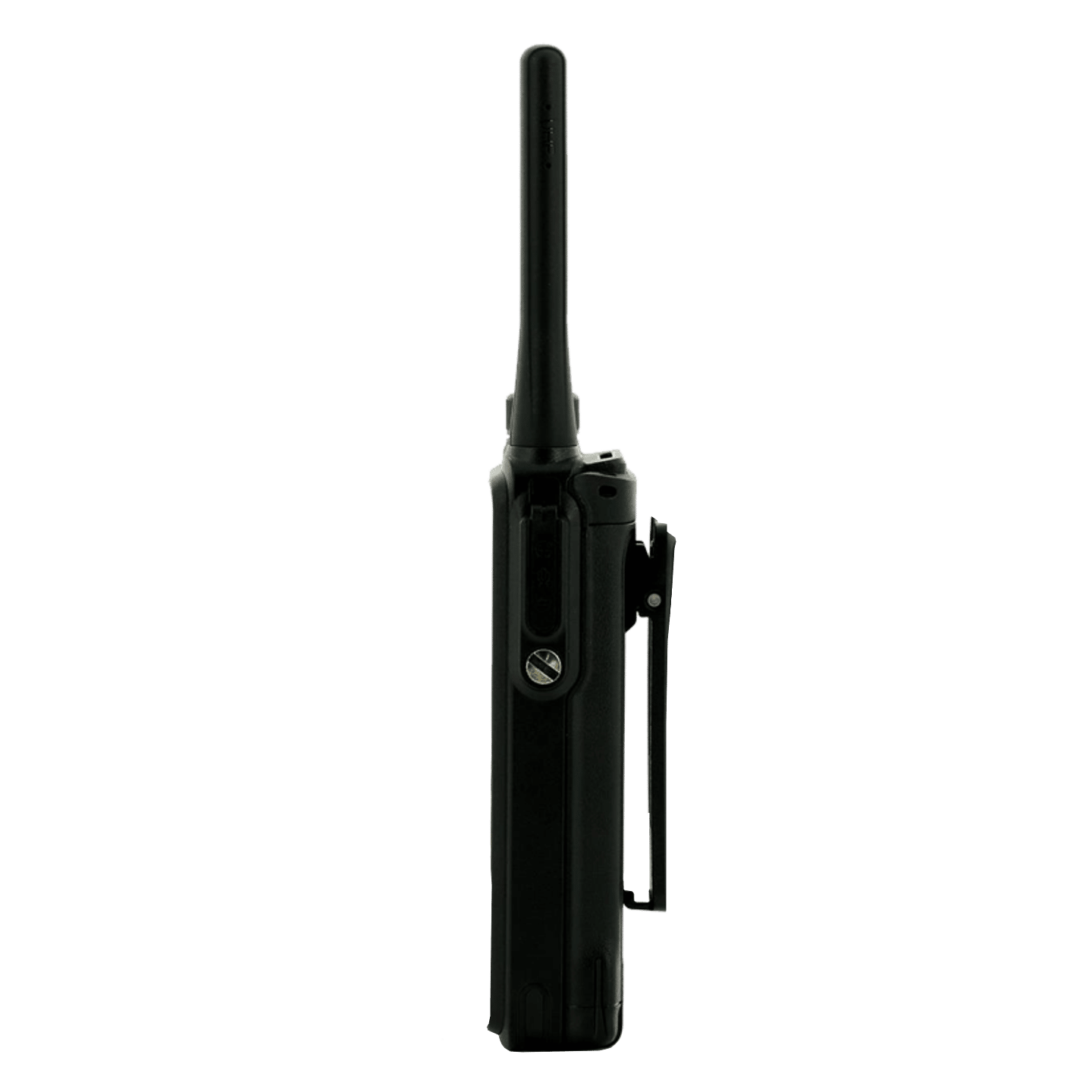

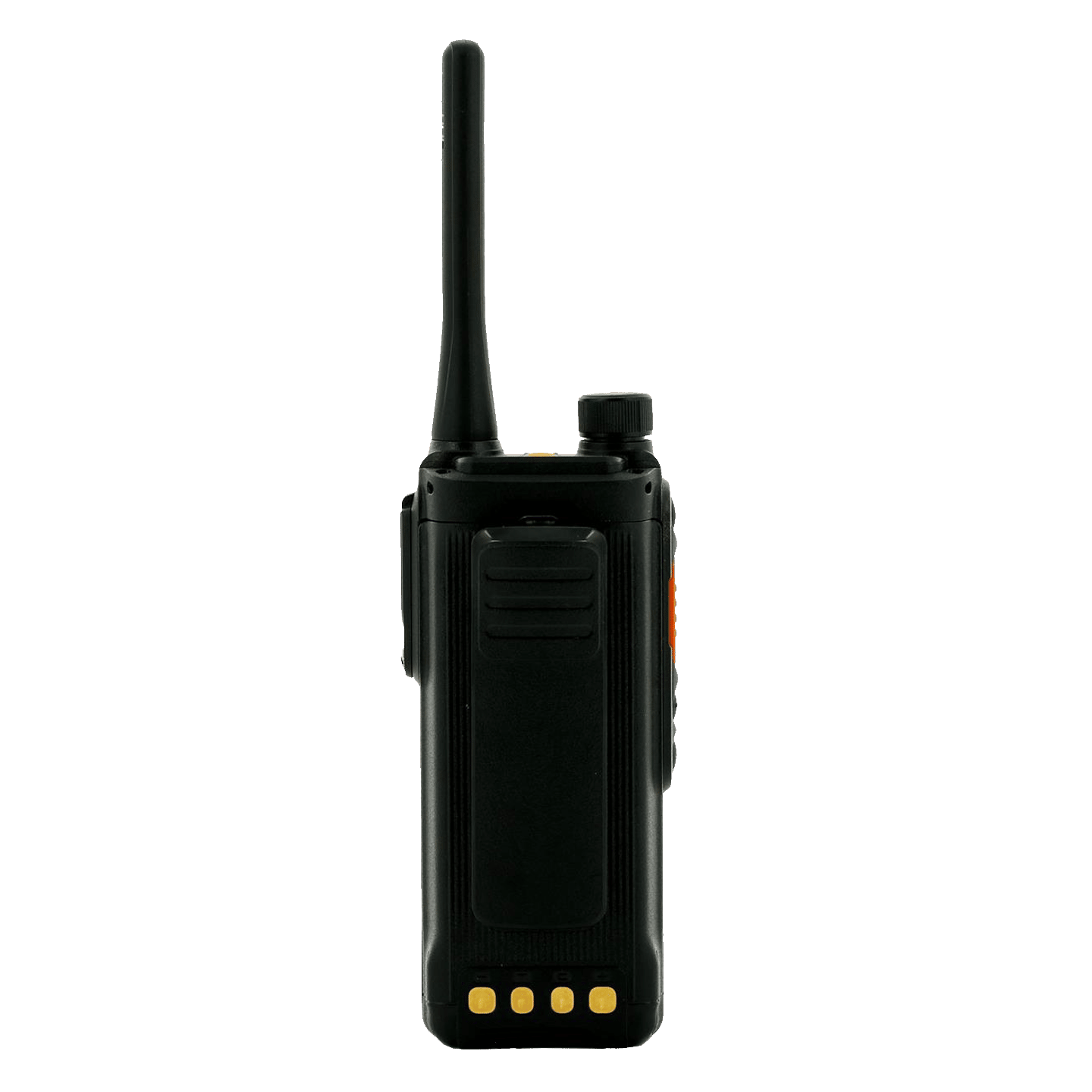

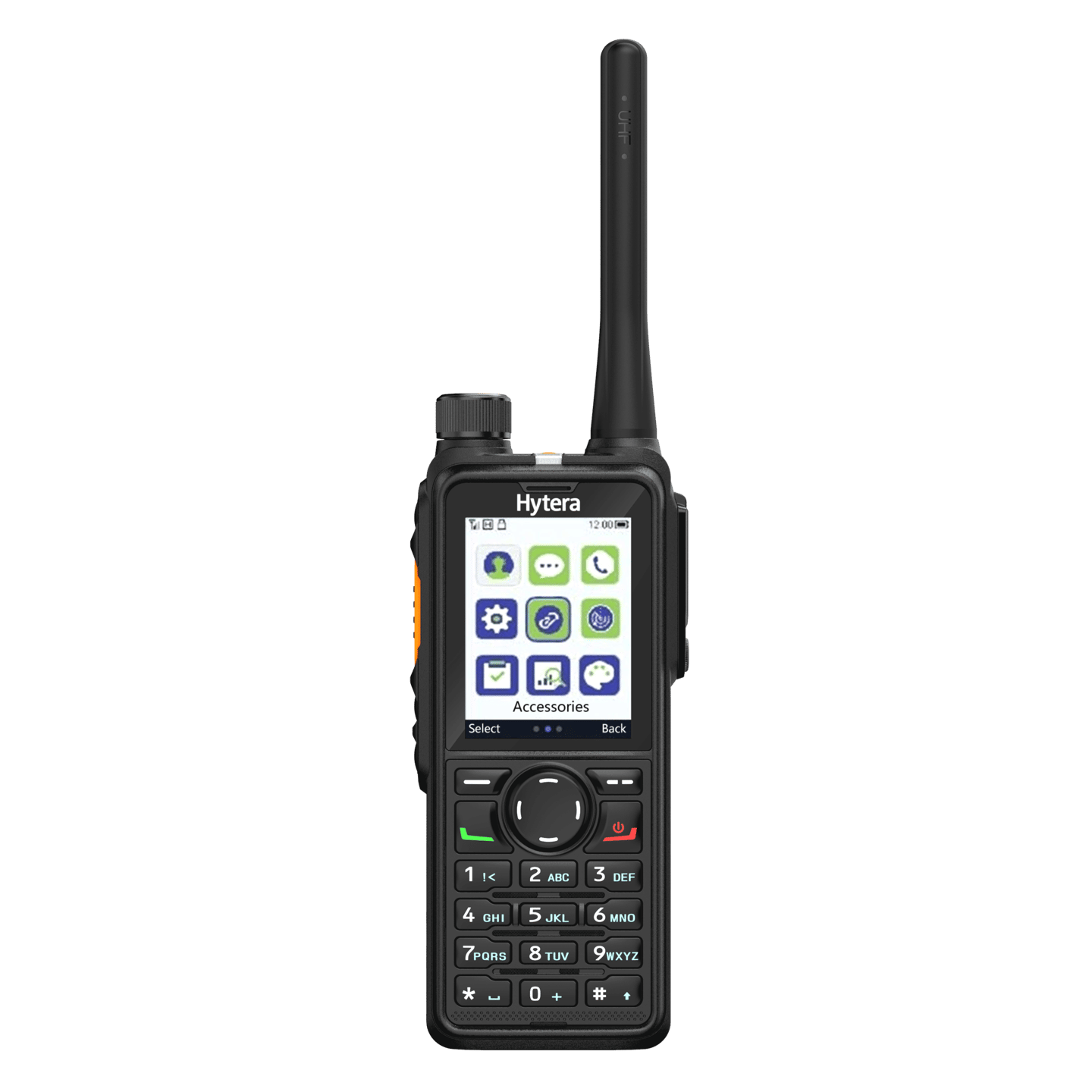

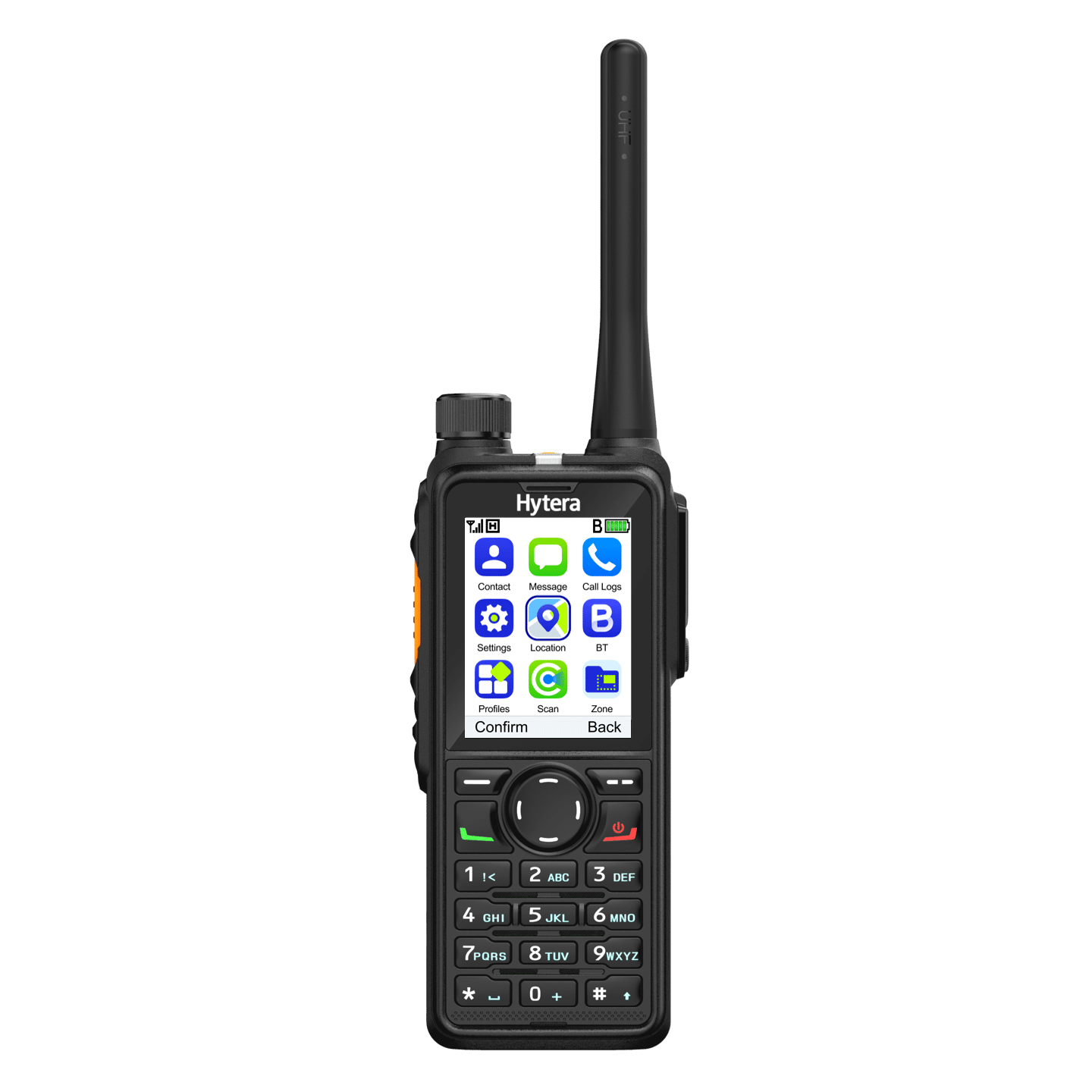

HP782 Two-Way Radio

Handheld | DMR Radios and Repeaters

Highlights

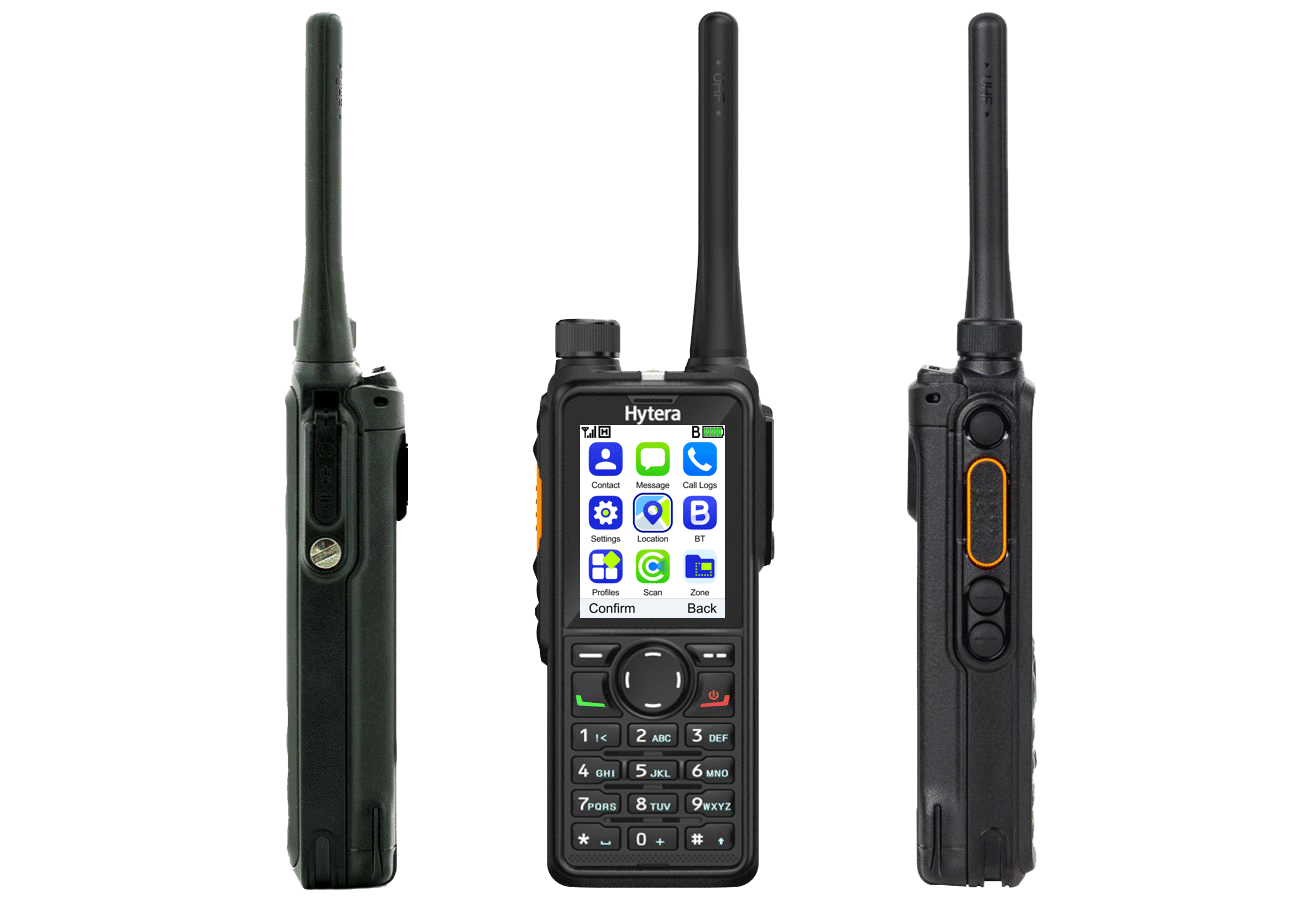

diagram indicating highlights of HP782 Two-Way Radio

360 SMART KNOB

Tactile and easy to find control for both volume and channel switching

END TO END ENCRYPTION

Advanced encryption protects voice and data transmission with advanced ARC4 and AES algorithms

LIGHTWEIGHT AND COMPACT

Thin and light design with advanced materials that weigh less than 10 ounces

WATER PORTING SPEAKER

Water automatically drains from the speaker for clear audio in wet conditions

BUILT-IN BLUETOOTH

Supports both audio and data, and enables connectivity to wireless accessories

PUSH-TO-TALK BUTTON

One-touch instant individual or group calling

PROGRAMMABLE BUTTONS

Two programmable buttons for emergency calling and other controls

LITHIUM POLYMER BATTERY

Delivers up to 24 hours of operation

RUGGED DESIGN

IP68 and MIL-STD-810G compliant

VIBRATE MODE

Provides silent call notification

POWERFUL ANTENNA

Higher sensitivity for longer range

2.4" HD TFT-LCD DISPLAY

Clear and bright with 6-icon navigation

FULL KEYPAD

Wear-resistant keypad and navigation buttons

AI NOISE SUPPRESSION

Artificial Intelligence provides real time digital noise suppression

MICRO SD CARD

Enables additional capabilities like voice recording

Functions

Created with Sketch. LOUDER AND CLEARER AUDIO

Hytera provides industry-leading audio quality through a large 36mm forward-facing optimized speaker that provides up to 93dB of loudness, and AI-based voice enhancement with deep learning ability that can accurately extract voice from noise in real time and decreases unwanted background noises as loud as 30db.

Created with Sketch. THINNER AND LIGHTER

An optimized mechanical design with advanced materials, a 4.3mm speaker, and a lightweight lithium polymer battery delivers a compact radio only 29.5mm thick that weighs less than 11 ounces.

Created with Sketch. HIGHER LEVEL OF RUGGEDNESS

The HP782 is fully compliant with the IP68 and MIL-STD- 810 G standards. It is dustproof, impervious to water jets, submersible to a depth of 2 meters for 4 hours, and can stand up to drop shock testing at 2 meters. The HP782 antimagnetic speaker does not attract magnetic metal dust and shavings.

Created with Sketch. ENHANCED WORKER SAFETY

The HP782 radios are designed for worker safety with an easy access emergency button, emergency calling, and priority interrupt. Lone Worker prompts the user to press a key or speak to indicate they are safe. Man Down allows the radio to automatically enter emergency mode when the radio is inclined at a pre-set angle or remains motionless.

Created with Sketch. LONGER BATTERY LIFE

The latest in lithium polymer technology is used to power the HP7 Series radios for excellent performance. The battery is light and small, achieving a shift life of 24 hours on high transmit power with a duty cycle of 5/5/90.

Created with Sketch. CLEAR AND BRIGHT DISPLAY

The HP782 features a 2.4-inch, 240x300 HD TFT-LCD display with up to 10 lines of content and an intuitive nine-grid interface. The display supports 262,000 colors, and is clearly visible in sunlight.

Created with Sketch. ENHANCED GPS LOCATION TRACKING

The HP782 radios with optional GPS can report current location information to other radios, the dispatcher, or third-party applications in real time, enhancing the efficiency of visualized dispatch applications.

Created with Sketch. HIGHER SECURITY

The HP782 supports Digital End-to-End and Over-the-Air Encryption for voice and data transmitted on digital channels to prevent eavesdropping. Hardware encryption is implemented through a built-in encryption card. Software encryption uses the secure and reliable ARC4 and AES encryption algorithms. Radio authentication prevents unauthorized users from accessing the system. If a radio is lost or stolen, the system can Stun or Kill the radio to prevent unauthorized use.

Created with Sketch. BLUETOOTH AND MICROSD CARD

Optional built-in Bluetooth enables connectivity to wireless accessories. The MicroSD card provides additional capabilities like voice recording.

Created with Sketch. MULTI-SYSTEM OPERATION

The HP782 can be deployed in a wide variety of analog and digital radio networks, including Analog and Digital Conventional, MPT and XPT Trunking, DMR Tier II and Tier III Trunking, IP Multi- Site Connect, and DMR Simulcast Systems.

Tier3 Created with Sketch. EXTENDED COVERAGE AND CONNECTIVITY

The HP782 extends radio range through increased Tx power efficiency, Rx sensitivity, improved antenna gain, and reduced attenuation. This produces a 25% increase in coverage distance and signal penetration through buildings. The enhanced coverage improves efficiency and reduces network infrastructure costs. Two patented technologies and a voice buffer reduces packet loss during Rx handover for consistently clear calls and fewer dropped words

Tier3 Created with Sketch. GREATER CALLING FLEXIBILITY

A variety of calling modes provides the flexibility to communicate with any or all users. The HP7 Series supports Individual Calls (radio to radio, radio to dispatcher), Group Calls (one radio to many, dispatcher to many), All Call (broadcast call to all radios, transmit only), and Telephone Calls (requires connectivity to PSTN, PABX or SIP networks).

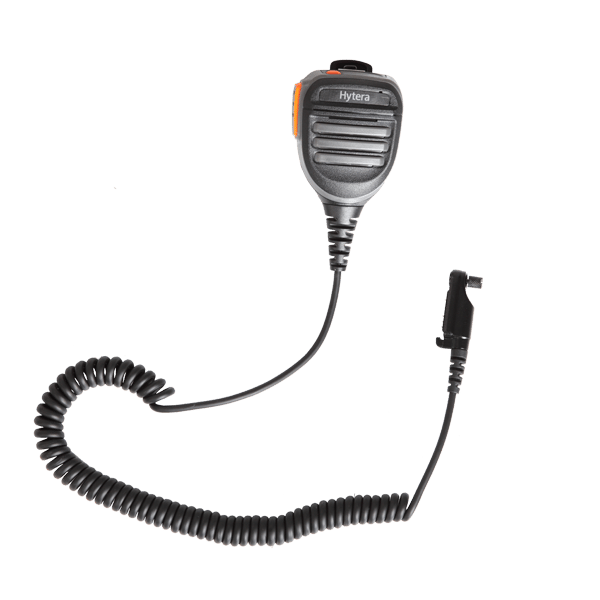

Accessories for HP782 Two-Way Radio

Included as standard with HP782 Two-Way Radio Included as standard with HP782 Two-Way Radio

Technical Specifications

General

Frequency Range
UHF 350-470MHz , VHF 136-174MHz
Channel Capacity
1,024 Channels (512 Analog, 512 Digital)
Zone Capacity
64 Zones with 256 Channels per Zone
Channel Spacing
12.5kHz / 20kHz / 25kHz
Operational Voltage
7.7V (Rated)
Battery
2400mAh Li-Ion Polymer
Battery Life (5/5/90)
UHF/VHF - 20 Hours, 24 Hours GPS disabled
Weight
10.93oz (310g)
Dimensions (H x W x D)
5 3/16” x 2 5/32” x 1 5/32” (132 x 55 x 29.5mm) without antenna
Frequency Stability
± 0.5ppm
Antenna Impedance
50Ω
Display
LCD 2.4”, 320x240, 262,000 colors, 10 rows
Bluetooth
BT 5.0 BLE+EDR

GPS (5 Satellites visible at nominal 130dBm)

Time to First Fix Cold Start
<60 Seconds (Typical TTFF)
Time to First Fix Hot Start
<10 Seconds (Typical TTFF)
Horizontal Accuracy
<5 meters

Receiver

Digital Sensitivity
0.18μV (BER 5%)
Analog Sensitivity
0.16μV (Typical) (12dB SINAD) 0.18μV (12dB SINAD)
Adjacent Selectivity
TIA-603: [email protected], [email protected]/25kHz ETSI: [email protected], [email protected]/25kHz
Spurious Response Rejection
TIA-603: [email protected]/20/25kHz ETSI: [email protected]/20/25kHz
Intermodulation
TIA-603: [email protected]/20/25kHz ETSI: [email protected]/20/25kHz
Hum and Noise
[email protected], [email protected], [email protected]
Rated Audio Power Output
0.5W
Rated Audio Distortion
≤3%
Audio Response
+1 to -3dB
Conducted Spurious Emission
<-57dBm

Transmitter

RF Power Output
VHF High Power: 5W, VHF Low Power: 1W UHF High Power: 4W, UHF Low Power: 1W
FM Modulation
11K0F3E @ 12.5kHz 14K0F3E @ 20kHz 16K0F3E @ 25kHz
4FSK Digital Modulation
12.5kHz Data Only: 7K60FXD 12.5kHz Data and Voice: 7K60FXW
Conducted/Radiated Emission
-36dBm <1GHz, -30dBm >1GHz
Modulation Limiting
±2.5kHz @ 12.5kHz ±4.0kHz @ 20kHz ±5.0kHz @ 25kHz
FM Hum and Noise
40dB @ 12.5kHz, 45dB @ 25kHz
Adjacent Channel Power
60dB @ 12.5kHz, 70dB @ 25kHz
Audio Response
+1 to -3dB
Audio Distortion
≤3%
Digital Vocoder Type
AMBE+2TM

Environmental

Operating Temperature
-0°F to +140°F (-20°C to +60°C)
Storage Temperature
-40°F to +185°F (-40°C to +85°C)
ESD
IEC 61000-4-2 (Level 4) ±8kV Contact, ±15kV Air
Dust and Water Ingress
IP68 Standard
Humidity
Per MIL-STD-810 C/D/E/F/G Standard
Shock and Vibration
Per MIL-STD-810 C/D/E/F/G Standard

Ordering Information

HP782-Uv
UHF 350-470MHz (Antenna 400-470MHz), 1-4W
HP782-V1
VHF 136-174MHz (Antenna 153-164MHz), 1-5W
HP782-G-BT-Uv
UHF 350-470MHz (Antenna 400-470MHz), 1-4W, with GPS and Bluetooth
HP782-G-BT-V1
VHF 136-174MHz (Antenna 153-164MHz), 1-5W with GPS and Bluetooth
